Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

23 part groups · 5 illustrations

Illustrations

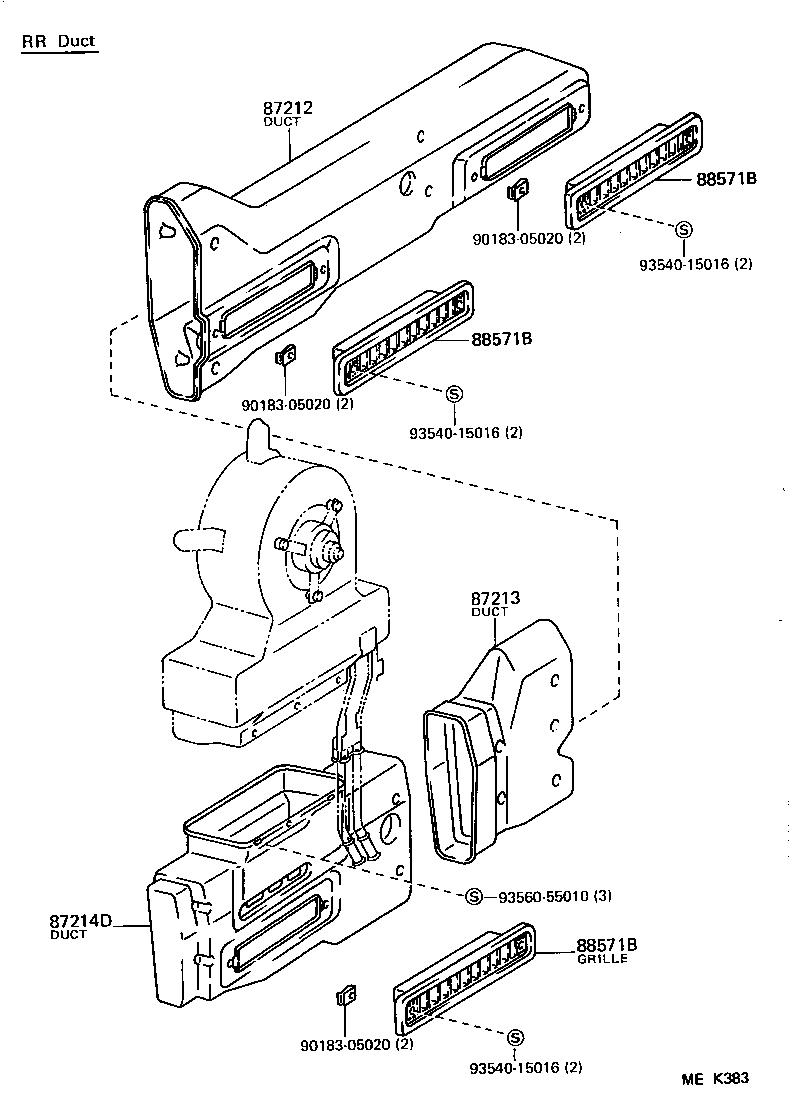

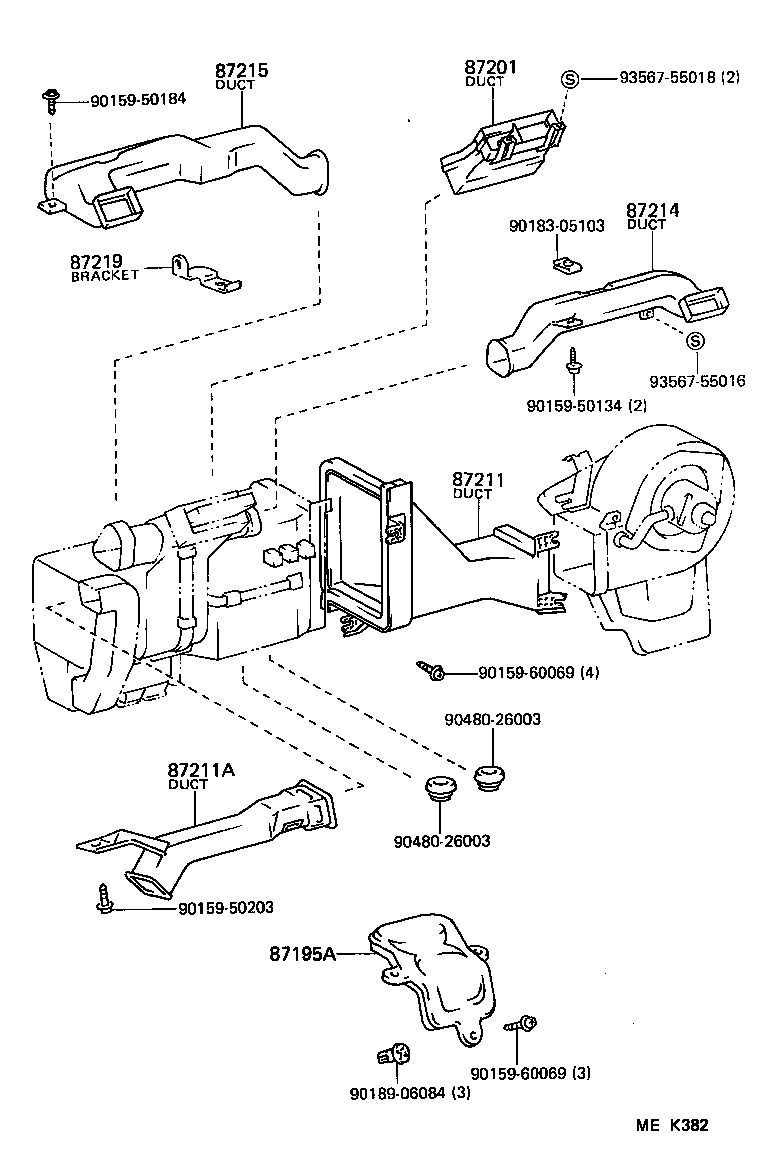

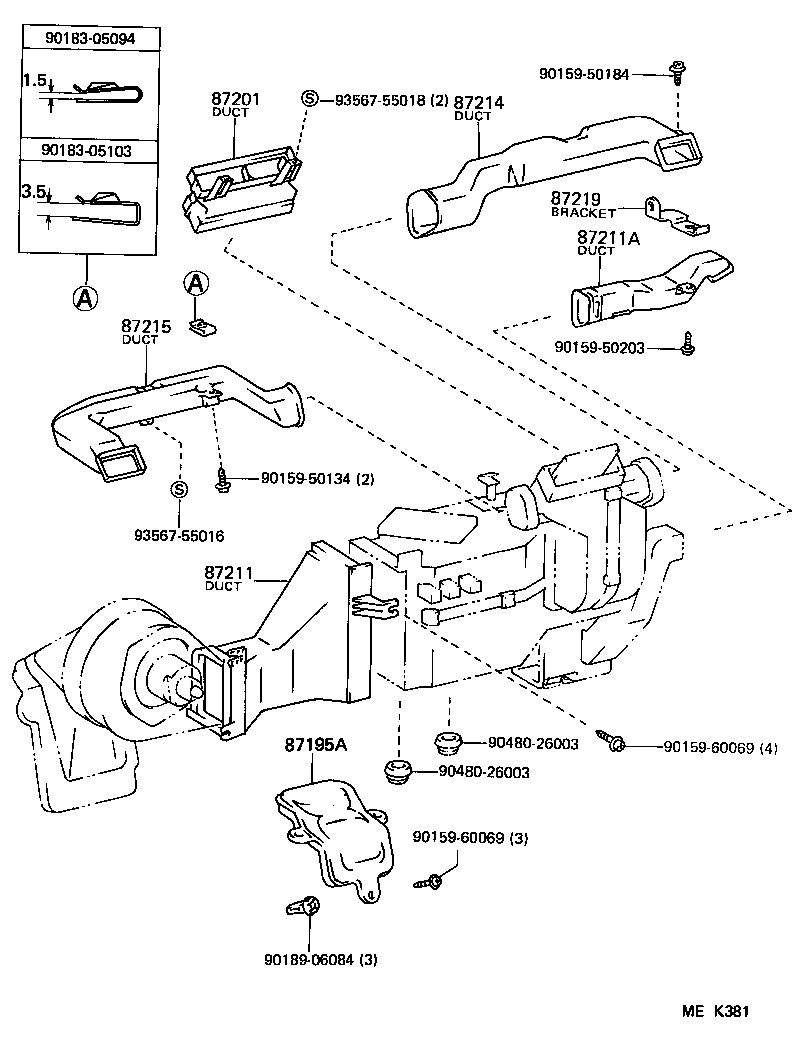

Figure MEK379B MEK379B 1987-08 → — Figure MEK380A MEK380A 1987-08 → — Figure MEK381 MEK381 1987-08 → — Figure MEK382 MEK382 1987-08 → — Figure MEK383 MEK383 1987-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55913A Plate, Heater Control Lever Guide
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
55944 Plate, Heater Control Support
87195A Cover, Heater Inlet Hole
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214D Duct, Air, Rear NO.3
87215 Duct, Air, Side NO.1 LH
87219 Bracket, Front Air Duct
88571B Grille, Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
