Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

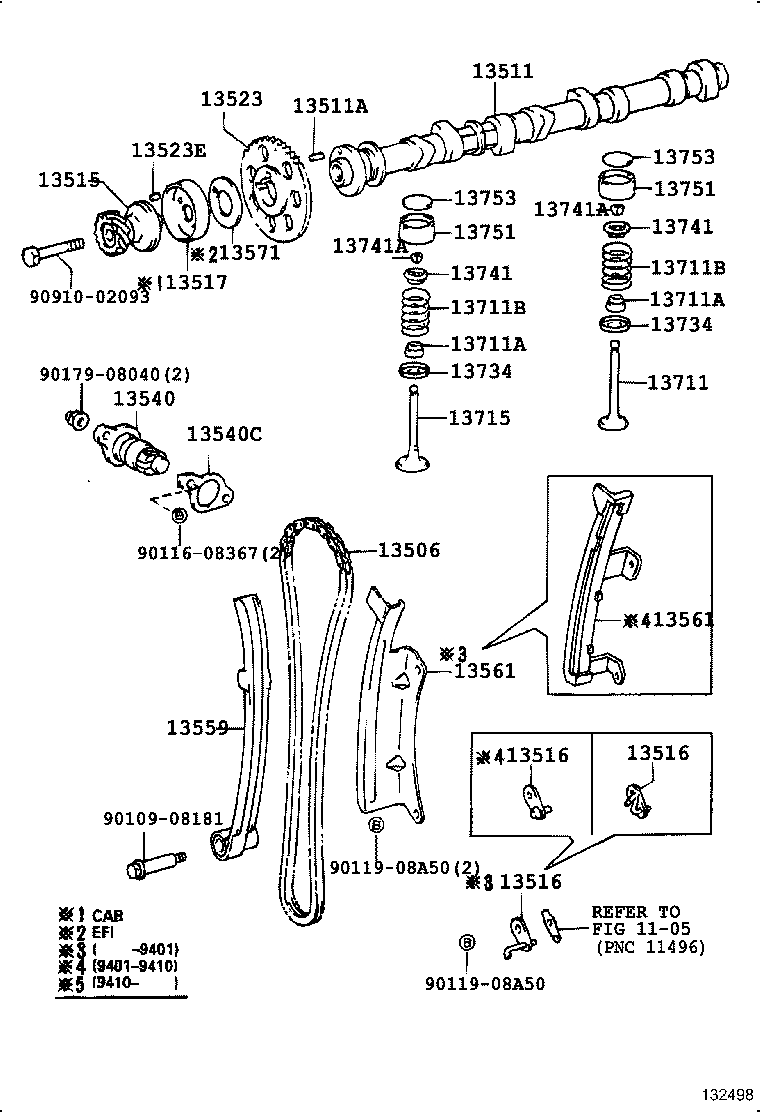

Exploded illustration 132498 13511 — CAMSHAFT (2 parts) 13523 — GEAR OR SPROCKET, CAMSHAFT TIMING (1 parts) 13511A — PIN, STRAIGHT(FOR CAMSHAFT KNOCK) (1 parts) 13523E — PIN, STRAIGHT(FOR TIMING GEAR) (1 parts) 13753 — SHIM, VALVE ADJUSTING (41 parts) 13515 — GEAR, DISTRIBUTOR DRIVE (1 parts) 13751 — LIFTER, VALVE (2 parts) 13753 — SHIM, VALVE ADJUSTING (41 parts) 13741A — LOCK, VALVE SPRING RETAINER (2 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 13751 — LIFTER, VALVE (2 parts) 13741A — LOCK, VALVE SPRING RETAINER (2 parts) 13571 — PLATE, CAMSHAFT THRUST (1 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (2 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 13517 — CAM, FUEL PUMP DRIVE (1 parts) 9091002093 — not listed in this catalogue 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (2 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (2 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (2 parts) 13734 — SEAT, VALVE SPRING (1 parts) 9017908040 — not listed in this catalogue 13711 — VALVE, INTAKE (4 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (2 parts) 13715 — VALVE, EXHAUST (4 parts) 13540C — GASKET(FOR CHAIN TENSIONER) (1 parts) 13506 — CHAIN SUB-ASSY (1 parts) 9011608367 — not listed in this catalogue 13561 — DAMPER, CHAIN VIBRATION, NO.1 (3 parts) 13561 — DAMPER, CHAIN VIBRATION, NO.1 (3 parts) 13559 — SLIPPER, CHAIN TENSIONER (3 parts) 13516 — JET, OIL (3 parts) 13516 — JET, OIL (3 parts) 9010908181 — not listed in this catalogue 9011908A50 — not listed in this catalogue 13516 — JET, OIL (3 parts) 9011908A50 — not listed in this catalogue 1105 — not listed in this catalogue
132498 · 32 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
81 parts on this figure
Part number Description Fitment Price
13506 — Chain Sub-assy
13506-75010 Chain Sub-assy
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13511 — Camshaft
13501-54050 Camshaft
1989-08 → 1995-08 ended
2L LH10#,11# —
13501-75010 Camshaft
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13511A — Pin, Straight(FOR CAMSHAFT KNOCK)
90250-06068 note Pin, Straight(FOR CAMSHAFT KNOCK)
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13515 — Gear, Distributor Drive
13515-75010 Gear, Distributor Drive
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13516 — Jet, Oil
13516-75010 Jet, Oil
1989-08 → 1994-01 ended
1RZ,2RZE RZH10#,11# —
13516-75020 Jet, Oil
1994-10 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13516-76010 Jet, Oil
1994-01 → 1994-10 ended
1RZ,2RZE RZH10#,11# —
13517 — Cam, Fuel Pump Drive
13517-37010 Cam, Fuel Pump Drive
1989-08 → 1995-08 ended
1RZ RZH102,112 —
13523 — Gear OR Sprocket, Camshaft Timing
13523-75010 Gear OR Sprocket, Camshaft Timing
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13523E — Pin, Straight(FOR TIMING GEAR)
90250-05021 Pin, Straight(FOR TIMING GEAR)
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13540 — Tensioner Assy, Chain, NO.1
13540-75010 Tensioner Assy, Chain, NO.1
1989-08 → 1994-01 ended
1RZ,2RZE RZH10#,11# —
13540-75020 Tensioner Assy, Chain, NO.1
1994-01 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13540C — Gasket(FOR CHAIN TENSIONER)
13552-75010 Gasket(FOR CHAIN TENSIONER)
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13559 — Slipper, Chain Tensioner
13559-75010 Slipper, Chain Tensioner
1989-08 → 1991-12 ended
1RZ,2RZE RZH10#,11# —
13559-75011 Slipper, Chain Tensioner
1991-12 → 1994-01 ended
1RZ,2RZE RZH10#,11# —
13559-76010 Slipper, Chain Tensioner
1994-01 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13561 — Damper, Chain Vibration, NO.1
13561-75010 Damper, Chain Vibration, NO.1
1989-08 → 1989-12 ended
1RZ,2RZE RZH10#,11# —
13561-76010 Damper, Chain Vibration, NO.1
1989-12 → 1994-01 ended
1RZ,2RZE RZH10#,11# —
13561-76020 Damper, Chain Vibration, NO.1
1994-01 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13571 — Plate, Camshaft Thrust
13571-35010 Plate, Camshaft Thrust
1989-08 → 1995-08 ended
2RZE RZH103,109,113,115,119 —
13711 — Valve, Intake
13711-17010 Valve, Intake
1995-05 → 1995-08 ended
2L LH10#,11# —
13711-54020 Valve, Intake
1989-08 → 1995-05 ended
2L LH10#,11# —
13711-75020 Valve, Intake
1989-08 → 1995-08 ended
1RZ RZH102,112 —
13711-75030 Valve, Intake
1989-08 → 1995-08 ended
2RZE RZH103,109,113,115,119 —
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90913-02053 Seal OR Ring, O(FOR VALVE STEM OIL)
1989-08 → 1995-08 ended
2L LH10#,11# —
90913-02053 Seal OR Ring, O(FOR VALVE STEM OIL)
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13711B — Spring, Compression(FOR INNER)
90501-45033 Spring, Compression(FOR INNER)
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
90504-49001 Spring, Compression(FOR INNER)
1989-08 → 1995-08 ended
2L LH10#,11# —
13715 — Valve, Exhaust
13715-17010 Valve, Exhaust
1990-03 → 1995-08 ended
2L LH10#,11# —
13715-54040 Valve, Exhaust
1989-08 → 1990-03 ended
2L LH10#,11# —
13715-75020 Valve, Exhaust
1989-08 → 1995-08 ended
1RZ RZH102,112 —
13715-75030 Valve, Exhaust
1989-08 → 1995-08 ended
2RZE RZH103,109,113,115,119 —
13734 — Seat, Valve Spring
13734-75010 Seat, Valve Spring
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13741 — Retainer, Valve Spring
13741-43010 Retainer, Valve Spring
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13741-54020 Retainer, Valve Spring
1989-08 → 1995-08 ended
2L LH10#,11# —
13741A — Lock, Valve Spring Retainer
90913-03014 Lock, Valve Spring Retainer
1989-08 → 1995-08 ended
2L LH10#,11# —
90913-03014 Lock, Valve Spring Retainer
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13751 — Lifter, Valve
13751-54010 Lifter, Valve
1989-08 → 1995-08 ended
2L LH10#,11# —
13751-64011 Lifter, Valve
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753 — Shim, Valve Adjusting
13753-54010 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54060 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54110 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54160 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54210 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54260 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54310 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54360 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54410 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54420 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54430 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54440 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54450 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54460 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54470 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54480 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-54490 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
2L LH10#,11# —
13753-65600 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65620 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65640 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65660 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65680 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65700 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65720 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65740 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65760 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65780 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65800 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65820 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65840 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65860 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-65880 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B010 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B030 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B050 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B070 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B090 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B110 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B130 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B150 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
13753-6B170 note Shim, Valve Adjusting
1989-08 → 1995-08 ended
1RZ,2RZE RZH10#,11# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
