Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

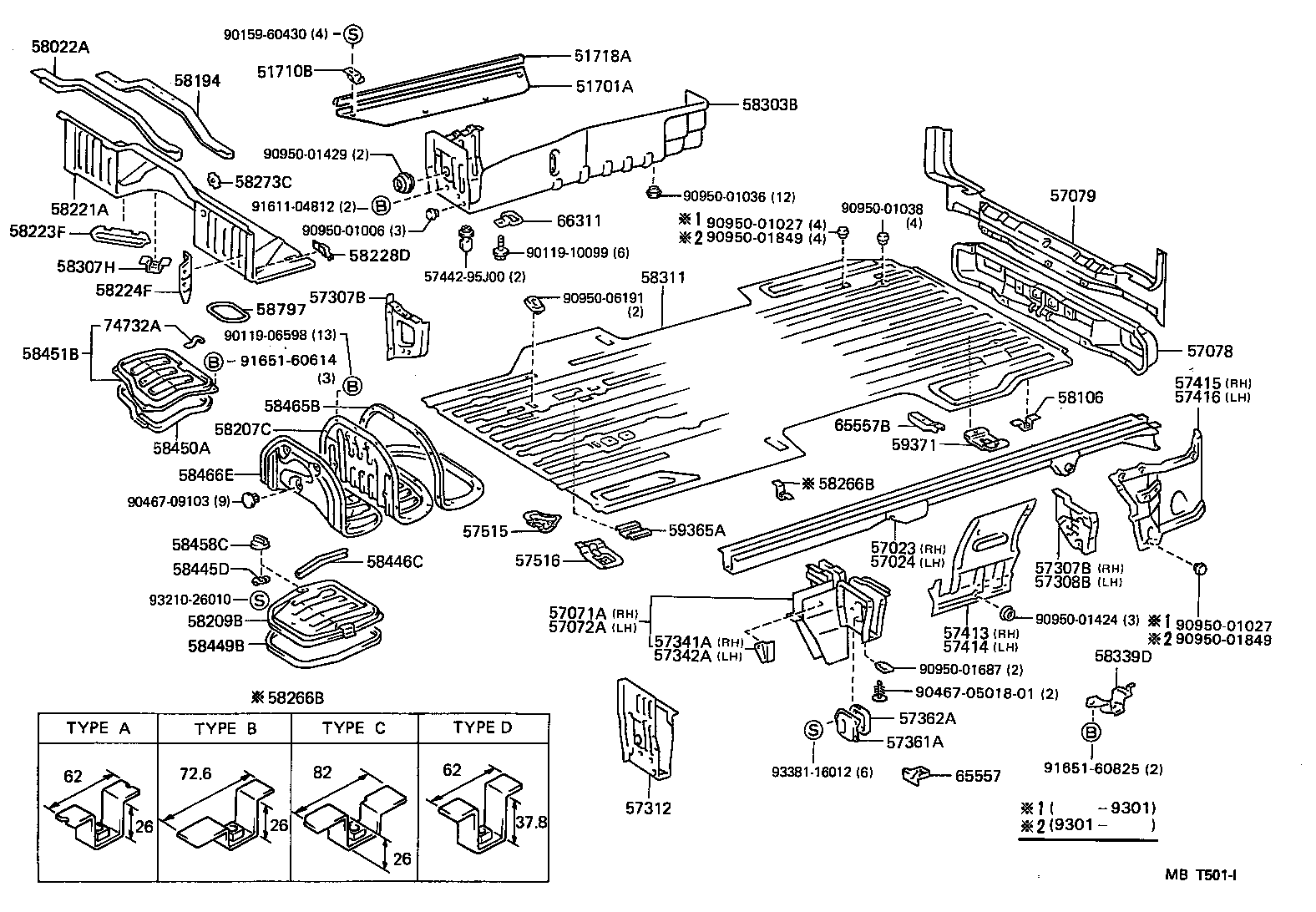

Exploded illustration MBT501I 9015960430 — not listed in this catalogue 58022A — REINFORCEMENT SUB-ASSY, HEADER PANEL (1 parts) 51718A — PROTECTOR, STEP COVER, RH (3 parts) 51710B — CLAMP, SIDE DOOR STEP OPENING (6 parts) 58194 — RETAINER, ENGINE COVER HINGE (1 parts) 51701A — COVER SUB-ASSY, SIDE DOOR STEP PANEL, RH (5 parts) 58303B — STEP SUB-ASSY, REAR FLOOR, RH (38 parts) 9095001429 — not listed in this catalogue 58273C — REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR (1 parts) 57079 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER (5 parts) 9095001036 — not listed in this catalogue 9161104812 — not listed in this catalogue 58221A — PANEL, HEADER (188 parts) 9095001038 — not listed in this catalogue 66311 — HOOK, ROPE (51 parts) 9095001027 — not listed in this catalogue 58223F — REINFORCEMENT, HEADER PANEL, NO.2 (2 parts) 9095001006 — not listed in this catalogue 9095001849 — not listed in this catalogue 9011910099 — not listed in this catalogue 58228D — PATCH, HEADER PANEL, LH (1 parts) 58307H — BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 (3 parts) 5744295J00 — not listed in this catalogue 58311 — PAN, REAR FLOOR (76 parts) 58224F — REINFORCEMENT, HEADER PANEL, NO.3 (2 parts) 57307B — OUTRIGGER SUB-ASSY, NO.4 RH (3 parts) 9095006191 — not listed in this catalogue 58797 — BRACKET, JACK CLAMP BAND (1 parts) 74732A — BRACKET, TOOL BAG SET BAND (7 parts) 9011906598 — not listed in this catalogue 57078 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER (12 parts) 58451B — COVER, AIR CLEANER SERVICE HOLE (26 parts) 9165160614 — not listed in this catalogue 57415 — RAIL, FLOOR SIDE, REAR RH (18 parts) 58106 — BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 (1 parts) 57416 — RAIL, FLOOR SIDE, REAR LH (19 parts) 58465B — PACKING, TRANSMISSION SERVICE HOLE COVER (1 parts) 65557B — RETAINER, ROPE HOOK (12 parts) 58207C — COVER SUB-ASSY, TRANSMISSION SERVICE HOLE (1 parts) 59371 — RETAINER, REAR SEAT, NO.3 (1 parts) 58450A — PACKING, BATTERY SERVICE HOLE COVER (5 parts) 58466E — SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 (1 parts) 58266B — BRACKET, FUEL TUBE CLAMP (9 parts) 9046709103 — not listed in this catalogue 59365A — RETEINER, REAR SEAT, NO.2 (1 parts) 57515 — BRACKET, PARKING BRAKE, RH (1 parts) 58458C — KNOB, BATTERY SERVICE HOLE COVER (1 parts) 57023 — MEMBER SUB-ASSY, REAR SIDE, RH (9 parts) 57516 — BRACKET SUB-ASSY, PARKING BRAKE, LH (1 parts) 58446C — PROTECTOR, BATTERY (1 parts) 57024 — MEMBER SUB-ASSY, REAR SIDE, LH (9 parts) 57307B — OUTRIGGER SUB-ASSY, NO.4 RH (3 parts) 58445D — LOCK, BATTERY SERVICE HOLE COVER (1 parts) 57308B — OUTRIGGER SUB-ASSY, NO.4 LH (1 parts) 9321026010 — not listed in this catalogue 57071A — HANGER SUB-ASSY, REAR SPRING, FRONT, RH (8 parts) 9095001424 — not listed in this catalogue 58209B — COVER SUB-ASSY, BATTERY SERVICE HOLE (1 parts) 9095001027 — not listed in this catalogue 57072A — HANGER SUB-ASSY, REAR SPRING, FRONT, LH (14 parts) 57413 — RAIL, FLOOR SIDE, CENTER RH (21 parts) 9095001849 — not listed in this catalogue 57341A — GUSSET, OUTRIGGER, NO.2 RH (2 parts) 58449B — PACKING, BATTERY SERVICE HOLE COVER (1 parts) 57414 — RAIL, FLOOR SIDE, CENTER LH (34 parts) 57342A — GUSSET, OUTRIGGER, NO.2 LH (1 parts) 58339D — BRACKET, JACK UP (1 parts) 9095001687 — not listed in this catalogue 904670501801 — not listed in this catalogue 58266B — BRACKET, FUEL TUBE CLAMP (9 parts) 57362A — PACKING, NO.2 OUTRIGGER HOLE COVER (4 parts) 57361A — COVER, NO.2 OUTERIGGER HOLE (11 parts) 9165160825 — not listed in this catalogue 9338116012 — not listed in this catalogue 65557 — RETAINER, ROPE HOOK (7 parts) 57312 — OUTRIGGER, NO.1 LH (1 parts)
MBT501I · 54 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
631 parts on this figure
Part number Description Fitment Price
51701A — Cover Sub-assy, Side Door Step Panel, RH
51701-95J03-03 note Cover Sub-assy, Side Door Step Panel, RH
1991-08 → 1992-05 ended
LH10#,11#,RZH10#,11# —
51701-95J03-03 note Cover Sub-assy, Side Door Step Panel, RH
1992-05 → 1993-08 ended
LH10#,11#,RZH10#,11# LHD —
51701-95J03-03 note Cover Sub-assy, Side Door Step Panel, RH
1989-08 → 1991-08 ended
LH10#,11#,RZH10#,11# LHD —
51701-95J03-B0 note Cover Sub-assy, Side Door Step Panel, RH
1993-08 → 1994-08 ended
LH10#,11#,RZH103,109,11# STD —
51701-95J03-B0 note Cover Sub-assy, Side Door Step Panel, RH
1994-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# LHD STD —
51710B — Clamp, Side Door Step Opening
90462-16027 Clamp, Side Door Step Opening
1989-08 → 1991-08 ended
LH102,112,RZH102,103,113 LHD 4D 03S —
90462-16027 Clamp, Side Door Step Opening
1989-08 → 1993-08 ended
RZH109,112,119;RZH113 06S 5F;LH10#,11#,RZH102,103,113,115 03S,09S,15S —
90462-16027 Clamp, Side Door Step Opening
1991-08 → 1993-08 ended
LH102,112,RZH102,103,113 LHD 4D STD —
90462-16027 Clamp, Side Door Step Opening
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,112,113,119 5D —
90462-16027 Clamp, Side Door Step Opening
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D 03S +1 —
90462-16027 Clamp, Side Door Step Opening
1993-08 → 1995-08 ended
LH10#,11# SP;RZH113 06S 5F;RZH103,109,119 +3 —
51718A — Protector, Step Cover, RH
51718-95J01-03 note Protector, Step Cover, RH
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,11# LHD —
51718-95J01-B0 note Protector, Step Cover, RH
1993-08 → 1994-08 ended
LH10#,11#,RZH103,109,11# STD —
51718-95J01-B0 note Protector, Step Cover, RH
1994-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# LHD STD —
57023 — Member Sub-assy, Rear Side, RH
57023-26030 note Member Sub-assy, Rear Side, RH
1990-10 → 1991-08 ended
LH102,RZH102 DX —
57023-26030 note Member Sub-assy, Rear Side, RH
1991-08 → 1993-08 ended
LH102 DX —
57023-26040 note Member Sub-assy, Rear Side, RH
1990-10 → 1993-08 ended
LH112,RZH112 DX —
57023-95N21 Member Sub-assy, Rear Side, RH
1989-08 → 1995-08 ended
LH10#,RZH10# STD —
57023-95N22 Member Sub-assy, Rear Side, RH
1989-08 → 1995-08 ended
LH102,RZH10# DX,GL —
57023-95N23 Member Sub-assy, Rear Side, RH
1989-08 → 1995-08 ended
LH11#,RZH11# STD —
57023-95N24 Member Sub-assy, Rear Side, RH
1989-08 → 1995-08 ended
LH11#,RZH112,113,119 DX —
57023-95N36 note Member Sub-assy, Rear Side, RH
1990-10 → 1993-08 ended
RZH112 5D 5F;LH112 LHD +1 —
57023-95N37 note Member Sub-assy, Rear Side, RH
1990-10 → 1993-08 ended
LH102,RZH102 LHD STD —
57024 — Member Sub-assy, Rear Side, LH
57024-26040 note Member Sub-assy, Rear Side, LH
1990-10 → 1991-08 ended
LH102,RZH102 DX —
57024-26040 note Member Sub-assy, Rear Side, LH
1991-08 → 1993-08 ended
LH102 DX —
57024-26050 note Member Sub-assy, Rear Side, LH
1990-10 → 1993-08 ended
LH112,RZH112 DX —
57024-95N07 Member Sub-assy, Rear Side, LH
1989-08 → 1995-08 ended
LH10#,RZH10# STD —
57024-95N08 Member Sub-assy, Rear Side, LH
1989-08 → 1995-08 ended
LH102,RZH10# DX,GL —
57024-95N09 Member Sub-assy, Rear Side, LH
1989-08 → 1995-08 ended
LH11#,RZH11# STD —
57024-95N10 Member Sub-assy, Rear Side, LH
1989-08 → 1995-08 ended
LH11#,RZH112,113,119 DX —
57024-95N21 note Member Sub-assy, Rear Side, LH
1990-10 → 1993-08 ended
RZH112 5D 5F;LH112 LHD +1 —
57024-95N22 note Member Sub-assy, Rear Side, LH
1990-10 → 1993-08 ended
LH102,RZH102 LHD STD —
57071A — Hanger Sub-assy, Rear Spring, Front, RH
57071-26030 Hanger Sub-assy, Rear Spring, Front, RH
1993-08 → 1995-08 ended
LH112,RZH113 LHD —
57071-26030 note Hanger Sub-assy, Rear Spring, Front, RH
1990-10 → 1993-08 ended
LH112 LHD;RZH112 LHD 5F —
57071-95J46 Hanger Sub-assy, Rear Spring, Front, RH
1989-08 → 1995-08 ended
LH102,RZH102,103 LHD —
57071-95J47 Hanger Sub-assy, Rear Spring, Front, RH
1989-08 → 1995-08 ended
LH108,RZH109 —
57071-95J51 Hanger Sub-assy, Rear Spring, Front, RH
1989-08 → 1995-08 ended
LH102 RHD —
57071-95J55 Hanger Sub-assy, Rear Spring, Front, RH
1989-08 → 1993-08 ended
LH112,RZH112,113,115 LHD —
57071-95J57 Hanger Sub-assy, Rear Spring, Front, RH
1989-08 → 1995-08 ended
LH118,RZH119 —
57071-95J61 Hanger Sub-assy, Rear Spring, Front, RH
1989-08 → 1995-08 ended
LH112,RZH112,113 RHD —
57072A — Hanger Sub-assy, Rear Spring, Front, LH
57072-26050 Hanger Sub-assy, Rear Spring, Front, LH
1993-08 → 1995-08 ended
LH112,RZH113 LHD 4D —
57072-26050 note Hanger Sub-assy, Rear Spring, Front, LH
1990-10 → 1993-08 ended
LH112,RZH112 LHD 4D —
57072-26060 Hanger Sub-assy, Rear Spring, Front, LH
1993-08 → 1995-08 ended
LH112,RZH113 5D;LH112,RZH113 RHD —
57072-26060 note Hanger Sub-assy, Rear Spring, Front, LH
1990-10 → 1993-08 ended
LH112 5D;RZH112 5D 5F —
57072-26070 Hanger Sub-assy, Rear Spring, Front, LH
1993-08 → 1995-08 ended
LH102,RZH102,103 LHD 4D —
57072-95J47 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1993-08 ended
LH102,RZH102,103 LHD 4D —
57072-95J48 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1995-08 ended
RZH109 SG —
57072-95J51 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1995-08 ended
LH102 RHD;LH102,RZH102,103 5D —
57072-95J52 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1995-08 ended
LH108,RZH109 03S —
57072-95J54 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1993-08 ended
LH112,RZH112,113 LHD 4D —
57072-95J55 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1995-08 ended
LH118,RZH119 SG —
57072-95J59 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1993-08 ended
LH112 RHD;RZH112 03S;LH112,RZH113 5D —
57072-95J60 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1995-08 ended
LH118,RZH119 03S —
57072-95J62 Hanger Sub-assy, Rear Spring, Front, LH
1989-08 → 1992-05 ended
RZH115 —
57078 — Member Sub-assy, Rear Floor Rear Cross, Outer
57069-26010 note Member Sub-assy, Rear Floor Rear Cross, Outer
1991-08 → 1993-08 ended
LH102,112,RZH102,112 LHD —
57069-95J05 note Member Sub-assy, Rear Floor Rear Cross, Outer
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,112,113,119 STD —
57069-95J05 Member Sub-assy, Rear Floor Rear Cross, Outer
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# STD (EUR,FRG) —
57069-95J07 Member Sub-assy, Rear Floor Rear Cross, Outer
1993-08 → 1995-08 ended
RZH103 DX FRG;RZH113 STD +2 —
57069-95J07 Member Sub-assy, Rear Floor Rear Cross, Outer
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,11# —
57069-95J08 Member Sub-assy, Rear Floor Rear Cross, Outer
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (DX,GL) (EUR,SDN) —
57069-95J08 note Member Sub-assy, Rear Floor Rear Cross, Outer
1993-08 → 1995-08 ended
LH102 09S —
57069-95J08 note Member Sub-assy, Rear Floor Rear Cross, Outer
1991-08 → 1993-08 ended
LH102,RZH103 DX —
57069-95J08 note Member Sub-assy, Rear Floor Rear Cross, Outer
1991-05 → 1991-08 ended
RZH103 DX —
57069-95J08 note Member Sub-assy, Rear Floor Rear Cross, Outer
1989-08 → 1991-05 ended
RZH102 DX —
57069-95J09 note Member Sub-assy, Rear Floor Rear Cross, Outer
1990-01 → 1995-08 ended
LH112,RZH113 D RHD;LH112,RZH113 4D +5 —
57069-95J11 note Member Sub-assy, Rear Floor Rear Cross, Outer
1990-10 → 1991-08 ended
RZH112 LHD 5F;LH102,112,RZH102 LHD —
57079 — Member Sub-assy, Rear Floor Rear Cross, Inner
57068-95J07 Member Sub-assy, Rear Floor Rear Cross, Inner
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,11# —
57068-95J07 Member Sub-assy, Rear Floor Rear Cross, Inner
1993-08 → 1995-08 ended
RZH113 SDN;LH102,11#,RZH10#,11# (DX,GL) (EUR,FRG) —
57068-95J07 note Member Sub-assy, Rear Floor Rear Cross, Inner
1993-08 → 1995-08 ended
LH112,RZH113 RHD;LH102,RZH103 LHD 4D +4 —
57068-95J08 note Member Sub-assy, Rear Floor Rear Cross, Inner
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,112,113,119 STD —
57068-95J08 Member Sub-assy, Rear Floor Rear Cross, Inner
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# STD (EUR,FRG) —
57307B — Outrigger Sub-assy, NO.4 RH
57317-95J06 note Outrigger Sub-assy, NO.4 RH
1989-08 → 1995-08 ended
LH102,11#,RZH10#,11# 4D —
57317-95J06 Outrigger Sub-assy, NO.4 RH
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,112,113,119 5D —
57317-95J08 note Outrigger Sub-assy, NO.4 RH
1989-08 → 1995-08 ended
LH102,11#,RZH10#,11# 4D —
57308B — Outrigger Sub-assy, NO.4 LH
57308-95J11 Outrigger Sub-assy, NO.4 LH
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
57312 — Outrigger, NO.1 LH
57302-95J05 Outrigger, NO.1 LH
1989-08 → 1995-08 ended
LH102,11#,RZH10#,11# LHD 4D —
57341A — Gusset, Outrigger, NO.2 RH
57341-95J08 note Gusset, Outrigger, NO.2 RH
1990-10 → 1991-08 ended
RZH112 LHD 5F;LH102,112,RZH102 LHD —
57341-95J08 note Gusset, Outrigger, NO.2 RH
1991-08 → 1993-08 ended
RZH102 STD;LH102,112,RZH112 LHD —
57342A — Gusset, Outrigger, NO.2 LH
57342-95J09 note Gusset, Outrigger, NO.2 LH
1990-10 → 1993-08 ended
RZH112 5D 5F;LH102,112,RZH102 5D —
57361A — Cover, NO.2 Outerigger Hole
57093-95J01 note Cover, NO.2 Outerigger Hole
1991-08 → 1993-08 ended
LH102,RZH103 DX —
57093-95J01 Cover, NO.2 Outerigger Hole
1993-08 → 1995-08 ended
LH10#,11#,RZH10#,11# LHD —
57093-95J01 note Cover, NO.2 Outerigger Hole
1991-08 → 1993-08 ended
RZH102 DX —
57093-95J01 Cover, NO.2 Outerigger Hole
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,11# LHD STD —
57093-95J01 note Cover, NO.2 Outerigger Hole
1991-05 → 1991-08 ended
RZH103 DX —
57093-95J01 note Cover, NO.2 Outerigger Hole
1989-08 → 1991-05 ended
RZH102 DX —
57093-95J01 note Cover, NO.2 Outerigger Hole
1989-08 → 1991-05 ended
LH102 DX —
57093-95J01 note Cover, NO.2 Outerigger Hole
1991-05 → 1991-08 ended
LH102,RZH102 DX —
57094-95J00 Cover, NO.2 Outerigger Hole
1989-08 → 1993-08 ended
LH102,112,RZH112 RHD —
57094-95J00 Cover, NO.2 Outerigger Hole
1993-08 → 1995-08 ended
LH102,112,RZH113 RHD —
57361-95J01 Cover, NO.2 Outerigger Hole
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
57362A — Packing, NO.2 Outrigger Hole Cover
57362-95J01 Packing, NO.2 Outrigger Hole Cover
1989-08 → 1993-08 ended
LH102,11#,RZH10#,11# LHD 4D —
57362-95J01 Packing, NO.2 Outrigger Hole Cover
1989-08 → 1993-08 ended
RZH112 03S;LH102,112 RHD;LH10#,11#,RZH10#,113,119 5D —
57362-95J01 Packing, NO.2 Outrigger Hole Cover
1993-08 → 1995-08 ended
LH102,11#,RZH10#,11# 4D —
57362-95J01 Packing, NO.2 Outrigger Hole Cover
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# 5D —
57413 — Rail, Floor Side, Center RH
57413-95J82 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH102 RHD —
57413-95J84 note Rail, Floor Side, Center RH
1991-05 → 1995-08 ended
LH102,RZH103 5D 03S EUR —
57413-95J84 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH102,RZH10# DX,GL —
57413-95J84 note Rail, Floor Side, Center RH
1989-08 → 1991-05 ended
LH102,RZH102 5D 03S —
57413-95J88 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH10#,RZH10# LHD STD —
57413-95J88 note Rail, Floor Side, Center RH
1990-10 → 1991-08 ended
RZH102 DX —
57413-95J88 note Rail, Floor Side, Center RH
1991-08 → 1992-05 ended
RZH102 DX —
57413-95J88 note Rail, Floor Side, Center RH
1990-10 → 1993-08 ended
LH102 DX —
57413-95N04 Rail, Floor Side, Center RH
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 SDN;LH11#,RZH112,113,119 DX +1 —
57413-95N04 note Rail, Floor Side, Center RH
1993-08 → 1995-08 ended
LH11#,RZH11# 5D 03S EUR —
57413-95N04 note Rail, Floor Side, Center RH
1991-05 → 1993-08 ended
RZH113 5D 03S —
57413-95N04 note Rail, Floor Side, Center RH
1991-05 → 1993-08 ended
LH11#,RZH119 5D 03S —
57413-95N04 note Rail, Floor Side, Center RH
1991-05 → 1992-05 ended
RZH113 06S —
57413-95N04 note Rail, Floor Side, Center RH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH11#,RZH119 5D +1 —
57413-95N04 note Rail, Floor Side, Center RH
1989-08 → 1991-05 ended
RZH113 5D;RZH113 4D 06S —
57413-95N04 note Rail, Floor Side, Center RH
1989-08 → 1990-10 ended
LH11#,RZH112,119 5D 03S —
57413-95N04 Rail, Floor Side, Center RH
1989-08 → 1990-10 ended
LH11#,RZH112,113,119 DX —
57413-95N11 note Rail, Floor Side, Center RH
1990-10 → 1993-08 ended
LH112,RZH112 DX —
57413-95N11 Rail, Floor Side, Center RH
1989-08 → 1990-10 ended
LH11#,RZH11# LHD STD —
57413-95N11 Rail, Floor Side, Center RH
1990-10 → 1995-08 ended
RZH112 5D 5F;LH11#,RZH113,115,119 LHD +2 —
57413-95N13 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH112,RZH112,113 RHD —
57414 — Rail, Floor Side, Center LH
57406-95J54 note Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH115 —
57406-95J56 Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH115 —
57406-95J57 note Rail, Floor Side, Center LH
1989-08 → 1991-05 ended
RZH102 DX —
57406-95J57 note Rail, Floor Side, Center LH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
57406-95J57 note Rail, Floor Side, Center LH
1991-05 → 1991-08 ended
RZH103 DX —
57406-95J57 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH102,RZH103 GL —
57414-26010 note Rail, Floor Side, Center LH
1991-08 → 1995-08 ended
LH102,RZH103 LHD 4D SP +1 —
57414-95J68 Rail, Floor Side, Center LH
1989-08 → 1995-08 ended
LH102 RHD;LH10#,RZH10# 5D —
57414-95J70 Rail, Floor Side, Center LH
1989-08 → 1990-10 ended
LH112 RHD;LH112,RZH113 5D;LH118,RZH112,119 03S —
57414-95J70 Rail, Floor Side, Center LH
1990-10 → 1995-08 ended
RZH112 5F STD;LH112,RZH113 RHD;LH11#,RZH113,119 +2 —
57414-95J72 note Rail, Floor Side, Center LH
1989-08 → 1990-10 ended
LH11#,RZH112,119 5D 03S —
57414-95J72 note Rail, Floor Side, Center LH
1991-05 → 1993-08 ended
RZH113 5D 03S —
57414-95J72 note Rail, Floor Side, Center LH
1991-05 → 1993-08 ended
LH11#,RZH119 5D 03S —
57414-95J72 Rail, Floor Side, Center LH
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 STD SDN —
57414-95J72 note Rail, Floor Side, Center LH
1991-05 → 1992-05 ended
RZH113 5D 06S —
57414-95J72 note Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH11#,RZH11# 5D 03S EUR —
57414-95J72 note Rail, Floor Side, Center LH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH11#,RZH119 5D +1 —
57414-95J72 note Rail, Floor Side, Center LH
1989-08 → 1991-05 ended
RZH113 5D —
57414-95J77 note Rail, Floor Side, Center LH
1991-05 → 1995-08 ended
LH102,RZH103 5D 03S EUR —
57414-95J77 note Rail, Floor Side, Center LH
1989-08 → 1991-05 ended
LH102,RZH102 5D 03S —
57414-95J86 Rail, Floor Side, Center LH
1989-08 → 1995-08 ended
LH102,RZH10# LHD 4D STD —
57414-95J87 Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH102,RZH102,103 DX —
57414-95J87 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH102 03S DX —
57414-95J88 Rail, Floor Side, Center LH
1989-08 → 1995-08 ended
LH112,RZH112,113,119 LHD 4D STD —
57414-95J89 Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH11#,RZH112,113,119 DX —
57414-95J89 note Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH113 4D 06S —
57414-95N00 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH102,RZH10# 09S —
57414-95N00 note Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH102,RZH102,103 DX —
57414-95N01 note Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
RZH113 09S STD;LH112 LHD +2 —
57414-95N01 note Rail, Floor Side, Center LH
1989-08 → 1991-08 ended
RZH112,113 4D 06S —
57414-95N01 note Rail, Floor Side, Center LH
1991-08 → 1993-08 ended
RZH113 4D 06S;LH112 LHD +2 —
57414-95N02 note Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH113 4D 06S —
57414-95N02 note Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH11#,RZH112,113,119 DX —
57414-95N02 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH11#,RZH11# DX —
57415 — Rail, Floor Side, Rear RH
57047-95J23 Rail, Floor Side, Rear RH
1989-08 → 1995-08 ended
LH102,11#,RZH10#,112,113,119 DX —
57415-95J33 Rail, Floor Side, Rear RH
1989-08 → 1990-10 ended
LH10#,11#,RZH10#,11# STD —
57415-95J33 Rail, Floor Side, Rear RH
1990-10 → 1995-08 ended
RZH112 5F STD;LH10#,11#,RZH10#,113,115,119 STD +1 —
57415-95J33 note Rail, Floor Side, Rear RH
1990-10 → 1993-08 ended
LH102,112,RZH112 DX —
57415-95J33 note Rail, Floor Side, Rear RH
1991-08 → 1992-05 ended
RZH102 DX —
57415-95J33 note Rail, Floor Side, Rear RH
1990-10 → 1991-08 ended
RZH102 DX —
57415-95J35 note Rail, Floor Side, Rear RH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
57415-95J35 note Rail, Floor Side, Rear RH
1991-05 → 1991-08 ended
RZH103 DX —
57415-95J35 Rail, Floor Side, Rear RH
1993-08 → 1995-08 ended
LH102,RZH103 GL —
57415-95J35 note Rail, Floor Side, Rear RH
1989-08 → 1991-05 ended
RZH102 DX —
57415-95J39 Rail, Floor Side, Rear RH
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 STD SDN —
57415-95J39 note Rail, Floor Side, Rear RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,11# 5D 03S EUR —
57415-95J39 note Rail, Floor Side, Rear RH
1991-05 → 1992-05 ended
RZH113 06S —
57415-95J39 note Rail, Floor Side, Rear RH
1991-05 → 1993-08 ended
RZH113 5D 03S —
57415-95J39 note Rail, Floor Side, Rear RH
1991-05 → 1993-08 ended
LH102,11#,RZH103,119 5D 03S —
57415-95J39 note Rail, Floor Side, Rear RH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
57415-95J39 note Rail, Floor Side, Rear RH
1989-08 → 1991-05 ended
RZH113 5D;RZH113 4D 06S —
57415-95J39 note Rail, Floor Side, Rear RH
1989-08 → 1990-10 ended
LH102,11#,RZH102,112,119 5D 03S —
57416 — Rail, Floor Side, Rear LH
57048-95J06 Rail, Floor Side, Rear LH
1989-08 → 1995-08 ended
LH102,11#,RZH10#,112,113,119 DX —
57416-95J24 note Rail, Floor Side, Rear LH
1991-05 → 1991-08 ended
RZH102 DX —
57416-95J24 Rail, Floor Side, Rear LH
1990-10 → 1995-08 ended
RZH112 5F STD;LH10#,11#,RZH10#,113,115,119 (GL,STD) +1 —
57416-95J24 note Rail, Floor Side, Rear LH
1991-08 → 1993-08 ended
LH102 DX —
57416-95J24 note Rail, Floor Side, Rear LH
1991-08 → 1993-08 ended
LH112,RZH112 DX —
57416-95J24 note Rail, Floor Side, Rear LH
1991-05 → 1993-08 ended
RZH103 DX —
57416-95J24 note Rail, Floor Side, Rear LH
1991-08 → 1992-05 ended
RZH102 DX —
57416-95J24 note Rail, Floor Side, Rear LH
1990-10 → 1991-08 ended
LH102,112,RZH112 DX —
57416-95J24 note Rail, Floor Side, Rear LH
1990-10 → 1991-05 ended
RZH102 DX —
57416-95J24 note Rail, Floor Side, Rear LH
1989-08 → 1990-10 ended
RZH102 DX —
57416-95J24 Rail, Floor Side, Rear LH
1989-08 → 1990-10 ended
LH10#,11#,RZH10#,11# STD —
57416-95J26 note Rail, Floor Side, Rear LH
1991-05 → 1992-05 ended
RZH113 06S —
57416-95J26 note Rail, Floor Side, Rear LH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
57416-95J26 note Rail, Floor Side, Rear LH
1991-05 → 1993-08 ended
LH102,11#,RZH103,119 5D 03S —
57416-95J26 note Rail, Floor Side, Rear LH
1991-05 → 1993-08 ended
RZH113 5D 03S —
57416-95J26 note Rail, Floor Side, Rear LH
1989-08 → 1991-05 ended
RZH113 5D;RZH113 4D 06S —
57416-95J26 note Rail, Floor Side, Rear LH
1989-08 → 1990-10 ended
LH102,11#,RZH102,112,119 5D 03S —
57416-95J26 Rail, Floor Side, Rear LH
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 STD SDN —
57416-95J26 note Rail, Floor Side, Rear LH
1993-08 → 1995-08 ended
LH102,11#,RZH103,11# 5D 03S EUR —
57515 — Bracket, Parking Brake, RH
57515-95J00 Bracket, Parking Brake, RH
1989-08 → 1995-08 ended
LH102,112,RZH112,113 RHD —
57516 — Bracket Sub-assy, Parking Brake, LH
57506-95J01 Bracket Sub-assy, Parking Brake, LH
1989-08 → 1995-08 ended
LH102,112,RZH112,113 RHD —
58022A — Reinforcement Sub-assy, Header Panel
58022-95J06 Reinforcement Sub-assy, Header Panel
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58106 — Bracket Sub-assy, Brake Tube Connector, NO.2
58106-95A00 Bracket Sub-assy, Brake Tube Connector, NO.2
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58194 — Retainer, Engine Cover Hinge
58194-95J03 Retainer, Engine Cover Hinge
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58207C — Cover Sub-assy, Transmission Service Hole
58207-95J10 Cover Sub-assy, Transmission Service Hole
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58209B — Cover Sub-assy, Battery Service Hole
58209-95J01 Cover Sub-assy, Battery Service Hole
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58221A — Panel, Header
58221-95N58 note Panel, Header
1990-10 → 1991-08 ended
RZH112 4FC —
58221-95N58 note Panel, Header
1990-10 → 1991-04 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58221-95N58 note Panel, Header
1991-05 → 1992-05 ended
RZH113 5D 03S —
58221-95N58 note Panel, Header
1991-05 → 1993-08 ended
LH102,11#,RZH103,119 5D 03S —
58221-95N58 note Panel, Header
1991-04 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58221-95N58 note Panel, Header
1993-08 → 1995-08 ended
LH102,11#,RZH103,11# 5D 03S EUR —
58221-95N58 note Panel, Header
1992-05 → 1993-08 ended
RZH113 03S 4FC —
58221-95N58 note Panel, Header
1992-05 → 1993-08 ended
RZH113 5D 03S 5F —
58221-95N58 note Panel, Header
1989-08 → 1990-10 ended
LH102,11#,RZH102,112,119 5D 03S —
58221-95N59 note Panel, Header
1989-08 → 1990-10 ended
LH102,11#,RZH102,112,119 5D 03S —
58221-95N59 note Panel, Header
1992-05 → 1993-08 ended
RZH113 03S 4FC —
58221-95N59 note Panel, Header
1992-05 → 1993-08 ended
RZH113 5D 03S 5F —
58221-95N59 note Panel, Header
1991-04 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58221-95N59 note Panel, Header
1993-08 → 1995-08 ended
LH102,11#,RZH103,11# 5D 03S EUR —
58221-95N59 note Panel, Header
1990-10 → 1991-08 ended
RZH112 4FC —
58221-95N59 note Panel, Header
1991-05 → 1993-08 ended
LH102,11#,RZH103,119 5D 03S —
58221-95N59 note Panel, Header
1990-10 → 1991-04 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58221-95N59 note Panel, Header
1991-05 → 1992-05 ended
RZH113 5D 03S —
58221-95P01 note Panel, Header
1992-05 → 1992-09 ended
RZH102 4D STD —
58221-95P01 note Panel, Header
1989-08 → 1989-10 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P01 note Panel, Header
1990-10 → 1991-08 ended
RZH102 4D STD —
58221-95P01 note Panel, Header
1991-08 → 1991-10 ended
RZH103 4D STD —
58221-95P01 note Panel, Header
1990-10 → 1991-04 ended
LH102,112 LHD 4D SP —
58221-95P01 note Panel, Header
1991-10 → 1992-05 ended
RZH103 4D STD —
58221-95P01 note Panel, Header
1991-04 → 1993-08 ended
LH102,112 LHD 4D SP —
58221-95P01 note Panel, Header
1992-05 → 1993-08 ended
RZH103 4D STD —
58221-95P01 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP +1 —
58221-95P01 note Panel, Header
1989-10 → 1990-10 ended
LH102,112 LHD 4D SP —
58221-95P01 note Panel, Header
1989-10 → 1990-10 ended
RZH102 4D STD —
58221-95P04 note Panel, Header
1991-08 → 1991-10 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P04 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP +1 —
58221-95P04 note Panel, Header
1991-08 → 1993-08 ended
LH102,RZH103 DX —
58221-95P04 note Panel, Header
1991-04 → 1991-05 ended
RZH102 DX —
58221-95P04 note Panel, Header
1989-10 → 1991-08 ended
RZH102 4D STD —
58221-95P04 note Panel, Header
1992-05 → 1993-08 ended
LH102 SG 03S —
58221-95P04 note Panel, Header
1991-05 → 1991-08 ended
RZH103 DX —
58221-95P04 note Panel, Header
1992-05 → 1993-08 ended
RZH113 DX —
58221-95P04 note Panel, Header
1992-09 → 1993-08 ended
LH102,112 LHD 4D SP —
58221-95P04 note Panel, Header
1990-10 → 1992-05 ended
RZH113 4D SG —
58221-95P04 note Panel, Header
1992-05 → 1993-08 ended
RZH103 4D STD —
58221-95P04 Panel, Header
1993-08 → 1995-08 ended
RZH113 DX SDN;LH102,RZH103 GL —
58221-95P04 note Panel, Header
1991-10 → 1992-05 ended
LH102,112,RZH102,103 LHD 4D SP —
58221-95P04 note Panel, Header
1993-08 → 1995-08 ended
LH102,112 4D SG (DX,STD) +1 —
58221-95P04 note Panel, Header
1992-05 → 1992-09 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P04 note Panel, Header
1989-08 → 1989-10 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P04 note Panel, Header
1989-08 → 1991-04 ended
RZH102 DX —
58221-95P04 note Panel, Header
1989-08 → 1990-10 ended
RZH119 DX;RZH113 4D SG —
58221-95P05 note Panel, Header
1989-10 → 1990-10 ended
RZH102 4D STD —
58221-95P05 note Panel, Header
1991-10 → 1992-05 ended
RZH103 4D STD —
58221-95P05 note Panel, Header
1992-05 → 1992-09 ended
RZH102 4D STD —
58221-95P05 note Panel, Header
1991-08 → 1991-10 ended
RZH103 4D STD —
58221-95P05 note Panel, Header
1990-10 → 1991-04 ended
LH102,112 LHD 4D SP —
58221-95P05 note Panel, Header
1990-10 → 1991-08 ended
RZH102 4D STD —
58221-95P05 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP +1 —
58221-95P05 note Panel, Header
1989-10 → 1990-10 ended
LH102,112 LHD 4D SP —
58221-95P05 note Panel, Header
1991-04 → 1993-08 ended
LH102,112 LHD 4D SP —
58221-95P05 note Panel, Header
1989-08 → 1989-10 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P05 note Panel, Header
1992-05 → 1993-08 ended
RZH103 4D STD —
58221-95P08 note Panel, Header
1989-08 → 1990-10 ended
RZH119 DX;RZH113 4D SG —
58221-95P08 note Panel, Header
1989-10 → 1991-04 ended
RZH102 4D STD —
58221-95P08 note Panel, Header
1991-10 → 1992-05 ended
LH102,112,RZH102,103 LHD 4D SP —
58221-95P08 note Panel, Header
1993-08 → 1995-08 ended
LH102 SG 03S EUR —
58221-95P08 note Panel, Header
1992-09 → 1993-08 ended
LH102,112 LHD 4D SP —
58221-95P08 note Panel, Header
1992-05 → 1993-08 ended
LH102 SG 03S —
58221-95P08 note Panel, Header
1992-05 → 1992-09 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P08 note Panel, Header
1992-05 → 1993-08 ended
RZH103 4D STD —
58221-95P08 note Panel, Header
1991-04 → 1991-10 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P08 note Panel, Header
1990-10 → 1992-05 ended
RZH113 4D SG —
58221-95P08 note Panel, Header
1992-05 → 1993-08 ended
RZH113 DX —
58221-95P08 note Panel, Header
1989-08 → 1989-10 ended
LH102,112,RZH102 LHD 4D SP —
58221-95P08 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP +1 —
58221-95P09 note Panel, Header
1991-08 → 1992-05 ended
RZH102,113 5D 03S 5F —
58221-95P09 note Panel, Header
1991-08 → 1992-05 ended
RZH103 5D —
58221-95P09 note Panel, Header
1989-10 → 1990-10 ended
LH10#,112 5D 03S —
58221-95P09 note Panel, Header
1990-10 → 1991-05 ended
RZH102 5D —
58221-95P09 note Panel, Header
1992-05 → 1992-09 ended
LH118,RZH11# 5D 03S 5F —
58221-95P09 note Panel, Header
1992-05 → 1992-09 ended
RZH102 5D —
58221-95P09 note Panel, Header
1989-10 → 1990-10 ended
LH118 STD —
58221-95P09 note Panel, Header
1989-10 → 1990-10 ended
RZH102 5D —
58221-95P09 note Panel, Header
1989-08 → 1989-10 ended
LH10#,112,RZH102 5D 03S —
58221-95P09 note Panel, Header
1992-05 → 1993-08 ended
LH10#,112,RZH103 5D 03S —
58221-95P09 note Panel, Header
1992-09 → 1993-08 ended
LH118,RZH113,119 5D 03S 5F —
58221-95P09 note Panel, Header
1990-10 → 1991-04 ended
LH10#,112 5D 03S —
58221-95P09 note Panel, Header
1991-04 → 1992-05 ended
LH118,RZH112,119 5D 5F —
58221-95P09 note Panel, Header
1991-04 → 1992-05 ended
LH10#,112 5D 03S —
58221-95P09 note Panel, Header
1990-10 → 1991-04 ended
LH118,RZH112,119 5D 5F —
58221-95P09 note Panel, Header
1993-08 → 1995-08 ended
LH10#,11#,RZH103,11# 5D 03S EUR —
58221-95P09 note Panel, Header
1991-05 → 1991-08 ended
RZH102 5D —
58221-95P12 note Panel, Header
1993-08 → 1995-08 ended
RZH113 STD SDN —
58221-95P12 note Panel, Header
1989-08 → 1992-05 ended
RZH113 5D 06S —
58221-95P12 note Panel, Header
1991-08 → 1992-09 ended
LH10#,11#,RZH102,103,112,119 5D 03S —
58221-95P12 note Panel, Header
1992-09 → 1993-08 ended
LH10#,11#,RZH103,119 5D 03S —
58221-95P12 note Panel, Header
1989-10 → 1991-08 ended
RZH102,112,119 5D 5F —
58221-95P12 note Panel, Header
1993-08 → 1995-08 ended
LH10#,11#,RZH103,11# 5D 03S EUR —
58221-95P12 note Panel, Header
1989-08 → 1991-08 ended
RZH113 5D 03S —
58221-95P12 note Panel, Header
1989-08 → 1989-10 ended
RZH112 5D 5F;LH10#,11#,RZH102,119 5D +1 —
58221-95P12 note Panel, Header
1991-08 → 1993-08 ended
RZH113 03S 4FC —
58221-95P12 note Panel, Header
1991-08 → 1993-08 ended
RZH113 5D 03S 5F —
58221-95P13 note Panel, Header
1992-05 → 1992-09 ended
LH118,RZH11# 5D 03S 5F —
58221-95P13 note Panel, Header
1992-09 → 1993-08 ended
LH118,RZH113,119 5D 03S 5F —
58221-95P13 note Panel, Header
1990-10 → 1991-05 ended
RZH102 5D —
58221-95P13 note Panel, Header
1992-05 → 1993-08 ended
LH10#,112,RZH103 5D 03S —
58221-95P13 note Panel, Header
1990-10 → 1991-04 ended
LH10#,112 5D 03S —
58221-95P13 note Panel, Header
1993-08 → 1995-08 ended
LH10#,11#,RZH103,11# 5D 03S EUR —
58221-95P13 note Panel, Header
1990-10 → 1991-04 ended
LH118,RZH112,119 5D 5F —
58221-95P13 note Panel, Header
1989-08 → 1989-10 ended
LH10#,112,RZH102 5D 03S —
58221-95P13 note Panel, Header
1991-05 → 1991-08 ended
RZH102 5D —
58221-95P13 note Panel, Header
1992-05 → 1992-09 ended
RZH102 5D —
58221-95P13 note Panel, Header
1991-04 → 1992-05 ended
LH118,RZH112,119 5D 5F —
58221-95P13 note Panel, Header
1989-10 → 1990-10 ended
RZH102 5D —
58221-95P13 note Panel, Header
1991-04 → 1992-05 ended
LH10#,112 5D 03S —
58221-95P13 note Panel, Header
1989-10 → 1990-10 ended
LH118 STD —
58221-95P13 note Panel, Header
1989-10 → 1990-10 ended
LH10#,112 5D 03S —
58221-95P13 note Panel, Header
1991-08 → 1992-05 ended
RZH103 5D —
58221-95P13 note Panel, Header
1991-08 → 1992-05 ended
RZH102,113 5D 03S 5F —
58221-95P16 note Panel, Header
1991-08 → 1993-08 ended
RZH113 03S 4FC —
58221-95P16 note Panel, Header
1991-08 → 1993-08 ended
RZH113 5D 03S 5F —
58221-95P16 note Panel, Header
1989-08 → 1989-10 ended
RZH112 5D 5F;LH10#,11#,RZH102,119 5D +1 —
58221-95P16 note Panel, Header
1989-10 → 1991-04 ended
RZH102,112,119 5D 5F —
58221-95P16 note Panel, Header
1989-08 → 1991-08 ended
RZH113 5D 03S —
58221-95P16 note Panel, Header
1993-08 → 1995-08 ended
LH10#,11#,RZH103,11# 5D 03S EUR —
58221-95P16 note Panel, Header
1989-08 → 1992-05 ended
RZH113 5D 06S 5F —
58221-95P16 note Panel, Header
1991-04 → 1992-09 ended
RZH112 5D 5F;LH10#,11#,RZH102,103,119 5D +1 —
58221-95P16 Panel, Header
1993-08 → 1995-08 ended
RZH113 STD SDN —
58221-95P16 note Panel, Header
1989-08 → 1992-05 ended
RZH113 06S 4FC —
58221-95P16 note Panel, Header
1992-09 → 1993-08 ended
LH10#,11#,RZH103,119 5D 03S —
58221-95P21 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP +1 —
58221-95P21 note Panel, Header
1990-10 → 1991-04 ended
LH102,112,RZH113 LHD 4D SP —
58221-95P21 note Panel, Header
1992-05 → 1993-08 ended
RZH102,113 4D 03S —
58221-95P21 note Panel, Header
1991-04 → 1992-05 ended
RZH113 4D 03S —
58221-95P21 note Panel, Header
1989-08 → 1993-08 ended
RZH103 4D STD —
58221-95P21 note Panel, Header
1991-04 → 1993-08 ended
LH102,112 LHD 4D SP —
58221-95P21 note Panel, Header
1989-08 → 1990-10 ended
LH102,112,RZH113 LHD 4D SP —
58221-95P24 note Panel, Header
1991-08 → 1992-05 ended
RZH103 4D STD —
58221-95P24 note Panel, Header
1989-08 → 1993-08 ended
LH102,112,RZH102,113 LHD 4D SP —
58221-95P24 Panel, Header
1989-08 → 1995-08 ended
LH102,11#,RZH10#,11# 4D SG (DX,STD) +1 —
58221-95P24 note Panel, Header
1989-08 → 1991-08 ended
RZH103 STD —
58221-95P24 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP —
58221-95P24 note Panel, Header
1992-05 → 1993-08 ended
RZH103 4D STD —
58221-95P24 note Panel, Header
1990-11 → 1993-08 ended
RZH102 DX —
58221-95P25 note Panel, Header
1990-10 → 1991-04 ended
LH102,112,RZH113 LHD 4D SP —
58221-95P25 note Panel, Header
1991-04 → 1992-05 ended
RZH113 4D 03S —
58221-95P25 note Panel, Header
1992-05 → 1993-08 ended
RZH102,113 4D 03S —
58221-95P25 note Panel, Header
1989-08 → 1993-08 ended
RZH103 4D STD —
58221-95P25 note Panel, Header
1991-04 → 1993-08 ended
LH102,112 LHD 4D SP —
58221-95P25 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP +1 —
58221-95P25 note Panel, Header
1989-08 → 1990-10 ended
LH102,112,RZH113 LHD 4D SP —
58221-95P28 note Panel, Header
1989-08 → 1993-08 ended
LH102,112,RZH102,113 LHD 4D SP —
58221-95P28 note Panel, Header
1989-08 → 1993-08 ended
LH102,11#,RZH10#,11# 4D SG —
58221-95P28 note Panel, Header
1992-05 → 1993-08 ended
RZH103 4D STD —
58221-95P28 Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH103,113 LHD 4D SP —
58221-95P28 note Panel, Header
1993-08 → 1995-08 ended
LH102,RZH103,109,11# 4D SG STD —
58221-95P28 note Panel, Header
1991-08 → 1992-05 ended
RZH103 4D STD —
58221-95P28 note Panel, Header
1989-08 → 1991-08 ended
RZH103 STD —
58221-95P29 note Panel, Header
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# 5D 03S EUR —
58221-95P29 note Panel, Header
1991-05 → 1993-08 ended
RZH109 03S —
58221-95P29 note Panel, Header
1991-05 → 1992-05 ended
RZH112,113 5D 03S 5F;LH10#,11#,RZH119 +2 —
58221-95P29 note Panel, Header
1989-08 → 1990-10 ended
LH10#,11#,RZH109,113 5D 03S 5F —
58221-95P29 note Panel, Header
1990-10 → 1991-04 ended
LH10#,11#,RZH109,112,113,119 5D 03S 5F —
58221-95P29 note Panel, Header
1991-04 → 1991-05 ended
RZH109,113 5D 03S 5F —
58221-95P29 note Panel, Header
1991-04 → 1991-05 ended
RZH112 5D 5F;LH10#,11#,RZH119 5D +1 —
58221-95P29 note Panel, Header
1991-05 → 1993-08 ended
RZH102 5D;RZH113 03S 4FC —
58221-95P29 note Panel, Header
1992-05 → 1993-08 ended
RZH113 5D 03S 5F;LH10#,11#,RZH103,112,119 +2 —
58221-95P33 note Panel, Header
1989-08 → 1990-10 ended
LH10#,11#,RZH102,109,112,113,119 5D 03S —
58221-95P33 note Panel, Header
1990-10 → 1993-08 ended
RZH112 5D 5F;LH10#,11#,RZH10#,113,119 5D +1 —
58221-95P33 Panel, Header
1989-08 → 1995-08 ended
LH102,112,RZH113 5D 06S —
58221-95P33 note Panel, Header
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# 5D 03S (EUR,FRG) —
58221-95P34 note Panel, Header
1991-05 → 1993-08 ended
RZH102 5D;RZH113 03S 4FC —
58221-95P34 note Panel, Header
1989-08 → 1990-10 ended
LH10#,11#,RZH109,113 5D 03S 5F —
58221-95P34 note Panel, Header
1992-05 → 1993-08 ended
RZH113 5D 03S 5F;LH10#,11#,RZH103,112,119 +2 —
58221-95P34 note Panel, Header
1990-10 → 1991-04 ended
LH10#,11#,RZH109,112,113,119 5D 03S 5F —
58221-95P34 note Panel, Header
1991-04 → 1991-05 ended
RZH109,113 5D 03S 5F —
58221-95P34 note Panel, Header
1991-04 → 1991-05 ended
RZH112 5D 5F;LH10#,11#,RZH119 5D +1 —
58221-95P34 note Panel, Header
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# 5D 03S EUR —
58221-95P34 note Panel, Header
1991-05 → 1992-05 ended
RZH112,113 5D 03S 5F;LH10#,11#,RZH119 +2 —
58221-95P34 note Panel, Header
1991-05 → 1993-08 ended
RZH109 03S —
58221-95P38 note Panel, Header
1989-08 → 1993-08 ended
LH102,112,RZH113 5D 06S —
58221-95P38 note Panel, Header
1990-10 → 1993-08 ended
LH10#,11#,RZH10#,113,119 5D 03S —
58221-95P38 note Panel, Header
1993-08 → 1995-08 ended
LH102,112,RZH113 5D 06S —
58221-95P38 note Panel, Header
1989-08 → 1990-10 ended
RZH112 5D 5F;LH10#,11#,RZH102,109,113,119 5D +1 —
58221-95P38 Panel, Header
1989-08 → 1990-10 ended
LH10#,11#,RZH102,109,112,113,119 5D 03S —
58221-95P38 Panel, Header
1990-10 → 1995-08 ended
RZH112 5D 5F;LH10#,11#,RZH10#,113,119 5D +2 —
58221-95P40 note Panel, Header
1992-05 → 1993-08 ended
LH112,RZH112 RHD —
58221-95P40 note Panel, Header
1993-08 → 1995-08 ended
LH112,RZH113 RHD —
58221-95P40 note Panel, Header
1989-08 → 1992-05 ended
LH102,112,RZH112 RHD —
58221-95P44 note Panel, Header
1989-08 → 1992-05 ended
LH102,112,RZH112 RHD —
58221-95P44 Panel, Header
1989-08 → 1995-08 ended
LH102,112,RZH112,113 RHD —
58221-95P44 note Panel, Header
1992-05 → 1993-08 ended
LH112,RZH112 RHD —
58223F — Reinforcement, Header Panel, NO.2
58223-95J01 Reinforcement, Header Panel, NO.2
1989-08 → 1995-08 ended
LH102,11#,RZH10#,11# 4D —
58223-95J01 Reinforcement, Header Panel, NO.2
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,112,113,119 5D —
58224F — Reinforcement, Header Panel, NO.3
58224-95J01 note Reinforcement, Header Panel, NO.3
1990-10 → 1993-08 ended
RZH112 5D 5F;LH102,112,RZH102 5D +1 —
58224-95J01 note Reinforcement, Header Panel, NO.3
1990-10 → 1993-08 ended
LH102,112 06S —
58228D — Patch, Header Panel, LH
58228-26010 note Patch, Header Panel, LH
1992-05 → 1993-08 ended
LH102,112,RZH102,112 5D —
58266B — Bracket, Fuel Tube Clamp
58266-26040 note Bracket, Fuel Tube Clamp
1990-10 → 1993-08 ended
LH108,118,RZH109,119 —
58266-26040 note Bracket, Fuel Tube Clamp
1993-08 → 1995-08 ended
RZH103 06S;LH108,118,RZH109,119 —
58266-95J00 note Bracket, Fuel Tube Clamp
1989-08 → 1990-10 ended
LH108,118,RZH109,119 —
58266-95J01 note Bracket, Fuel Tube Clamp
1989-08 → 1993-10 ended
LH108,118,RZH109,119 —
58266-95J01 Bracket, Fuel Tube Clamp
1989-08 → 1995-08 ended
RZH103 03S,05S,09S;LH102,112,RZH102,112,113,115 —
58266-95J01 note Bracket, Fuel Tube Clamp
1990-10 → 1993-08 ended
LH118,RZH119 03S —
58266-95J01 note Bracket, Fuel Tube Clamp
1993-10 → 1995-08 ended
RZH103 06S;LH108,118,RZH109,119 —
58266-95J02 note Bracket, Fuel Tube Clamp
1989-08 → 1995-08 ended
RZH103 06S;LH108,118,RZH109,119 —
58266-95J02 note Bracket, Fuel Tube Clamp
1990-10 → 1993-08 ended
LH118,RZH119 03S —
58273C — Reinforcement, Belt Anchor TO Center Floor
58273-95J00 Reinforcement, Belt Anchor TO Center Floor
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58303B — Step Sub-assy, Rear Floor, RH
58303-26010 Step Sub-assy, Rear Floor, RH
1990-10 → 1991-08 ended
RZH112 4FC —
58303-26010 note Step Sub-assy, Rear Floor, RH
1991-05 → 1995-08 ended
LH102,11#,RZH103,113,119 5D 03S EUR —
58303-26010 note Step Sub-assy, Rear Floor, RH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58303-26020 note Step Sub-assy, Rear Floor, RH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58303-26020 note Step Sub-assy, Rear Floor, RH
1991-05 → 1995-08 ended
LH102,11#,RZH103,113,119 5D 03S EUR —
58303-26020 note Step Sub-assy, Rear Floor, RH
1990-10 → 1991-08 ended
RZH112 4FC —
58303-95J35 Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH102,RZH103,113 09S (FRG,SDN) —
58303-95J35 note Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH11#,RZH103,109,11# DX EUR —
58303-95J35 note Step Sub-assy, Rear Floor, RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,11# 09S,15S —
58303-95J36 note Step Sub-assy, Rear Floor, RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
58303-95J36 note Step Sub-assy, Rear Floor, RH
1989-08 → 1995-08 ended
LH102,112,RZH103,109,112,113,119 (06S,09S) STD —
58303-95J36 note Step Sub-assy, Rear Floor, RH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
58303-95J40 note Step Sub-assy, Rear Floor, RH
1990-10 → 1995-08 ended
RZH112 5D 5F;LH10#,11#,RZH10#,113,119 LHD +2 —
58303-95J40 note Step Sub-assy, Rear Floor, RH
1989-08 → 1990-10 ended
LH10#,11#,RZH10#,112,113,119 LHD 03S —
58303-95J40 note Step Sub-assy, Rear Floor, RH
1992-03 → 1993-08 ended
RZH113,119 06S 5F;LH102,RZH103,109 4D +1 —
58303-95J40 Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH102,112,RZH103,113 03S (FRG,SDN) —
58303-95J40 note Step Sub-assy, Rear Floor, RH
1991-08 → 1992-03 ended
RZH119 06S;RZH113 5D 06S +3 —
58303-95J40 note Step Sub-assy, Rear Floor, RH
1989-08 → 1991-08 ended
RZH119 06S;RZH113 5D 06S +3 —
58303-95J44 Step Sub-assy, Rear Floor, RH
1990-10 → 1993-08 ended
RZH112 5D 5F;LH10#,11#,RZH10#,113,119 LHD +1 —
58303-95J44 Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
RZH102;LH10#,11#,RZH103,109,11# LHD 03S EUR —
58303-95J44 note Step Sub-assy, Rear Floor, RH
1991-08 → 1993-08 ended
RZH103,109 SG;RZH113,119 06S 5F —
58303-95J44 note Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH102,112,RZH103,113 03S (FRG,SDN) —
58303-95J44 Step Sub-assy, Rear Floor, RH
1989-08 → 1990-10 ended
LH10#,11#,RZH10#,112,113,119 LHD 03S —
58303-95J44 note Step Sub-assy, Rear Floor, RH
1989-08 → 1991-08 ended
RZH109,119 06S;RZH113 5D 06S +1 —
58303-95J45 Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH11#,RZH103,109,11# DX EUR —
58303-95J45 Step Sub-assy, Rear Floor, RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,11# 09S,15S —
58303-95J45 note Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH102,RZH103,113 09S (FRG,SDN) —
58303-95J46 note Step Sub-assy, Rear Floor, RH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
58303-95J46 Step Sub-assy, Rear Floor, RH
1989-08 → 1995-08 ended
LH102,112,RZH103,109,112,113,119 (06S,09S) STD —
58303-95J46 note Step Sub-assy, Rear Floor, RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
58303-95J53 note Step Sub-assy, Rear Floor, RH
1989-08 → 1991-05 ended
RZH102 DX —
58303-95J53 note Step Sub-assy, Rear Floor, RH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
58303-95J53 note Step Sub-assy, Rear Floor, RH
1991-05 → 1991-08 ended
RZH103 DX —
58303-95J53 note Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH102,RZH103 GL —
58303-95J54 note Step Sub-assy, Rear Floor, RH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
58303-95J54 Step Sub-assy, Rear Floor, RH
1993-08 → 1995-08 ended
LH102,RZH103 GL —
58303-95J54 note Step Sub-assy, Rear Floor, RH
1989-08 → 1991-05 ended
RZH102 DX —
58303-95J54 note Step Sub-assy, Rear Floor, RH
1991-05 → 1991-08 ended
RZH103 DX —
58307H — Bracket Sub-assy, Brake Tube Conn, NO.1
58307-95701 Bracket Sub-assy, Brake Tube Conn, NO.1
1989-08 → 1990-10 ended
LH102,112,RZH102,113 3 5D;LH108,118,RZH109,112,115,119 4D +2 —
58307-95701 Bracket Sub-assy, Brake Tube Conn, NO.1
1990-10 → 1991-08 ended
LH102,112,RZH102,113 3,113 5D;LH108,118,RZH109,112,115,119 4D +3 —
58307-95701 Bracket Sub-assy, Brake Tube Conn, NO.1
1991-08 → 1995-08 ended
RZH113 DX SDN;LH10#,11#,RZH10#,11# LHD +1 —
58311 — Pan, Rear Floor
58311-26030 note Pan, Rear Floor
1991-08 → 1993-08 ended
RZH103 5D —
58311-26030 note Pan, Rear Floor
1991-05 → 1993-08 ended
LH102 5D 03S —
58311-26030 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH102,RZH103 5D 03S EUR —
58311-26030 note Pan, Rear Floor
1990-10 → 1991-05 ended
LH102,RZH102 5D 03S —
58311-26040 note Pan, Rear Floor
1990-10 → 1991-05 ended
LH102,RZH102 5D 03S —
58311-26040 note Pan, Rear Floor
1991-05 → 1993-08 ended
LH102,RZH103 5D 03S —
58311-26040 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH102,RZH103 5D 03S EUR —
58311-26050 note Pan, Rear Floor
1990-10 → 1991-05 ended
LH112 4FC —
58311-26050 note Pan, Rear Floor
1990-10 → 1991-05 ended
LH11#,RZH112,119 5D 03S 5F —
58311-26050 note Pan, Rear Floor
1991-05 → 1993-08 ended
LH112,RZH113 03S 4FC —
58311-26050 note Pan, Rear Floor
1991-05 → 1993-08 ended
LH11#,RZH113,119 5D 03S 5F —
58311-26050 note Pan, Rear Floor
1990-10 → 1991-08 ended
RZH112 4FC —
58311-26050 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH11#,RZH11# 5D 03S EUR —
58311-26060 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH11#,RZH11# 5D 03S EUR —
58311-26060 note Pan, Rear Floor
1991-05 → 1993-08 ended
LH11#,RZH113,119 5D 03S —
58311-26060 note Pan, Rear Floor
1990-10 → 1991-08 ended
RZH112 4FC —
58311-26060 note Pan, Rear Floor
1990-10 → 1991-05 ended
RZH112 5D 5F;LH11#,RZH119 5D +1 —
58311-26190 Pan, Rear Floor
1993-08 → 1995-08 ended
LH11#,RZH11# DX —
58311-26310 Pan, Rear Floor
1993-08 → 1995-08 ended
LH102,RZH103,109 DX —
58311-95P08 note Pan, Rear Floor
1989-08 → 1992-05 ended
LH102 RHD —
58311-95P08 Pan, Rear Floor
1989-08 → 1995-08 ended
LH102 RHD —
58311-95P09 note Pan, Rear Floor
1989-08 → 1992-05 ended
LH102 RHD —
58311-95P13 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH102,RZH102,103 LHD 4D SP —
58311-95P13 note Pan, Rear Floor
1991-08 → 1993-08 ended
LH102 SG 03S —
58311-95P13 Pan, Rear Floor
1989-08 → 1995-08 ended
LH102,RZH102,103 LHD 4D SP —
58311-95P13 note Pan, Rear Floor
1989-08 → 1991-08 ended
LH102 SG 03S —
58311-95P13 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH102 SG 03S EUR —
58311-95P14 Pan, Rear Floor
1989-08 → 1995-08 ended
LH102 SG 03S EUR —
58311-95P14 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH102,RZH102,103 LHD 4D SP —
58311-95P14 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH102,RZH103 LHD 4D SP —
58311-95P15 Pan, Rear Floor
1989-08 → 1995-08 ended
RZH103,109 06S —
58311-95P16 Pan, Rear Floor
1989-08 → 1993-08 ended
LH102,RZH102,103 DX —
58311-95P20 Pan, Rear Floor
1989-08 → 1995-08 ended
LH10#,RZH10# 5D 03S —
58311-95P20 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH10#,RZH10# 5D 03S —
58311-95P21 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH102 06S —
58311-95P21 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH102 06S —
58311-95P22 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH10#,RZH10# 5D 03S —
58311-95P22 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH10#,RZH103,109 5D 03S —
58311-95P23 Pan, Rear Floor
1989-08 → 1995-08 ended
LH102 06S —
58311-95P38 Pan, Rear Floor
1989-08 → 1995-08 ended
LH112,RZH113 LHD 4D 03S —
58311-95P38 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH112,RZH113 LHD 4D 03S —
58311-95P39 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH112,RZH113 LHD 4D 03S —
58311-95P39 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH112,RZH113 LHD 4D 03S —
58311-95P40 Pan, Rear Floor
1989-08 → 1995-08 ended
RZH112,113,119 4D SG STD —
58311-95P41 Pan, Rear Floor
1989-08 → 1993-08 ended
LH11#,RZH112,113,119 DX —
58311-95P42 Pan, Rear Floor
1989-08 → 1992-05 ended
RZH115 —
58311-95P43 note Pan, Rear Floor
1989-08 → 1992-05 ended
RZH115 —
58311-95P57 note Pan, Rear Floor
1993-08 → 1995-08 ended
RZH103,109 06S —
58311-95P57 note Pan, Rear Floor
1989-08 → 1993-08 ended
RZH109 06S —
58311-95P58 note Pan, Rear Floor
1993-08 → 1995-08 ended
RZH11# SG 5F STD —
58311-95P58 note Pan, Rear Floor
1989-08 → 1993-08 ended
RZH112,113,119 4D 06S —
58311-95P59 note Pan, Rear Floor
1989-08 → 1990-11 ended
RZH102 DX —
58311-95P59 Pan, Rear Floor
1993-08 → 1995-08 ended
RZH103 GL;LH102,RZH102 (DX,GL) EUR —
58311-95P59 note Pan, Rear Floor
1991-05 → 1991-08 ended
RZH103 DX —
58311-95P59 note Pan, Rear Floor
1990-11 → 1991-05 ended
RZH102 DX —
58311-95P59 note Pan, Rear Floor
1991-08 → 1993-08 ended
LH102,RZH103 DX —
58311-95P59 note Pan, Rear Floor
1991-05 → 1993-08 ended
RZH102 DX —
58311-95P67 Pan, Rear Floor
1989-08 → 1995-08 ended
LH112,RZH112,113 RHD —
58311-95P67 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH112,RZH112 RHD —
58311-95P68 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH112,RZH112 RHD —
58311-95P68 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH112,RZH113 RHD —
58311-95P71 Pan, Rear Floor
1990-10 → 1995-08 ended
RZH112 5D 5F;LH11#,RZH113,119 5D +1 —
58311-95P71 note Pan, Rear Floor
1990-10 → 1993-08 ended
RZH112 5D 5F;LH11#,RZH113,119 5D +1 —
58311-95P71 note Pan, Rear Floor
1989-08 → 1990-10 ended
LH11#,RZH112,113,119 5D 03S —
58311-95P72 note Pan, Rear Floor
1989-08 → 1991-08 ended
RZH113 5D 06S 5F —
58311-95P72 note Pan, Rear Floor
1989-08 → 1991-08 ended
LH112 06S;RZH113 06S 4FC —
58311-95P72 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH112,RZH113 5D 06S —
58311-95P72 note Pan, Rear Floor
1991-08 → 1993-08 ended
LH112,RZH113 5D 06S —
58311-95P73 note Pan, Rear Floor
1993-08 → 1995-08 ended
LH11#,RZH11# 5D 03S —
58311-95P73 note Pan, Rear Floor
1990-10 → 1993-08 ended
RZH112 5D 5F;LH11#,RZH113,119 5D +1 —
58311-95P73 note Pan, Rear Floor
1989-08 → 1990-10 ended
LH11#,RZH112,113,119 5D 03S —
58311-95P74 Pan, Rear Floor
1989-08 → 1995-08 ended
LH112,RZH113 5D 06S —
58311-95P79 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH102,RZH102,103 DX —
58311-95P80 note Pan, Rear Floor
1989-08 → 1993-08 ended
LH11#,RZH112,113,119 DX —
58311-95P87 note Pan, Rear Floor
1989-08 → 1992-05 ended
RZH115 —
58311-95P88 note Pan, Rear Floor
1989-08 → 1992-05 ended
RZH115 —
58339D — Bracket, Jack UP
58339-95J00 Bracket, Jack UP
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58445D — Lock, Battery Service Hole Cover
58445-95J01 Lock, Battery Service Hole Cover
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58446C — Protector, Battery
58446-95J02 Protector, Battery
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58449B — Packing, Battery Service Hole Cover
58449-95J00 Packing, Battery Service Hole Cover
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58450A — Packing, Battery Service Hole Cover
58449-95J00 note Packing, Battery Service Hole Cover
1989-08 → 1989-10 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58449-95J00 Packing, Battery Service Hole Cover
1989-10 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58449-95J00 note Packing, Battery Service Hole Cover
1989-08 → 1989-10 ended
LH108,RZH109,113 03S 5F;LH102,112,RZH102 LHD +2 —
58449-95J00 note Packing, Battery Service Hole Cover
1989-08 → 1989-10 ended
RZH112 4FC —
58449-95J00 Packing, Battery Service Hole Cover
1989-08 → 1989-10 ended
RZH103;LH102,11#,RZH102,109,11# 06S,09S,15S —
58451B — Cover, Air Cleaner Service Hole
58405-95J01 note Cover, Air Cleaner Service Hole
1991-04 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH119 5D +1 —
58405-95J01 note Cover, Air Cleaner Service Hole
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# LHD SP EUR —
58405-95J01 Cover, Air Cleaner Service Hole
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 05S,06S,09S —
58405-95J01 note Cover, Air Cleaner Service Hole
1992-05 → 1993-08 ended
RZH109 03S;RZH102,113 4D 03S —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-08 → 1993-08 ended
LH102,112 LHD SP;LH108,118,RZH103,112,113,119 5D +2 —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-08 → 1993-08 ended
RZH102 5D;RZH113 03S 4FC —
58405-95J01 Cover, Air Cleaner Service Hole
1990-10 → 1993-08 ended
RZH103 4D;RZH112 4FC;LH102,11#,RZH102,109,11# 06S,09S,15S —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-08 → 1992-05 ended
RZH109 03S;RZH113 4D 03S —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-05 → 1991-08 ended
LH102,112 LHD SP;LH108,118,RZH102,112,113,119 5D +2 —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-05 → 1991-08 ended
RZH109 03S;RZH102,113 4D 03S —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-05 → 1991-08 ended
RZH113 03S 4FC —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-04 → 1991-05 ended
RZH102 5D —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-04 → 1991-05 ended
RZH102 4D STD;RZH109,113 03S +1 —
58405-95J01 Cover, Air Cleaner Service Hole
1989-08 → 1990-10 ended
RZH103;LH102,11#,RZH102,109,11# 06S,09S,15S —
58405-95J01 note Cover, Air Cleaner Service Hole
1991-04 → 1991-05 ended
LH108;LH102,112 LHD 4D SP —
58405-95J01 note Cover, Air Cleaner Service Hole
1989-08 → 1990-10 ended
RZH112 4FC —
58405-95J01 note Cover, Air Cleaner Service Hole
1989-08 → 1991-04 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
58405-95J01 note Cover, Air Cleaner Service Hole
1989-08 → 1991-04 ended
LH108,RZH109,113 03S 5F;LH102,112,RZH102 LHD +2 —
58405-95J03 note Cover, Air Cleaner Service Hole
1989-08 → 1991-08 ended
RZH119 06S;RZH113 5D 06S +3 —
58405-95J03 Cover, Air Cleaner Service Hole
1993-08 → 1995-08 ended
RZH102;LH10#,11#,RZH103,109,11# 03S —
58405-95J03 note Cover, Air Cleaner Service Hole
1992-05 → 1993-08 ended
RZH103 4D STD —
58405-95J03 Cover, Air Cleaner Service Hole
1989-08 → 1990-10 ended
LH10#,11#,RZH102,109,112,113,119 03S —
58405-95J03 note Cover, Air Cleaner Service Hole
1991-08 → 1993-08 ended
RZH113,119 06S 5F;LH102,RZH10# 4D +1 —
58405-95J03 Cover, Air Cleaner Service Hole
1990-10 → 1993-08 ended
RZH103 5D;RZH112 5F STD;LH10#,11#,RZH102,109,113,119 +1 —
58405-95J03 note Cover, Air Cleaner Service Hole
1991-08 → 1992-05 ended
RZH103 4D STD —
58405-95J03 note Cover, Air Cleaner Service Hole
1989-08 → 1991-08 ended
RZH103 STD —
58458C — Knob, Battery Service Hole Cover
58458-95J01 Knob, Battery Service Hole Cover
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58465B — Packing, Transmission Service Hole Cover
58465-95J05 Packing, Transmission Service Hole Cover
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58466E — Silencer, Transmission Service Hole Cover, NO.1
58327-95J08 Silencer, Transmission Service Hole Cover, NO.1
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
58797 — Bracket, Jack Clamp Band
58705-95A01 Bracket, Jack Clamp Band
1993-08 → 1995-08 ended
RZH102;LH10#,11#,RZH103,109,11# 03S —
59365A — Reteiner, Rear Seat, NO.2
59365-95J06 Reteiner, Rear Seat, NO.2
1989-08 → 1995-08 ended
RZH112,113,119 4D SG STD —
59371 — Retainer, Rear Seat, NO.3
59371-95J01 Retainer, Rear Seat, NO.3
1989-08 → 1992-05 ended
RZH115 —
65557 — Retainer, Rope Hook
65557-95J03 note Retainer, Rope Hook
1990-11 → 1991-05 ended
RZH102 DX —
65557-95J03 note Retainer, Rope Hook
1991-05 → 1991-08 ended
RZH103 DX —
65557-95J03 Retainer, Rope Hook
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,112,113,119 STD —
65557-95J03 note Retainer, Rope Hook
1991-05 → 1993-08 ended
RZH102 DX —
65557-95J03 note Retainer, Rope Hook
1991-08 → 1993-08 ended
LH102,RZH103 DX —
65557-95J03 Retainer, Rope Hook
1993-08 → 1995-08 ended
RZH102;LH10#,11#,RZH103,109,11# GL,STD —
65557-95J03 note Retainer, Rope Hook
1989-08 → 1990-11 ended
RZH102 DX —
65557B — Retainer, Rope Hook
65557-95J06 Retainer, Rope Hook
1989-08 → 1995-08 ended
LH10#,RZH10# GL,STD —
65557-95J06 note Retainer, Rope Hook
1991-05 → 1991-08 ended
RZH103 DX —
65557-95J06 note Retainer, Rope Hook
1991-08 → 1993-08 ended
LH102,RZH103 DX —
65557-95J09 note Retainer, Rope Hook
1991-05 → 1993-08 ended
RZH113 5D 03S —
65557-95J09 note Retainer, Rope Hook
1993-08 → 1995-08 ended
LH102,11#,RZH103,11# 5D 03S EUR —
65557-95J09 Retainer, Rope Hook
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 STD SDN —
65557-95J09 note Retainer, Rope Hook
1991-05 → 1993-08 ended
LH102,11#,RZH103,119 5D 03S —
65557-95J09 note Retainer, Rope Hook
1989-08 → 1992-05 ended
RZH113 5D 06S 5F —
65557-95J09 note Retainer, Rope Hook
1991-04 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
65557-95J09 note Retainer, Rope Hook
1989-08 → 1991-05 ended
RZH113 5D 03S —
65557-95J09 note Retainer, Rope Hook
1990-10 → 1991-04 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
65557-95J09 note Retainer, Rope Hook
1989-08 → 1990-10 ended
LH102,11#,RZH102,112,119 5D 03S —
66311 — Hook, Rope
66301-95J00 note Hook, Rope
1990-10 → 1993-08 ended
RZH112 5D 5F;RZH113 5D +4 —
66301-95J00 note Hook, Rope
1989-08 → 1990-10 ended
RZH113 5D 06S 5F;LH10#,11#,RZH10#,112,113,119 +2 —
66301-95J00 note Hook, Rope
1991-08 → 1993-08 ended
RZH113 4D 06S —
66301-95J00 note Hook, Rope
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# LHD 03S STD +1 —
66310-95J00 note Hook, Rope
1989-08 → 1992-05 ended
RZH113 06S —
66310-95J00 note Hook, Rope
1990-10 → 1992-05 ended
RZH113 5D 06S 5F —
66310-95J00 note Hook, Rope
1990-10 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
66310-95J00 note Hook, Rope
1991-05 → 1993-08 ended
LH102,11#,RZH103,119 5D 03S —
66310-95J00 note Hook, Rope
1991-05 → 1993-08 ended
RZH113 5D 03S —
66310-95J00 note Hook, Rope
1989-08 → 1991-05 ended
RZH113 5D 03S —
66310-95J00 note Hook, Rope
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 STD SDN —
66310-95J00 note Hook, Rope
1993-08 → 1995-08 ended
LH102,11#,RZH103,11# 5D 03S EUR —
66310-95J00 note Hook, Rope
1989-08 → 1990-10 ended
RZH113 5D 06S 5F —
66310-95J00 note Hook, Rope
1989-08 → 1990-10 ended
LH102,11#,RZH102,112,119 5D 03S —
66310-95J01 note Hook, Rope
1989-08 → 1990-05 ended
RZH113 5D 06S 5F —
66310-95J01 note Hook, Rope
1989-08 → 1990-05 ended
RZH113 5D 03S —
66310-95J01 note Hook, Rope
1989-08 → 1990-05 ended
RZH113 06S —
66310-95J01 note Hook, Rope
1989-08 → 1990-05 ended
LH102,11#,RZH102,112,119 5D 03S —
66310-95J01 note Hook, Rope
1989-08 → 1990-05 ended
RZH102 DX —
66310-95J01-03 note Hook, Rope
1991-08 → 1993-08 ended
LH102,RZH103 DX —
66310-95J01-03 note Hook, Rope
1991-05 → 1993-08 ended
RZH113 5D 03S —
66310-95J01-03 note Hook, Rope
1991-05 → 1993-08 ended
LH102,11#,RZH103,119 5D 03S —
66310-95J01-03 note Hook, Rope
1990-10 → 1992-05 ended
RZH113 5D 06S 5F —
66310-95J01-03 note Hook, Rope
1990-05 → 1992-05 ended
RZH113 06S —
66310-95J01-03 note Hook, Rope
1990-10 → 1991-05 ended
RZH112 5D 5F;LH102,11#,RZH102,119 5D +1 —
66310-95J01-03 note Hook, Rope
1991-05 → 1991-08 ended
RZH103 DX —
66310-95J01-03 note Hook, Rope
1990-10 → 1991-08 ended
RZH112 4FC —
66310-95J01-03 note Hook, Rope
1990-05 → 1991-05 ended
RZH113 5D 03S —
66310-95J01-03 note Hook, Rope
1990-05 → 1991-05 ended
RZH102 DX —
66310-95J01-03 note Hook, Rope
1990-05 → 1990-10 ended
LH102,11#,RZH102,112,119 5D 03S —
66310-95J01-03 note Hook, Rope
1990-05 → 1990-10 ended
RZH113 5D 06S 5F —
66310-95J01-B0 note Hook, Rope
1993-08 → 1995-08 ended
RZH113 STD SDN —
66310-95J01-B0 note Hook, Rope
1993-08 → 1995-08 ended
LH102,RZH103 GL —
66310-95J01-B0 note Hook, Rope
1993-08 → 1995-08 ended
LH102,11#,RZH103,11# 5D 03S EUR —
66310-95J02 note Hook, Rope
1989-08 → 1991-05 ended
RZH102 DX —
66310-95J02 note Hook, Rope
1991-08 → 1993-08 ended
LH102,RZH103 DX —
66310-95J02 note Hook, Rope
1993-08 → 1995-08 ended
LH102,RZH103 GL —
66310-95J02 note Hook, Rope
1991-05 → 1991-08 ended
RZH103 DX —
66310-95J03 note Hook, Rope
1989-08 → 1991-05 ended
RZH102 DX —
66310-95J03 note Hook, Rope
1991-08 → 1993-08 ended
LH102,RZH103 DX —
66310-95J03 note Hook, Rope
1991-05 → 1991-08 ended
RZH103 DX —
66310-95J03 note Hook, Rope
1993-08 → 1995-08 ended
LH102,RZH103 GL —
66311-28010 note Hook, Rope
1993-06 → 1993-08 ended
RZH109,119 06S;RZH113 5D 06S +1 —
66311-28010 Hook, Rope
1993-06 → 1995-08 ended
LH102,112,RZH103,109,113,119 (06S,09S) STD —
66311-28010 Hook, Rope
1993-06 → 1995-08 ended
LH10#,11#,RZH10#,11# 03S STD (EUR,FRG) —
66311-95J00 note Hook, Rope
1989-08 → 1990-10 ended
RZH113 5D 06S 5F —
66311-95J00 Hook, Rope
1989-08 → 1990-10 ended
LH10#,11#,RZH10#,112,113,119 03S —
66311-95J00 note Hook, Rope
1989-08 → 1990-10 ended
RZH109,119 06S —
66311-95J00 note Hook, Rope
1990-10 → 1993-06 ended
RZH109,119 06S;RZH113 5D 06S +1 —
66311-95J00 Hook, Rope
1990-10 → 1993-06 ended
RZH112 5F STD;LH10#,11#,RZH10#,113,119 03S —
66311-95J00 Hook, Rope
1989-08 → 1993-06 ended
LH102,112,RZH109,112,113,119 06S —
74732A — Bracket, Tool Bag Set Band
74732-95600 Bracket, Tool Bag Set Band
1989-10 → 1990-10 ended
RZH109,119 STD;RZH113 5D 06S +3 —
74732-95600 note Bracket, Tool Bag Set Band
1989-10 → 1991-08 ended
RZH103 STD —
74732-95600 Bracket, Tool Bag Set Band
1990-10 → 1991-08 ended
LH11#,RZH113 D 03S;RZH113 5D +5 —
74732-95600 Bracket, Tool Bag Set Band
1991-08 → 1992-05 ended
RZH103 RZH112,113 5D;RZH103 03S +5 —
74732-95600 note Bracket, Tool Bag Set Band
1991-08 → 1992-05 ended
RZH103 4D STD —
74732-95600 Bracket, Tool Bag Set Band
1992-05 → 1993-08 ended
RZH109,119 STD;RZH113 06S 5F;LH11#,RZH112,113 +2 —
74732-95600 Bracket, Tool Bag Set Band
1993-08 → 1995-08 ended
RZH102;LH10#,11#,RZH103,109,11# 03S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
