Factory parts data · Europe

Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12

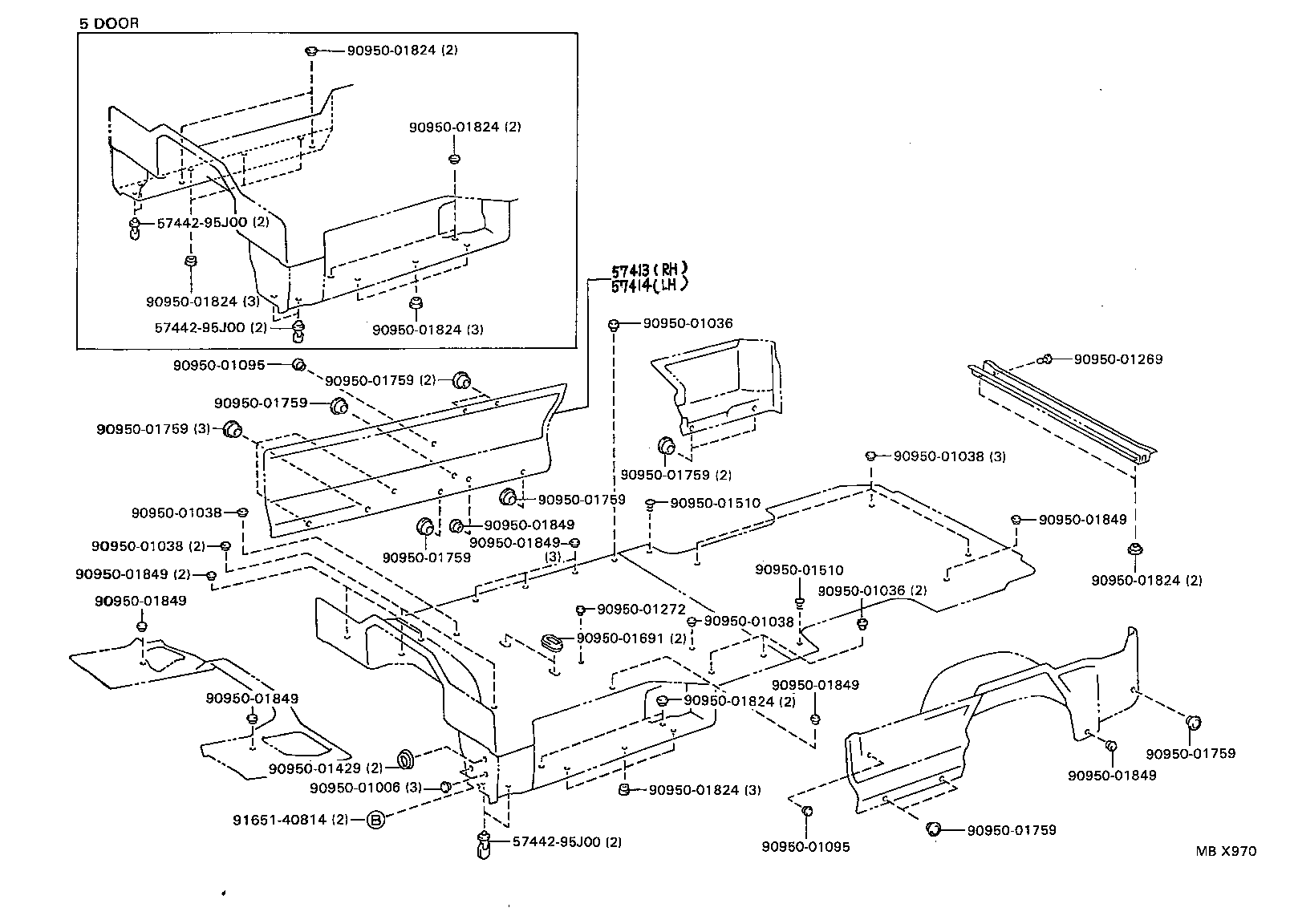

Exploded illustration MBX970 9095001824 — not listed in this catalogue 9095001824 — not listed in this catalogue 5744295J00 — not listed in this catalogue 57413 — RAIL, FLOOR SIDE, CENTER RH (21 parts) 57414 — RAIL, FLOOR SIDE, CENTER LH (34 parts) 9095001824 — not listed in this catalogue 9095001036 — not listed in this catalogue 5744295J00 — not listed in this catalogue 9095001824 — not listed in this catalogue 9095001269 — not listed in this catalogue 9095001095 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095001038 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095001510 — not listed in this catalogue 9095001038 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001038 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095001510 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001824 — not listed in this catalogue 9095001036 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001272 — not listed in this catalogue 9095001038 — not listed in this catalogue 9095001691 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001824 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095001429 — not listed in this catalogue 9095001849 — not listed in this catalogue 9095001006 — not listed in this catalogue 9095001824 — not listed in this catalogue 9165140814 — not listed in this catalogue 9095001759 — not listed in this catalogue 5744295J00 — not listed in this catalogue 9095001095 — not listed in this catalogue
MBX970 · 2 callouts, 42 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
57413 — Rail, Floor Side, Center RH
57413-95J82 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH102 RHD —
57413-95J84 note Rail, Floor Side, Center RH
1989-08 → 1991-05 ended
LH102,RZH102 5D 03S —
57413-95J84 note Rail, Floor Side, Center RH
1991-05 → 1995-08 ended
LH102,RZH103 5D 03S EUR —
57413-95J84 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH102,RZH10# DX,GL —
57413-95J88 note Rail, Floor Side, Center RH
1990-10 → 1991-08 ended
RZH102 DX —
57413-95J88 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH10#,RZH10# LHD STD —
57413-95J88 note Rail, Floor Side, Center RH
1991-08 → 1992-05 ended
RZH102 DX —
57413-95J88 note Rail, Floor Side, Center RH
1990-10 → 1993-08 ended
LH102 DX —
57413-95N04 note Rail, Floor Side, Center RH
1989-08 → 1990-10 ended
LH11#,RZH112,119 5D 03S —
57413-95N04 Rail, Floor Side, Center RH
1989-08 → 1990-10 ended
LH11#,RZH112,113,119 DX —
57413-95N04 note Rail, Floor Side, Center RH
1993-08 → 1995-08 ended
LH11#,RZH11# 5D 03S EUR —
57413-95N04 Rail, Floor Side, Center RH
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 SDN;LH11#,RZH112,113,119 DX +1 —
57413-95N04 note Rail, Floor Side, Center RH
1991-05 → 1993-08 ended
LH11#,RZH119 5D 03S —
57413-95N04 note Rail, Floor Side, Center RH
1991-05 → 1992-05 ended
RZH113 06S —
57413-95N04 note Rail, Floor Side, Center RH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH11#,RZH119 5D +1 —
57413-95N04 note Rail, Floor Side, Center RH
1989-08 → 1991-05 ended
RZH113 5D;RZH113 4D 06S —
57413-95N04 note Rail, Floor Side, Center RH
1991-05 → 1993-08 ended
RZH113 5D 03S —
57413-95N11 note Rail, Floor Side, Center RH
1990-10 → 1993-08 ended
LH112,RZH112 DX —
57413-95N11 Rail, Floor Side, Center RH
1990-10 → 1995-08 ended
RZH112 5D 5F;LH11#,RZH113,115,119 LHD +2 —
57413-95N11 Rail, Floor Side, Center RH
1989-08 → 1990-10 ended
LH11#,RZH11# LHD STD —
57413-95N13 Rail, Floor Side, Center RH
1989-08 → 1995-08 ended
LH112,RZH112,113 RHD —
57414 — Rail, Floor Side, Center LH
57406-95J54 note Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH115 —
57406-95J56 Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH115 —
57406-95J57 note Rail, Floor Side, Center LH
1989-08 → 1991-05 ended
RZH102 DX —
57406-95J57 note Rail, Floor Side, Center LH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
57406-95J57 note Rail, Floor Side, Center LH
1991-05 → 1991-08 ended
RZH103 DX —
57406-95J57 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH102,RZH103 GL —
57414-26010 note Rail, Floor Side, Center LH
1991-08 → 1995-08 ended
LH102,RZH103 LHD 4D SP +1 —
57414-95J68 Rail, Floor Side, Center LH
1989-08 → 1995-08 ended
LH102 RHD;LH10#,RZH10# 5D —
57414-95J70 Rail, Floor Side, Center LH
1990-10 → 1995-08 ended
RZH112 5F STD;LH112,RZH113 RHD;LH11#,RZH113,119 +2 —
57414-95J70 Rail, Floor Side, Center LH
1989-08 → 1990-10 ended
LH112 RHD;LH112,RZH113 5D;LH118,RZH112,119 03S —
57414-95J72 note Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH11#,RZH11# 5D 03S EUR —
57414-95J72 Rail, Floor Side, Center LH
1990-10 → 1995-08 ended
RZH112 4FC;RZH113 STD SDN —
57414-95J72 note Rail, Floor Side, Center LH
1991-05 → 1993-08 ended
RZH113 5D 03S —
57414-95J72 note Rail, Floor Side, Center LH
1991-05 → 1993-08 ended
LH11#,RZH119 5D 03S —
57414-95J72 note Rail, Floor Side, Center LH
1991-05 → 1992-05 ended
RZH113 5D 06S —
57414-95J72 note Rail, Floor Side, Center LH
1990-10 → 1991-05 ended
RZH112 5D 5F;LH11#,RZH119 5D +1 —
57414-95J72 note Rail, Floor Side, Center LH
1989-08 → 1991-05 ended
RZH113 5D —
57414-95J72 note Rail, Floor Side, Center LH
1989-08 → 1990-10 ended
LH11#,RZH112,119 5D 03S —
57414-95J77 note Rail, Floor Side, Center LH
1989-08 → 1991-05 ended
LH102,RZH102 5D 03S —
57414-95J77 note Rail, Floor Side, Center LH
1991-05 → 1995-08 ended
LH102,RZH103 5D 03S EUR —
57414-95J86 Rail, Floor Side, Center LH
1989-08 → 1995-08 ended
LH102,RZH10# LHD 4D STD —
57414-95J87 Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH102,RZH102,103 DX —
57414-95J87 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH102 03S DX —
57414-95J88 Rail, Floor Side, Center LH
1989-08 → 1995-08 ended
LH112,RZH112,113,119 LHD 4D STD —
57414-95J89 Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH11#,RZH112,113,119 DX —
57414-95J89 note Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH113 4D 06S —
57414-95N00 note Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH102,RZH102,103 DX —
57414-95N00 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH102,RZH10# 09S —
57414-95N01 note Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
RZH113 09S STD;LH112 LHD +2 —
57414-95N01 note Rail, Floor Side, Center LH
1989-08 → 1991-08 ended
RZH112,113 4D 06S —
57414-95N01 note Rail, Floor Side, Center LH
1991-08 → 1993-08 ended
RZH113 4D 06S;LH112 LHD +2 —
57414-95N02 note Rail, Floor Side, Center LH
1989-08 → 1993-08 ended
LH11#,RZH112,113,119 DX —
57414-95N02 note Rail, Floor Side, Center LH
1989-08 → 1992-05 ended
RZH113 4D 06S —
57414-95N02 Rail, Floor Side, Center LH
1993-08 → 1995-08 ended
LH11#,RZH11# DX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
