Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

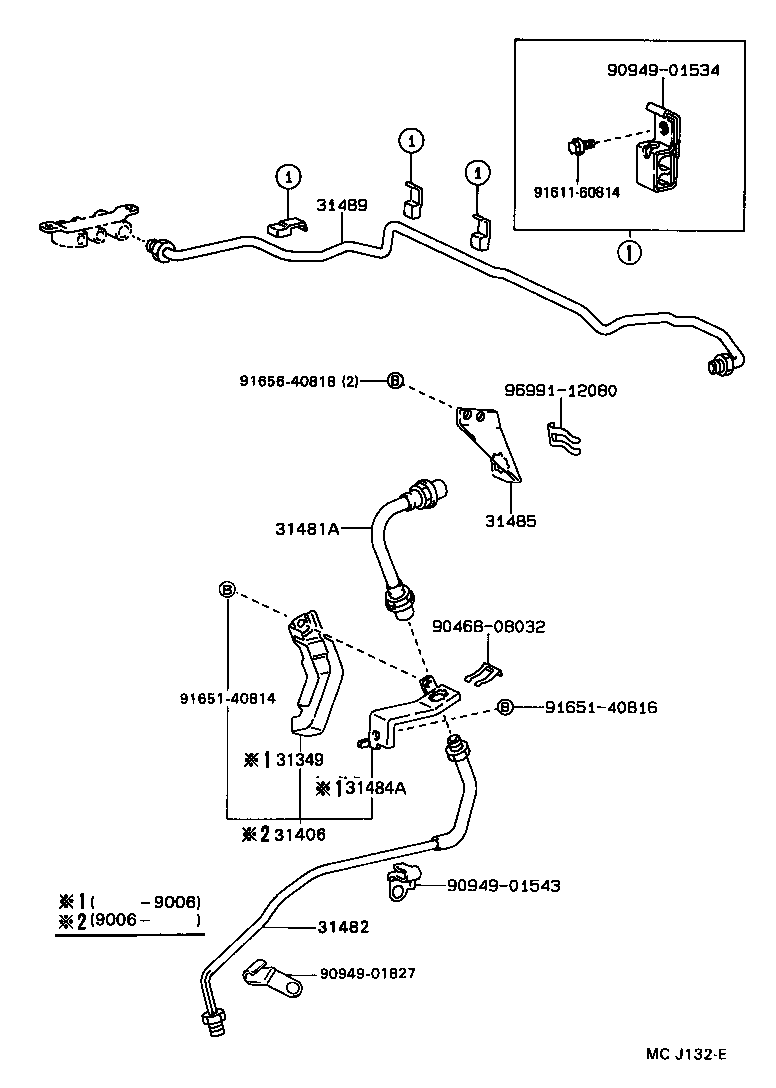

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31349 — Insulator, Clutch Cable Heat | ||||
| 31349-26030 |
Insulator, Clutch Cable Heat
1989-08 → 1990-06
ended
|
RZH10#,11# 5F | — | |
| 31349-26040 |
Insulator, Clutch Cable Heat
1989-08 → 1990-12
ended
|
LH10#,11# 5F | — | |
| 31349-26041 |
Insulator, Clutch Cable Heat
1990-12 → 1995-08
ended
|
LH10#,11# 5F | — | |
| 31406 — Bracket Sub-assy, Flexible Hose | ||||
| 31406-26041 |
Bracket Sub-assy, Flexible Hose
1990-06 → 1993-10
ended
|
RZH10#,11# 5F | — | |
| 31406-26042 |
Bracket Sub-assy, Flexible Hose
1993-10 → 1995-08
ended
|
RZH10#,11# 5F | — | |
| 31406-26050 |
Bracket Sub-assy, Flexible Hose
1989-08 → 1990-06
ended
|
LH10#,11# 5F | — | |
| 31406-26051 |
Bracket Sub-assy, Flexible Hose
1990-06 → 1990-12
ended
|
LH10#,11# 5F | — | |
| 31406-26052 |
Bracket Sub-assy, Flexible Hose
1990-12 → 1995-08
ended
|
LH10#,11# 5F | — | |
| 31481A — Hose, Clutch, NO.1 | ||||
| 90931-01036 |
Hose, Clutch, NO.1
1989-08 → 1995-08
ended
|
RZH10#,11# 5F | — | |
| 90931-01075 |
Hose, Clutch, NO.1
1989-08 → 1995-08
ended
|
LH10#,11# 5F | — | |
| 31482 — Tube, Clutch Release Cylinder TO Flexible Hose | ||||
| 31482-26160 |
Tube, Clutch Release Cylinder TO Flexible Hose
1989-08 → 1995-08
ended
|
RZH10#,11# 5F | — | |
| 31482-26170 |
Tube, Clutch Release Cylinder TO Flexible Hose
1989-08 → 1995-08
ended
|
LH10#,11# 5F | — | |
| 31484A — Bracket, Flexible Hose, NO.1(FOR CLUTCH) | ||||
| 31484-26120 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
1989-08 → 1990-06
ended
|
RZH10#,11# 5F | — | |
| 31484-26121 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
1990-06 → 1993-10
ended
|
RZH10#,11# 5F | — | |
| 31485 — Bracket, Flexible Hose, NO.2(FOR CLUTCH) | ||||
| 31485-26080 |
Bracket, Flexible Hose, NO.2(FOR CLUTCH)
1989-08 → 1995-08
ended
|
LH10#,11#,RZH10#,11# 5F | — | |
| 31489 — Tube, Tube Connector TO Flexible Hose | ||||
| 31489-26190 |
Tube, Tube Connector TO Flexible Hose
1989-08 → 1993-08
ended
|
LH10#,11#,RZH10#,11# 5F | — | |
| 31489-26200 |
Tube, Tube Connector TO Flexible Hose
1993-08 → 1995-08
ended
|
LH10#,11#,RZH10#,11# 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
