Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

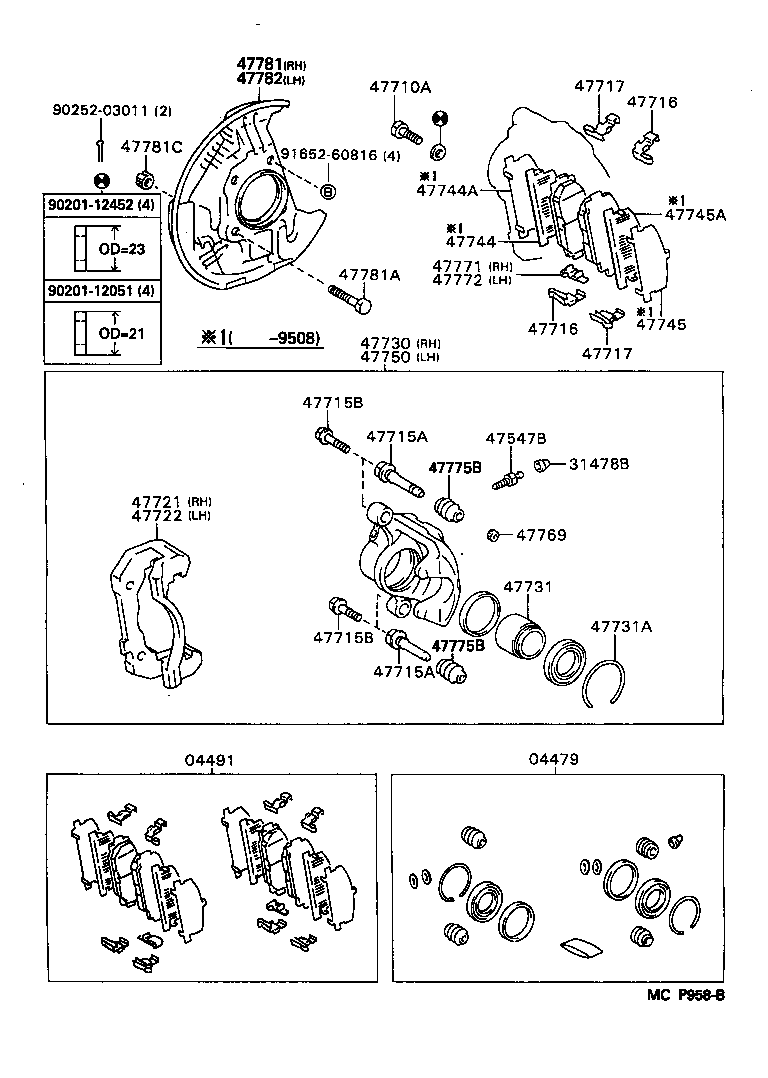

Exploded illustration MCP958B 47781 — COVER, DISC BRAKE DUST, FRONT RH (7 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (7 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (5 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (2 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (5 parts) 9025203011 — not listed in this catalogue 47781C — NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) (1 parts) 9165260816 — not listed in this catalogue 47744A — SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) (5 parts) 9020112452 — not listed in this catalogue 47745A — SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) (5 parts) 47744 — SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) (6 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (5 parts) 47781A — BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) (1 parts) 47772 — PLATE, PAD WEAR INDICATOR, NO.2 (2 parts) 9020112051 — not listed in this catalogue 47745 — SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) (7 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (5 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (6 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (5 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (6 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (1 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (2 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (1 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (1 parts) 47775B — BOOT, BUSH DUST, NO.1 (5 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (5 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (5 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (4 parts) 47731 — PISTON, FRONT DISC BRAKE (1 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (1 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (1 parts) 47775B — BOOT, BUSH DUST, NO.1 (5 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (2 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (5 parts) 04491 — PAD KIT, DISC BRAKE, FRONT (11 parts)
MCP958B · 32 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
112 parts on this figure
Part number Description Fitment Price
04479 — Cylinder Kit, Disc Brake, Front
04479-26040 Cylinder Kit, Disc Brake, Front
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
04479-26040 Cylinder Kit, Disc Brake, Front
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
04479-26050 Cylinder Kit, Disc Brake, Front
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
04479-26060 note Cylinder Kit, Disc Brake, Front
1993-08 → 1995-08 ended
LH102,112 STD —
04479-26060 Cylinder Kit, Disc Brake, Front
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
04491 — Pad Kit, Disc Brake, Front
04491-26250 Pad Kit, Disc Brake, Front
1989-08 → 1991-10 ended
LH102,112,RZH102,103,112,113,115 —
04491-26261 Pad Kit, Disc Brake, Front
1991-10 → 1992-01 ended
LH108,118,RZH109,119 —
04491-26262 Pad Kit, Disc Brake, Front
1992-01 → 1992-03 ended
LH108,118,RZH109,119 —
04491-26270 Pad Kit, Disc Brake, Front
1989-08 → 1991-10 ended
LH108,118,RZH109,119 —
04491-26280 Pad Kit, Disc Brake, Front
1991-10 → 1992-03 ended
LH102,112,RZH102,103,112,113,115 —
04491-26310 Pad Kit, Disc Brake, Front
1992-03 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
04491-26310 Pad Kit, Disc Brake, Front
1993-08 → 1995-05 ended
RZH102;LH102,112 STD —
04491-26320 Pad Kit, Disc Brake, Front
1992-03 → 1993-08 ended
LH108,118,RZH109,119 —
04491-26340 Pad Kit, Disc Brake, Front
1993-08 → 1995-05 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
04491-26340 note Pad Kit, Disc Brake, Front
1993-08 → 1995-05 ended
LH102,112 STD —
04491-26340 Pad Kit, Disc Brake, Front
1995-05 → 1995-08 ended
LH108,118,RZH109,119 —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-12010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90101-12132 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
90101-12149 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
47715A — Pin, Front Disc Brake Cylinder Slide
47715-50010 note Pin, Front Disc Brake Cylinder Slide
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# —
47715-50030 note Pin, Front Disc Brake Cylinder Slide
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# —
47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164 Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# —
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-26040 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47716-26040 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47716-26050 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47716-26050 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47716-26050 note Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 STD —
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47717-26010 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47717-26010 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47717-26020 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47717-26020 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 STD —
47717-26020 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-26070 Mounting, Front Disc Brake Cylinder, RH
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47721-26080 Mounting, Front Disc Brake Cylinder, RH
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47721-26080 Mounting, Front Disc Brake Cylinder, RH
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47721-26100 Mounting, Front Disc Brake Cylinder, RH
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47721-26100 note Mounting, Front Disc Brake Cylinder, RH
1993-08 → 1995-08 ended
LH102,112 STD —
47722 — Mounting, Front Disc Brake Cylinder, LH
47721-26070 Mounting, Front Disc Brake Cylinder, LH
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47721-26080 Mounting, Front Disc Brake Cylinder, LH
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47721-26080 Mounting, Front Disc Brake Cylinder, LH
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47722-26030 Mounting, Front Disc Brake Cylinder, LH
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47722-26030 note Mounting, Front Disc Brake Cylinder, LH
1993-08 → 1995-08 ended
LH102,112 STD —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-26060 Cylinder Assy, Front Disc Brake, RH
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47730-26060 Cylinder Assy, Front Disc Brake, RH
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47730-26070 Cylinder Assy, Front Disc Brake, RH
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47730-26120 Cylinder Assy, Front Disc Brake, RH
1993-08 → 1995-08 ended
RZH103,113;LH102,112 DX,GL —
47730-26120 note Cylinder Assy, Front Disc Brake, RH
1993-08 → 1995-08 ended
LH102,112 STD —
47730-26130 Cylinder Assy, Front Disc Brake, RH
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
47731 — Piston, Front Disc Brake
47731-25010 Piston, Front Disc Brake
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90522-76001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# —
47744 — Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47744-26060 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1989-08 → 1991-11 ended
LH102,112,RZH102,103,112,113,115 —
47745-26060 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1991-11 → 1993-04 ended
LH102,112,RZH102,103,112,113,115 —
47745-26060 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47745-26070 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1992-01 → 1993-08 ended
LH108,118,RZH109,119 —
47745-26080 note Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 STD —
47745-26080 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47744A — Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
47744-26070 Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1991-11 → 1993-04 ended
LH102,112,RZH102,103,112,113,115 —
47744-26070 Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47744-26080 Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1992-01 → 1993-08 ended
LH108,118,RZH109,119 —
47744-26090 Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47744-26090 note Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 STD —
47745 — Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47744-26060 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1989-08 → 1991-11 ended
LH102,112,RZH102,103,112,113,115 —
47745-26050 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1989-08 → 1992-01 ended
LH108,118,RZH109,119 —
47745-26060 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1991-11 → 1993-04 ended
LH102,112,RZH102,103,112,113,115 —
47745-26060 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47745-26070 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1992-01 → 1993-08 ended
LH108,118,RZH109,119 —
47745-26080 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47745-26080 note Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 STD —
47745A — Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
47744-26070 Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47744-26070 Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1991-11 → 1993-04 ended
LH102,112,RZH102,103,112,113,115 —
47744-26080 Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1992-01 → 1993-08 ended
LH108,118,RZH109,119 —
47744-26090 Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47744-26090 note Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 STD —
47750 — Cylinder Assy, Disc Brake, LH
47750-26060 Cylinder Assy, Disc Brake, LH
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47750-26060 Cylinder Assy, Disc Brake, LH
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47750-26070 Cylinder Assy, Disc Brake, LH
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47750-26120 Cylinder Assy, Disc Brake, LH
1993-08 → 1995-08 ended
RZH103,113;LH102,112 DX,GL —
47750-26120 note Cylinder Assy, Disc Brake, LH
1993-08 → 1995-08 ended
LH102,112 STD —
47750-26130 Cylinder Assy, Disc Brake, LH
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-40010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,11# —
47769-40010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47769-50010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1993-08 → 1995-08 ended
LH102,112 STD —
47771 — Plate, Pad Wear Indicator, NO.1
47771-26030 Plate, Pad Wear Indicator, NO.1
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47771-26030 note Plate, Pad Wear Indicator, NO.1
1993-08 → 1995-08 ended
LH102,112 STD —
47771-26030 Plate, Pad Wear Indicator, NO.1
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47771-35010 Plate, Pad Wear Indicator, NO.1
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47771-35010 Plate, Pad Wear Indicator, NO.1
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47772 — Plate, Pad Wear Indicator, NO.2
47772-26030 Plate, Pad Wear Indicator, NO.2
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47772-26030 Plate, Pad Wear Indicator, NO.2
1993-08 → 1995-08 ended
LH10#,11#,RZH103,109,11# —
47775B — Boot, Bush Dust, NO.1
47775-26010 Boot, Bush Dust, NO.1
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47775-26020 Boot, Bush Dust, NO.1
1989-08 → 1993-08 ended
LH102,112,RZH102,103,112,113,115 —
47775-26020 Boot, Bush Dust, NO.1
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47775-50010 Boot, Bush Dust, NO.1
1993-08 → 1995-08 ended
LH102,112 DX,GL;LH108,118,RZH103,109,11# —
47775-50010 note Boot, Bush Dust, NO.1
1993-08 → 1995-08 ended
LH102,112 STD —
47781 — Cover, Disc Brake Dust, Front RH
47703-26010 Cover, Disc Brake Dust, Front RH
1993-08 → 1995-08 ended
RZH103,113;LH102,112 DX,GL —
47703-26010 note Cover, Disc Brake Dust, Front RH
1993-08 → 1995-08 ended
LH102,112 STD —
47781-26051 Cover, Disc Brake Dust, Front RH
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47781-26070 Cover, Disc Brake Dust, Front RH
1992-05 → 1993-08 ended
LH102,112,RZH102,103,112,113 —
47781-26070 Cover, Disc Brake Dust, Front RH
1989-08 → 1992-05 ended
LH102,112,RZH102,103,112,113,115 —
47781-26070 Cover, Disc Brake Dust, Front RH
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47781-26110 Cover, Disc Brake Dust, Front RH
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
47781A — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90102-12005 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
47781C — Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90171-12004 Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
47782 — Cover, Disc Brake Dust, Front LH
47704-26010 Cover, Disc Brake Dust, Front LH
1993-08 → 1995-08 ended
RZH103,113;LH102,112 DX,GL —
47704-26010 note Cover, Disc Brake Dust, Front LH
1993-08 → 1995-08 ended
LH102,112 STD —
47782-26051 Cover, Disc Brake Dust, Front LH
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
47782-26070 Cover, Disc Brake Dust, Front LH
1989-08 → 1992-05 ended
LH102,112,RZH102,103,112,113,115 —
47782-26070 Cover, Disc Brake Dust, Front LH
1992-05 → 1993-08 ended
LH102,112,RZH102,103,112,113 —
47782-26070 Cover, Disc Brake Dust, Front LH
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
47782-26110 Cover, Disc Brake Dust, Front LH
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
