Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

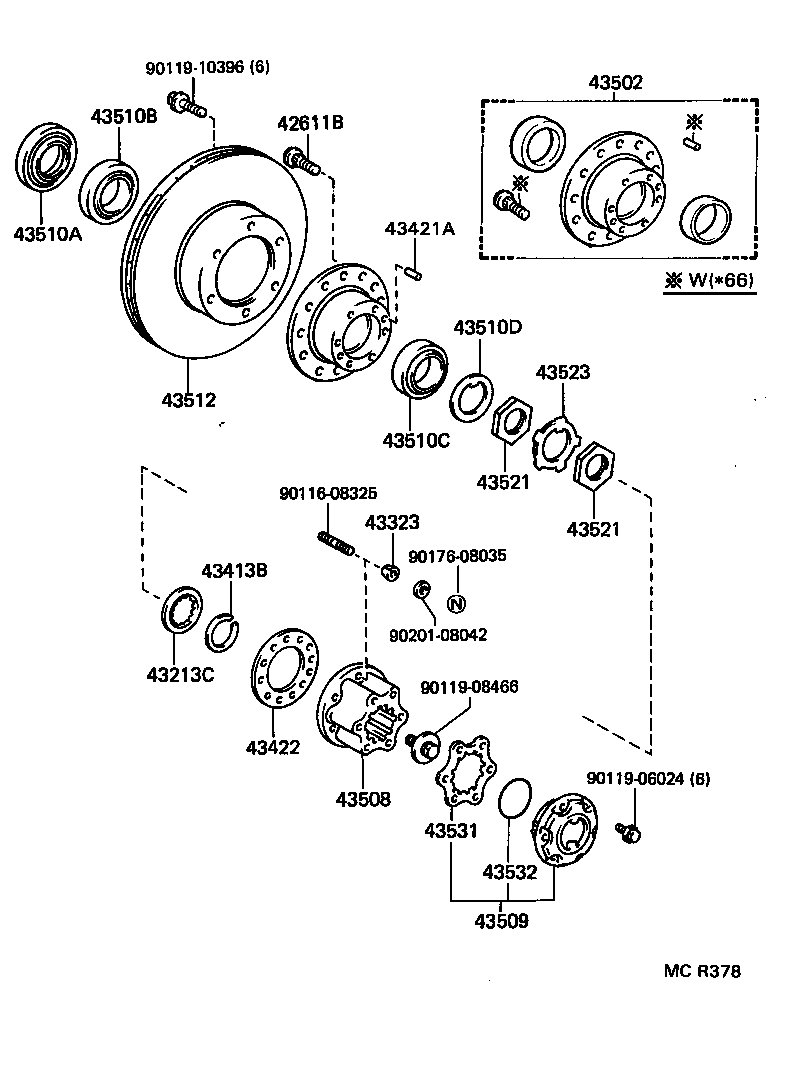

Exploded illustration MCR378 9011910396 — not listed in this catalogue 43502 — HUB SUB-ASSY, FRONT AXLE (3 parts) 43510B — BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) (3 parts) 42611B — BOLT, HUB (FOR FRONT AXLE) (2 parts) 43421A — PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) (1 parts) 43510A — SEAL, OIL (FOR FRONT AXLE HUB) (2 parts) 43510D — WASHER, CLAW (FOR STEERING KNUCKLE WASHER) (2 parts) 43523 — WASHER, FRONT WHEEL ADJUSTING LOCK (1 parts) 43512 — DISC, FRONT (7 parts) 43510C — BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) (2 parts) 43521 — NUT, FRONT WHEEL ADJUSTING (1 parts) 9011608325 — not listed in this catalogue 43323 — WASHER, CONE (FOR FRONT AXLE SHAFT) (1 parts) 43521 — NUT, FRONT WHEEL ADJUSTING (1 parts) 9017608035 — not listed in this catalogue 43413B — RING, DRIVE SHAFT SNAP (1 parts) 9020108042 — not listed in this catalogue 43213C — SPACER (FOR DRIVE SHAFT) (3 parts) 9011908466 — not listed in this catalogue 43422 — GASKET, FRONT AXLE OUTER SHAFT FLANGE (2 parts) 9011906024 — not listed in this catalogue 43508 — BODY SUB-ASSY, FREE WHEEL HUB (1 parts) 43531 — GASKET, FREE WHEEL HUB (1 parts) 43532 — RING, FREE WHEEL HUB (1 parts) 43509 — COVER SUB-ASSY, FREE WHEEL HUB (1 parts)
MCR378 · 19 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
42611B — Bolt, Hub (FOR FRONT AXLE)
90942-02047 Bolt, Hub (FOR FRONT AXLE)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
90942-02049 Bolt, Hub (FOR FRONT AXLE)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43213C — Spacer (FOR DRIVE SHAFT)
90560-27005 note Spacer (FOR DRIVE SHAFT)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
90560-27010 note Spacer (FOR DRIVE SHAFT)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
90560-27011 note Spacer (FOR DRIVE SHAFT)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43323 — Washer, Cone (FOR FRONT AXLE SHAFT)
42323-60010 Washer, Cone (FOR FRONT AXLE SHAFT)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43413B — Ring, Drive Shaft Snap
90520-27023 Ring, Drive Shaft Snap
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43421A — Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE)
90250-07057 Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43422 — Gasket, Front Axle Outer Shaft Flange
43422-60010 Gasket, Front Axle Outer Shaft Flange
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
43422-60020 Gasket, Front Axle Outer Shaft Flange
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
43502 — Hub Sub-assy, Front Axle
43502-26050 Hub Sub-assy, Front Axle
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
43511-35905 Hub Sub-assy, Front Axle
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
43511-39015 Hub Sub-assy, Front Axle
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
43508 — Body Sub-assy, Free Wheel Hub
43508-35010 Body Sub-assy, Free Wheel Hub
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43509 — Cover Sub-assy, Free Wheel Hub
43509-35030 Cover Sub-assy, Free Wheel Hub
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43510A — Seal, Oil (FOR FRONT AXLE HUB)
90311-50005 Seal, Oil (FOR FRONT AXLE HUB)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
90311-66001 Seal, Oil (FOR FRONT AXLE HUB)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43510B — Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
90368-34001 Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
90368-49084 Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
90368-49084 Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
43510C — Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
90368-21001 Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
90368-45087 Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43510D — Washer, Claw (FOR STEERING KNUCKLE WASHER)
90214-20007 Washer, Claw (FOR STEERING KNUCKLE WASHER)
1989-08 → 1995-08 ended
LH102,112,RZH102,103,112,113,115 —
90214-42030 Washer, Claw (FOR STEERING KNUCKLE WASHER)
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43512 — Disc, Front
43512-26090 Disc, Front
1989-08 → 1992-05 ended
LH102,112,RZH102,103,112,113,115 —
43512-26090 Disc, Front
1992-05 → 1993-08 ended
LH102,112,RZH102,103,112,113 —
43512-26090 Disc, Front
1993-08 → 1995-08 ended
RZH102;LH102,112 STD —
43512-26100 Disc, Front
1989-08 → 1993-08 ended
LH108,118,RZH109,119 —
43512-26120 Disc, Front
1993-08 → 1995-08 ended
RZH103,113;LH102,112 DX,GL —
43512-26120 note Disc, Front
1993-08 → 1995-08 ended
LH102,112 STD —
43512-26130 Disc, Front
1993-08 → 1995-08 ended
LH108,118,RZH109,119 —
43521 — Nut, Front Wheel Adjusting
43521-60011 Nut, Front Wheel Adjusting
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43523 — Washer, Front Wheel Adjusting Lock
90215-42025 Washer, Front Wheel Adjusting Lock
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43531 — Gasket, Free Wheel Hub
43531-60010 Gasket, Free Wheel Hub
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
43532 — Ring, Free Wheel Hub
43532-60010 Ring, Free Wheel Hub
1989-08 → 1995-08 ended
LH108,118,RZH109,119 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
