Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

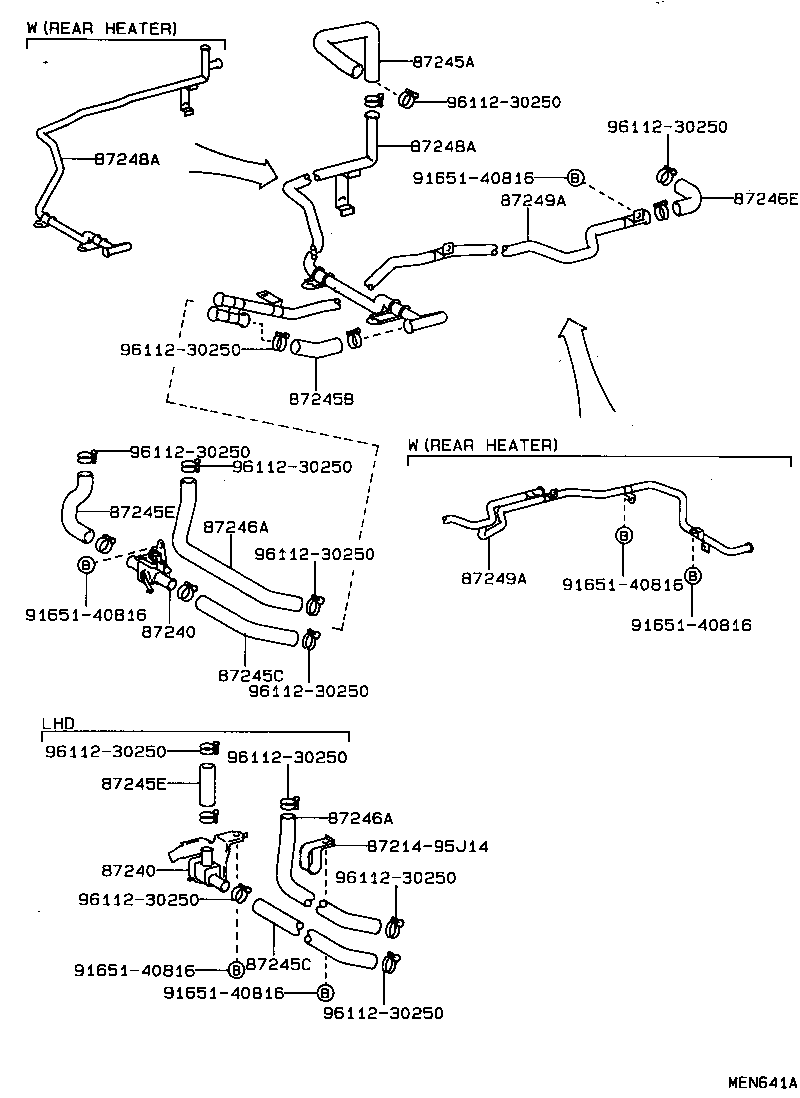

Exploded illustration MEN641A 87245A — HOSE, HEATER WATER, INLET A (2 parts) 9611230250 — not listed in this catalogue 9611230250 — not listed in this catalogue 87248A — PIPE, HEATER WATER INLET, A (6 parts) 87248A — PIPE, HEATER WATER INLET, A (6 parts) 9165140816 — not listed in this catalogue 87246E — HOSE, HEATER WATER, OUTLET E (5 parts) 87249A — PIPE, HEATER WATER OUTLET, A (7 parts) 9611230250 — not listed in this catalogue 87245B — HOSE, HEATER WATER, INLET B (5 parts) 9611230250 — not listed in this catalogue 9611230250 — not listed in this catalogue 87245E — HOSE, HEATER WATER, INLET E (3 parts) 87246A — HOSE, HEATER WATER, OUTLET A (2 parts) 9611230250 — not listed in this catalogue 87249A — PIPE, HEATER WATER OUTLET, A (7 parts) 9165140816 — not listed in this catalogue 9165140816 — not listed in this catalogue 9165140816 — not listed in this catalogue 87240 — VALVE ASSY, HEATER WATER (4 parts) 87245C — HOSE, HEATER WATER ,INLET C (3 parts) 9611230250 — not listed in this catalogue 9611230250 — not listed in this catalogue 9611230250 — not listed in this catalogue 87245E — HOSE, HEATER WATER, INLET E (3 parts) 87246A — HOSE, HEATER WATER, OUTLET A (2 parts) 8721495J14 — not listed in this catalogue 87240 — VALVE ASSY, HEATER WATER (4 parts) 9611230250 — not listed in this catalogue 9611230250 — not listed in this catalogue 87245C — HOSE, HEATER WATER ,INLET C (3 parts) 9165140816 — not listed in this catalogue 9165140816 — not listed in this catalogue 9611230250 — not listed in this catalogue
MEN641A · 15 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
87240 — Valve Assy, Heater Water
87240-26050 Valve Assy, Heater Water
1993-08 → 1995-08 ended
LH10#,11#,RZH10#,11# LHD —
87240-26060 Valve Assy, Heater Water
1993-08 → 1995-08 ended
LH102,112,RZH113 RHD —
87240-95J07 Valve Assy, Heater Water
1989-08 → 1993-08 ended
LH10#,11#,RZH10#,11# LHD —
87240-95J08 Valve Assy, Heater Water
1989-08 → 1993-08 ended
LH102,112,RZH112 RHD —
87245A — Hose, Heater Water, Inlet A
87245-95J46 Hose, Heater Water, Inlet A
1989-08 → 1995-08 ended
LH10#,11# —
87245-95J48 Hose, Heater Water, Inlet A
1989-08 → 1995-08 ended
RZH10#,11# —
87245B — Hose, Heater Water, Inlet B
87245-26200 Hose, Heater Water, Inlet B
1993-08 → 1995-08 ended
LH102,112,RZH113 RHD —
87245-95J50 Hose, Heater Water, Inlet B
1989-08 → 1993-08 ended
LH102,112 RHD —
87245-95J60 Hose, Heater Water, Inlet B
1989-08 → 1993-08 ended
LH10#,11# LHD —
87245-95J60 Hose, Heater Water, Inlet B
1993-08 → 1995-08 ended
LH10#,11# LHD;RZH103,109,11# LHD STD —
99556-30220 note Hose, Heater Water, Inlet B
1989-08 → 1995-08 ended
RZH10#,11# —
87245C — Hose, Heater Water ,Inlet C
87245-95J50 Hose, Heater Water ,Inlet C
1989-08 → 1993-08 ended
RZH112 4D 03S —
87245-95J60 Hose, Heater Water ,Inlet C
1989-08 → 1993-08 ended
RZH10#,11# LHD —
87245-95J60 Hose, Heater Water ,Inlet C
1993-08 → 1995-08 ended
RZH102,109,11# 09S;RZH103 4D (03S,05S,09S) —
87245E — Hose, Heater Water, Inlet E
87245-26290 Hose, Heater Water, Inlet E
1993-08 → 1995-08 ended
LH102,112,RZH113 RHD —
87245-95J49 Hose, Heater Water, Inlet E
1989-08 → 1993-08 ended
LH102,112,RZH112 RHD —
99556-30095 note Hose, Heater Water, Inlet E
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# LHD —
87246A — Hose, Heater Water, Outlet A
87245-95J05 Hose, Heater Water, Outlet A
1989-08 → 1995-08 ended
LH102,112,RZH112,113 RHD —
87245-95J45 Hose, Heater Water, Outlet A
1989-08 → 1995-08 ended
LH10#,11#,RZH10#,11# LHD —
87246E — Hose, Heater Water, Outlet E
87245-95J47 Hose, Heater Water, Outlet E
1989-08 → 1995-08 ended
LH10#,11# —
99556-30300 note Hose, Heater Water, Outlet E
1993-08 → 1995-08 ended
RZH113 RHD;RZH10#,11# DX,GL —
99556-30300 note Hose, Heater Water, Outlet E
1993-08 → 1995-08 ended
RZH103,109,11# LHD STD —
99556-30300 note Hose, Heater Water, Outlet E
1993-08 → 1995-08 ended
RZH103 4D 03S;RZH113 09S +1 —
99556-30300 note Hose, Heater Water, Outlet E
1989-08 → 1993-08 ended
RZH10#,11# —
87248A — Pipe, Heater Water Inlet, A
87208-26320 Pipe, Heater Water Inlet, A
1993-08 → 1995-08 ended
RZH103,109,11# STD —
87208-26330 Pipe, Heater Water Inlet, A
1993-08 → 1995-08 ended
RZH10#,11# DX,GL —
87208-26330 note Pipe, Heater Water Inlet, A
1993-08 → 1995-08 ended
RZH103 4D 03S;RZH113 09S +1 —
87208-95J51 note Pipe, Heater Water Inlet, A
1991-08 → 1993-08 ended
RZH103 4D;RZH113 4D SG;RZH102,112,115,119 +1 —
87208-95J51 note Pipe, Heater Water Inlet, A
1989-08 → 1991-08 ended
RZH119 DX;RZH102,103,112,113,115 4D SG —
87208-95J52 Pipe, Heater Water Inlet, A
1989-08 → 1993-08 ended
RZH10#,11# —
87249A — Pipe, Heater Water Outlet, A
87208-26080 note Pipe, Heater Water Outlet, A
1992-08 → 1993-08 ended
RZH103 4D;RZH113 4D SG;RZH102,112,119 +1 —
87208-26230 Pipe, Heater Water Outlet, A
1993-08 → 1995-08 ended
RZH10#,11# DX,GL —
87208-26230 note Pipe, Heater Water Outlet, A
1993-08 → 1995-08 ended
RZH103 4D 03S;RZH113 09S +1 —
87208-95J45 Pipe, Heater Water Outlet, A
1989-08 → 1993-08 ended
RZH10#,11# —
87208-95J45 Pipe, Heater Water Outlet, A
1993-08 → 1995-08 ended
RZH103,109,11# STD —
87208-95J75 note Pipe, Heater Water Outlet, A
1989-08 → 1991-08 ended
RZH119 DX;RZH102,103,112,113,115 4D SG —
87208-95J75 note Pipe, Heater Water Outlet, A
1991-08 → 1992-08 ended
RZH103 4D;RZH113 4D SG;RZH102,112,115,119 +1 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
