Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

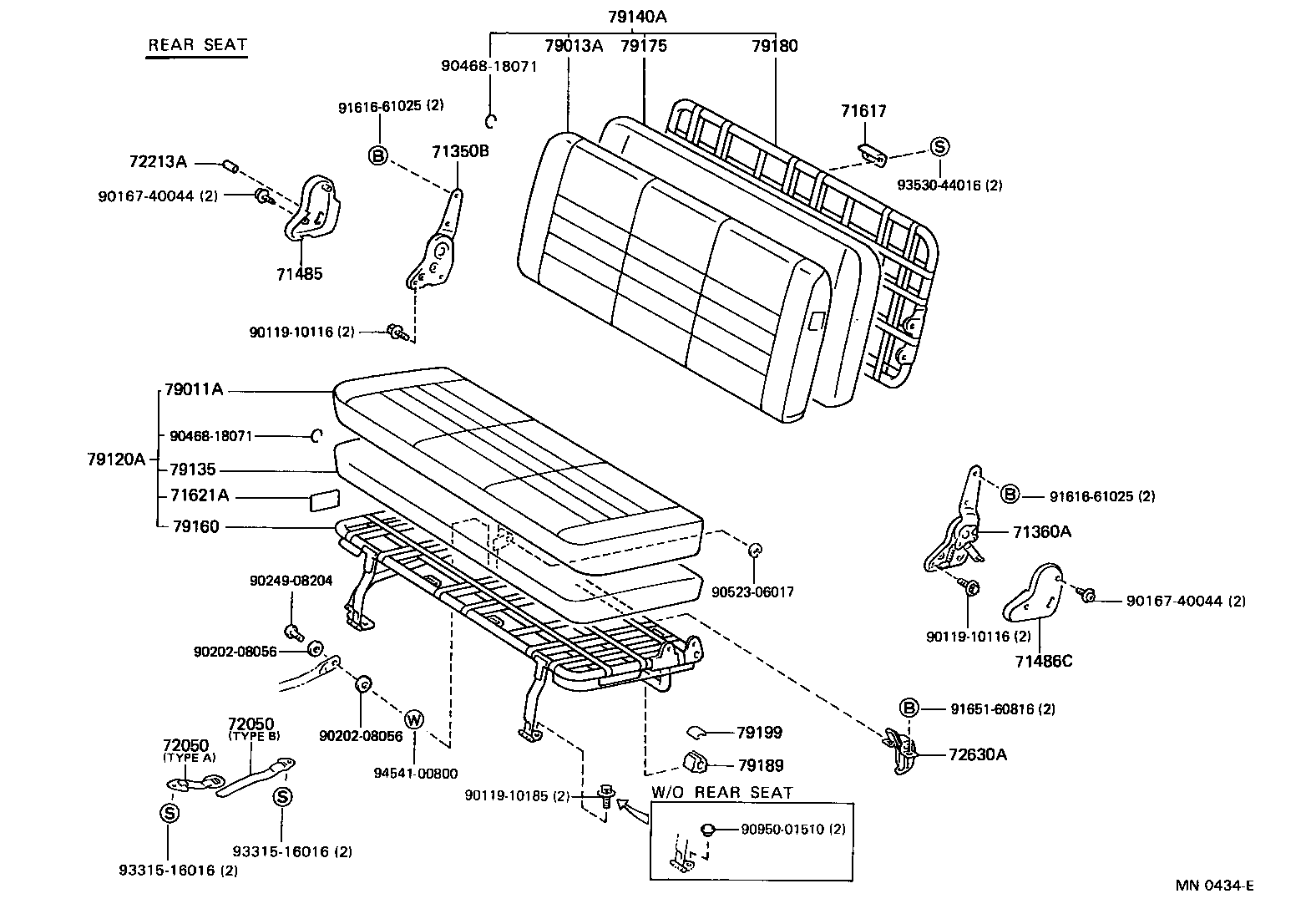

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71350B — Hinge Assy, Rear Seat, RH | ||||
| 71350-95J46 note |
Hinge Assy, Rear Seat, RH
1993-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 71350-95J46 note |
Hinge Assy, Rear Seat, RH
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 71350-95J47 note |
Hinge Assy, Rear Seat, RH
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 71350-95J47 |
Hinge Assy, Rear Seat, RH
1989-08 → 1995-08
ended
|
LH102,112,RZH103,109,112,113,119 06S | — | |
| 71350-95J47 note |
Hinge Assy, Rear Seat, RH
1989-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 71360A — Hinge Assy, Rear Seat, LH | ||||
| 71360-95J19 note |
Hinge Assy, Rear Seat, LH
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 71360-95J19 note |
Hinge Assy, Rear Seat, LH
1993-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 71360-95J20 note |
Hinge Assy, Rear Seat, LH
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 71360-95J20 |
Hinge Assy, Rear Seat, LH
1989-08 → 1995-08
ended
|
LH102,112,RZH103,109,112,113,119 06S | — | |
| 71360-95J20 note |
Hinge Assy, Rear Seat, LH
1989-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 71485 — Cover, Rear Seat Hinge | ||||
| 71485-95J00-03 note |
Cover, Rear Seat Hinge
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 71485-95J00-B0 note |
Cover, Rear Seat Hinge
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 71485-95J02-03 note |
Cover, Rear Seat Hinge
1989-08 → 1992-05
ended
|
RZH115 | — | |
| 71486C — Cover, Rear Seat Hinge, LH | ||||
| 71486-95J02-03 note |
Cover, Rear Seat Hinge, LH
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 71486-95J02-B0 note |
Cover, Rear Seat Hinge, LH
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 71617 — Protector, Rear Seatback | ||||
| 71695-95J02-03 note |
Protector, Rear Seatback
1991-08 → 1993-08
ended
|
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S | — | |
| 71695-95J02-03 note |
Protector, Rear Seatback
1989-08 → 1991-08
ended
|
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S | — | |
| 71695-95J02-B0 note |
Protector, Rear Seatback
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 71621A — Pad, Rear Seat Cushion Silencer, A | ||||
| 71621-95701 note |
Pad, Rear Seat Cushion Silencer, A
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 71621-95701 |
Pad, Rear Seat Cushion Silencer, A
1989-08 → 1995-08
ended
|
LH102,112,RZH103,109,112,113,119 06S | — | |
| 71621-95701 |
Pad, Rear Seat Cushion Silencer, A
1993-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 72050 — Belt Assy, Rear Seat Hook | ||||
| 72050-95J00 note |
Belt Assy, Rear Seat Hook
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 72050-95J00 note |
Belt Assy, Rear Seat Hook
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 72050-95J01 note |
Belt Assy, Rear Seat Hook
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 72050-95J01 note |
Belt Assy, Rear Seat Hook
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 72213A — Knob, Seat Track Adjusting Handle | ||||
| 72213-95J00-03 note |
Knob, Seat Track Adjusting Handle
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 72213-95J00-B0 note |
Knob, Seat Track Adjusting Handle
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 72630A — Lock Assy, Rear NO.1 Seat | ||||
| 72630-95J00 note |
Lock Assy, Rear NO.1 Seat
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 72630-95J00 |
Lock Assy, Rear NO.1 Seat
1989-08 → 1995-08
ended
|
LH102,112,RZH103,109,112,113,119 06S | — | |
| 72630-95J00 |
Lock Assy, Rear NO.1 Seat
1993-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 79011A — Cover Sub-assy, NO.1 Seat Cushion | ||||
| 79011-26200-B0 note |
Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79011-26240-B0 note |
Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 79011-95N08-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1992-05
ended
|
RZH115 | — | |
| 79011-95N18-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 79011-95N26-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79011-95N26-B0 note |
Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH11#,RZH103,109,11# DX EUR | — | |
| 79011-95N27-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1990-10
ended
|
LH112,RZH112,113 DX | — | |
| 79011-95N27-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1990-10 → 1992-05
ended
|
LH118,RZH119 DX | — | |
| 79011-95N27-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1990-10 → 1992-05
ended
|
LH102,112,RZH102,112,113 DX | — | |
| 79011-95N27-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1990-10
ended
|
LH102,118,RZH102,119 DX | — | |
| 79011-95N27-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1992-05 → 1993-08
ended
|
LH102,11#,RZH102,11# DX | — | |
| 79011-95N27-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79011-95N27-B1 note |
Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79011-95N28-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79011-95N28-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79011-95N28-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79011-95N29-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79011-95N29-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1993-08
ended
|
LH102 DX | — | |
| 79011-95N29-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79011-95N30-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1993-08
ended
|
LH102,RZH103 DX | — | |
| 79011-95N30-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79011-95N30-03 note |
Cover Sub-assy, NO.1 Seat Cushion
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79011-95N36-B1 note |
Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# 06S | — | |
| 79013A — Cover Sub-assy, NO.1 Seatback | ||||
| 79013-26120-B0 note |
Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79013-26170-B0 note |
Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH11#,RZH103,109,11# DX EUR | — | |
| 79013-26180-B2 note |
Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79013-26190-B1 note |
Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 79013-95N07-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79013-95N07-03 note |
Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79013-95N07-03 note |
Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79013-95N11-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 79013-95N14-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79013-95N16-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79013-95N17-B2 note |
Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# 06S | — | |
| 79013-95N18-03 note |
Cover Sub-assy, NO.1 Seatback
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79013-95N18-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79013-95N18-03 note |
Cover Sub-assy, NO.1 Seatback
1991-08 → 1993-08
ended
|
LH102,RZH103 DX | — | |
| 79013-95N21-03 note |
Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79013-95N21-03 note |
Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79013-95N21-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79013-95N24-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79013-95N24-03 note |
Cover Sub-assy, NO.1 Seatback
1991-08 → 1993-08
ended
|
LH102 DX | — | |
| 79013-95N24-03 note |
Cover Sub-assy, NO.1 Seatback
1991-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79013-95N25-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79013-95N25-03 note |
Cover Sub-assy, NO.1 Seatback
1992-05 → 1993-08
ended
|
LH102,11#,RZH102,11# DX | — | |
| 79013-95N25-03 note |
Cover Sub-assy, NO.1 Seatback
1990-10 → 1992-05
ended
|
LH102,112,RZH102,112,113 DX | — | |
| 79013-95N25-03 note |
Cover Sub-assy, NO.1 Seatback
1990-10 → 1992-05
ended
|
LH118,RZH119 DX | — | |
| 79013-95N25-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1990-10
ended
|
LH102,118,RZH102,119 DX | — | |
| 79013-95N25-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1990-10
ended
|
LH112,RZH112,113 DX | — | |
| 79014-95J12-03 note |
Cover Sub-assy, NO.1 Seatback
1989-08 → 1992-05
ended
|
RZH115 | — | |
| 79120A — Cushion Assy, NO.1 Seat | ||||
| 79120-26200-B0 note |
Cushion Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79120-26250-B2 note |
Cushion Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# 06S | — | |
| 79120-26250-B2 note |
Cushion Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 79120-95N18-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1992-05
ended
|
RZH115 | — | |
| 79120-95N29-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 79120-95N37-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79120-95N37-B3 note |
Cushion Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH11#,RZH103,109,11# DX EUR | — | |
| 79120-95N38-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1990-10
ended
|
LH102,118,RZH102,119 DX | — | |
| 79120-95N38-03 note |
Cushion Assy, NO.1 Seat
1992-05 → 1993-08
ended
|
LH102,11#,RZH102,11# DX | — | |
| 79120-95N38-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1990-10
ended
|
LH112,RZH112,113 DX | — | |
| 79120-95N38-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79120-95N38-03 note |
Cushion Assy, NO.1 Seat
1990-10 → 1992-05
ended
|
LH102,112,RZH102,112,113 DX | — | |
| 79120-95N38-03 note |
Cushion Assy, NO.1 Seat
1990-10 → 1992-05
ended
|
LH118,RZH119 DX | — | |
| 79120-95N38-B4 note |
Cushion Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79120-95N39-03 note |
Cushion Assy, NO.1 Seat
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79120-95N39-03 note |
Cushion Assy, NO.1 Seat
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79120-95N39-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79120-95N42-B1 note |
Cushion Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# 06S | — | |
| 79120-95N43-03 note |
Cushion Assy, NO.1 Seat
1991-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79120-95N43-03 note |
Cushion Assy, NO.1 Seat
1991-08 → 1993-08
ended
|
LH102 DX | — | |
| 79120-95N43-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79120-95N44-03 note |
Cushion Assy, NO.1 Seat
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79120-95N44-03 note |
Cushion Assy, NO.1 Seat
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79120-95N44-03 note |
Cushion Assy, NO.1 Seat
1991-08 → 1993-08
ended
|
LH102,RZH103 DX | — | |
| 79135 — Pad, NO.1 Seat Cushion | ||||
| 79015-95J00 |
Pad, NO.1 Seat Cushion
1989-08 → 1992-05
ended
|
RZH115 | — | |
| 79135-26050 |
Pad, NO.1 Seat Cushion
1991-01 → 1995-08
ended
|
LH102,112,RZH103,109,113,119 (06S,09S) STD | — | |
| 79135-95J03 |
Pad, NO.1 Seat Cushion
1989-08 → 1991-01
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 79135-95J15 note |
Pad, NO.1 Seat Cushion
1992-05 → 1993-08
ended
|
LH102 DX | — | |
| 79135-95J15 |
Pad, NO.1 Seat Cushion
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,103,112,113,119 DX | — | |
| 79135-95J15 note |
Pad, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79135-95J15 note |
Pad, NO.1 Seat Cushion
1990-10 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79135-95J15 |
Pad, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79135-95J15 note |
Pad, NO.1 Seat Cushion
1989-08 → 1990-10
ended
|
LH102,RZH102 DX | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1992-05 → 1993-08
ended
|
LH102 DX | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1992-05 → 1993-08
ended
|
RZH103 DX | — | |
| 79135-95J16 |
Pad, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1991-05 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1989-08 → 1991-05
ended
|
LH102 DX | — | |
| 79135-95J16 note |
Pad, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79140A — Back Assy, NO.1 Seat | ||||
| 79140-26140-B0 note |
Back Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79140-26210-B0 note |
Back Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH11#,RZH103,109,11# DX EUR | — | |
| 79140-26220-B1 note |
Back Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79140-26230-B2 note |
Back Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# 06S | — | |
| 79140-26240-B0 note |
Back Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 79140-95N23-03 note |
Back Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
LH102,112,RZH109,112,113,119 06S | — | |
| 79140-95N27-03 note |
Back Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 79140-95N31-03 note |
Back Assy, NO.1 Seat
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79140-95N31-03 note |
Back Assy, NO.1 Seat
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79140-95N31-03 note |
Back Assy, NO.1 Seat
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79140-95N33-03 note |
Back Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79140-95N34-03 note |
Back Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79140-95N35-03 note |
Back Assy, NO.1 Seat
1989-08 → 1990-10
ended
|
LH112,RZH112,113 DX | — | |
| 79140-95N35-03 note |
Back Assy, NO.1 Seat
1992-05 → 1993-08
ended
|
LH102,11#,RZH102,11# DX | — | |
| 79140-95N35-03 note |
Back Assy, NO.1 Seat
1989-08 → 1990-10
ended
|
LH102,118,RZH102,119 DX | — | |
| 79140-95N35-03 note |
Back Assy, NO.1 Seat
1989-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79140-95N35-03 note |
Back Assy, NO.1 Seat
1990-10 → 1992-05
ended
|
LH102,112,RZH102,112,113 DX | — | |
| 79140-95N35-03 note |
Back Assy, NO.1 Seat
1990-10 → 1992-05
ended
|
LH118,RZH119 DX | — | |
| 79140-95N36-B1 note |
Back Assy, NO.1 Seat
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# 06S | — | |
| 79140-95N37-03 note |
Back Assy, NO.1 Seat
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79140-95N37-03 note |
Back Assy, NO.1 Seat
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79140-95N37-03 note |
Back Assy, NO.1 Seat
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79140-95N40-03 note |
Back Assy, NO.1 Seat
1991-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79140-95N40-03 note |
Back Assy, NO.1 Seat
1991-08 → 1993-08
ended
|
LH102 DX | — | |
| 79140-95N40-03 note |
Back Assy, NO.1 Seat
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79140-95N41-03 note |
Back Assy, NO.1 Seat
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79140-95N41-03 note |
Back Assy, NO.1 Seat
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79140-95N41-03 note |
Back Assy, NO.1 Seat
1991-08 → 1993-08
ended
|
LH102,RZH103 DX | — | |
| 79150-95J12-03 note |
Back Assy, NO.1 Seat
1989-08 → 1992-05
ended
|
RZH115 | — | |
| 79160 — Spring Assy, NO.1 Seat Cushion | ||||
| 79160-95J45 |
Spring Assy, NO.1 Seat Cushion
1989-08 → 1995-08
ended
|
LH102,112,RZH103,109,112,113,119 (06S,09S) STD | — | |
| 79160-95J48 |
Spring Assy, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79160-95J48 note |
Spring Assy, NO.1 Seat Cushion
1992-05 → 1993-08
ended
|
LH102 DX | — | |
| 79160-95J48 note |
Spring Assy, NO.1 Seat Cushion
1990-10 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79160-95J48 |
Spring Assy, NO.1 Seat Cushion
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,103,112,113,119 DX | — | |
| 79160-95J48 note |
Spring Assy, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79160-95J48 note |
Spring Assy, NO.1 Seat Cushion
1989-08 → 1990-10
ended
|
LH102,RZH102 DX | — | |
| 79160-95J49 |
Spring Assy, NO.1 Seat Cushion
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79160-95J49 note |
Spring Assy, NO.1 Seat Cushion
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79160-95J49 note |
Spring Assy, NO.1 Seat Cushion
1991-08 → 1993-08
ended
|
LH102,RZH103 DX | — | |
| 79160-95J49 note |
Spring Assy, NO.1 Seat Cushion
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79160-95J50 note |
Spring Assy, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79160-95J50 note |
Spring Assy, NO.1 Seat Cushion
1992-05 → 1993-08
ended
|
LH102 DX | — | |
| 79160-95J50 note |
Spring Assy, NO.1 Seat Cushion
1992-05 → 1993-08
ended
|
RZH103 DX | — | |
| 79160-95J50 note |
Spring Assy, NO.1 Seat Cushion
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79160-95J50 note |
Spring Assy, NO.1 Seat Cushion
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79175 — Pad, NO.1 Seatback | ||||
| 79017-95J00 |
Pad, NO.1 Seatback
1989-08 → 1992-05
ended
|
RZH115 | — | |
| 79175-26060 |
Pad, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79175-95J23 note |
Pad, NO.1 Seatback
1989-08 → 1990-10
ended
|
LH102,RZH102 DX | — | |
| 79175-95J23 note |
Pad, NO.1 Seatback
1990-10 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79175-95J23 note |
Pad, NO.1 Seatback
1992-05 → 1993-08
ended
|
LH102 DX | — | |
| 79175-95J23 note |
Pad, NO.1 Seatback
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79175-95J23 |
Pad, NO.1 Seatback
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,103,112,113,119 DX | — | |
| 79175-95J24 note |
Pad, NO.1 Seatback
1992-05 → 1993-08
ended
|
LH102 DX | — | |
| 79175-95J24 note |
Pad, NO.1 Seatback
1992-05 → 1993-08
ended
|
RZH103 DX | — | |
| 79175-95J24 note |
Pad, NO.1 Seatback
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79175-95J24 note |
Pad, NO.1 Seatback
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79175-95J24 |
Pad, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79175-95J24 note |
Pad, NO.1 Seatback
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79175-95J25 note |
Pad, NO.1 Seatback
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79175-95J25 note |
Pad, NO.1 Seatback
1991-08 → 1993-08
ended
|
LH102,RZH103 DX | — | |
| 79175-95J25 note |
Pad, NO.1 Seatback
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79175-95J26 |
Pad, NO.1 Seatback
1989-08 → 1995-08
ended
|
LH102,112,RZH103,109,112,113,119 (06S,09S) STD | — | |
| 79180 — Spring Assy, NO.1 Seatback | ||||
| 79180-26080 |
Spring Assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,11#,RZH103,109,11# 09S DX | — | |
| 79180-95J20 |
Spring Assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
RZH113 09S STD | — | |
| 79180-95J20 |
Spring Assy, NO.1 Seatback
1989-08 → 1995-08
ended
|
LH102,112,RZH103,109,112,113,119 06S | — | |
| 79180-95J20 note |
Spring Assy, NO.1 Seatback
1989-08 → 1993-08
ended
|
RZH112,113 4D 06S | — | |
| 79180-95J22 note |
Spring Assy, NO.1 Seatback
1989-08 → 1990-10
ended
|
LH112,RZH112,113 DX | — | |
| 79180-95J22 note |
Spring Assy, NO.1 Seatback
1989-08 → 1990-10
ended
|
LH102,118,RZH102,119 DX | — | |
| 79180-95J22 |
Spring Assy, NO.1 Seatback
1989-08 → 1993-08
ended
|
RZH103 DX | — | |
| 79180-95J22 note |
Spring Assy, NO.1 Seatback
1990-10 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79180-95J25 note |
Spring Assy, NO.1 Seatback
1989-08 → 1991-05
ended
|
RZH102 DX | — | |
| 79180-95J25 |
Spring Assy, NO.1 Seatback
1993-08 → 1995-08
ended
|
LH102,RZH103 GL | — | |
| 79180-95J25 note |
Spring Assy, NO.1 Seatback
1991-05 → 1991-08
ended
|
RZH103 DX | — | |
| 79180-95J25 note |
Spring Assy, NO.1 Seatback
1991-08 → 1993-08
ended
|
LH102,RZH103 DX | — | |
| 79180-95J27 |
Spring Assy, NO.1 Seatback
1989-08 → 1993-08
ended
|
LH102,11#,RZH102,112,113,119 DX | — | |
| 79380-95J20 note |
Spring Assy, NO.1 Seatback
1992-05 → 1993-08
ended
|
LH102 DX | — | |
| 79380-95J20 note |
Spring Assy, NO.1 Seatback
1992-05 → 1993-08
ended
|
RZH103 DX | — | |
| 79380-95J20 note |
Spring Assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79380-95J20 note |
Spring Assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79380-95J20 note |
Spring Assy, NO.1 Seatback
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79380-95J21 note |
Spring Assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
LH102 DX | — | |
| 79380-95J21 note |
Spring Assy, NO.1 Seatback
1989-08 → 1991-08
ended
|
LH102,RZH102 DX | — | |
| 79380-95J21 note |
Spring Assy, NO.1 Seatback
1991-08 → 1992-05
ended
|
RZH103 DX | — | |
| 79189 — Stopper, NO.1 Seat Leg | ||||
| 71334-95703 |
Stopper, NO.1 Seat Leg
1990-12 → 1991-08
ended
|
LH112,RZH113,119 06S;LH102,RZH102,109,115 06S,09S,15S | — | |
| 71334-95703 |
Stopper, NO.1 Seat Leg
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 71334-95703 |
Stopper, NO.1 Seat Leg
1991-09 → 1993-08
ended
|
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S | — | |
| 71334-95703 |
Stopper, NO.1 Seat Leg
1991-08 → 1991-09
ended
|
LH112,RZH113,119 06S;LH102,RZH103,109,115 06S,09S,15S | — | |
| 71334-95703 |
Stopper, NO.1 Seat Leg
1990-11 → 1990-12
ended
|
LH112,RZH113,119 06S;LH102,RZH102,109 06S,09S | — | |
| 71334-95J01 |
Stopper, NO.1 Seat Leg
1990-02 → 1990-12
ended
|
RZH115 | — | |
| 79189-95J00 |
Stopper, NO.1 Seat Leg
1990-02 → 1990-11
ended
|
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S | — | |
| 79189-95J00 |
Stopper, NO.1 Seat Leg
1989-08 → 1990-02
ended
|
LH112,RZH112,113,119 06S;LH102,RZH102,109,115 06S,09S,15S | — | |
| 79199 — Holder, NO.1 Seat Leg Stopper | ||||
| 79199-95J00 |
Holder, NO.1 Seat Leg Stopper
1989-08 → 1990-02
ended
|
LH112,RZH112,113,119 06S;LH102,RZH102,109,115 06S,09S,15S | — | |
| 79199-95J00 |
Holder, NO.1 Seat Leg Stopper
1990-02 → 1990-12
ended
|
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S | — | |
| 79199-95J00 |
Holder, NO.1 Seat Leg Stopper
1990-12 → 1991-08
ended
|
LH112,RZH113,119 06S;LH102,RZH102,109,115 06S,09S,15S | — | |
| 79199-95J00 |
Holder, NO.1 Seat Leg Stopper
1991-08 → 1991-09
ended
|
LH112,RZH113,119 06S;LH102,RZH103,109,115 06S,09S,15S | — | |
| 79199-95J00 |
Holder, NO.1 Seat Leg Stopper
1991-09 → 1993-08
ended
|
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S | — | |
| 79199-95J00 |
Holder, NO.1 Seat Leg Stopper
1993-08 → 1995-08
ended
|
LH102,112,RZH103,109,11# (06S,09S) STD | — | |
| 79199-95J01 |
Holder, NO.1 Seat Leg Stopper
1990-02 → 1990-12
ended
|
RZH115 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
