Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

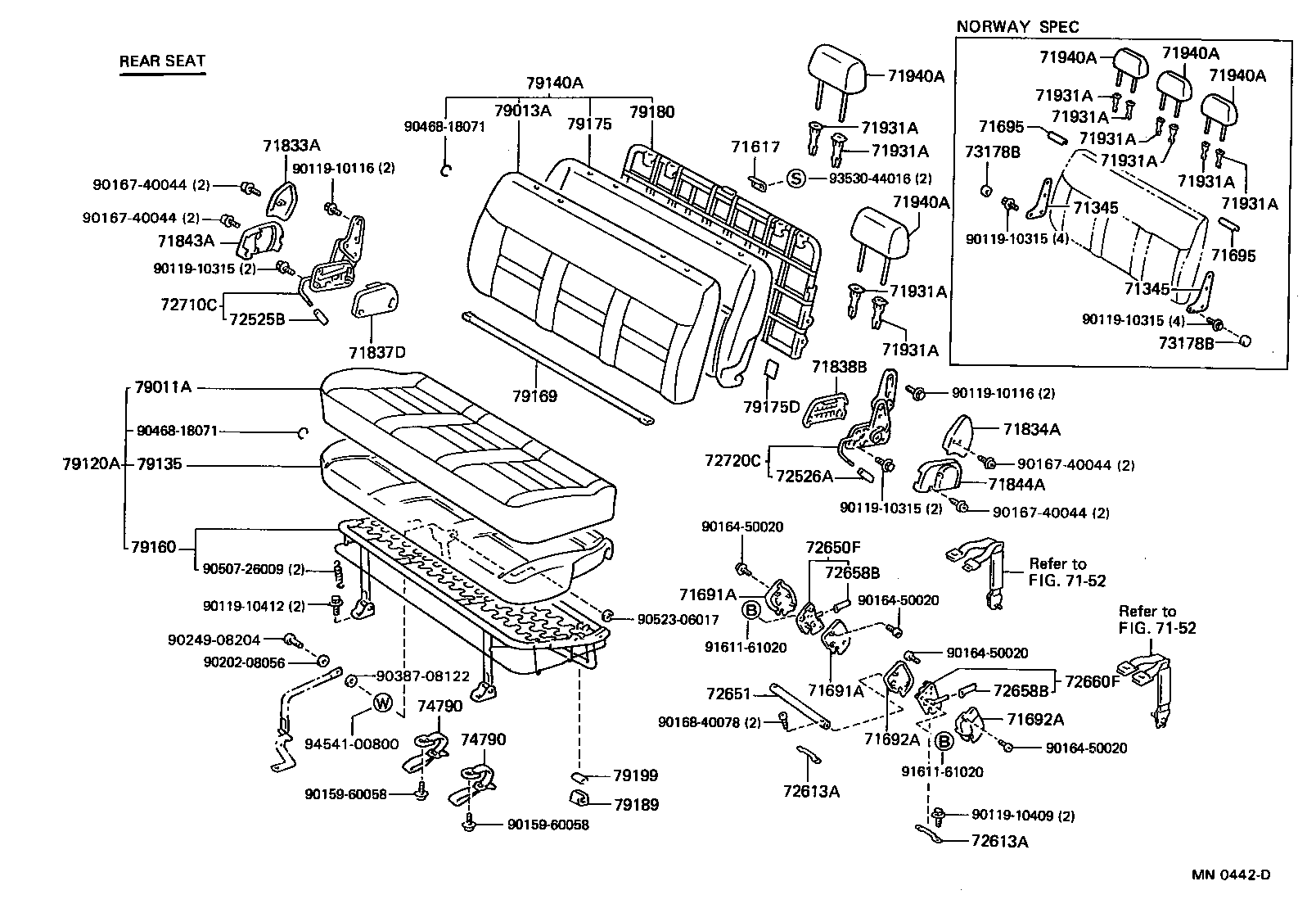

Exploded illustration MN0442D 71940A — HEADREST ASSY, REAR SEAT (17 parts) 71940A — HEADREST ASSY, REAR SEAT (17 parts) 71940A — HEADREST ASSY, REAR SEAT (17 parts) 71940A — HEADREST ASSY, REAR SEAT (17 parts) 79140A — BACK ASSY, NO.1 SEAT (29 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 79013A — COVER SUB-ASSY, NO.1 SEATBACK (27 parts) 79180 — SPRING ASSY, NO.1 SEATBACK (21 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 79175 — PAD, NO.1 SEATBACK (17 parts) 71695 — PROTECTOR, REAR SEATBACK (4 parts) 9046818071 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (2 parts) 71617 — PROTECTOR, REAR SEATBACK (3 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 73178B — CAP, SEAT BELT ANCHOR COVER (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 9011910116 — not listed in this catalogue 9353044016 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 9016740044 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (17 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 71345 — HINGE, REAR SEATBACK (8 parts) 9016740044 — not listed in this catalogue 9011910315 — not listed in this catalogue 71843A — COVER, REAR SEAT RECLINING, NO.2 RH (2 parts) 71695 — PROTECTOR, REAR SEATBACK (4 parts) 9011910315 — not listed in this catalogue 71345 — HINGE, REAR SEATBACK (8 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 72710C — ADJUSTER ASSY, NO.1 SEAT RECLINING, RH (10 parts) 72525B — HANDLE, RECLINING ADJUSTER RELEASE, RH (3 parts) 9011910315 — not listed in this catalogue 73178B — CAP, SEAT BELT ANCHOR COVER (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (20 parts) 71837D — COVER, REAR SEAT RECLINING, INNER RH (7 parts) 71838B — COVER, REAR SEAT RECLINING, INNER LH (2 parts) 79011A — COVER SUB-ASSY, NO.1 SEAT CUSHION (23 parts) 9011910116 — not listed in this catalogue 79169 — ROD, REAR SEAT HINGE CONNECTOR (9 parts) 79175D — PAD, NO.1 SEAT CUSHION, UNDER (2 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (2 parts) 9046818071 — not listed in this catalogue 72720C — ADJUSTER ASSY, NO.1 SEAT RECLINING, LH (14 parts) 79135 — PAD, NO.1 SEAT CUSHION (18 parts) 79120A — CUSHION ASSY, NO.1 SEAT (24 parts) 9016740044 — not listed in this catalogue 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (11 parts) 71844A — COVER, REAR SEAT RECLINING, NO.2 LH (2 parts) 9011910315 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016450020 — not listed in this catalogue 79160 — SPRING ASSY, NO.1 SEAT CUSHION (16 parts) 72650F — LOCK ASSY, REAR SEAT, RH (9 parts) 9050726009 — not listed in this catalogue 72658B — KNOB, REAR SEAT LOCK HANDLE (2 parts) 7152 — not listed in this catalogue 71691A — COVER, REAR NO.3 SEAT LOCK, RH (4 parts) 9016450020 — not listed in this catalogue 9011910412 — not listed in this catalogue 9052306017 — not listed in this catalogue 7152 — not listed in this catalogue 9024908204 — not listed in this catalogue 9161161020 — not listed in this catalogue 9016450020 — not listed in this catalogue 9020208056 — not listed in this catalogue 9038708122 — not listed in this catalogue 72660F — LOCK ASSY, REAR SEAT, LH (11 parts) 72658B — KNOB, REAR SEAT LOCK HANDLE (2 parts) 71691A — COVER, REAR NO.3 SEAT LOCK, RH (4 parts) 72651 — ROD, REAR SEATBACK LOCK (2 parts) 74790 — HOLDER ASSY, WARNING REFLECTOR (15 parts) 71692A — COVER, REAR NO.3 SEAT LOCK, LH (4 parts) 9016840078 — not listed in this catalogue 71692A — COVER, REAR NO.3 SEAT LOCK, LH (4 parts) 74790 — HOLDER ASSY, WARNING REFLECTOR (15 parts) 9454100800 — not listed in this catalogue 9016450020 — not listed in this catalogue 9161161020 — not listed in this catalogue 79199 — HOLDER, NO.1 SEAT LEG STOPPER (7 parts) 72613A — STRIKER, FRONT SEAT LOCK (2 parts) 9015960058 — not listed in this catalogue 79189 — STOPPER, NO.1 SEAT LEG (8 parts) 9011910409 — not listed in this catalogue 9015960058 — not listed in this catalogue 72613A — STRIKER, FRONT SEAT LOCK (2 parts)
MN0442D · 57 callouts, 32 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
371 parts on this figure
Part number Description Fitment Price
71345 — Hinge, Rear Seatback
71345-95J06 note Hinge, Rear Seatback
1991-05 → 1991-08 ended
RZH103 DX —
71345-95J06 note Hinge, Rear Seatback
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71345-95J06 note Hinge, Rear Seatback
1993-08 → 1995-08 ended
LH102,RZH103 GL —
71345-95J06 note Hinge, Rear Seatback
1989-08 → 1991-05 ended
RZH102 DX —
71345-95J07 note Hinge, Rear Seatback
1989-08 → 1991-05 ended
RZH102 DX —
71345-95J07 note Hinge, Rear Seatback
1991-05 → 1991-08 ended
RZH103 DX —
71345-95J07 note Hinge, Rear Seatback
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71345-95J07 note Hinge, Rear Seatback
1993-08 → 1995-08 ended
LH102,RZH103 GL —
71617 — Protector, Rear Seatback
71695-95J02-03 note Protector, Rear Seatback
1989-08 → 1991-08 ended
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S —
71695-95J02-03 note Protector, Rear Seatback
1991-08 → 1993-08 ended
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S —
71695-95J02-B0 note Protector, Rear Seatback
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (06S,09S) STD —
71691A — Cover, Rear NO.3 Seat Lock, RH
71691-95703-13 note Cover, Rear NO.3 Seat Lock, RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
71691-95703-13 note Cover, Rear NO.3 Seat Lock, RH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71692-95J00-03 note Cover, Rear NO.3 Seat Lock, RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
71692-95J00-03 note Cover, Rear NO.3 Seat Lock, RH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71692A — Cover, Rear NO.3 Seat Lock, LH
71691-95J00-03 note Cover, Rear NO.3 Seat Lock, LH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
71691-95J00-03 note Cover, Rear NO.3 Seat Lock, LH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71692-95702-13 note Cover, Rear NO.3 Seat Lock, LH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
71692-95702-13 note Cover, Rear NO.3 Seat Lock, LH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71695 — Protector, Rear Seatback
71695-95J01 Protector, Rear Seatback
1989-08 → 1991-05 ended
RZH102 DX —
71695-95J01 Protector, Rear Seatback
1991-05 → 1991-08 ended
RZH103 DX —
71695-95J01 Protector, Rear Seatback
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71695-95J01 Protector, Rear Seatback
1993-08 → 1995-08 ended
LH102,RZH103 GL —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-95J01-03 note Cover, Rear Seat Reclining, NO.1 RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
71833-95J01-B0 note Cover, Rear Seat Reclining, NO.1 RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-95J02-03 note Cover, Rear Seat Reclining, NO.1 LH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
71834-95J02-B0 note Cover, Rear Seat Reclining, NO.1 LH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71837D — Cover, Rear Seat Reclining, Inner RH
71837-95J01 Cover, Rear Seat Reclining, Inner RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71837-95J01 Cover, Rear Seat Reclining, Inner RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
72708-95J00-13 note Cover, Rear Seat Reclining, Inner RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72708-95J00-13 note Cover, Rear Seat Reclining, Inner RH
1992-05 → 1993-08 ended
LH102 DX —
72708-95J00-13 note Cover, Rear Seat Reclining, Inner RH
1991-08 → 1992-05 ended
LH102 DX —
72708-95J00-13 note Cover, Rear Seat Reclining, Inner RH
1991-08 → 1992-05 ended
RZH103 DX —
72708-95J00-13 note Cover, Rear Seat Reclining, Inner RH
1992-05 → 1993-08 ended
RZH103 DX —
71838B — Cover, Rear Seat Reclining, Inner LH
72709-95J00-13 note Cover, Rear Seat Reclining, Inner LH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72709-95J00-13 note Cover, Rear Seat Reclining, Inner LH
1991-08 → 1993-08 ended
LH102,RZH103 DX —
71843A — Cover, Rear Seat Reclining, NO.2 RH
71843-95700-13 note Cover, Rear Seat Reclining, NO.2 RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
71843-95700-B0 note Cover, Rear Seat Reclining, NO.2 RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71844A — Cover, Rear Seat Reclining, NO.2 LH
71844-95700-13 note Cover, Rear Seat Reclining, NO.2 LH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
71844-95700-B0 note Cover, Rear Seat Reclining, NO.2 LH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71931A — Support, Rear Seat Headrest
71930-26010-B0 note Support, Rear Seat Headrest
1993-08 → 1995-08 ended
LH102,RZH103 GL —
71930-26010-B0 note Support, Rear Seat Headrest
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71931-26010-B0 note Support, Rear Seat Headrest
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71931-26010-B0 note Support, Rear Seat Headrest
1993-08 → 1995-08 ended
LH102,RZH103 GL —
71956-30020-33 note Support, Rear Seat Headrest
1992-05 → 1993-08 ended
RZH103 DX —
71956-30020-33 note Support, Rear Seat Headrest
1991-08 → 1993-08 ended
LH102 DX —
71956-30020-33 note Support, Rear Seat Headrest
1991-08 → 1993-08 ended
LH102 DX —
71956-30020-33 note Support, Rear Seat Headrest
1991-05 → 1993-08 ended
RZH103 DX —
71956-30020-33 note Support, Rear Seat Headrest
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
71956-30020-33 note Support, Rear Seat Headrest
1991-08 → 1992-05 ended
RZH103 DX —
71956-30020-33 note Support, Rear Seat Headrest
1989-08 → 1991-08 ended
LH102,RZH102 DX —
71956-30020-33 note Support, Rear Seat Headrest
1989-08 → 1991-05 ended
RZH102 DX —
71990-30020-33 note Support, Rear Seat Headrest
1991-05 → 1993-08 ended
RZH103 DX —
71990-30020-33 note Support, Rear Seat Headrest
1992-05 → 1993-08 ended
RZH103 DX —
71990-30020-33 note Support, Rear Seat Headrest
1991-08 → 1993-08 ended
LH102 DX —
71990-30020-33 note Support, Rear Seat Headrest
1991-08 → 1993-08 ended
LH102 DX —
71990-30020-33 note Support, Rear Seat Headrest
1989-08 → 1991-08 ended
LH102,RZH102 DX —
71990-30020-33 note Support, Rear Seat Headrest
1991-08 → 1992-05 ended
RZH103 DX —
71990-30020-33 note Support, Rear Seat Headrest
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
71990-30020-33 note Support, Rear Seat Headrest
1989-08 → 1991-05 ended
RZH102 DX —
71940A — Headrest Assy, Rear Seat
71910-95J37-03 note Headrest Assy, Rear Seat
1989-08 → 1991-05 ended
LH102 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1989-08 → 1991-05 ended
RZH102 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1989-08 → 1991-05 ended
LH102,11#,RZH103,112,113,119 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1989-08 → 1991-05 ended
RZH102 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1991-05 → 1991-08 ended
LH102,RZH102 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1991-05 → 1991-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1991-08 → 1992-05 ended
RZH103 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1991-08 → 1992-05 ended
LH102 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1991-08 → 1993-08 ended
LH11#,RZH102,103,112,113,119 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1991-08 → 1993-08 ended
LH102 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1992-05 → 1993-08 ended
LH102 DX —
71910-95J37-03 note Headrest Assy, Rear Seat
1992-05 → 1993-08 ended
RZH103 DX —
71910-95J37-B0 note Headrest Assy, Rear Seat
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
71940-26040-B0 note Headrest Assy, Rear Seat
1993-08 → 1995-08 ended
LH102,RZH103 GL —
71940-95J25-03 note Headrest Assy, Rear Seat
1991-05 → 1991-08 ended
RZH103 DX —
71940-95J25-03 note Headrest Assy, Rear Seat
1989-08 → 1991-05 ended
RZH102 DX —
71940-95J25-03 note Headrest Assy, Rear Seat
1991-08 → 1993-08 ended
LH102,RZH103 DX —
72525B — Handle, Reclining Adjuster Release, RH
72525-95J01-03 note Handle, Reclining Adjuster Release, RH
1989-08 → 1990-10 ended
LH102,11#,RZH102,112,113,119 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, RH
1990-10 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
72525-95J01-B0 note Handle, Reclining Adjuster Release, RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72526A — Handle, Reclining Adjuster Release, LH
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1992-05 → 1993-08 ended
LH11#,RZH102,11# DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1992-05 → 1993-08 ended
LH102 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1990-10 → 1993-08 ended
RZH103 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1991-08 → 1992-05 ended
LH112,RZH102,112,113 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1991-08 → 1992-05 ended
LH102 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1990-10 → 1992-05 ended
LH118,RZH119 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1990-10 → 1991-08 ended
LH112,RZH112,113 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1990-10 → 1991-08 ended
LH102,RZH102 DX —
72525-95J01-03 note Handle, Reclining Adjuster Release, LH
1989-08 → 1990-10 ended
LH102,RZH102 DX —
72525-95J01-B0 note Handle, Reclining Adjuster Release, LH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72613A — Striker, Front Seat Lock
72613-95J00 Striker, Front Seat Lock
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72613-95J00 Striker, Front Seat Lock
1991-08 → 1993-08 ended
LH102,RZH103 DX —
72650F — Lock Assy, Rear Seat, RH
72650-28050 note Lock Assy, Rear Seat, RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72650-95J02 note Lock Assy, Rear Seat, RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
72650-95J03 note Lock Assy, Rear Seat, RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72650-95J03 note Lock Assy, Rear Seat, RH
1992-05 → 1993-08 ended
LH102 DX —
72650-95J03 note Lock Assy, Rear Seat, RH
1992-05 → 1993-08 ended
RZH103 DX —
72650-95J03 note Lock Assy, Rear Seat, RH
1991-08 → 1992-05 ended
LH102 DX —
72650-95J03 note Lock Assy, Rear Seat, RH
1991-08 → 1992-05 ended
RZH103 DX —
72650-95J05 note Lock Assy, Rear Seat, RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72650-95J05 note Lock Assy, Rear Seat, RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
72651 — Rod, Rear Seatback Lock
72651-95J06 Rod, Rear Seatback Lock
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72651-95J06 Rod, Rear Seatback Lock
1991-08 → 1993-08 ended
LH102,RZH103 DX —
72658B — Knob, Rear Seat Lock Handle
72658-95701-11 note Knob, Rear Seat Lock Handle
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72658-95701-13 note Knob, Rear Seat Lock Handle
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
72660F — Lock Assy, Rear Seat, LH
72660-95J02 note Lock Assy, Rear Seat, LH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72660-95J02 note Lock Assy, Rear Seat, LH
1991-08 → 1992-05 ended
LH102 DX —
72660-95J02 note Lock Assy, Rear Seat, LH
1991-08 → 1992-05 ended
RZH103 DX —
72660-95J02 note Lock Assy, Rear Seat, LH
1992-05 → 1993-08 ended
LH102 DX —
72660-95J02 note Lock Assy, Rear Seat, LH
1992-05 → 1993-08 ended
RZH103 DX —
72660-95J05 Lock Assy, Rear Seat, LH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
72660-95J05 Lock Assy, Rear Seat, LH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72660-95J05 note Lock Assy, Rear Seat, LH
1992-05 → 1993-08 ended
LH102 DX —
72660-95J05 note Lock Assy, Rear Seat, LH
1991-08 → 1992-05 ended
LH102 DX —
72660-95J05 note Lock Assy, Rear Seat, LH
1990-10 → 1991-08 ended
LH102,RZH102 DX —
72660-95J05 note Lock Assy, Rear Seat, LH
1989-08 → 1990-10 ended
LH102,RZH102 DX —
72710C — Adjuster Assy, NO.1 Seat Reclining, RH
72730-95J07-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72730-95J07-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1991-08 → 1992-05 ended
LH102 DX —
72730-95J07-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1991-08 → 1992-05 ended
RZH103 DX —
72730-95J07-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1992-05 → 1993-08 ended
RZH103 DX —
72730-95J07-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1992-05 → 1993-08 ended
LH102 DX —
72730-95J08-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72730-95J08-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1991-08 → 1992-05 ended
LH102 DX —
72730-95J08-03 note Adjuster Assy, NO.1 Seat Reclining, RH
1991-08 → 1992-05 ended
RZH103 DX —
72730-95J09 Adjuster Assy, NO.1 Seat Reclining, RH
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
72730-95J09 Adjuster Assy, NO.1 Seat Reclining, RH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72720C — Adjuster Assy, NO.1 Seat Reclining, LH
72740-95J09-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
72740-95J10-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1989-08 → 1990-10 ended
LH102,118,RZH102,119 DX —
72740-95J10-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1990-10 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
72740-95J10-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1989-08 → 1993-08 ended
RZH103 DX —
72740-95J10-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1989-08 → 1990-10 ended
LH112,RZH112,113 DX —
72740-95J10-B0 note Adjuster Assy, NO.1 Seat Reclining, LH
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
72740-95J11-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1991-08 → 1992-05 ended
RZH103 DX —
72740-95J11-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1992-05 → 1993-08 ended
LH102 DX —
72740-95J11-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1992-05 → 1993-08 ended
RZH103 DX —
72740-95J11-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72740-95J11-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1991-08 → 1992-05 ended
LH102 DX —
72740-95J12-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1989-08 → 1991-08 ended
LH102,RZH102 DX —
72740-95J12-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1991-08 → 1992-05 ended
RZH103 DX —
72740-95J12-03 note Adjuster Assy, NO.1 Seat Reclining, LH
1991-08 → 1992-05 ended
LH102 DX —
73178B — Cap, Seat Belt Anchor Cover
73178-95J00 Cap, Seat Belt Anchor Cover
1993-08 → 1995-08 ended
LH102,RZH103 GL —
73178-95J00 note Cap, Seat Belt Anchor Cover
1989-08 → 1990-06 ended
RZH102 DX —
73178-95J00 Cap, Seat Belt Anchor Cover
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# DX,GL —
73178-95J00 note Cap, Seat Belt Anchor Cover
1991-08 → 1993-08 ended
LH102,RZH103 DX —
73178-95J00 note Cap, Seat Belt Anchor Cover
1991-08 → 1993-08 ended
LH102 DX —
73178-95J00 Cap, Seat Belt Anchor Cover
1991-08 → 1993-08 ended
LH11#,RZH102,103,112,113,119 DX —
73178-95J00 note Cap, Seat Belt Anchor Cover
1991-05 → 1991-08 ended
RZH103 DX —
73178-95J00 note Cap, Seat Belt Anchor Cover
1990-10 → 1991-05 ended
RZH102 DX —
73178-95J00 Cap, Seat Belt Anchor Cover
1990-10 → 1991-05 ended
LH102,11#,RZH103,112,113,119 DX —
73178-95J00 note Cap, Seat Belt Anchor Cover
1990-06 → 1991-05 ended
RZH102 DX —
73178-95J00 note Cap, Seat Belt Anchor Cover
1990-03 → 1990-10 ended
LH102,11#,RZH102,112,113,119 DX —
73178-95J00 Cap, Seat Belt Anchor Cover
1990-03 → 1990-10 ended
RZH103 DX —
73178-95J00 note Cap, Seat Belt Anchor Cover
1989-08 → 1990-03 ended
RZH102 DX —
73178-95J00 Cap, Seat Belt Anchor Cover
1991-05 → 1991-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
74790 — Holder Assy, Warning Reflector
74790-95J01 note Holder Assy, Warning Reflector
1989-08 → 1990-10 ended
LH102,RZH102 DX —
74790-95J01 Holder Assy, Warning Reflector
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
74790-95J01 note Holder Assy, Warning Reflector
1990-10 → 1991-08 ended
LH102,RZH102 DX —
74790-95J01 note Holder Assy, Warning Reflector
1991-08 → 1992-05 ended
LH102 DX —
74790-95J01 note Holder Assy, Warning Reflector
1992-05 → 1993-08 ended
LH102 DX —
74790-95J01 Holder Assy, Warning Reflector
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
74790-95J02 note Holder Assy, Warning Reflector
1992-05 → 1993-08 ended
LH102 DX —
74790-95J02 Holder Assy, Warning Reflector
1993-08 → 1995-08 ended
LH102,RZH103 GL —
74790-95J02 note Holder Assy, Warning Reflector
1992-05 → 1993-08 ended
RZH103 DX —
74790-95J02 note Holder Assy, Warning Reflector
1991-08 → 1992-05 ended
RZH103 DX —
74790-95J02 note Holder Assy, Warning Reflector
1991-05 → 1991-08 ended
RZH103 DX —
74790-95J02 note Holder Assy, Warning Reflector
1991-05 → 1991-08 ended
LH102,RZH102 DX —
74790-95J02 note Holder Assy, Warning Reflector
1989-08 → 1991-05 ended
RZH102 DX —
74790-95J02 note Holder Assy, Warning Reflector
1989-08 → 1991-05 ended
LH102 DX —
74790-95J02 note Holder Assy, Warning Reflector
1991-08 → 1992-05 ended
LH102 DX —
79011A — Cover Sub-assy, NO.1 Seat Cushion
79011-26200-B0 note Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79011-26240-B0 note Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (06S,09S) STD —
79011-95N08-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1992-05 ended
RZH115 —
79011-95N18-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1993-08 ended
LH102,112,RZH109,112,113,119 06S —
79011-95N26-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79011-95N26-B0 note Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH11#,RZH103,109,11# DX EUR —
79011-95N27-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1990-10 ended
LH102,118,RZH102,119 DX —
79011-95N27-03 note Cover Sub-assy, NO.1 Seat Cushion
1990-10 → 1992-05 ended
LH118,RZH119 DX —
79011-95N27-03 note Cover Sub-assy, NO.1 Seat Cushion
1990-10 → 1992-05 ended
LH102,112,RZH102,112,113 DX —
79011-95N27-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1993-08 ended
RZH103 DX —
79011-95N27-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1990-10 ended
LH112,RZH112,113 DX —
79011-95N27-03 note Cover Sub-assy, NO.1 Seat Cushion
1992-05 → 1993-08 ended
LH102,11#,RZH102,11# DX —
79011-95N27-B1 note Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79011-95N28-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79011-95N28-03 note Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1992-05 ended
LH102 DX —
79011-95N28-03 note Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1992-05 ended
RZH103 DX —
79011-95N29-03 note Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1993-08 ended
LH102 DX —
79011-95N29-03 note Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1993-08 ended
RZH103 DX —
79011-95N29-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79011-95N30-03 note Cover Sub-assy, NO.1 Seat Cushion
1991-05 → 1991-08 ended
RZH103 DX —
79011-95N30-03 note Cover Sub-assy, NO.1 Seat Cushion
1989-08 → 1991-05 ended
RZH102 DX —
79011-95N30-03 note Cover Sub-assy, NO.1 Seat Cushion
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79011-95N36-B1 note Cover Sub-assy, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# 06S —
79013A — Cover Sub-assy, NO.1 Seatback
79013-26120-B0 note Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79013-26170-B0 note Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08 ended
LH11#,RZH103,109,11# DX EUR —
79013-26180-B2 note Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79013-26190-B1 note Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (06S,09S) STD —
79013-95N07-03 note Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05 ended
RZH103 DX —
79013-95N07-03 note Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05 ended
LH102 DX —
79013-95N07-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79013-95N11-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08 ended
LH102,112,RZH109,112,113,119 06S —
79013-95N14-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79013-95N16-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79013-95N17-B2 note Cover Sub-assy, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# 06S —
79013-95N18-03 note Cover Sub-assy, NO.1 Seatback
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79013-95N18-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-05 ended
RZH102 DX —
79013-95N18-03 note Cover Sub-assy, NO.1 Seatback
1991-05 → 1991-08 ended
RZH103 DX —
79013-95N21-03 note Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05 ended
RZH103 DX —
79013-95N21-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79013-95N21-03 note Cover Sub-assy, NO.1 Seatback
1991-08 → 1992-05 ended
LH102 DX —
79013-95N24-03 note Cover Sub-assy, NO.1 Seatback
1991-08 → 1993-08 ended
RZH103 DX —
79013-95N24-03 note Cover Sub-assy, NO.1 Seatback
1991-08 → 1993-08 ended
LH102 DX —
79013-95N24-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79013-95N25-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1993-08 ended
RZH103 DX —
79013-95N25-03 note Cover Sub-assy, NO.1 Seatback
1992-05 → 1993-08 ended
LH102,11#,RZH102,11# DX —
79013-95N25-03 note Cover Sub-assy, NO.1 Seatback
1990-10 → 1992-05 ended
LH118,RZH119 DX —
79013-95N25-03 note Cover Sub-assy, NO.1 Seatback
1990-10 → 1992-05 ended
LH102,112,RZH102,112,113 DX —
79013-95N25-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1990-10 ended
LH102,118,RZH102,119 DX —
79013-95N25-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1990-10 ended
LH112,RZH112,113 DX —
79014-95J12-03 note Cover Sub-assy, NO.1 Seatback
1989-08 → 1992-05 ended
RZH115 —
79120A — Cushion Assy, NO.1 Seat
79120-26200-B0 note Cushion Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79120-26250-B2 note Cushion Assy, NO.1 Seat
1993-08 → 1995-08 ended
RZH113 09S STD —
79120-26250-B2 note Cushion Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# 06S —
79120-95N18-03 note Cushion Assy, NO.1 Seat
1989-08 → 1992-05 ended
RZH115 —
79120-95N29-03 note Cushion Assy, NO.1 Seat
1989-08 → 1993-08 ended
LH102,112,RZH109,112,113,119 06S —
79120-95N37-03 note Cushion Assy, NO.1 Seat
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79120-95N37-B3 note Cushion Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH11#,RZH103,109,11# DX EUR —
79120-95N38-03 note Cushion Assy, NO.1 Seat
1989-08 → 1993-08 ended
RZH103 DX —
79120-95N38-03 note Cushion Assy, NO.1 Seat
1992-05 → 1993-08 ended
LH102,11#,RZH102,11# DX —
79120-95N38-03 note Cushion Assy, NO.1 Seat
1990-10 → 1992-05 ended
LH102,112,RZH102,112,113 DX —
79120-95N38-03 note Cushion Assy, NO.1 Seat
1990-10 → 1992-05 ended
LH118,RZH119 DX —
79120-95N38-03 note Cushion Assy, NO.1 Seat
1989-08 → 1990-10 ended
LH102,118,RZH102,119 DX —
79120-95N38-03 note Cushion Assy, NO.1 Seat
1989-08 → 1990-10 ended
LH112,RZH112,113 DX —
79120-95N38-B4 note Cushion Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79120-95N39-03 note Cushion Assy, NO.1 Seat
1991-08 → 1992-05 ended
RZH103 DX —
79120-95N39-03 note Cushion Assy, NO.1 Seat
1991-08 → 1992-05 ended
LH102 DX —
79120-95N39-03 note Cushion Assy, NO.1 Seat
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79120-95N42-B1 note Cushion Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# 06S —
79120-95N43-03 note Cushion Assy, NO.1 Seat
1991-08 → 1993-08 ended
RZH103 DX —
79120-95N43-03 note Cushion Assy, NO.1 Seat
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79120-95N43-03 note Cushion Assy, NO.1 Seat
1991-08 → 1993-08 ended
LH102 DX —
79120-95N44-03 note Cushion Assy, NO.1 Seat
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79120-95N44-03 note Cushion Assy, NO.1 Seat
1989-08 → 1991-05 ended
RZH102 DX —
79120-95N44-03 note Cushion Assy, NO.1 Seat
1991-05 → 1991-08 ended
RZH103 DX —
79135 — Pad, NO.1 Seat Cushion
79015-95J00 Pad, NO.1 Seat Cushion
1989-08 → 1992-05 ended
RZH115 —
79135-26050 Pad, NO.1 Seat Cushion
1991-01 → 1995-08 ended
LH102,112,RZH103,109,113,119 (06S,09S) STD —
79135-95J03 Pad, NO.1 Seat Cushion
1989-08 → 1991-01 ended
LH102,112,RZH109,112,113,119 06S —
79135-95J15 note Pad, NO.1 Seat Cushion
1992-05 → 1993-08 ended
LH102 DX —
79135-95J15 Pad, NO.1 Seat Cushion
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
79135-95J15 note Pad, NO.1 Seat Cushion
1991-08 → 1992-05 ended
LH102 DX —
79135-95J15 note Pad, NO.1 Seat Cushion
1990-10 → 1991-08 ended
LH102,RZH102 DX —
79135-95J15 Pad, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79135-95J15 note Pad, NO.1 Seat Cushion
1989-08 → 1990-10 ended
LH102,RZH102 DX —
79135-95J16 note Pad, NO.1 Seat Cushion
1992-05 → 1993-08 ended
LH102 DX —
79135-95J16 note Pad, NO.1 Seat Cushion
1992-05 → 1993-08 ended
RZH103 DX —
79135-95J16 Pad, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79135-95J16 note Pad, NO.1 Seat Cushion
1991-08 → 1992-05 ended
RZH103 DX —
79135-95J16 note Pad, NO.1 Seat Cushion
1991-05 → 1991-08 ended
RZH103 DX —
79135-95J16 note Pad, NO.1 Seat Cushion
1991-05 → 1991-08 ended
LH102,RZH102 DX —
79135-95J16 note Pad, NO.1 Seat Cushion
1989-08 → 1991-05 ended
RZH102 DX —
79135-95J16 note Pad, NO.1 Seat Cushion
1989-08 → 1991-05 ended
LH102 DX —
79135-95J16 note Pad, NO.1 Seat Cushion
1991-08 → 1992-05 ended
LH102 DX —
79140A — Back Assy, NO.1 Seat
79140-26140-B0 note Back Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79140-26210-B0 note Back Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH11#,RZH103,109,11# DX EUR —
79140-26220-B1 note Back Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79140-26230-B2 note Back Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# 06S —
79140-26240-B0 note Back Assy, NO.1 Seat
1993-08 → 1995-08 ended
RZH113 09S STD —
79140-95N23-03 note Back Assy, NO.1 Seat
1989-08 → 1993-08 ended
LH102,112,RZH109,112,113,119 06S —
79140-95N27-03 note Back Assy, NO.1 Seat
1989-08 → 1993-08 ended
RZH112,113 4D 06S —
79140-95N31-03 note Back Assy, NO.1 Seat
1991-08 → 1992-05 ended
RZH103 DX —
79140-95N31-03 note Back Assy, NO.1 Seat
1991-08 → 1992-05 ended
LH102 DX —
79140-95N31-03 note Back Assy, NO.1 Seat
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79140-95N33-03 note Back Assy, NO.1 Seat
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79140-95N34-03 note Back Assy, NO.1 Seat
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79140-95N35-03 note Back Assy, NO.1 Seat
1990-10 → 1992-05 ended
LH102,112,RZH102,112,113 DX —
79140-95N35-03 note Back Assy, NO.1 Seat
1990-10 → 1992-05 ended
LH118,RZH119 DX —
79140-95N35-03 note Back Assy, NO.1 Seat
1989-08 → 1990-10 ended
LH102,118,RZH102,119 DX —
79140-95N35-03 note Back Assy, NO.1 Seat
1989-08 → 1993-08 ended
RZH103 DX —
79140-95N35-03 note Back Assy, NO.1 Seat
1989-08 → 1990-10 ended
LH112,RZH112,113 DX —
79140-95N35-03 note Back Assy, NO.1 Seat
1992-05 → 1993-08 ended
LH102,11#,RZH102,11# DX —
79140-95N36-B1 note Back Assy, NO.1 Seat
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# 06S —
79140-95N37-03 note Back Assy, NO.1 Seat
1991-08 → 1992-05 ended
RZH103 DX —
79140-95N37-03 note Back Assy, NO.1 Seat
1991-08 → 1992-05 ended
LH102 DX —
79140-95N37-03 note Back Assy, NO.1 Seat
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79140-95N40-03 note Back Assy, NO.1 Seat
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79140-95N40-03 note Back Assy, NO.1 Seat
1991-08 → 1993-08 ended
LH102 DX —
79140-95N40-03 note Back Assy, NO.1 Seat
1991-08 → 1993-08 ended
RZH103 DX —
79140-95N41-03 note Back Assy, NO.1 Seat
1989-08 → 1991-05 ended
RZH102 DX —
79140-95N41-03 note Back Assy, NO.1 Seat
1991-05 → 1991-08 ended
RZH103 DX —
79140-95N41-03 note Back Assy, NO.1 Seat
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79150-95J12-03 note Back Assy, NO.1 Seat
1989-08 → 1992-05 ended
RZH115 —
79160 — Spring Assy, NO.1 Seat Cushion
79160-95J45 Spring Assy, NO.1 Seat Cushion
1989-08 → 1995-08 ended
LH102,112,RZH103,109,112,113,119 (06S,09S) STD —
79160-95J48 note Spring Assy, NO.1 Seat Cushion
1990-10 → 1991-08 ended
LH102,RZH102 DX —
79160-95J48 note Spring Assy, NO.1 Seat Cushion
1991-08 → 1992-05 ended
LH102 DX —
79160-95J48 Spring Assy, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79160-95J48 Spring Assy, NO.1 Seat Cushion
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
79160-95J48 note Spring Assy, NO.1 Seat Cushion
1992-05 → 1993-08 ended
LH102 DX —
79160-95J48 note Spring Assy, NO.1 Seat Cushion
1989-08 → 1990-10 ended
LH102,RZH102 DX —
79160-95J49 note Spring Assy, NO.1 Seat Cushion
1989-08 → 1991-05 ended
RZH102 DX —
79160-95J49 note Spring Assy, NO.1 Seat Cushion
1991-05 → 1991-08 ended
RZH103 DX —
79160-95J49 Spring Assy, NO.1 Seat Cushion
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79160-95J49 note Spring Assy, NO.1 Seat Cushion
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79160-95J50 note Spring Assy, NO.1 Seat Cushion
1991-08 → 1992-05 ended
LH102 DX —
79160-95J50 note Spring Assy, NO.1 Seat Cushion
1992-05 → 1993-08 ended
RZH103 DX —
79160-95J50 note Spring Assy, NO.1 Seat Cushion
1991-08 → 1992-05 ended
RZH103 DX —
79160-95J50 note Spring Assy, NO.1 Seat Cushion
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79160-95J50 note Spring Assy, NO.1 Seat Cushion
1992-05 → 1993-08 ended
LH102 DX —
79169 — Rod, Rear Seat Hinge Connector
79169-95J04 note Rod, Rear Seat Hinge Connector
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79169-95J04 note Rod, Rear Seat Hinge Connector
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
79169-95J05 note Rod, Rear Seat Hinge Connector
1992-05 → 1993-08 ended
RZH103 DX —
79169-95J05 note Rod, Rear Seat Hinge Connector
1992-05 → 1993-08 ended
LH102 DX —
79169-95J05 note Rod, Rear Seat Hinge Connector
1991-08 → 1992-05 ended
LH102 DX —
79169-95J05 note Rod, Rear Seat Hinge Connector
1991-08 → 1992-05 ended
RZH103 DX —
79169-95J05 note Rod, Rear Seat Hinge Connector
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79169-95J07 note Rod, Rear Seat Hinge Connector
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
79169-95J07 note Rod, Rear Seat Hinge Connector
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79175 — Pad, NO.1 Seatback
79017-95J00 Pad, NO.1 Seatback
1989-08 → 1992-05 ended
RZH115 —
79175-26060 Pad, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79175-95J23 note Pad, NO.1 Seatback
1992-05 → 1993-08 ended
LH102 DX —
79175-95J23 Pad, NO.1 Seatback
1989-08 → 1993-08 ended
LH102,11#,RZH102,103,112,113,119 DX —
79175-95J23 note Pad, NO.1 Seatback
1991-08 → 1992-05 ended
LH102 DX —
79175-95J23 note Pad, NO.1 Seatback
1990-10 → 1991-08 ended
LH102,RZH102 DX —
79175-95J23 note Pad, NO.1 Seatback
1989-08 → 1990-10 ended
LH102,RZH102 DX —
79175-95J24 note Pad, NO.1 Seatback
1991-08 → 1992-05 ended
LH102 DX —
79175-95J24 Pad, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79175-95J24 note Pad, NO.1 Seatback
1992-05 → 1993-08 ended
LH102 DX —
79175-95J24 note Pad, NO.1 Seatback
1992-05 → 1993-08 ended
RZH103 DX —
79175-95J24 note Pad, NO.1 Seatback
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79175-95J24 note Pad, NO.1 Seatback
1991-08 → 1992-05 ended
RZH103 DX —
79175-95J25 note Pad, NO.1 Seatback
1989-08 → 1991-05 ended
RZH102 DX —
79175-95J25 note Pad, NO.1 Seatback
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79175-95J25 note Pad, NO.1 Seatback
1991-05 → 1991-08 ended
RZH103 DX —
79175-95J26 Pad, NO.1 Seatback
1989-08 → 1995-08 ended
LH102,112,RZH103,109,112,113,119 (06S,09S) STD —
79175D — Pad, NO.1 Seat Cushion, Under
79175-95J13 Pad, NO.1 Seat Cushion, Under
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79175-95J13 Pad, NO.1 Seat Cushion, Under
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79180 — Spring Assy, NO.1 Seatback
79180-26080 Spring Assy, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,11#,RZH103,109,11# 09S DX —
79180-95J20 Spring Assy, NO.1 Seatback
1993-08 → 1995-08 ended
RZH113 09S STD —
79180-95J20 Spring Assy, NO.1 Seatback
1989-08 → 1995-08 ended
LH102,112,RZH103,109,112,113,119 06S —
79180-95J20 note Spring Assy, NO.1 Seatback
1989-08 → 1993-08 ended
RZH112,113 4D 06S —
79180-95J22 Spring Assy, NO.1 Seatback
1989-08 → 1993-08 ended
RZH103 DX —
79180-95J22 note Spring Assy, NO.1 Seatback
1990-10 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79180-95J22 note Spring Assy, NO.1 Seatback
1989-08 → 1990-10 ended
LH102,118,RZH102,119 DX —
79180-95J22 note Spring Assy, NO.1 Seatback
1989-08 → 1990-10 ended
LH112,RZH112,113 DX —
79180-95J25 Spring Assy, NO.1 Seatback
1993-08 → 1995-08 ended
LH102,RZH103 GL —
79180-95J25 note Spring Assy, NO.1 Seatback
1991-05 → 1991-08 ended
RZH103 DX —
79180-95J25 note Spring Assy, NO.1 Seatback
1989-08 → 1991-05 ended
RZH102 DX —
79180-95J25 note Spring Assy, NO.1 Seatback
1991-08 → 1993-08 ended
LH102,RZH103 DX —
79180-95J27 Spring Assy, NO.1 Seatback
1989-08 → 1993-08 ended
LH102,11#,RZH102,112,113,119 DX —
79380-95J20 note Spring Assy, NO.1 Seatback
1991-08 → 1992-05 ended
RZH103 DX —
79380-95J20 note Spring Assy, NO.1 Seatback
1991-08 → 1992-05 ended
LH102 DX —
79380-95J20 note Spring Assy, NO.1 Seatback
1992-05 → 1993-08 ended
LH102 DX —
79380-95J20 note Spring Assy, NO.1 Seatback
1992-05 → 1993-08 ended
RZH103 DX —
79380-95J20 note Spring Assy, NO.1 Seatback
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79380-95J21 note Spring Assy, NO.1 Seatback
1989-08 → 1991-08 ended
LH102,RZH102 DX —
79380-95J21 note Spring Assy, NO.1 Seatback
1991-08 → 1992-05 ended
RZH103 DX —
79380-95J21 note Spring Assy, NO.1 Seatback
1991-08 → 1992-05 ended
LH102 DX —
79189 — Stopper, NO.1 Seat Leg
71334-95703 Stopper, NO.1 Seat Leg
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (06S,09S) STD —
71334-95703 Stopper, NO.1 Seat Leg
1990-11 → 1990-12 ended
LH112,RZH113,119 06S;LH102,RZH102,109 06S,09S —
71334-95703 Stopper, NO.1 Seat Leg
1990-12 → 1991-08 ended
LH112,RZH113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
71334-95703 Stopper, NO.1 Seat Leg
1991-08 → 1991-09 ended
LH112,RZH113,119 06S;LH102,RZH103,109,115 06S,09S,15S —
71334-95703 Stopper, NO.1 Seat Leg
1991-09 → 1993-08 ended
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S —
71334-95J01 Stopper, NO.1 Seat Leg
1990-02 → 1990-12 ended
RZH115 —
79189-95J00 Stopper, NO.1 Seat Leg
1989-08 → 1990-02 ended
LH112,RZH112,113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
79189-95J00 Stopper, NO.1 Seat Leg
1990-02 → 1990-11 ended
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S —
79199 — Holder, NO.1 Seat Leg Stopper
79199-95J00 Holder, NO.1 Seat Leg Stopper
1989-08 → 1990-02 ended
LH112,RZH112,113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1990-02 → 1990-12 ended
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1990-12 → 1991-08 ended
LH112,RZH113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1991-08 → 1991-09 ended
LH112,RZH113,119 06S;LH102,RZH103,109,115 06S,09S,15S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1991-09 → 1993-08 ended
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (06S,09S) STD —
79199-95J01 Holder, NO.1 Seat Leg Stopper
1990-02 → 1990-12 ended
RZH115 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
