Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

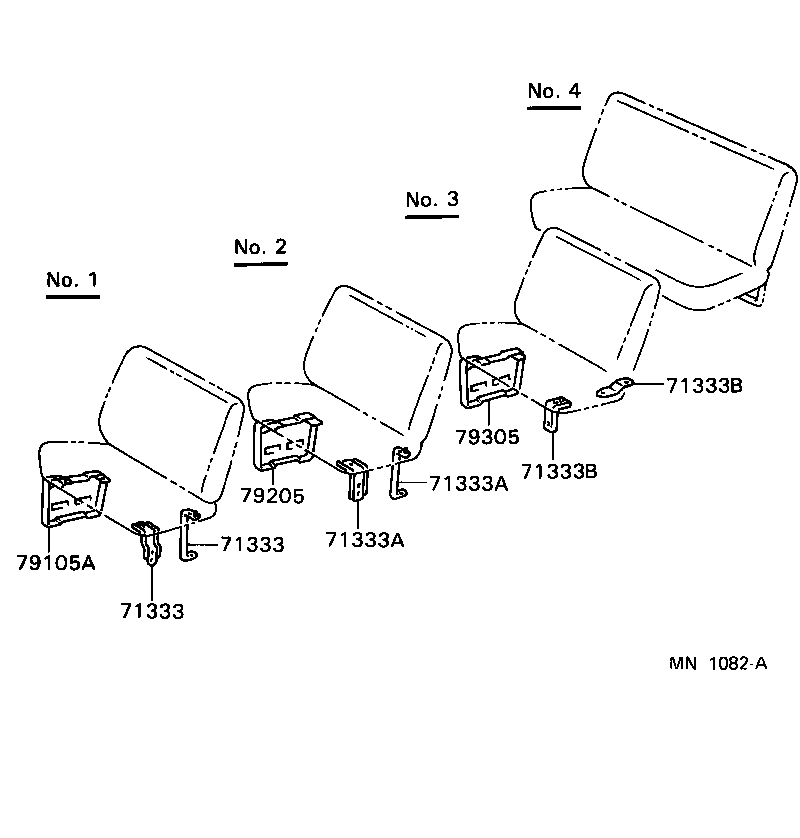

Exploded illustration MN1082A 71333B — LEG, REAR SEAT CUSHION, NO.3 (2 parts) 79305 — LEG SUB-ASSY, NO.3 SEAT (1 parts) 71333B — LEG, REAR SEAT CUSHION, NO.3 (2 parts) 71333A — LEG, REAR SEAT CUSHION, NO.2 (2 parts) 79205 — LEG SUB-ASSY, NO.2 SEAT (1 parts) 71333A — LEG, REAR SEAT CUSHION, NO.2 (2 parts) 71333 — LEG, REAR SEAT CUSHION, NO.1 (2 parts) 79105A — LEG SUB-ASSY, NO.1 SEAT (1 parts) 71333 — LEG, REAR SEAT CUSHION, NO.1 (2 parts)
MN1082A · 9 callouts Full size ↗
9 parts on this figure
Part number Description Fitment Price
71333 — Leg, Rear Seat Cushion, NO.1
71333-95J07 note Leg, Rear Seat Cushion, NO.1
1989-08 → 1992-05 ended
RZH115 —
71333-95J11 note Leg, Rear Seat Cushion, NO.1
1989-08 → 1992-05 ended
RZH115 —
71333A — Leg, Rear Seat Cushion, NO.2
71333-95J18 note Leg, Rear Seat Cushion, NO.2
1989-08 → 1992-05 ended
RZH115 —
71333-95J30 note Leg, Rear Seat Cushion, NO.2
1989-08 → 1992-05 ended
RZH115 —
71333B — Leg, Rear Seat Cushion, NO.3
71333-95J21 note Leg, Rear Seat Cushion, NO.3
1989-08 → 1992-05 ended
RZH115 —
71333-95J25 note Leg, Rear Seat Cushion, NO.3
1989-08 → 1992-05 ended
RZH115 —
79105A — Leg Sub-assy, NO.1 Seat
79105-95J11 Leg Sub-assy, NO.1 Seat
1989-08 → 1992-05 ended
RZH115 —
79205 — Leg Sub-assy, NO.2 Seat
79105-95J16 Leg Sub-assy, NO.2 Seat
1989-08 → 1992-05 ended
RZH115 —
79305 — Leg Sub-assy, NO.3 Seat
79105-95J12 Leg Sub-assy, NO.3 Seat
1990-01 → 1992-05 ended
RZH115 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
