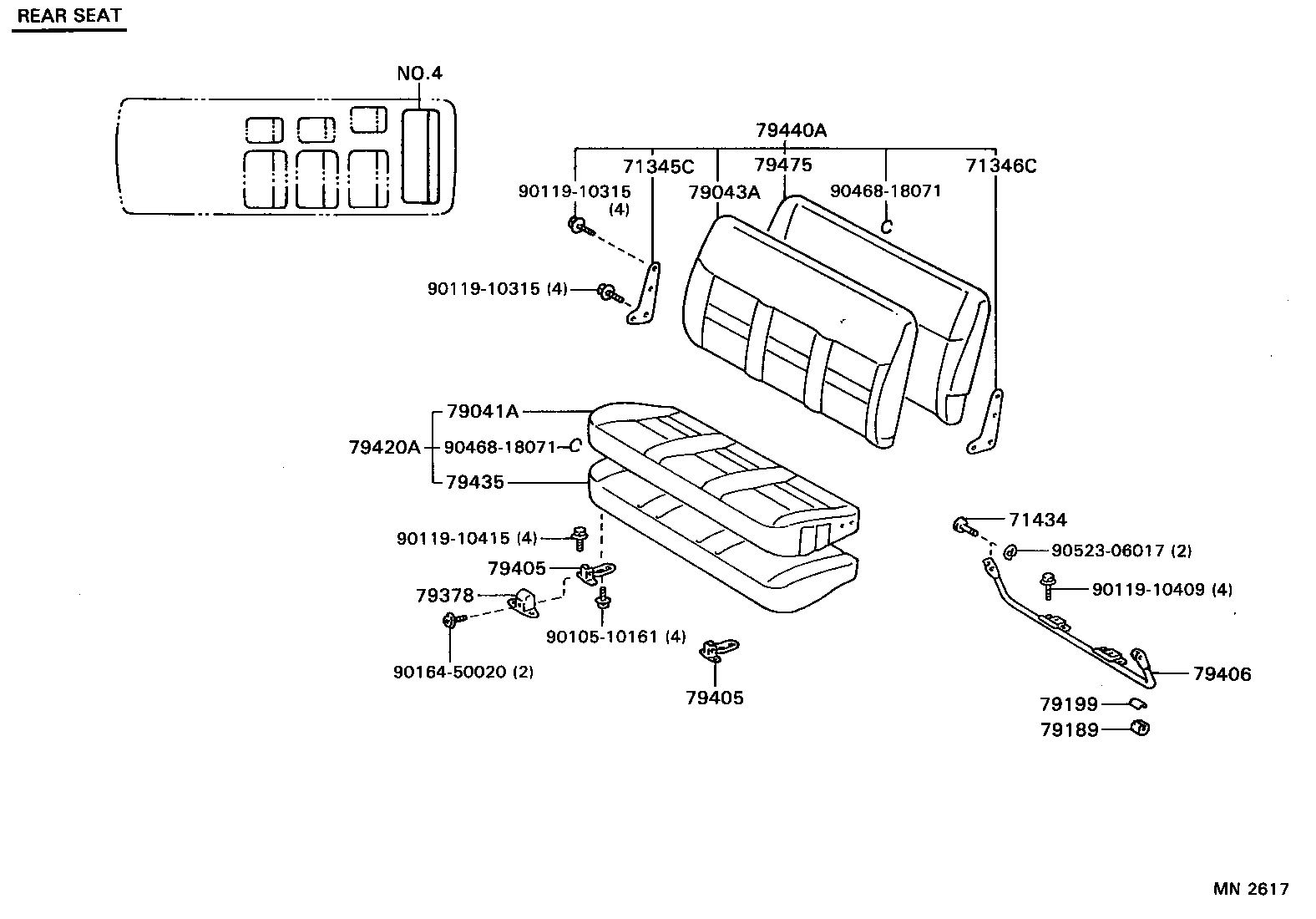

Exploded illustration MN2617 79440A — BACK ASSY, NO.4 SEAT (1 parts) 79475 — PAD, NO.4 SEATBACK (1 parts) 71346C — HINGE, REAR SEATBACK, LH (1 parts) 71345C — HINGE, REAR SEATBACK, RH (1 parts) 9011910315 — not listed in this catalogue 9046818071 — not listed in this catalogue 79043A — COVER SUB-ASSY, NO.4 SEATBACK (2 parts) 9011910315 — not listed in this catalogue 79041A — COVER SUB-ASSY, NO.4 SEAT CUSHION (1 parts) 79420A — CUSHION ASSY, NO.4 SEAT (1 parts) 9046818071 — not listed in this catalogue 79435 — PAD, NO.4 SEAT CUSHION (1 parts) 71434 — PIN, REAR SEAT CUSHION LEG, REAR (2 parts) 9011910415 — not listed in this catalogue 9052306017 — not listed in this catalogue 79405 — LEG SUB-ASSY, NO.4 SEAT, FRONT (2 parts) 9011910409 — not listed in this catalogue 79378 — COVER, NO.3 SEAT CUSHION HINGE (1 parts) 9010510161 — not listed in this catalogue 9016450020 — not listed in this catalogue 79406 — LEG SUB-ASSY, NO.4 SEAT, REAR (1 parts) 79405 — LEG SUB-ASSY, NO.4 SEAT, FRONT (2 parts) 79199 — HOLDER, NO.1 SEAT LEG STOPPER (7 parts) 79189 — STOPPER, NO.1 SEAT LEG (8 parts)
MN2617 · 15 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
71345C — Hinge, Rear Seatback, RH
71345-95J08 Hinge, Rear Seatback, RH
1989-08 → 1992-05 ended
RZH115 —
71346C — Hinge, Rear Seatback, LH
71346-95J04 Hinge, Rear Seatback, LH
1989-08 → 1992-05 ended
RZH115 —
71434 — Pin, Rear Seat Cushion Leg, Rear
71434-95701 Pin, Rear Seat Cushion Leg, Rear
1990-01 → 1993-08 ended
RZH115 —
71434-95701 Pin, Rear Seat Cushion Leg, Rear
1993-08 → 1995-08 ended
LH102,112,RZH109,11# (06S,09S) STD —
79041A — Cover Sub-assy, NO.4 Seat Cushion
79041-95J11-03 note Cover Sub-assy, NO.4 Seat Cushion
1989-08 → 1992-05 ended
RZH115 —
79043A — Cover Sub-assy, NO.4 Seatback
79043-95J11-03 note Cover Sub-assy, NO.4 Seatback
1990-01 → 1992-05 ended
RZH115 —
79043-95J17-03 note Cover Sub-assy, NO.4 Seatback
1989-08 → 1990-01 ended
RZH115 —
79189 — Stopper, NO.1 Seat Leg
71334-95703 Stopper, NO.1 Seat Leg
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (06S,09S) STD —
71334-95703 Stopper, NO.1 Seat Leg
1991-09 → 1993-08 ended
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S —
71334-95703 Stopper, NO.1 Seat Leg
1990-11 → 1990-12 ended
LH112,RZH113,119 06S;LH102,RZH102,109 06S,09S —
71334-95703 Stopper, NO.1 Seat Leg
1990-12 → 1991-08 ended
LH112,RZH113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
71334-95703 Stopper, NO.1 Seat Leg
1991-08 → 1991-09 ended
LH112,RZH113,119 06S;LH102,RZH103,109,115 06S,09S,15S —
71334-95J01 Stopper, NO.1 Seat Leg
1990-02 → 1990-12 ended
RZH115 —
79189-95J00 Stopper, NO.1 Seat Leg
1990-02 → 1990-11 ended
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S —
79189-95J00 Stopper, NO.1 Seat Leg
1989-08 → 1990-02 ended
LH112,RZH112,113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
79199 — Holder, NO.1 Seat Leg Stopper
79199-95J00 Holder, NO.1 Seat Leg Stopper
1989-08 → 1990-02 ended
LH112,RZH112,113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1993-08 → 1995-08 ended
LH102,112,RZH103,109,11# (06S,09S) STD —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1991-09 → 1993-08 ended
LH112,RZH113,119 06S;LH102,RZH103,109 06S,09S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1991-08 → 1991-09 ended
LH112,RZH113,119 06S;LH102,RZH103,109,115 06S,09S,15S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1990-12 → 1991-08 ended
LH112,RZH113,119 06S;LH102,RZH102,109,115 06S,09S,15S —
79199-95J00 Holder, NO.1 Seat Leg Stopper
1990-02 → 1990-12 ended
LH102,RZH102,109 06S,09S;LH112,RZH112,113,119 06S —
79199-95J01 Holder, NO.1 Seat Leg Stopper
1990-02 → 1990-12 ended
RZH115 —
79378 — Cover, NO.3 Seat Cushion Hinge
79378-95J00-03 note Cover, NO.3 Seat Cushion Hinge
1989-08 → 1992-05 ended
RZH115 —
79405 — Leg Sub-assy, NO.4 Seat, Front
79405-95J01 note Leg Sub-assy, NO.4 Seat, Front
1989-08 → 1992-05 ended
RZH115 —
79405-95J03 note Leg Sub-assy, NO.4 Seat, Front
1989-08 → 1992-05 ended
RZH115 —
79406 — Leg Sub-assy, NO.4 Seat, Rear
79406-95J04 Leg Sub-assy, NO.4 Seat, Rear
1989-08 → 1992-05 ended
RZH115 —
79420A — Cushion Assy, NO.4 Seat
79420-95J21-03 note Cushion Assy, NO.4 Seat
1989-08 → 1992-05 ended
RZH115 —
79435 — Pad, NO.4 Seat Cushion
79045-95J01 Pad, NO.4 Seat Cushion
1989-08 → 1992-05 ended
RZH115 —
79440A — Back Assy, NO.4 Seat
79440-95J22-03 note Back Assy, NO.4 Seat
1989-08 → 1992-05 ended
RZH115 —
79475 — Pad, NO.4 Seatback
79047-95J00 Pad, NO.4 Seatback
1989-08 → 1992-05 ended
RZH115 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
