Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

19 part groups · 3 illustrations

Illustrations

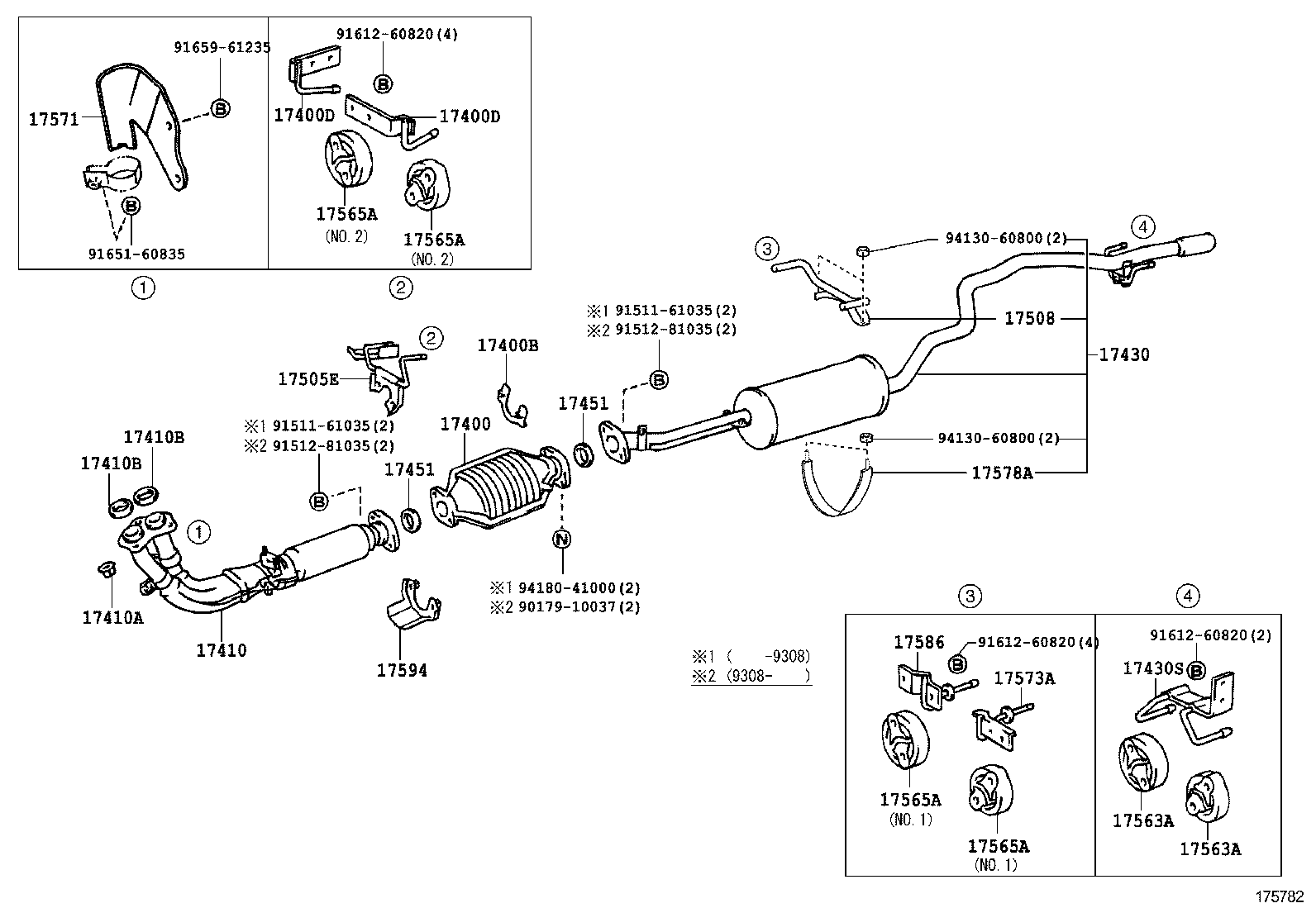

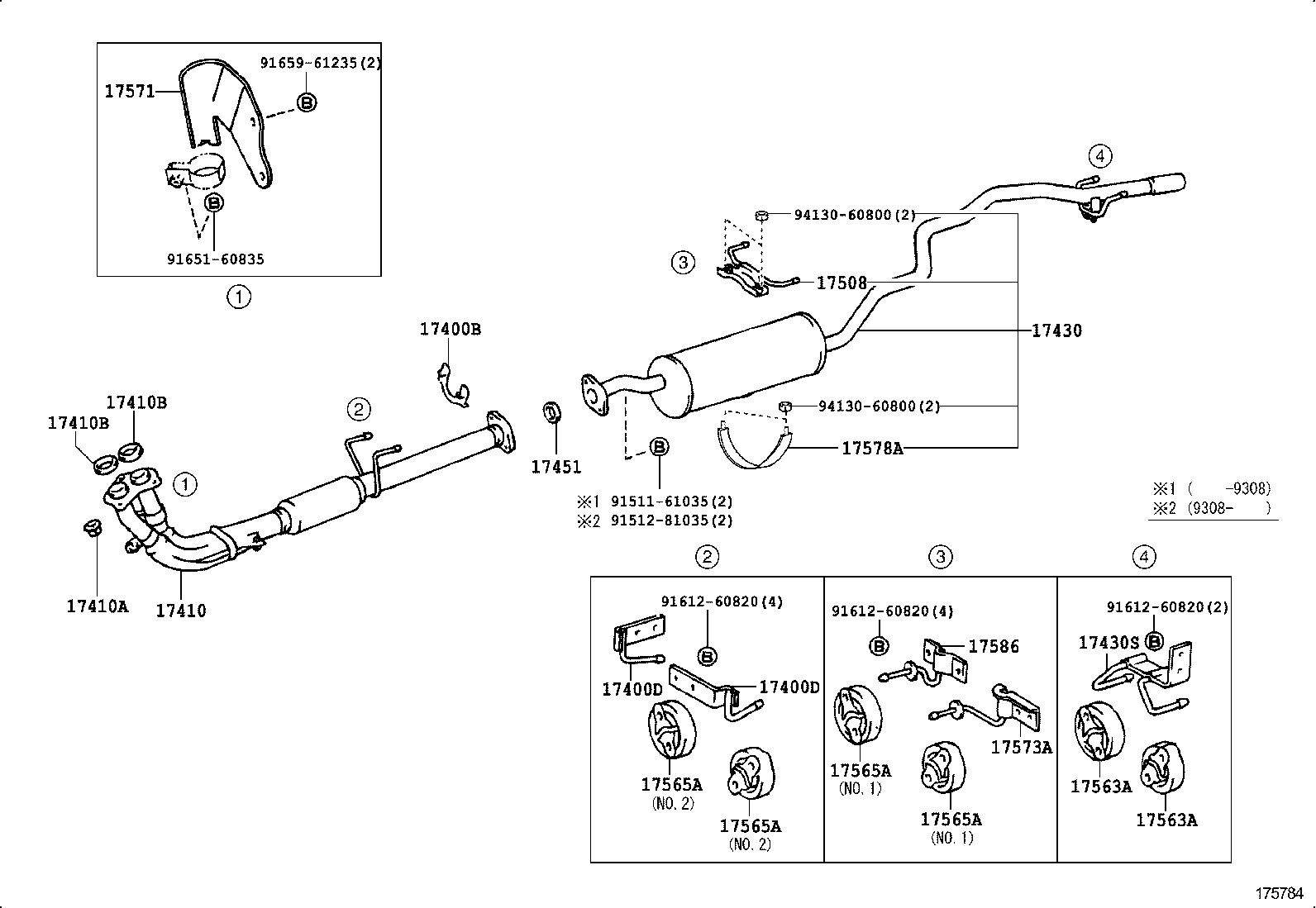

Figure 175783 175783 1989-08 → — Figure 175784 175784 1989-08 → — Figure 175782 175782 1989-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400B Retainer, Exhaust Pipe
17400D Bracket, Catalytic Converter Support
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17505E Support Sub-assy, Catalytic Converter
17508 Support Sub-assy, Exhaust Pipe, NO.3
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
17578A Clamp, Muffler
17581A Damper, Exhaust Pipe
17586 Bracket, Heat Insulator, NO.1
17594 Protector, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
