Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

15 part groups · 4 illustrations

Illustrations

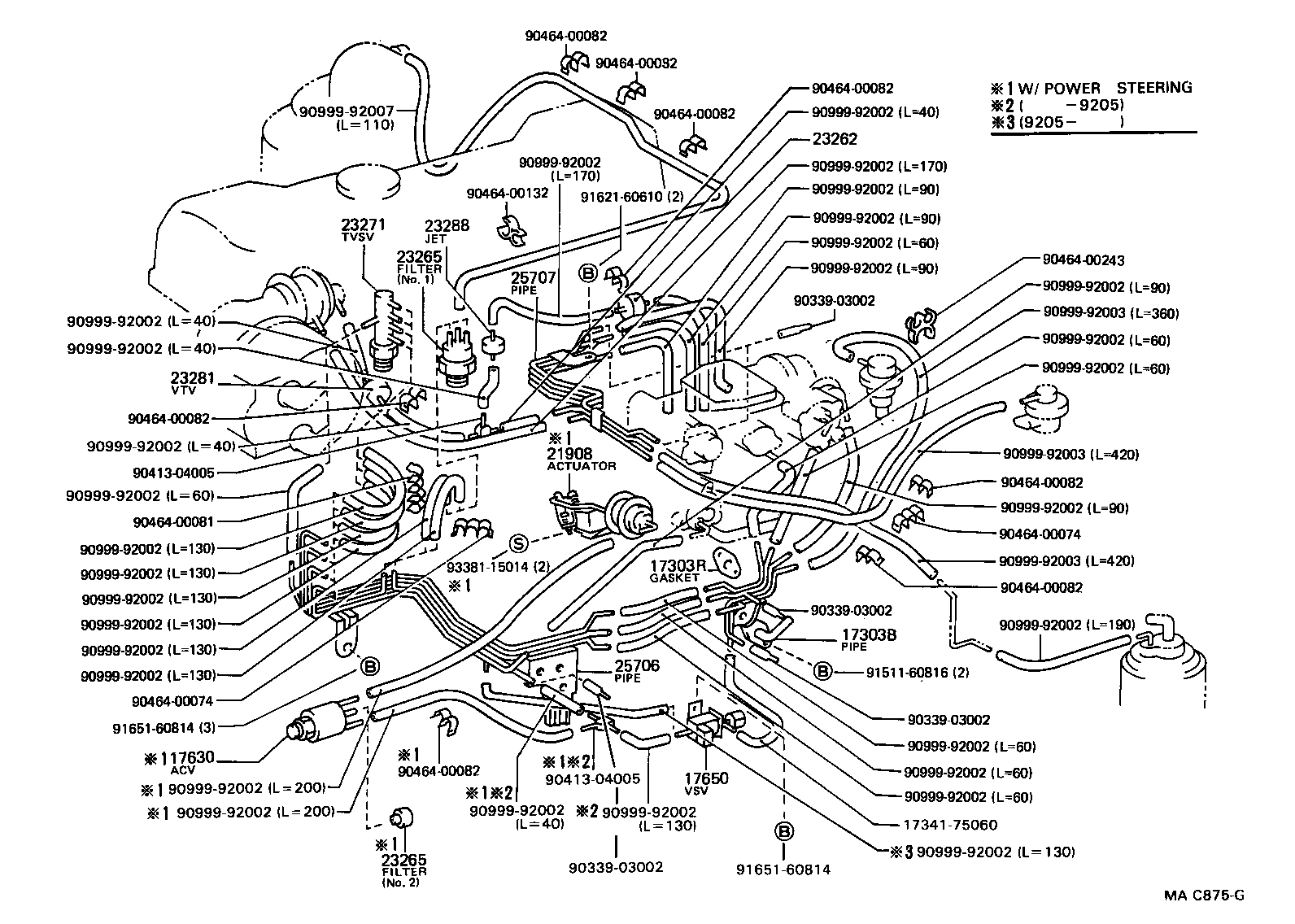

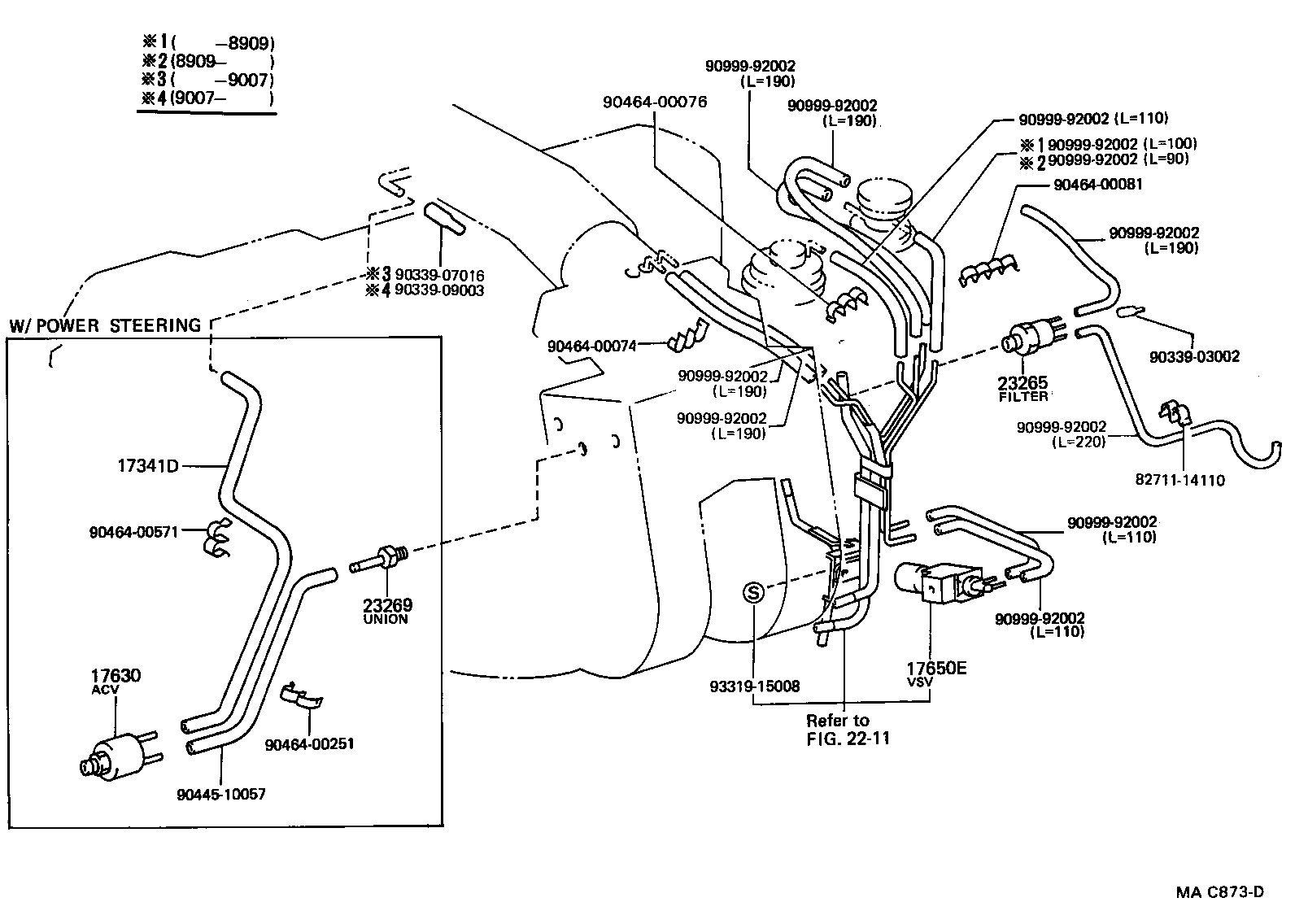

Figure MA9504B MA9504B 1989-08 → — Figure MA9504B MA9504B 1989-08 → — Figure MAC875G MAC875G 1989-08 → — Figure MAC873D MAC873D 1989-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303R Gasket(FOR AIR PIPE)
17341D Hose, NO.1(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
