Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

26 part groups · 3 illustrations

Illustrations

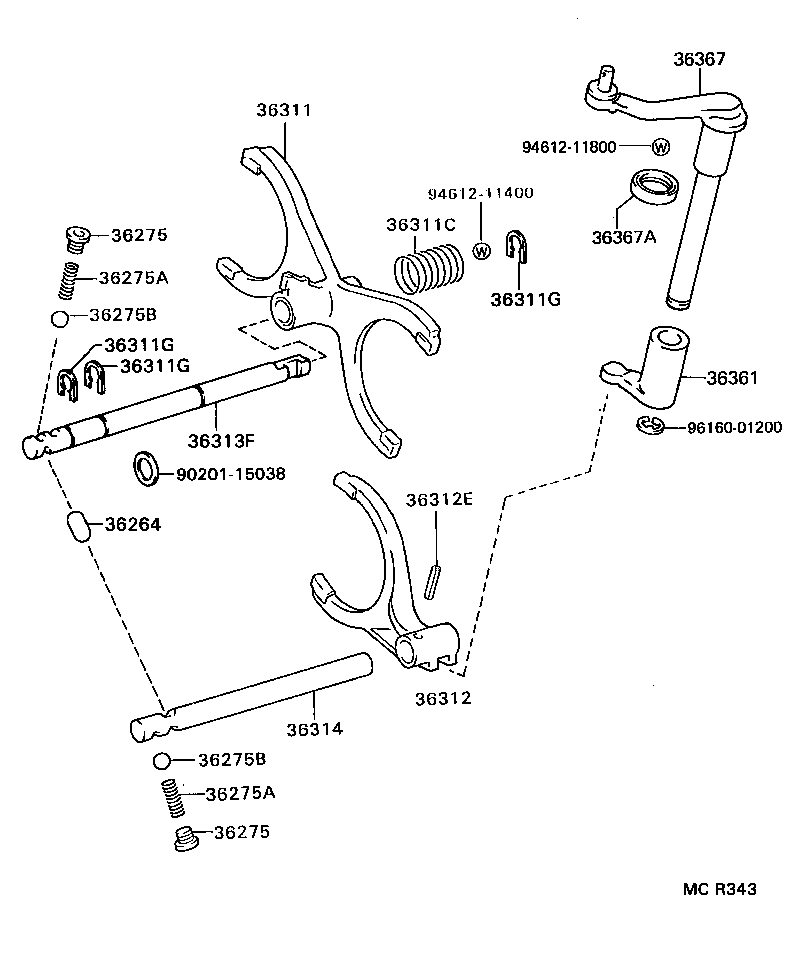

Figure MCJ090C MCJ090C 1989-08 → — Figure MCJ377 MCJ377 1989-08 → 1993-12 Figure MCR343 MCR343 1993-12 → —

Part groups

PNCDescription
33820F Washer, Plate (FOR TRANSFER CONTROL CABLE)
33823B Bracket, Transfer Control Cable
36264 Pin OR Roller, Shift Inter-lock
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36302 Lever Sub-assy, Transfer High & Low Shift
36303 Knob Sub-assy, Shift Lever
36304 Retainer Sub-assy, Transfer Control Shift Lever
36304A Coller (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)
36304B Grommet (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)
36311 Fork, Transfer Gear Shift, NO.1
36311C Spring, Compresion (FOR SHIFT FORK)
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312 Fork, Transfer Gear Shift, NO.2
36312E Pin, Slotted Spring (FOR TRANSFER GEAR SHIFT FORK)
36313F Shaft, Transfer Front Drive Shift Fork
36314 Shaft, Transfer High And Low Shift Fork
36320A Bush (FOR TRANSFER SHIFT LEVER)
36320C Collar (FOR TRANSFER SHIFT LEVER)
36321E Shaft, Transfer Shift Lever
36331 Boot, Transfer Shift Lever
36361 Lever, Transfer Shift, Inner
36367 Shaft, Transfer Shift Inner Lever
36367A Seal, Oil (FOR TRANSFER SHIFT INNER LEVER SHAFT)
36870B Cable Assy, Transfer Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
