Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

9 part groups · 2 illustrations

Illustrations

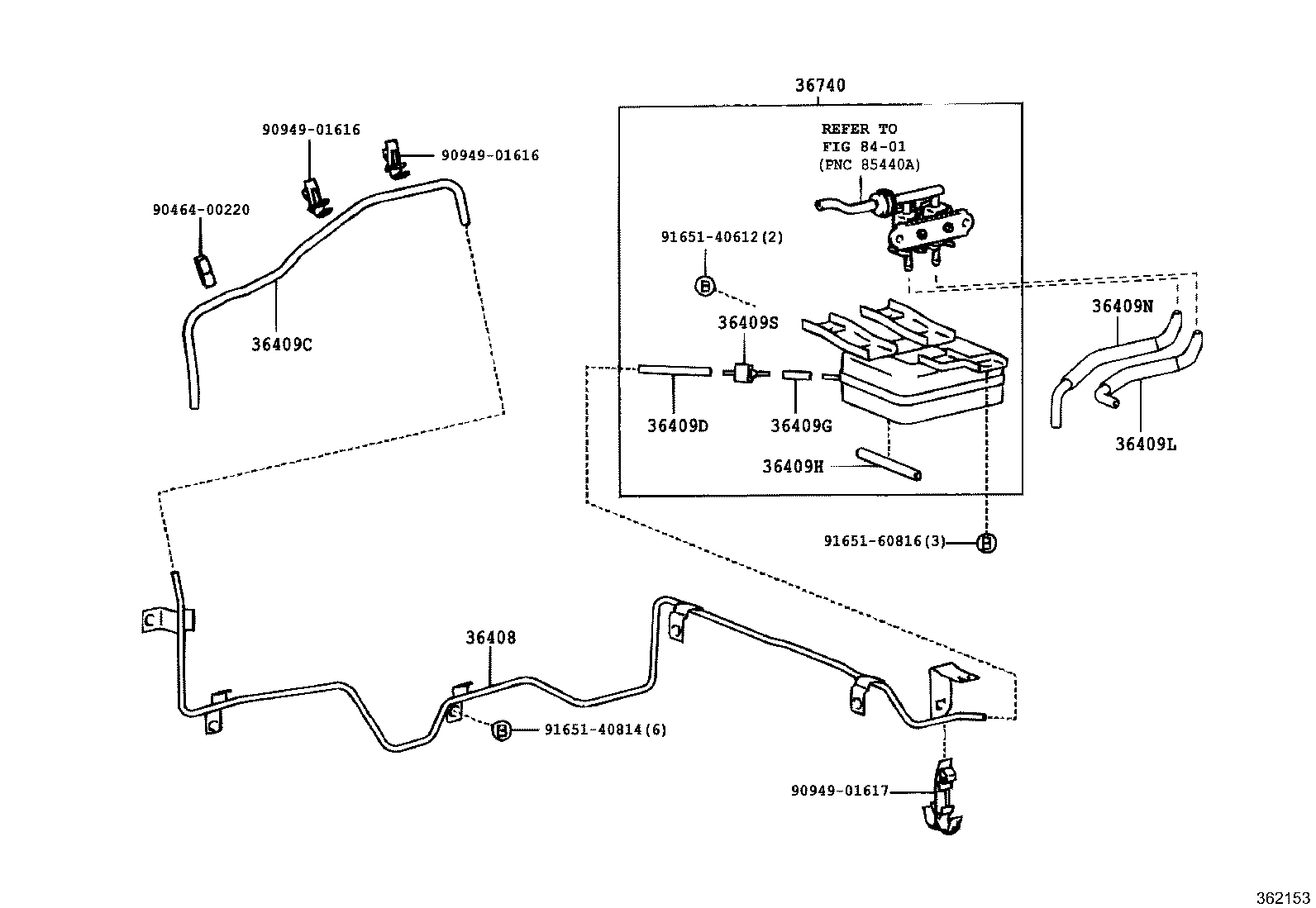

Figure 362152 362152 1989-08 → — Figure 362153 362153 1989-08 → —

Part groups

PNCDescription
36408 Tube Sub-assy, Transfer Vacuum
36409C Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
36409D Hose, Vacuum, NO.2 (FOR FRONT DRIVE SHIFT)
36409G Hose, Vacuum, NO.4 (FOR FRONT DRIVE SHIFT)
36409H Hose, Vacuum, NO.5 (FOR FRONT DRIVE SHIFT)
36409L Hose, Vacuum, NO.7 (FOR FRONT DRIVE SHIFT)
36409N Hose, Vacuum, NO.9 (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36740 Tank Assy, Transfer Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
