Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

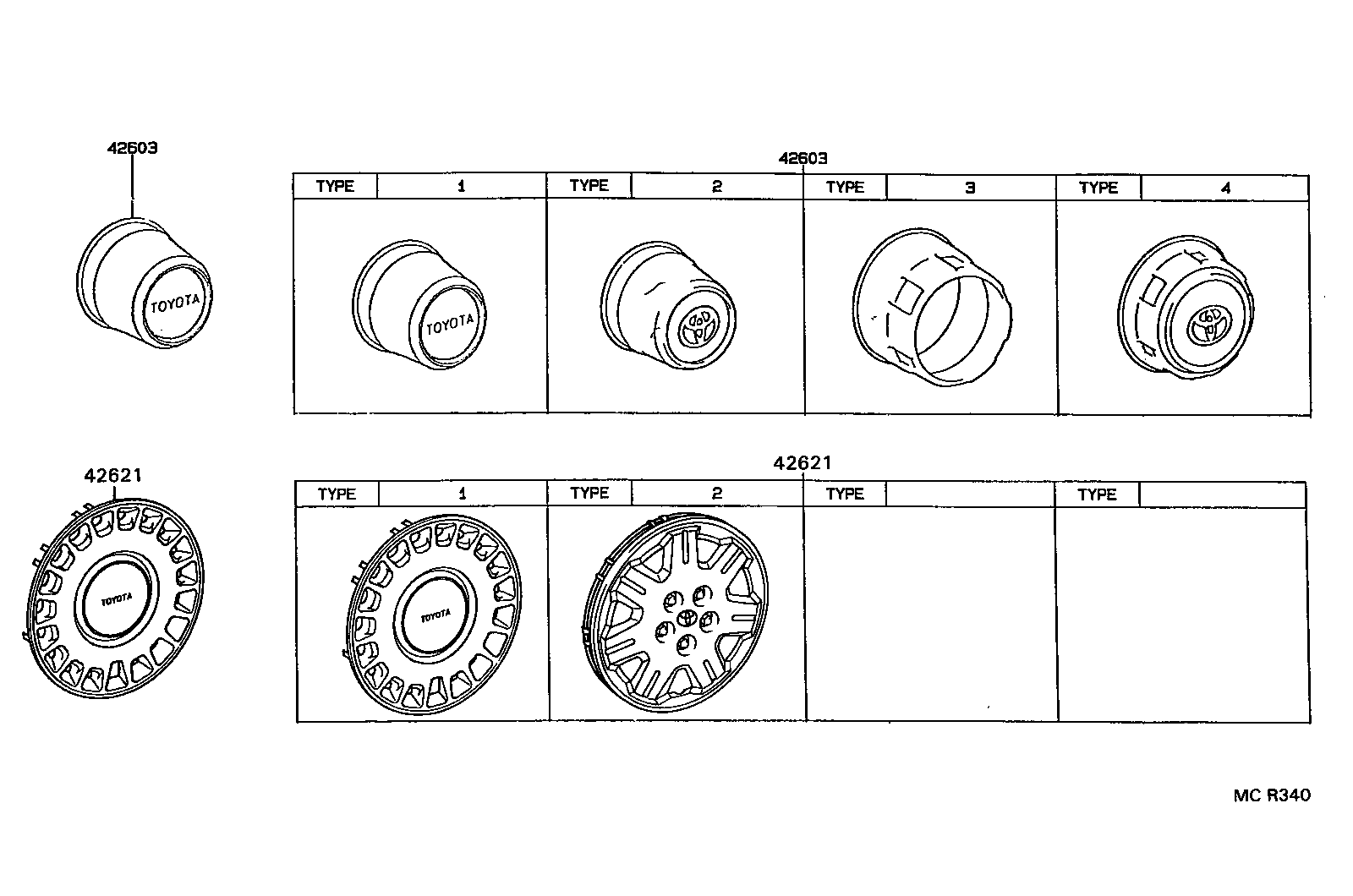

Disc Wheel & Wheel Cap
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601D | Weight, Balance (FOR DISC WHEEL) |
| 42601F | Wheel, Disc (FOR FRONT) |
| 42601R | Wheel, Disc (FOR REAR) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42621 | Cap, Wheel |
| 42652 | Tire |
| 42652A | Tire (FOR SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
