Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12
Steering Column & Shaft
50 part groups · 5 illustrations
Part groups

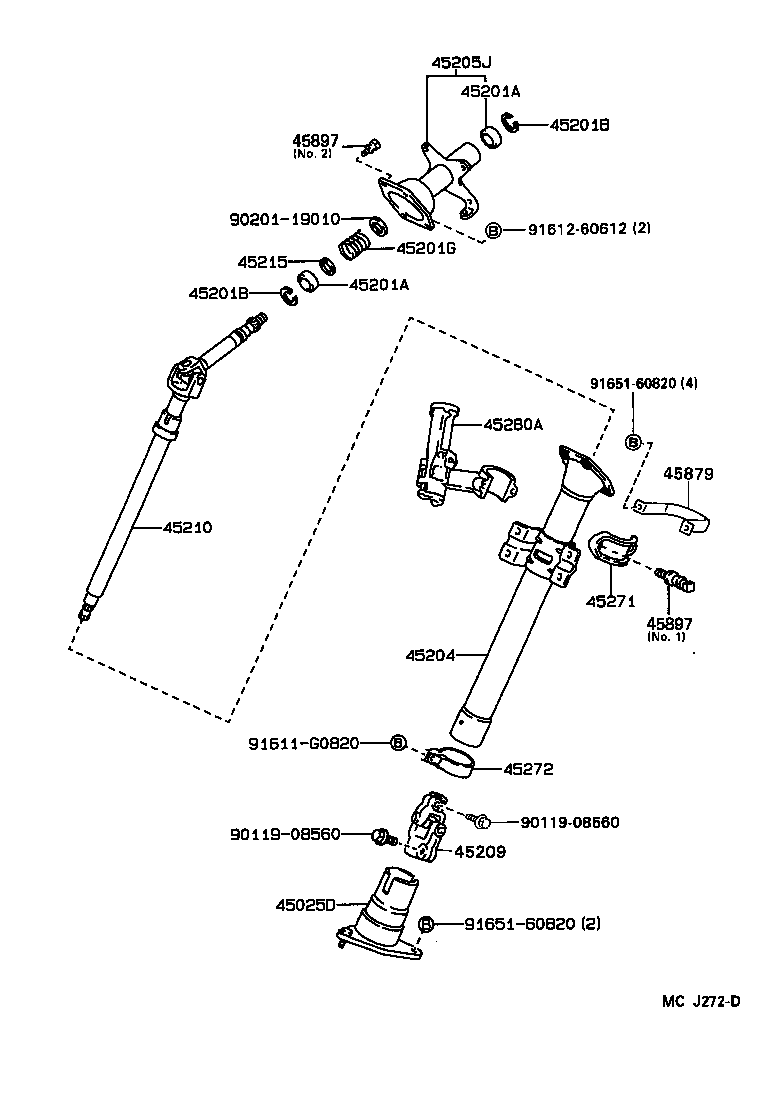

| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45204 | Tube Assy, Steering Column, Lower |
| 45205J | Tube Sub-assy, Steering Column, Upper |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45222E | Cover, Dust(FOR STEERING BEVEL GEAR) |
| 45222F | Cover, Dust |
| 45266 | Cover, Steering Intermediate Shaft Dust |
| 45271 | Clamp, Steering Column, Upper |
| 45272 | Clamp, Steering Column, Lower |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45308D | Seal, Oil(FOR STEERING BEVEL GEAR HOUSING) |
| 45312A | Bracket, Steering Bevel Gear Housing |
| 45380 | Gear Assy, Steering Bevel |
| 45380A | Washer(FOR STEERING BEVEL GEAR) |
| 45383B | Spring, Compression(FOR STEERING BEVEL GEAR) |
| 45383C | Bearing, Radial Ball(FOR STEERING BEVEL GEAR) |
| 45384A | Cover, Steering Bevel Gear |
| 45385A | Seat, Lock Bolt(FOR STEERING BEVEL GEAR) |
| 45385B | Bolt, Set(FOR LOCK BOLT SEAT) |
| 45388 | Plate, Steering Bevel Gear |
| 45389 | Holder, Steering Bevel Gear Spring |
| 45390 | Shaft Assy, Steering Torque |
| 45545B | Screw, Pinion Bearing Adjusting(FOR STEERING BEVEL GEAR) |
| 45545C | Nut(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW) |
| 45635 | Support, Intermediate Link Joint Protector |
| 45636 | Protector, Intermediate Link Joint, Upper |
| 45637 | Protector, Inter Link Joint, Lwr NO.1 |
| 45638A | Protector, Inter Link Joint, Lower NO.2 |
| 45804C | Washer, Plate(FOR STEERING TILT LEVER) |
| 45804E | Spring, Tension(FOR STEERING TILT LEVER) |
| 45819 | Retainer, Tilt Lever |
| 45820 | Spring Assy, Tilt Steering Support |
| 45826C | Bush(FOR STEERING TILT LEVER) |
| 45826E | Lever, Steering Tilt(FOR TILT ADJUST) |
| 45827A | Lever, Steering Tilt Sub |
| 45831C | Shaft, Tilt Lever Lock |
| 45856 | Bolt, Tilt Steering, NO.2 |
| 45879 | Bracket, Steering Column Upper Support, NO.2 |
| 45880 | Lever Assy, Steering Tilt |
| 45890A | Pawl Assy, Tilt Steering |
| 45893A | Stopper, Tilt Steering Pawl |
| 45895B | Plate, Tilt Lever Instruction |
| 45897 | Bolt, Steering Lock Set |
| 45897A | Bolt, Tilt Steering Pawl Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
