Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

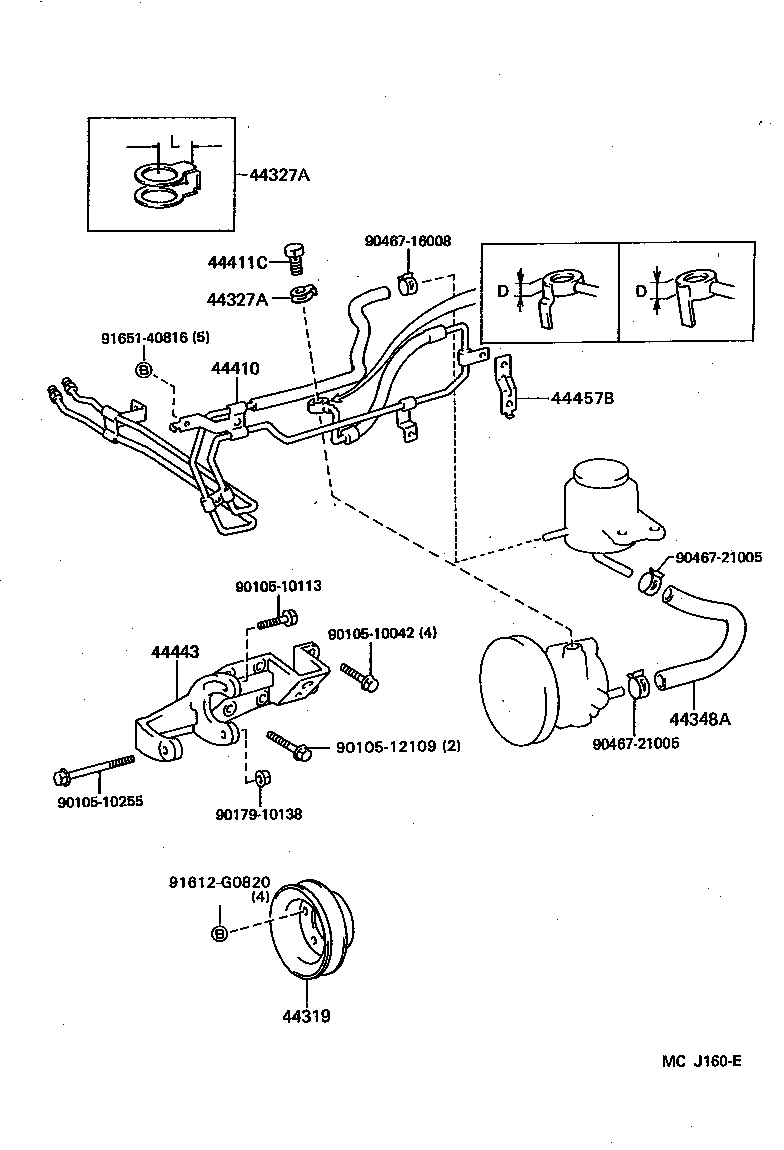

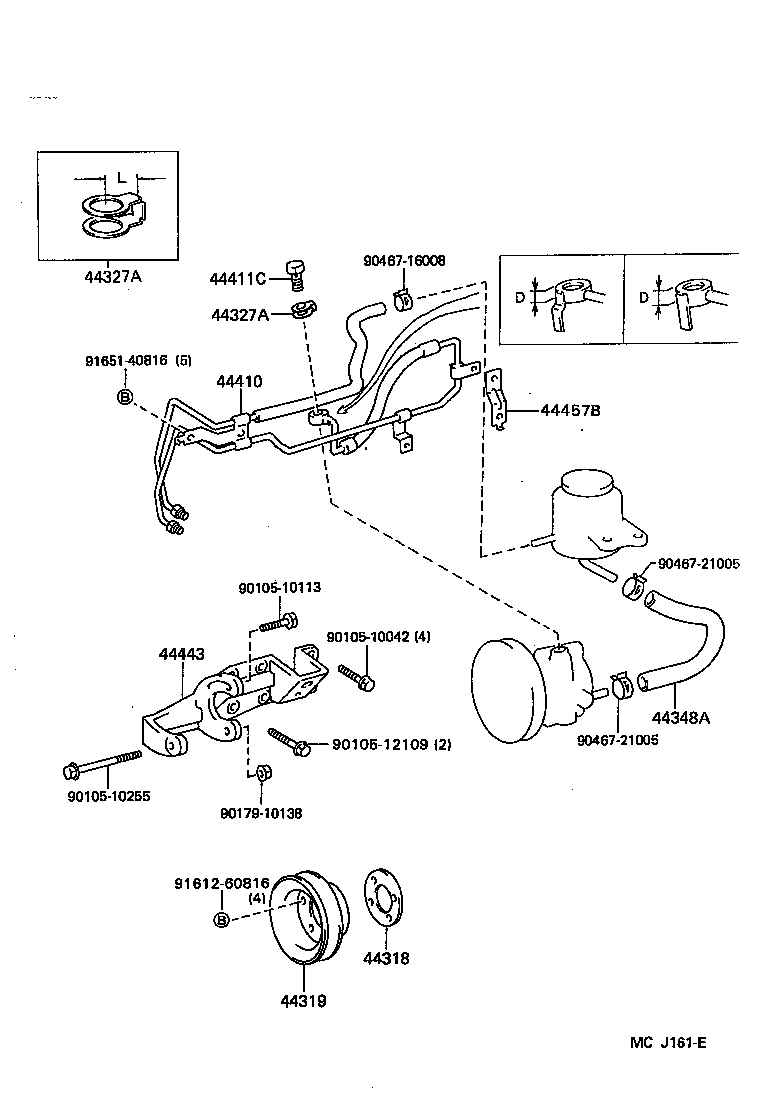

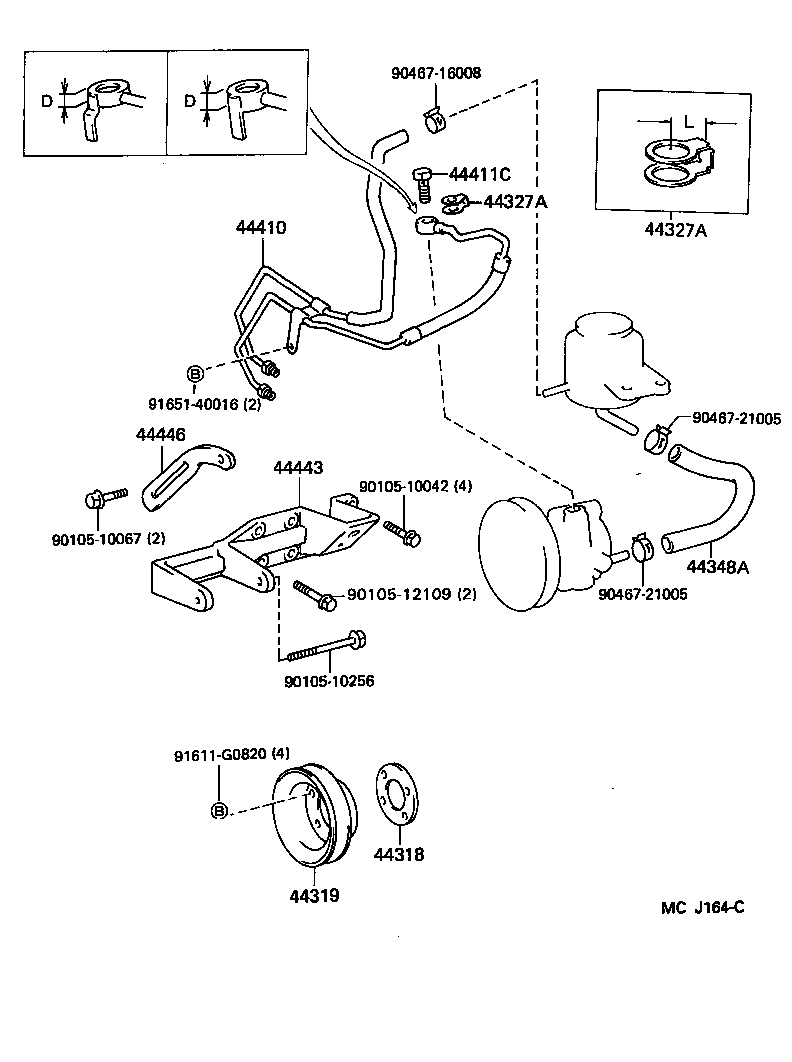

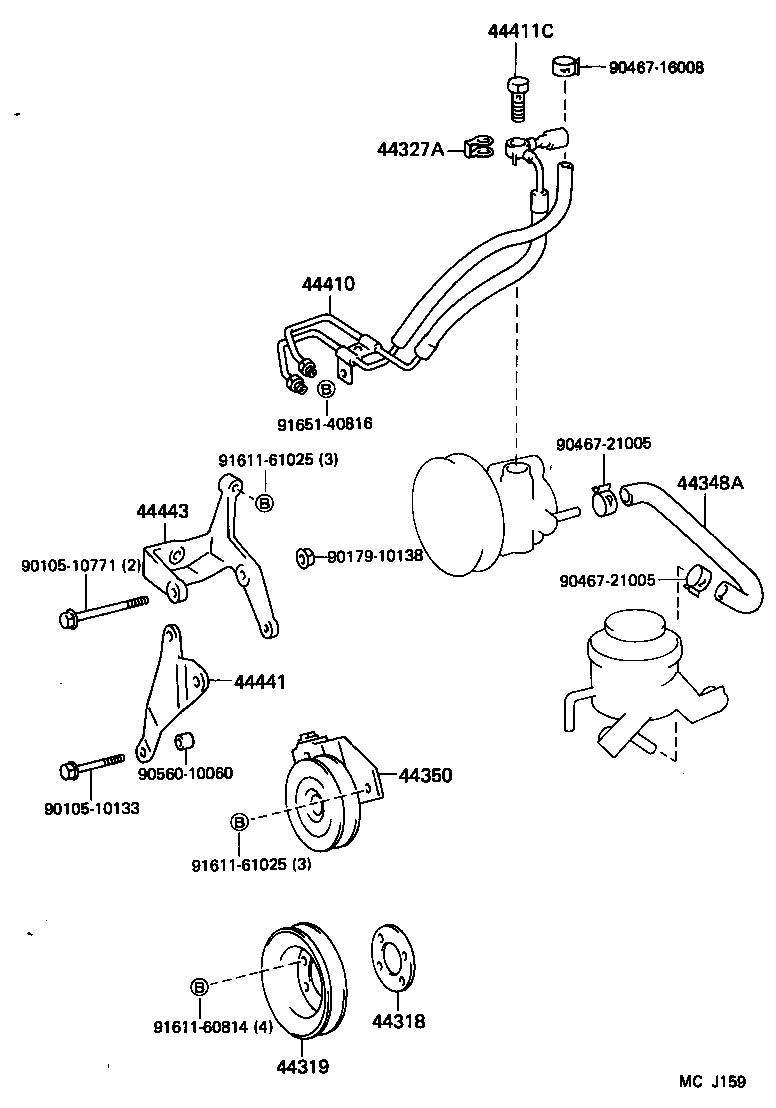

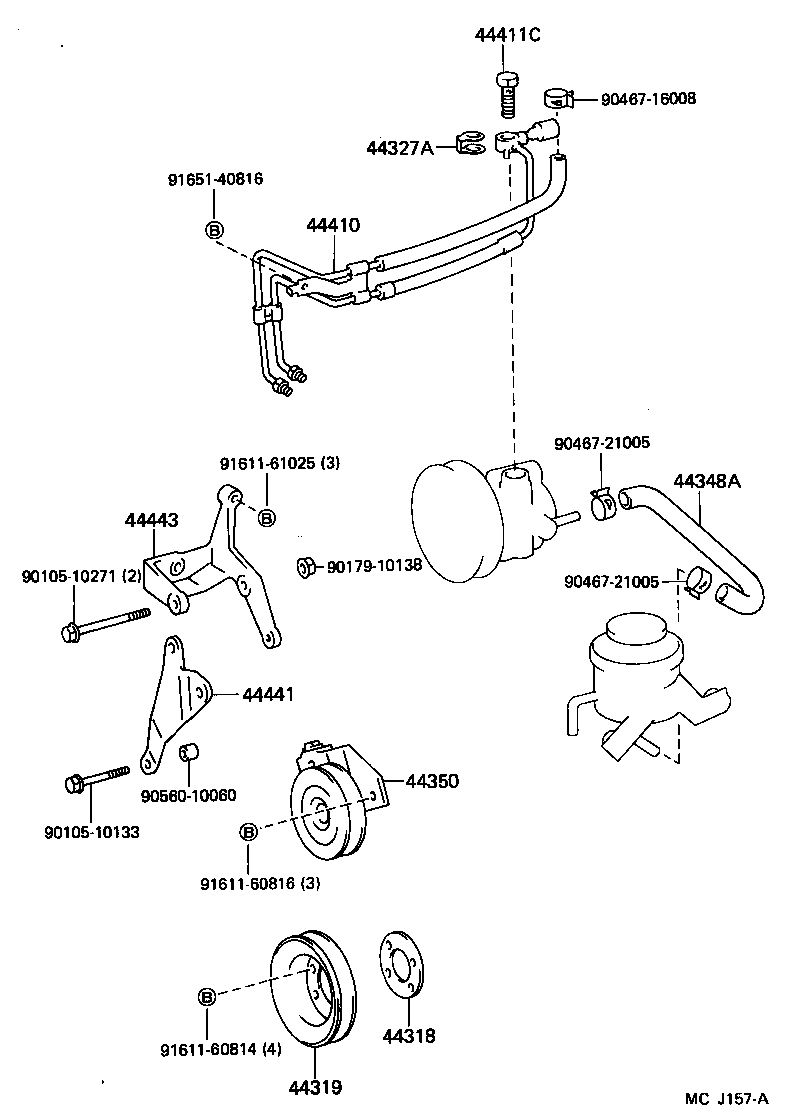

Power Steering Tube
11 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44410 | Tube Assy, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
| 44457B | Bracket, Power Steering Tube Support, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
