Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

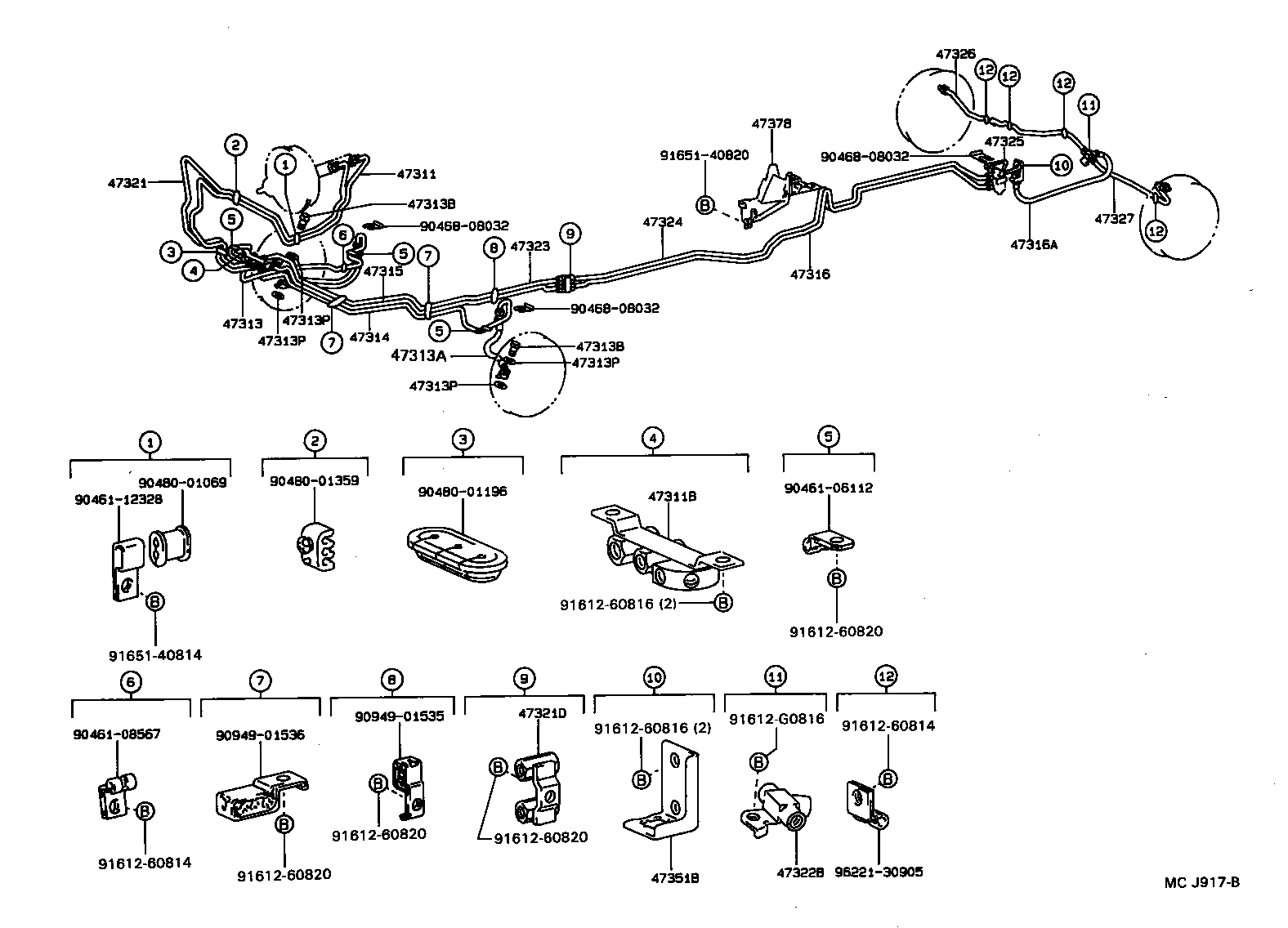

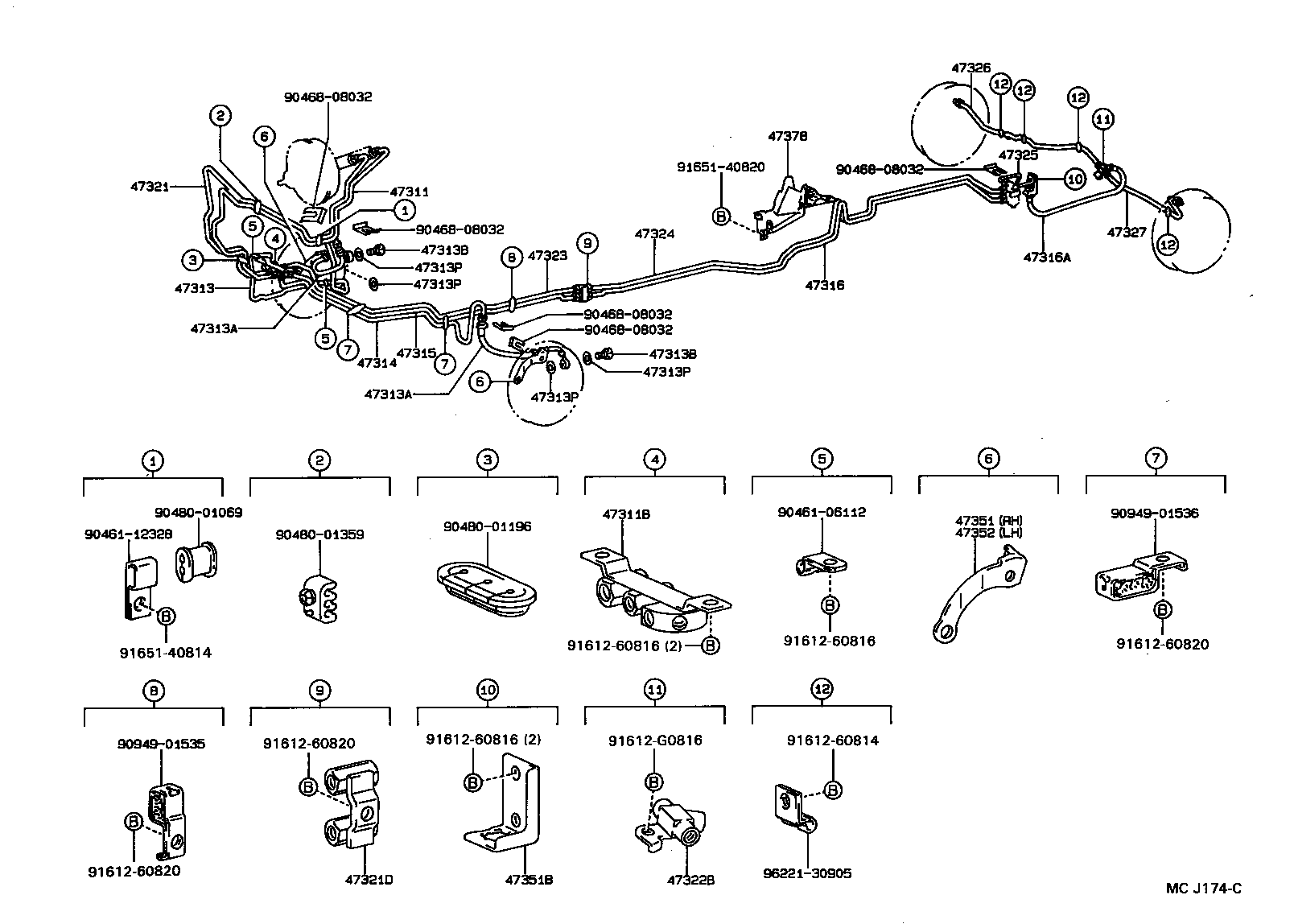

Brake Tube & Clamp
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |
| 31478D | Cap, Bleeder Plug(FOR LSPV) |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47351B | Bracket, Flexible Hose, NO.1 |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47378 | Protector, Brake Tube |

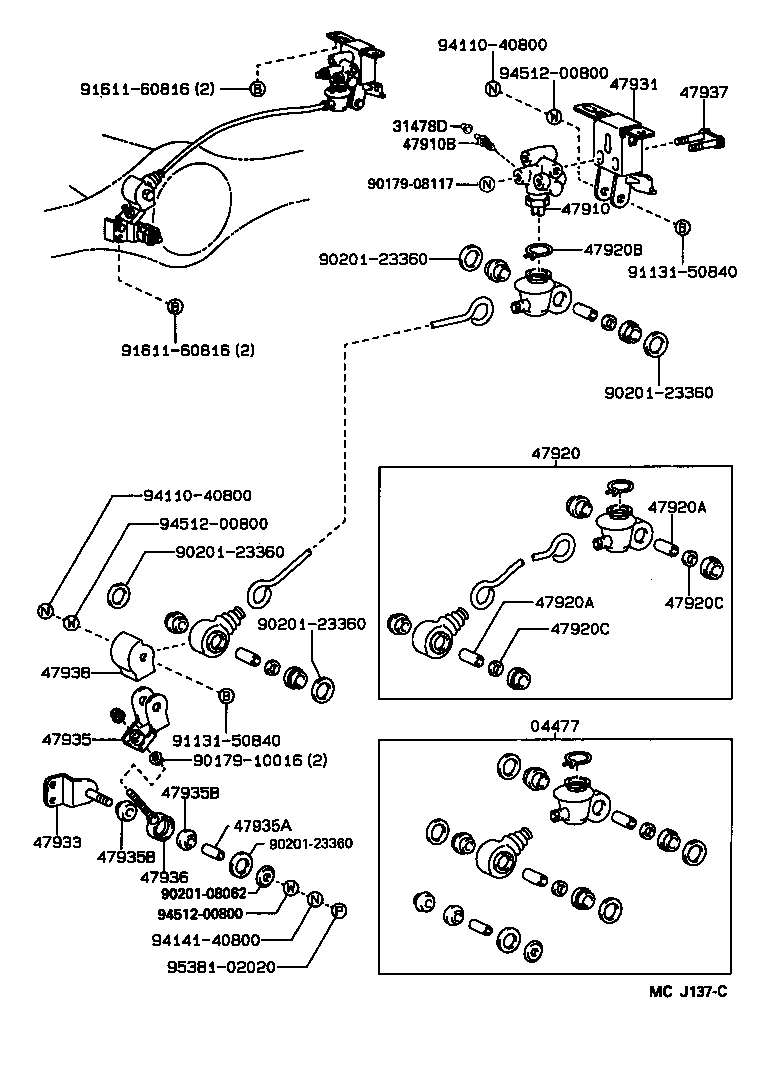

| 47910 | Valve Assy, Load Sensing Proportioning |
| 47910B | Plug, Bleeder |
| 47920 | Spring Assy, Load Sensing |
| 47920A | Collar(FOR LOAD SENSING SPRING) |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
| 47920C | Washer(FOR LOAD SENSING SPRING) |
| 47931 | Bracket, Load Sensing Valve |
| 47933 | Bracket, Load Sensing Shackle, NO.1 |
| 47935 | Shackle, Load Sensing Spring, NO.1 |
| 47935A | Collar(FOR LOAD SENSING SPRING SHACKLE) |
| 47935B | Bush(FOR LOAD SENSING SPRING SHACKLE) |
| 47936 | Shackle, Load Sensing Spring, NO.2 |
| 47937 | Plate, Load Sensing Valve Set |
| 47938 | Insulator, Load Sensing Spring Shackle Haet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
