Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

25 part groups · 5 illustrations

Illustrations

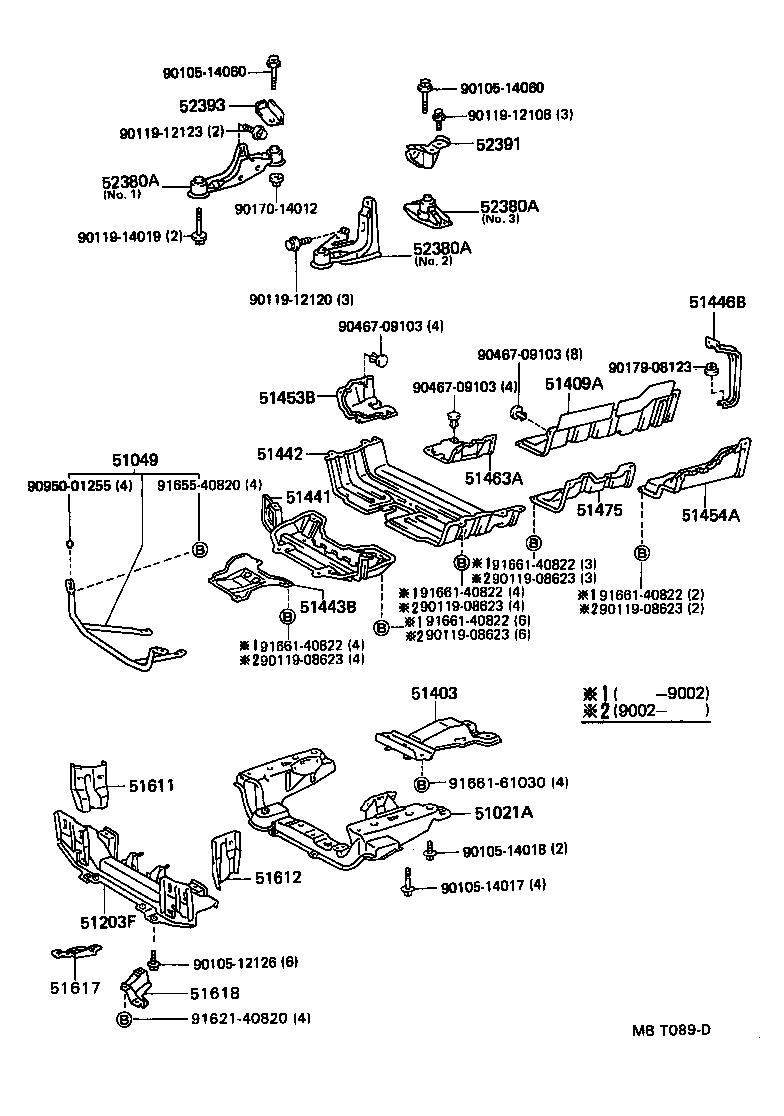

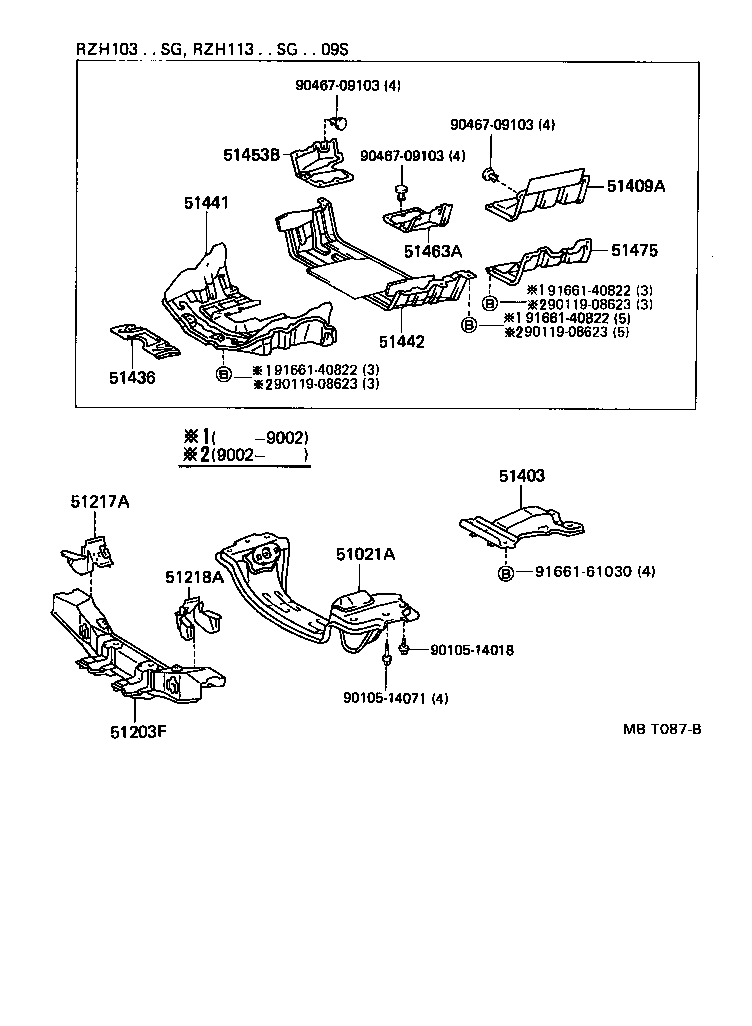

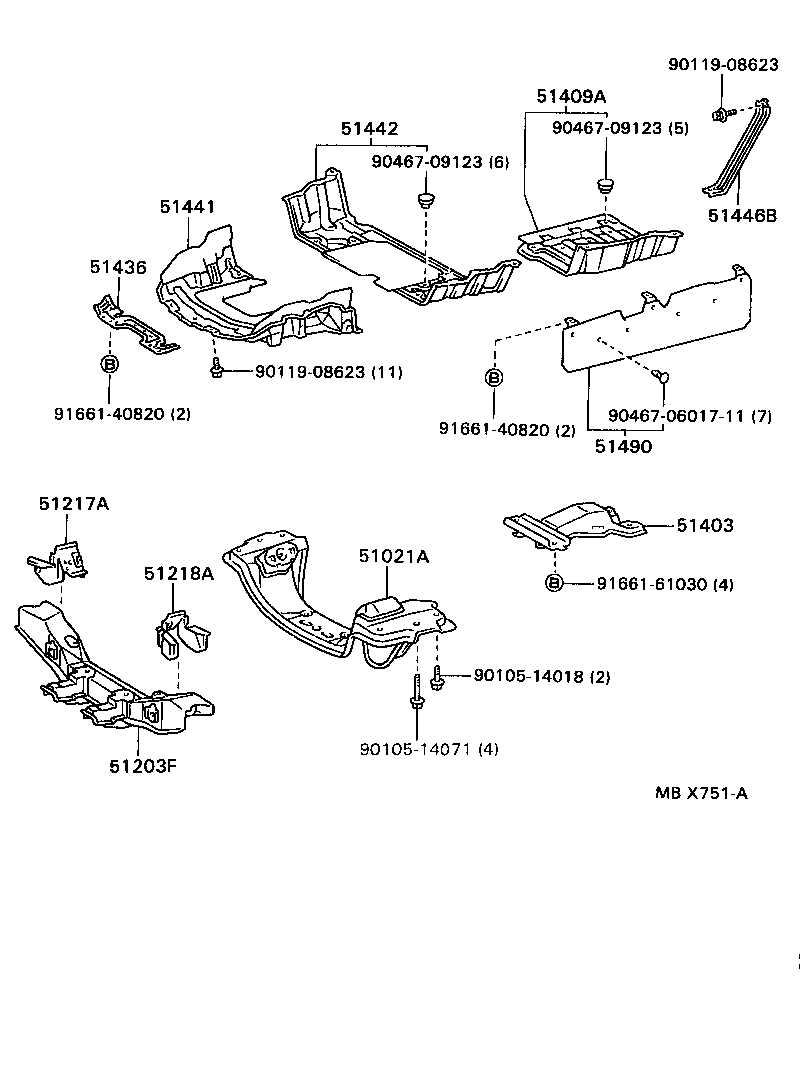

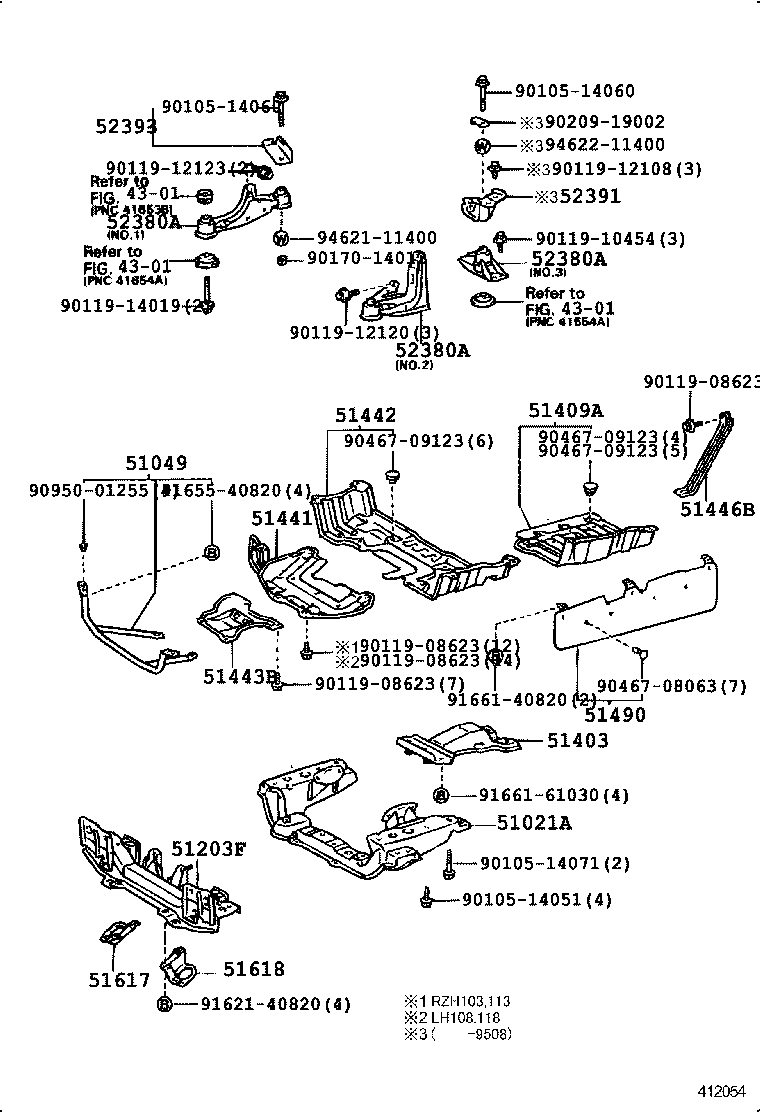

Figure MBT088E MBT088E 1989-08 → 1993-08 Figure MBT087B MBT087B 1989-08 → 1993-08 Figure MBT089D MBT089D 1989-08 → 1993-08 Figure MBX751A MBX751A 1993-08 → — Figure 512054 512054 1993-08 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51049 Bar Sub-assy, Under Guard, Front
51203F Crossmember Sub-assy, Front Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51403 Bracket Sub-assy, Engine Rear Mounting
51409A Cover Sub-assy, Engine Under, NO.4
51436 Protector, Engine Front Support
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51446B Bracket, Engine Under Cover, NO.2
51453B Silencer, Engine Under Cover, RH
51454A Silencer, Engine Rear Cover
51463A Silencer, Engine Under Cover, Front, LH
51475 Silencer, Engine Under Cover, NO.5
51480 Shutter Assy, Engine Rear Side, RH
51490 Shutter Assy, Engine Rear Side, LH
51611 Stopper, Front Suspension Bound, RH
51612 Stopper, Front Suspension Bound, LH
51617 Guard, Front Differential Support, RH
51618 Guard, Front Differential Support, LH
52380A Support Assy, Front Differential, Front LH
52391 Support, Differential
52393 Support, Front Differential, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
