Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 9 illustrations

Illustrations

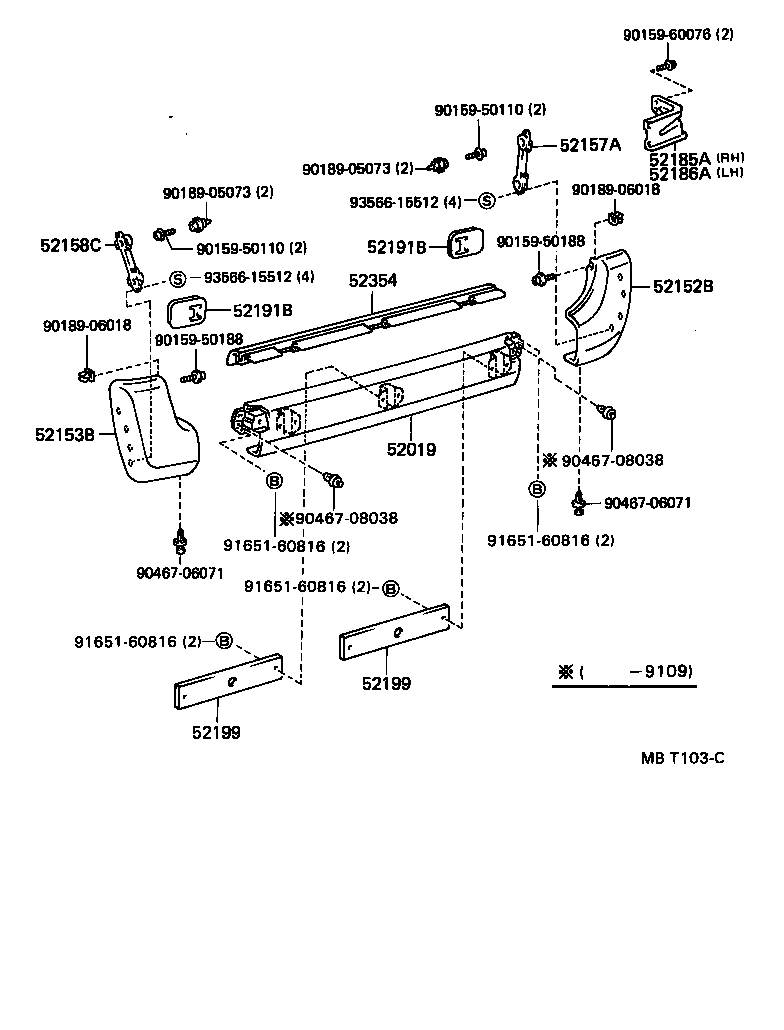

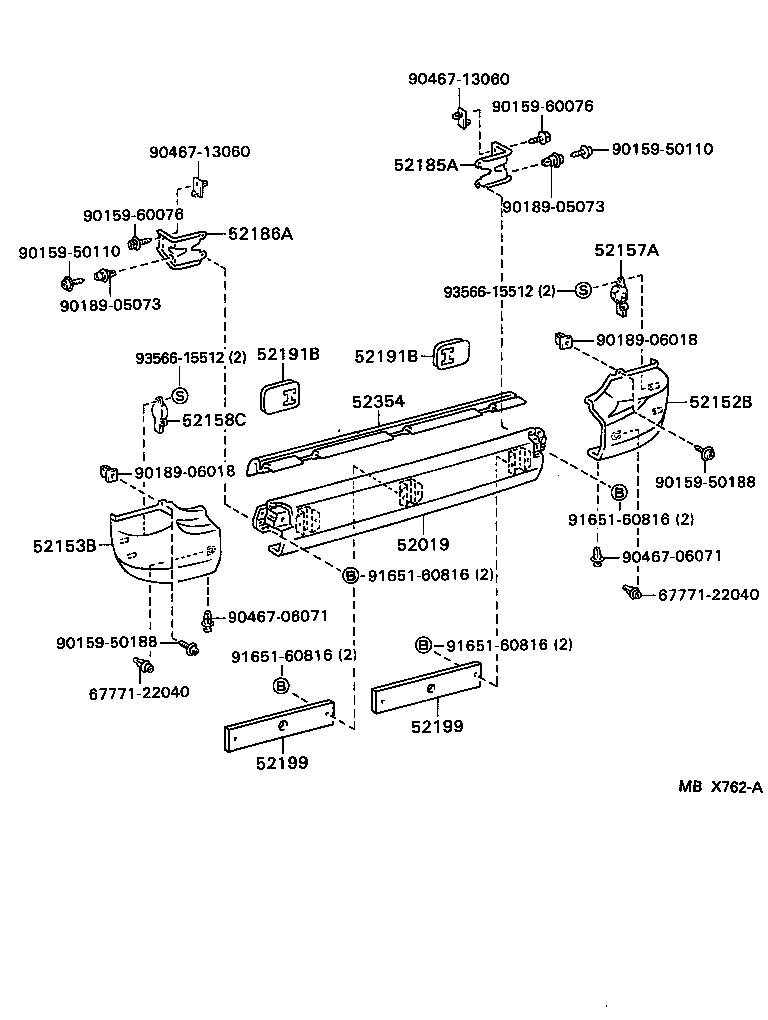

Figure MBT100E MBT100E 1989-08 → 1993-08 Figure MBT102B MBT102B 1989-08 → 1993-08 Figure MBT103C MBT103C 1989-08 → 1993-08 Figure MBT101F MBT101F 1989-08 → 1993-08 Figure MBT101F MBT101F 1991-05 → 1993-08 Figure MBX762A MBX762A 1993-08 → — Figure MBX762A MBX762A 1993-08 → — Figure MBX760A MBX760A 1993-08 → — Figure MBX761 MBX761 1993-08 → —

Part groups

PNCDescription
52019 Bar Sub-assy, Rear Bumper
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52185A Bracket, Rear Bumper Side, RH
52186A Bracket, Rear Bumper Side, LH
52191B Grommet, Rear Bumper Stay
52199 Weight, Rear Bumper
52302 Step Sub-assy, Back
52354 Shutter, Rear Cross TO Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
