Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

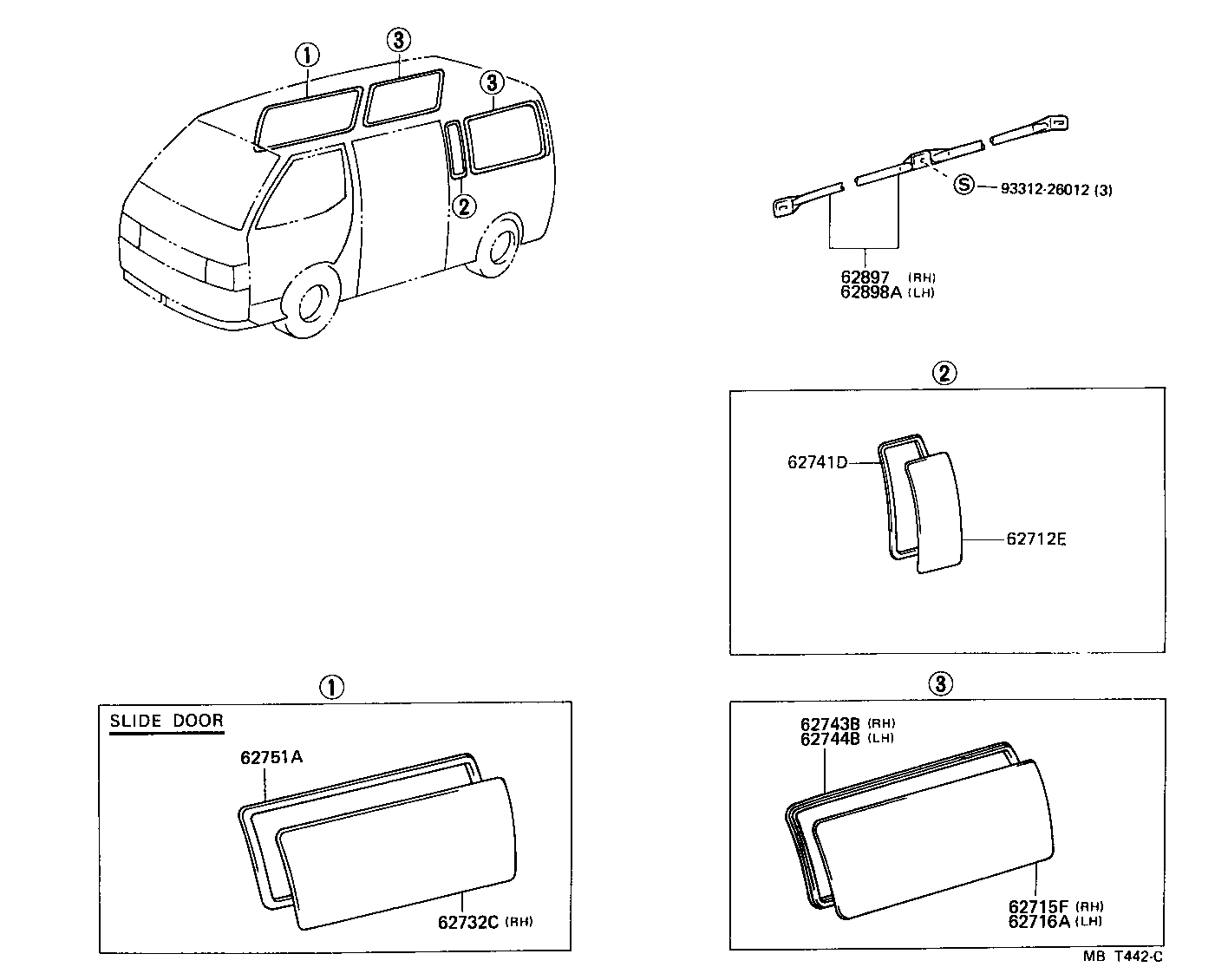

Side Window
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62229 | Packing, Side Window |
| 62229A | Packing, Side Window, NO.2 |
| 62229B | Packing, Side Window, NO.3 |
| 62249 | Plate, Side Window, RH |
| 62279 | Spacer, Side Window Frame, Upper |
| 62703E | Frame Sub-assy, Side Rear Window, RH |
| 62704E | Frame Sub-assy, Side Rear Window, LH |
| 62708F | Frame Sub-assy, Side Front Window, LH |
| 62712E | Glass, Side Front Window, LH |
| 62714B | Glass, Side Window, Rear LH |
| 62715F | Glass, Side Rear Window, RH |
| 62716A | Glass, Side Rear Window, LH |
| 62719A | Packing, Side Front Window, Upper |
| 62719B | Packing, Side Rear Window, Upper |
| 62724D | Stop, Side Front Window Glass, LH |
| 62724E | Stop, Side Rear Window Glass, RH |
| 62724G | Stop, Slide Door Window Glass, RH |
| 62724H | Stop, Slide Door Window Glass, LH |
| 62732C | Glass, Slide Door Window, Front RH |
| 62733B | Glass, Side Rear Window, Rear RH |
| 62735A | Grass, Slide Door Window, Rear RH |
| 62736 | Glass, Slide Door Window, Rear LH |
| 62741D | Weatherstrip, Side Front Window |
| 62742A | Glass, Side Rear Window, Front LH |
| 62743A | Glass, Side Rear Window, Rear LH |
| 62743B | Weatherstrip, Side Rear Window |
| 62744B | Weatherstrip, Side Rear Window, LH |
| 62749B | Seal, Side Window Frame |
| 62751A | Weatherstrip, Slide Door Window |
| 62757C | Protector, Side Window Glass, RH |
| 62757D | Protector, Side Window Glass |
| 62758B | Protector, Side Window Glass, LH |
| 62762K | Glass, Side Door Window, Front LH |
| 62783A | Sash, Side Window, Center |
| 62793B | Retainer, Side Window Lock, RH |
| 62897 | Tube, Side Window Guard |
| 62898A | Tube, Side Window Guard, LH |
| 62910E | Lock Assy, Side Window |
| 67043D | Frame Sub-assy, Slide Door Window, RH |
| 67044D | Frame Sub-assy, Slide Door Window, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
