Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

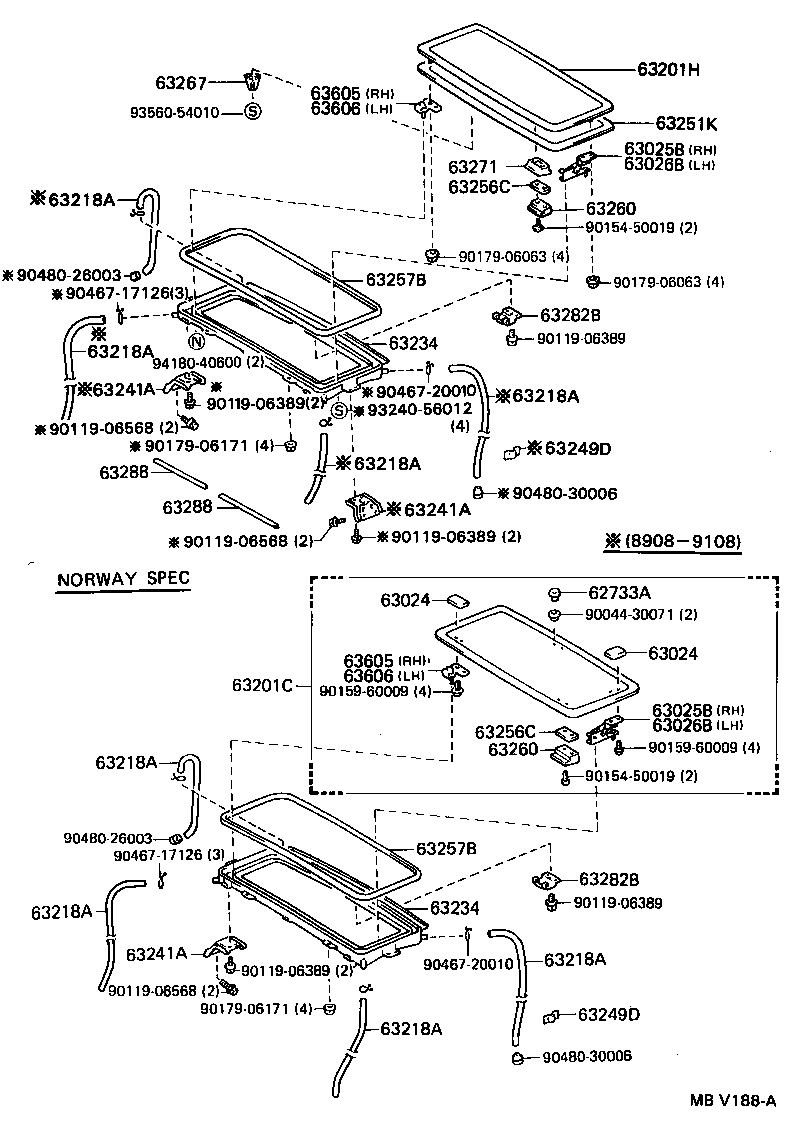

Roof Panel & Back Panel
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62733A | Retainer, Quarter Window Hinge |
| 63024 | Seal Sub-assy, Roof Window Hinge, NO.1 |
| 63025B | Link Sub-assy, Tilt Roof, RH |
| 63026B | Link Sub-assy, Tilt Roof, LH |
| 63071 | Frame Sub-assy, Back Door Opening, Upper |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105E | Reinforcement Sub-assy, Roof Panel, NO.3 |
| 63111 | Panel, Roof |
| 63122A | Reinforcement, Roof Panel, Front |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63201H | Panel Sub-assy, Slide Roof |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63231 | Bracket, Room Lamp |
| 63234 | Protector, Slide Roof Housing |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63249D | Support, Slide Roof Rain Channel Hose |
| 63251K | Weatherstrip, Tilt Roof |
| 63256C | Seal, Tilt Roof Glass |
| 63257B | Seal, Sliding Roof |
| 63260 | Handle Assy, Removable Roof Lock |
| 63267 | Protector, Sliding Roof Weatherstrip |
| 63271 | Garnish, Removable Roof Lock |
| 63282B | Striker, Tilt Roof Lock |
| 63288 | Cover, Tilt Roof Housing |
| 63605 | Hinge Sub-assy, Tilt Roof, RH |
| 63606 | Hinge Sub-assy, Tilt Roof, LH |
| 63669 | Cushion, Roof Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
