Toyota Hiace Van,Commuter
1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe
Discontinued model
Data version 1995-12

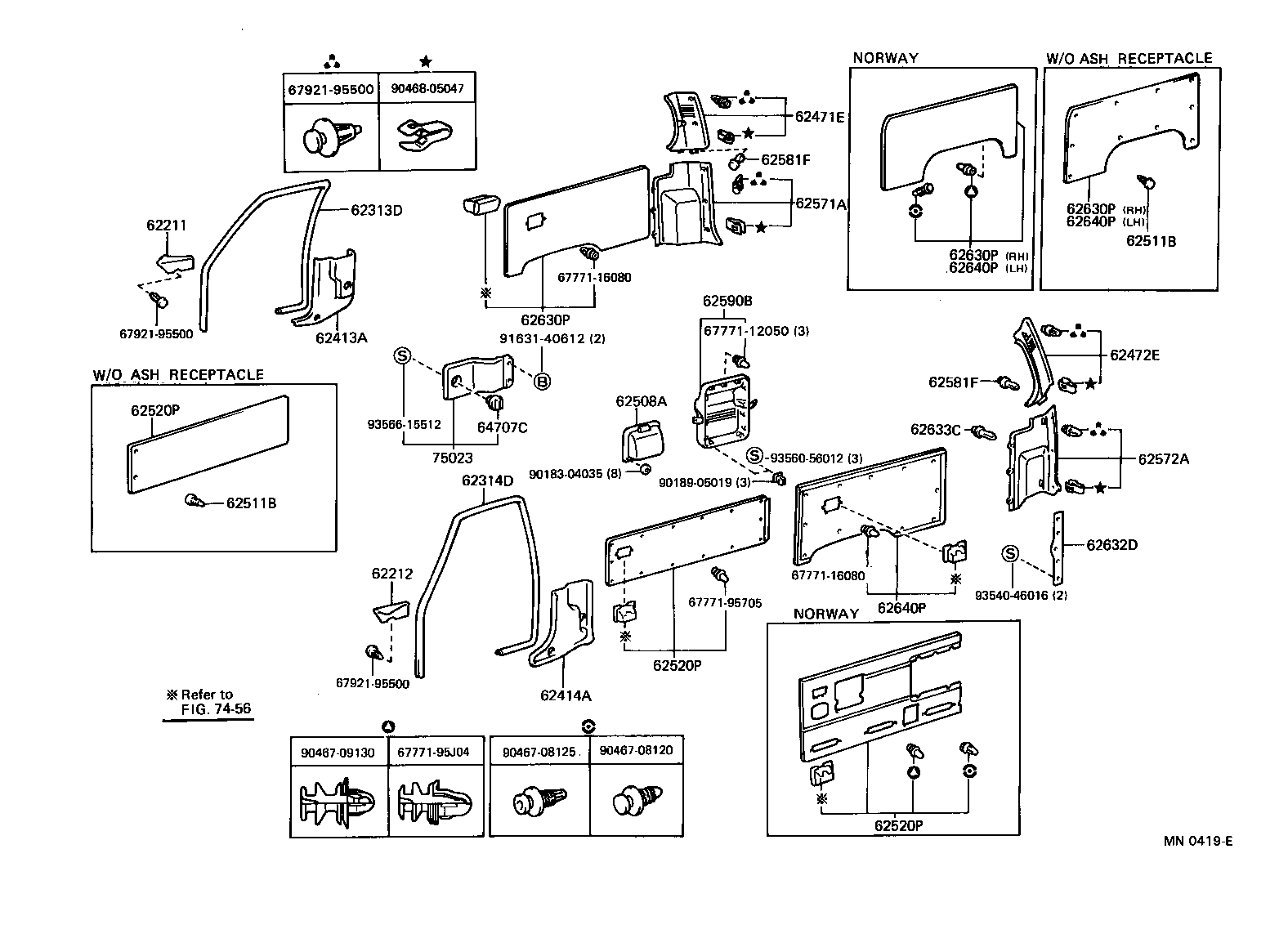

Inside Trim Board
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471E | Garnish, Roof Side, Inner Upper RH |
| 62472E | Garnish, Roof Side, Inner Upper LH |
| 62508A | Box Sub-assy, Side Trim |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62571A | Garnish, Roof Side, Inner Lower RH |
| 62572A | Garnish, Roof Side Inner Lower LH |
| 62581F | Clip (FOR QUARTER PILLAR GARNISH) |
| 62590B | Board Assy, Side Heater Cover, LH |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62632D | Board, Quarter Trim, Rear LH |
| 62633C | Clip (FOR QUARTER TRIM GARNISH) |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 64707C | Knob, Jack Cover |
| 75023 | Lid Sub-assy, Tool Box, RH |
| 75024 | Lid Sub-assy, Tool Box, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
