Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

26 part groups · 2 illustrations

Illustrations

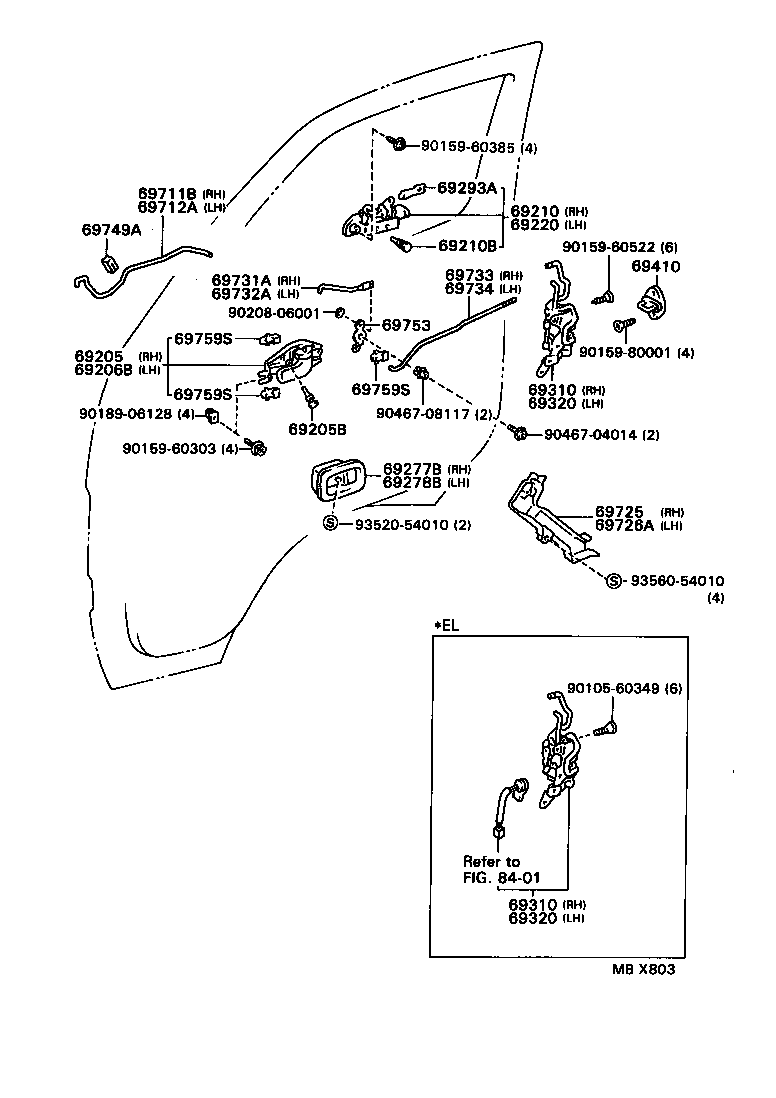

Figure MBT462E MBT462E 1989-08 → 1993-08 Figure MBX803 MBX803 1993-08 → —

Part groups

PNCDescription
69205 Handle Sub-assy, Front Door Inside, RH
69205B Cushion(FOR FRONT DOOR INSIDE HANDLE)
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69210B Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69220 Handle Assy, Front Door Outside, LH
69277B Bezel, Front Door Inside Handle, RH
69278B Bezel, Front Door Inside Handle, LH
69293A Snap, Front Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69725 Protector, Front Door Inside Locking Link, RH
69726A Protecter, Front Door Inside Locking Link, LH
69731A Link, Front Door Inside Locking, NO.1 RH
69732A Link, Front Door Inside Locking, NO.1 LH
69733 Link, Front Door Inside Locking, RH
69734 Link, Front Door Inside Locking, LH
69749A Clamp, Front Door Lock Link, NO.1
69750B Link Assy, Front Door Inside Locking, RH
69753 Bellcrank, Door Lock Control, RH
69755 Silencer, Front Door Lock Link
69759S Snap, Front Door Inside Handle
69760A Link Assy, Front Door Inside Locking, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
