Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

23 part groups · 2 illustrations

Illustrations

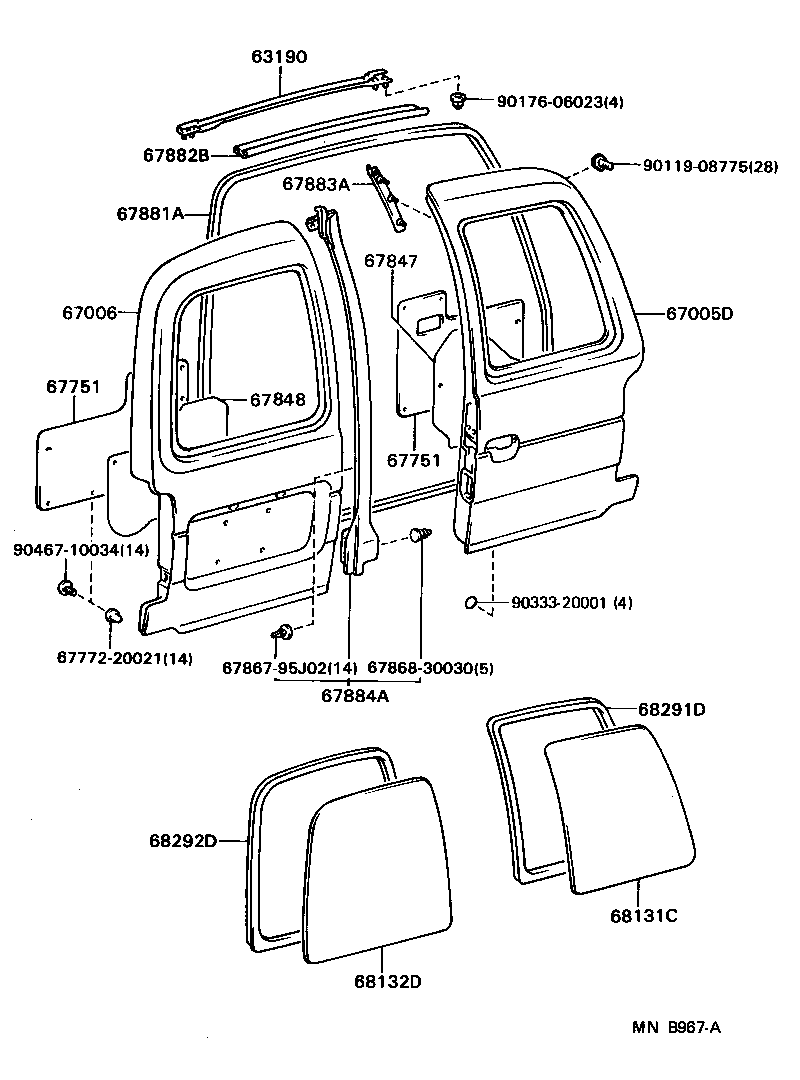

Figure MBT214A MBT214A 1989-08 → — Figure MNB967A MNB967A 1990-01 → —

Part groups

PNCDescription
62899D Bar, Back Door Window Guard
63190 Bracket Assy, Back Door Weatherstrip
67005 Panel Sub-assy, Back Door
67005D Panel Sub-assy, Back Door, RH
67006 Door Sub-assy, Back, LH
67685 Packing, Back Door Service Hole, NO.1
67686 Packing, Back Door Service Hole, NO.2
67750 Board Assy, Back Door Trim
67751 Board, Back Door Trim
67847 Cover, Back Door Service Hole, RH
67847C Cover, Back Door Service Hole, NO.1
67848 Cover, Back Door Service Hole, LH
67848C Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
67882B Weatherstrip, Back Door, Upper LH
67883A Retainer, Back Door Weatherstrip
67884A Weatherstrip, Back Door, Center
68131 Glass, Back Door
68131C Glass, Back Door, RH
68132D Glass, Back Door, LH
68291 Weatherstrip, Back Door Glass
68291D Weatherstrip, Back Door Glass, RH
68292D Weatherstrip, Back Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
