Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

31 part groups · 4 illustrations

Illustrations

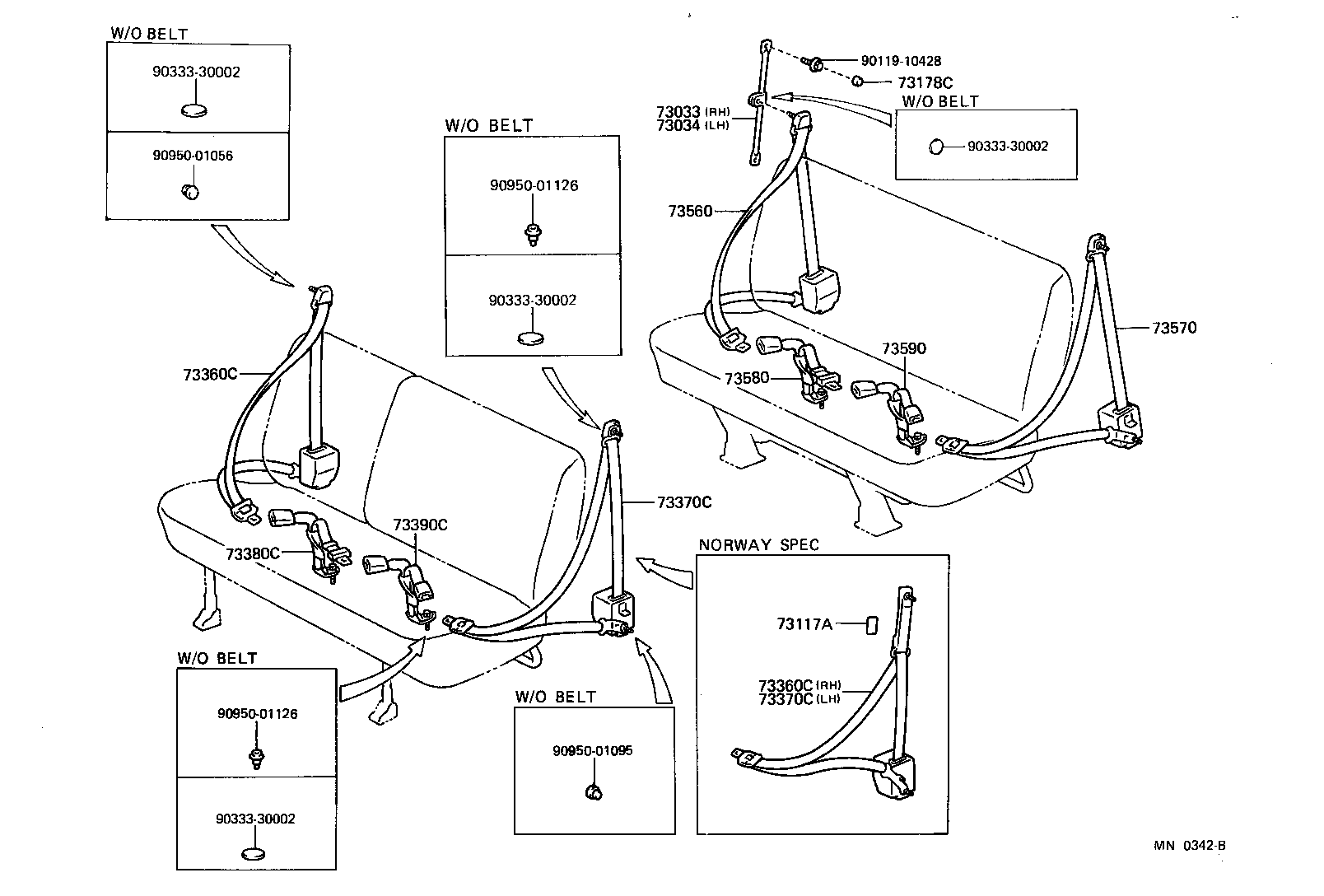

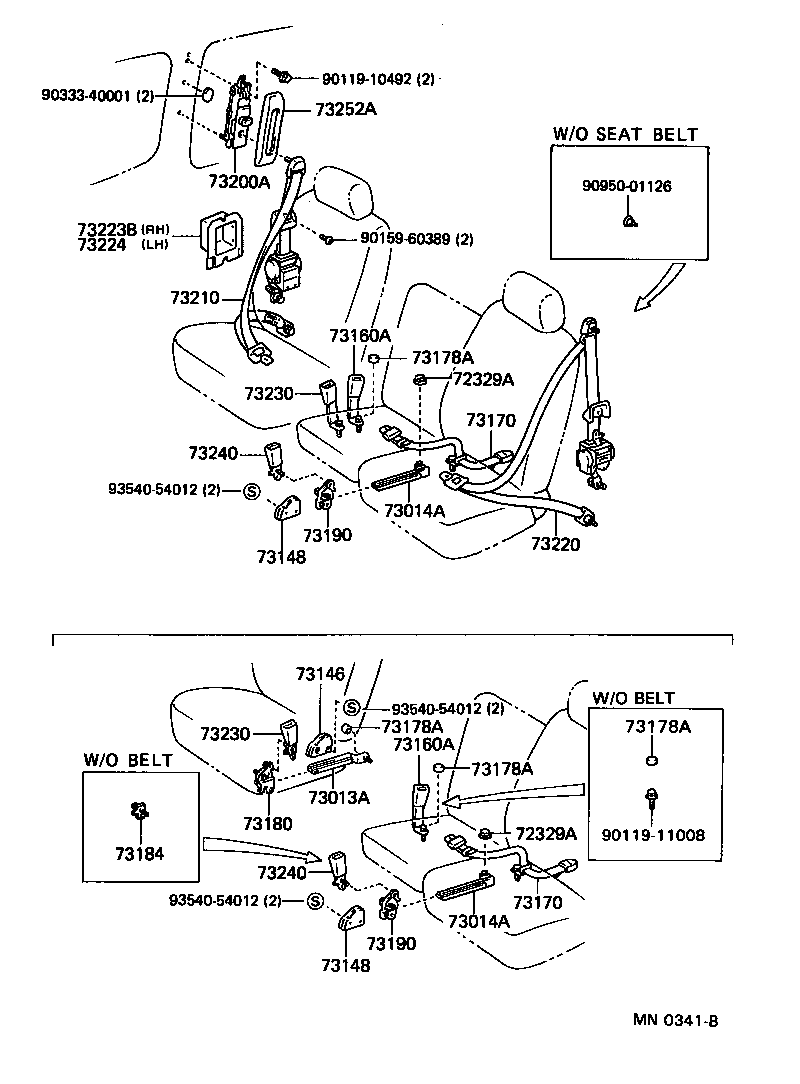

Figure MN0338A MN0338A 1989-08 → — Figure MN0341B MN0341B 1989-08 → — Figure MN0342B MN0342B 1989-08 → — Figure MN2465 MN2465 1993-08 → —

Part groups

PNCDescription
72329A Cover, Seat Adjuster Bolt
73013A Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73014A Plate Sub-assy, Front Seat Belt Inner Anchor, LH
73033 Plate Sub-assy, Rear Shoulder Belt Anchor, RH
73034 Plate Sub-assy, Rear Shoulder Belt Anchor, LH
73117A Protector, Belt
73146 Cover, Front Seat Belt Inner Anchor Bracket, RH
73148 Cover, Front Seat Belt Inner Anchor Bracket, LH
73160A Seat Belt Assy, Front Center, RH
73170 Belt Assy, Front Center, LH
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73180 Bracket Assy, Seat Belt Inner Anchor, RH
73184 Plate, Inner Seat Belt Anchor Bracket Set
73190 Bracket Assy, Seat Belt Inner Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252A Cover, Shoulder Belt Anchor Adjust
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
