Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 14 illustrations

Illustrations

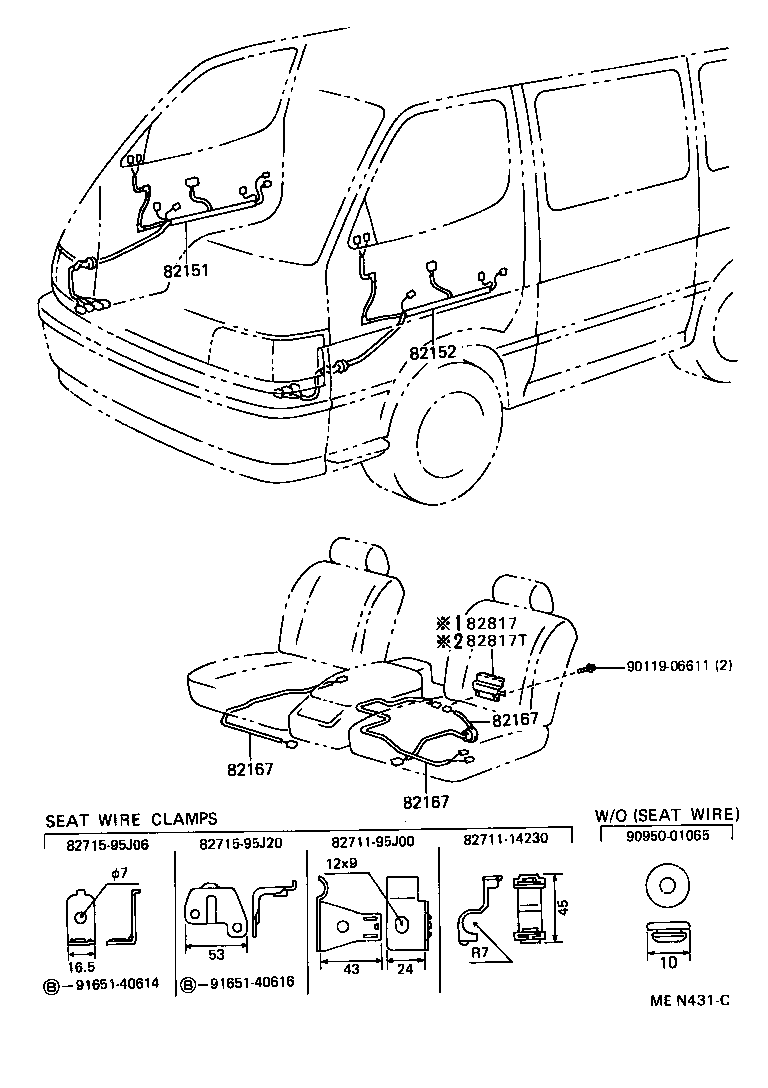

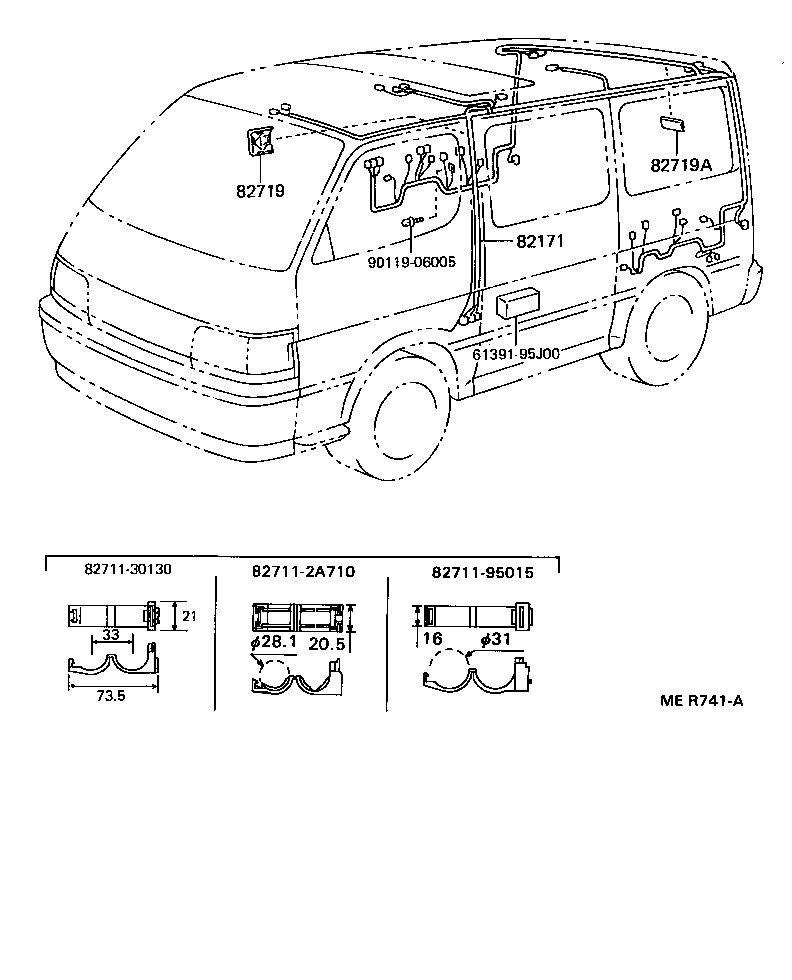

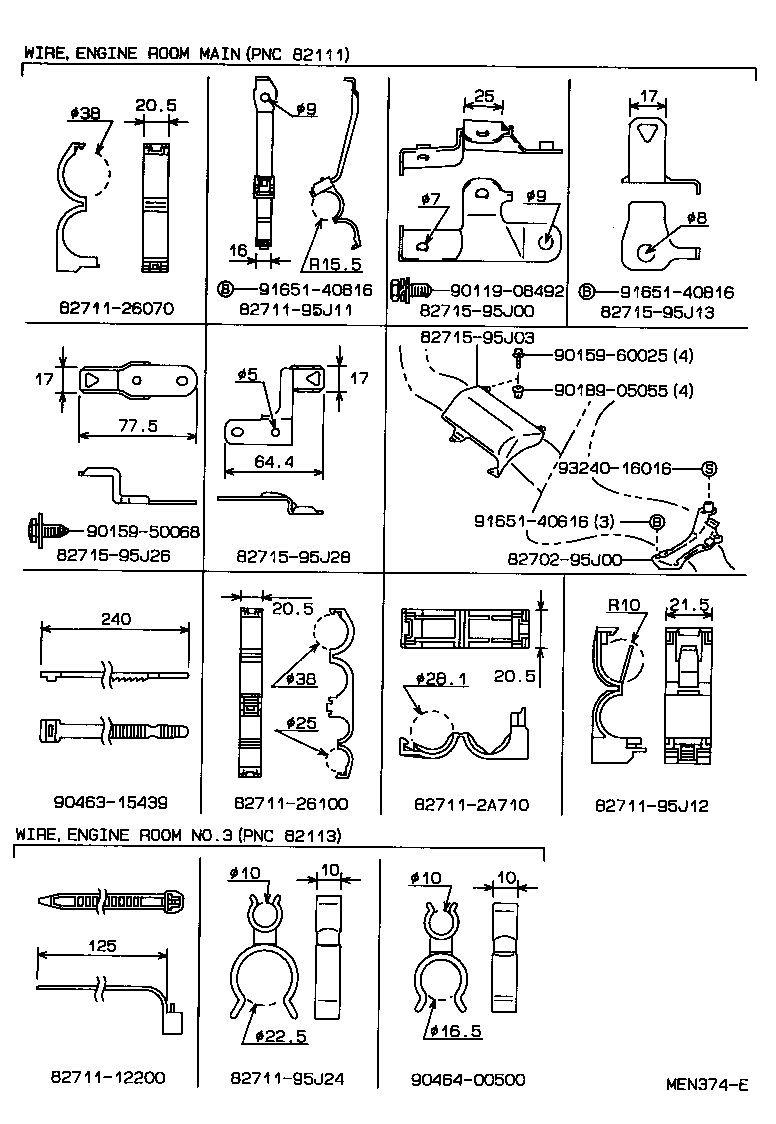

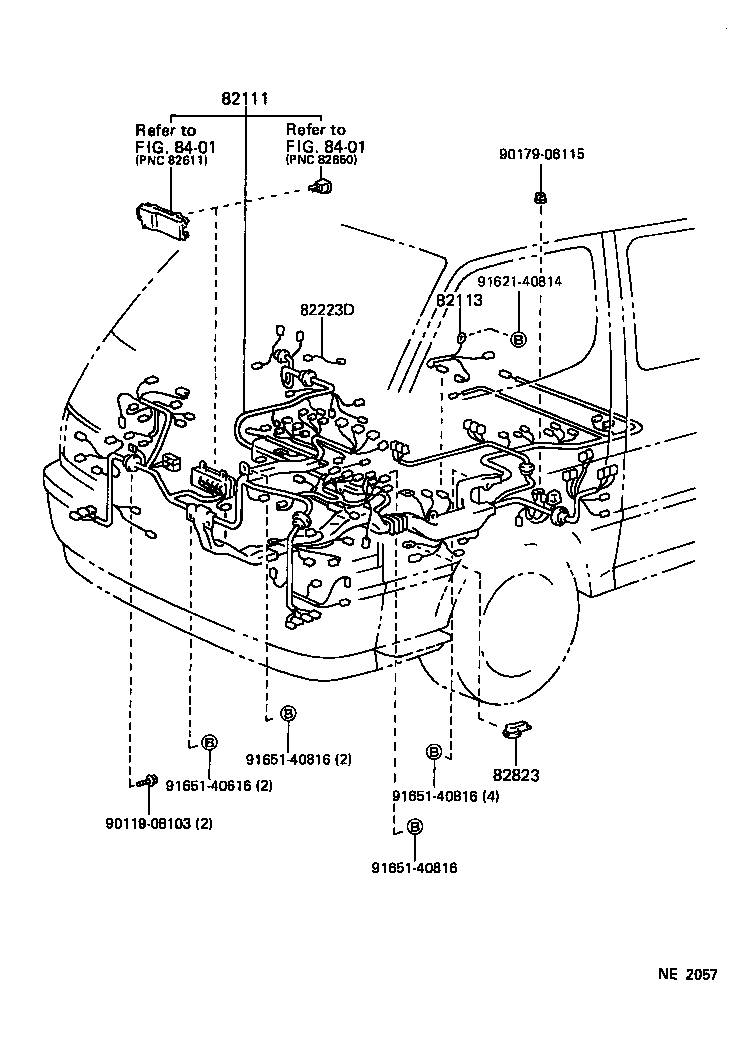

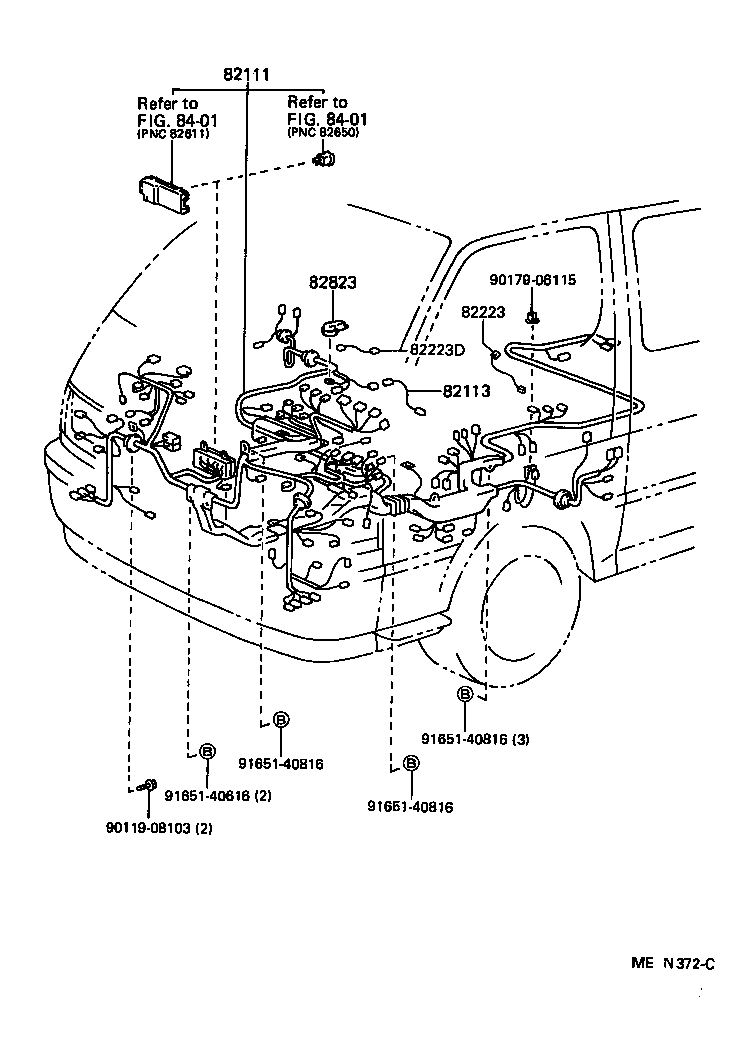

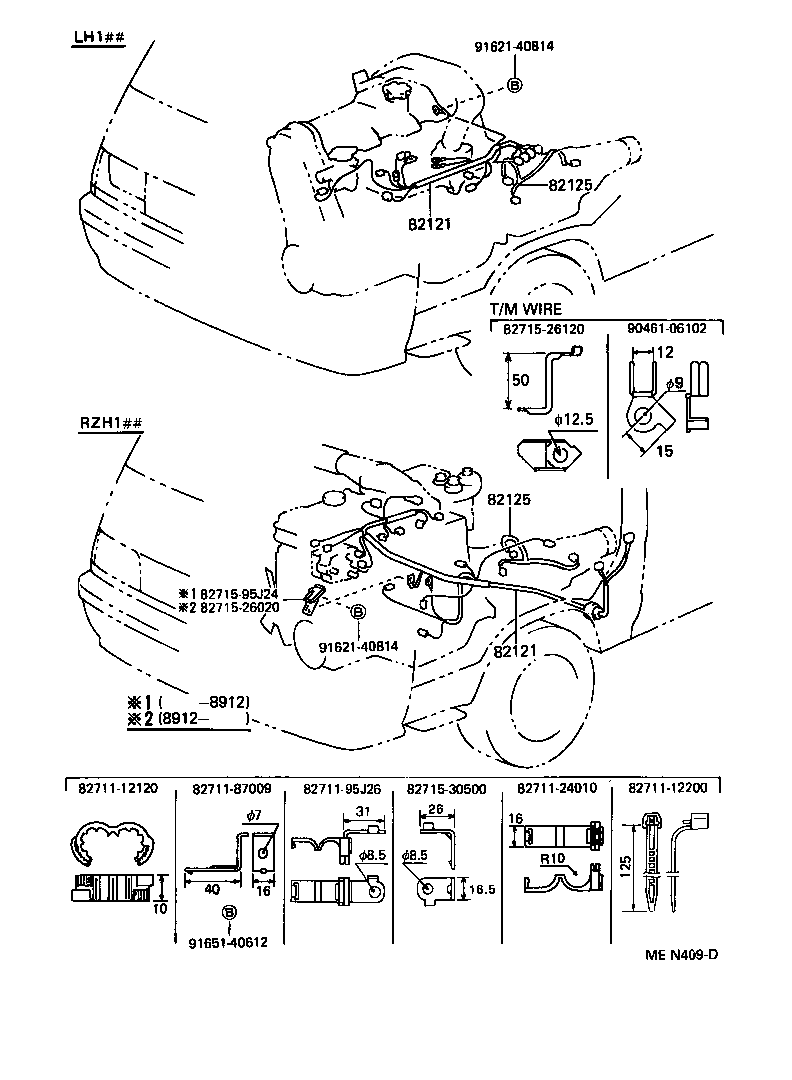

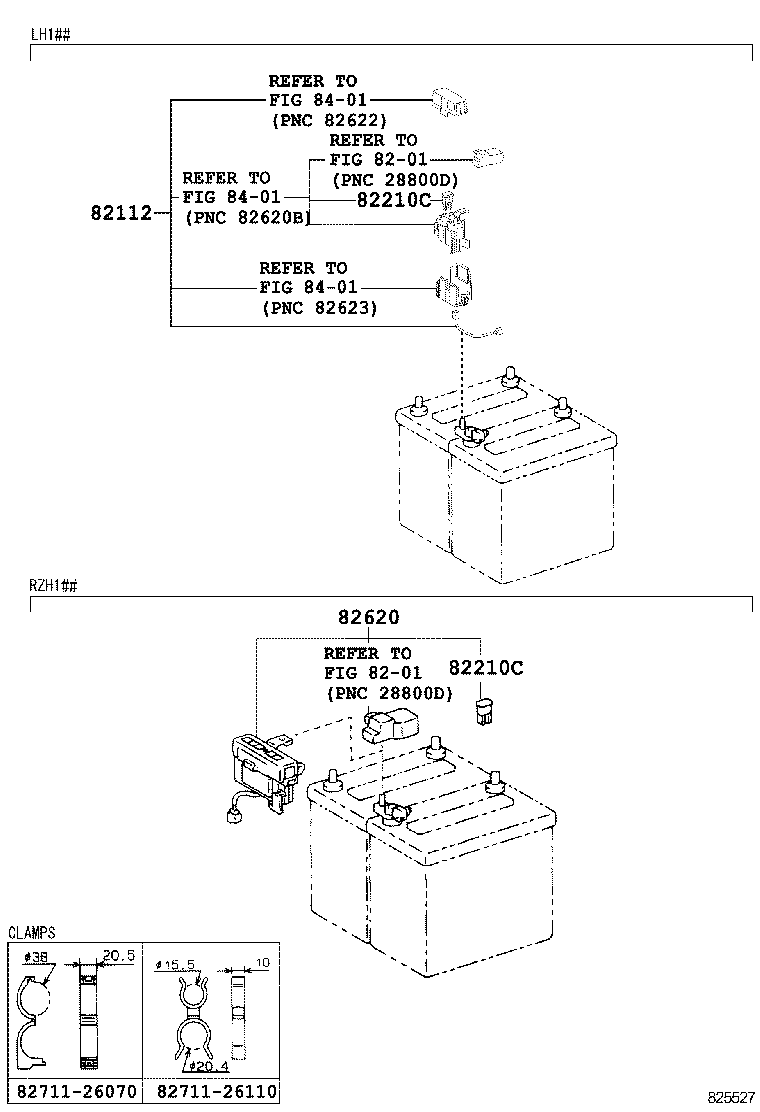

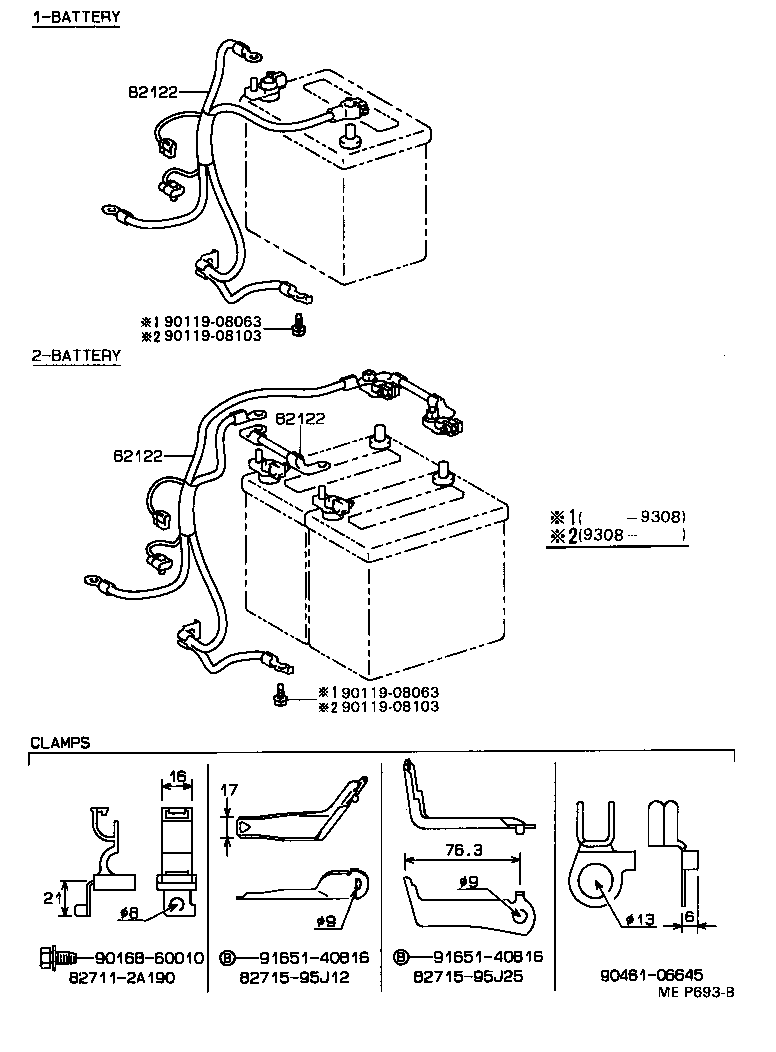

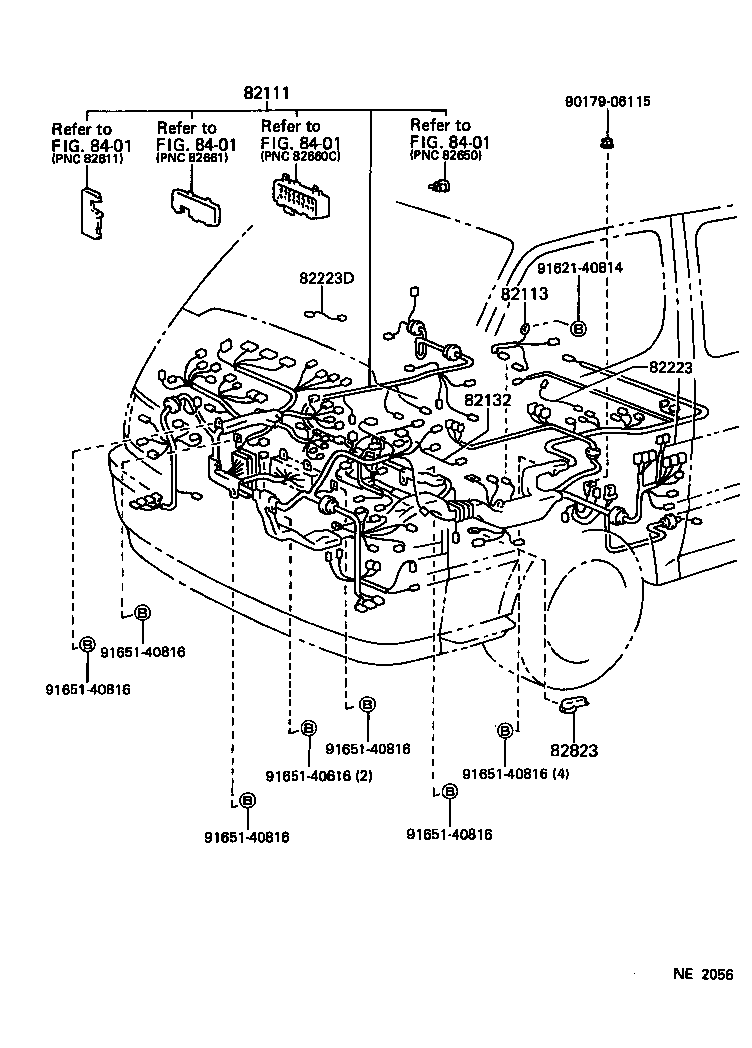

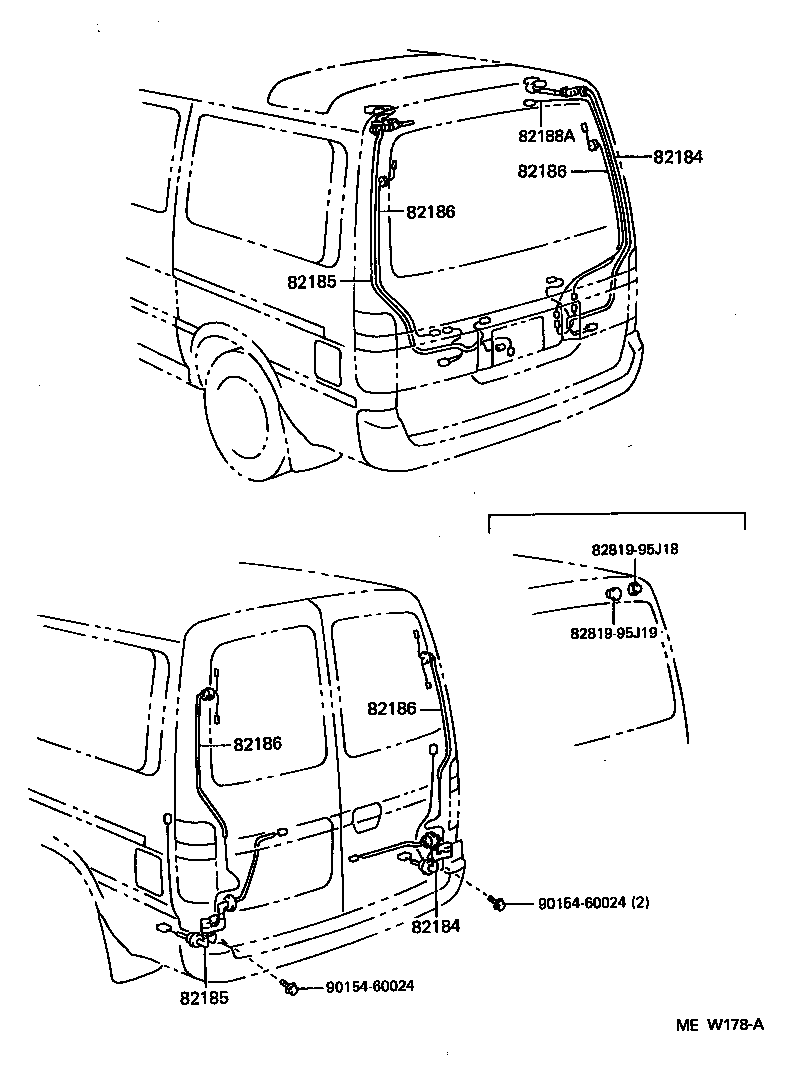

Figure MEP797A MEP797A 1989-08 → — Figure NE2056 NE2056 1989-08 → — Figure MEN372C MEN372C 1989-08 → — Figure NE2057 NE2057 1989-08 → — Figure MEN374E MEN374E 1989-08 → — Figure MEN409D MEN409D 1989-08 → — Figure MEP693B MEP693B 1989-08 → — Figure 825528 825528 1989-08 → — Figure 825529 825529 1989-08 → — Figure MEN431C MEN431C 1989-08 → — Figure MEN432A MEN432A 1989-08 → — Figure MER741A MER741A 1989-08 → — Figure MEW178A MEW178A 1989-08 → — Figure MEN430A MEN430A 1989-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125 Wire, Transmission
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82157A Wire, Step Panel, RH
82162 Wire, Floor, NO.2
82164 Wire, Frame
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82210C Fusible Link
82223 Wire, Switch
82223D Wire, Switch, NO.3
82620 Block Assy, Fusible Link
82719 Cover, Wire Hanress Service Hole(FOR CENTER PILLAR)
82719A Cover, Wire Hanress Service Hole(FOR ROOF BACK)
82817 Protector, Wiring Harness, NO.1
82817T Protector, Wiring Harness, NO.15
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
