Toyota Hiace Van,Commuter

1989-08 → 1995-08 · chassis LH10#,11#,RZH10#,11# · catalogue 711540 · Europe

Discontinued model Data version 1995-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 5 illustrations

Illustrations

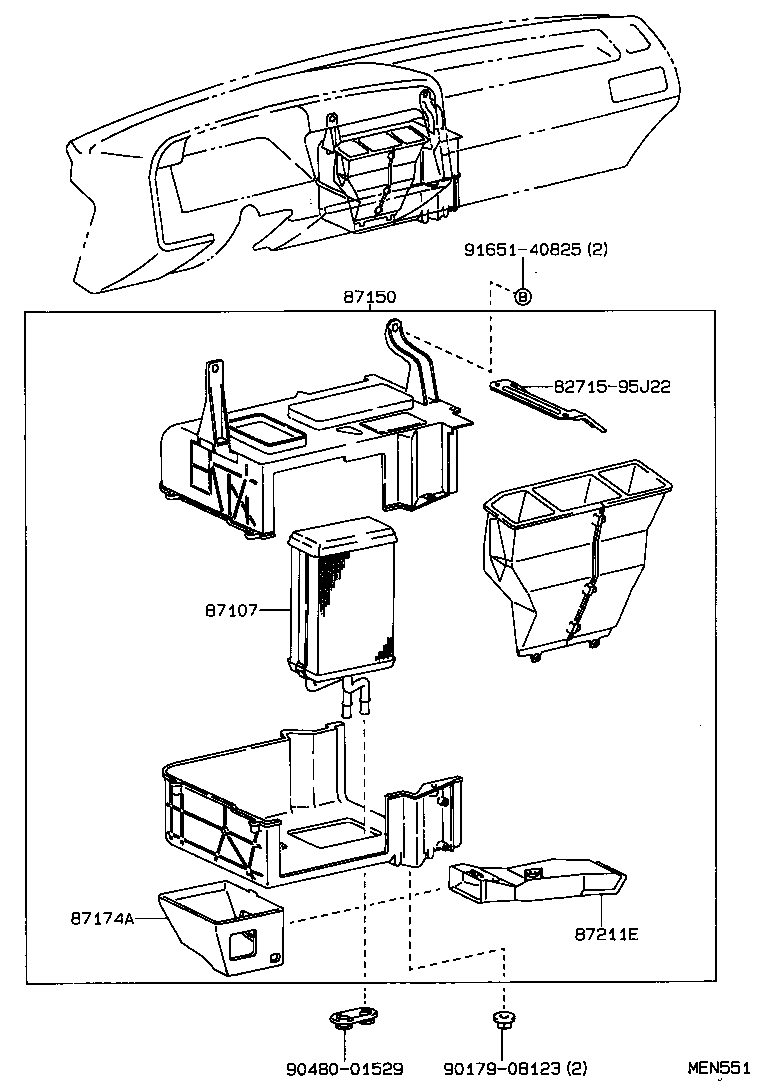

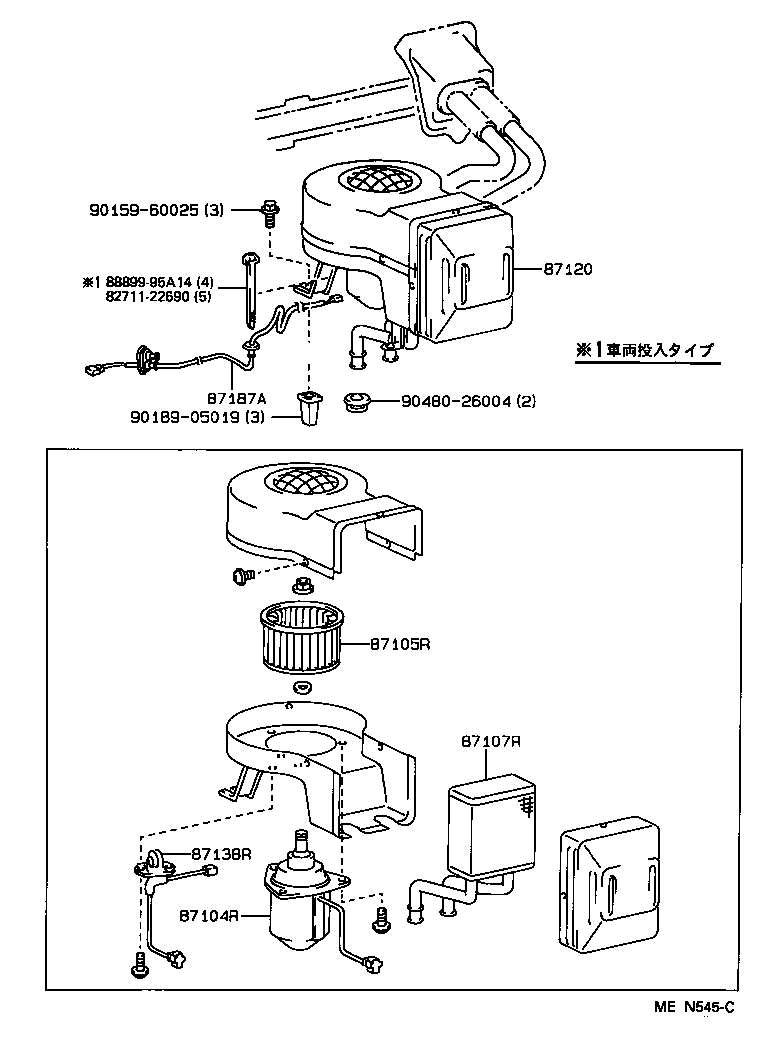

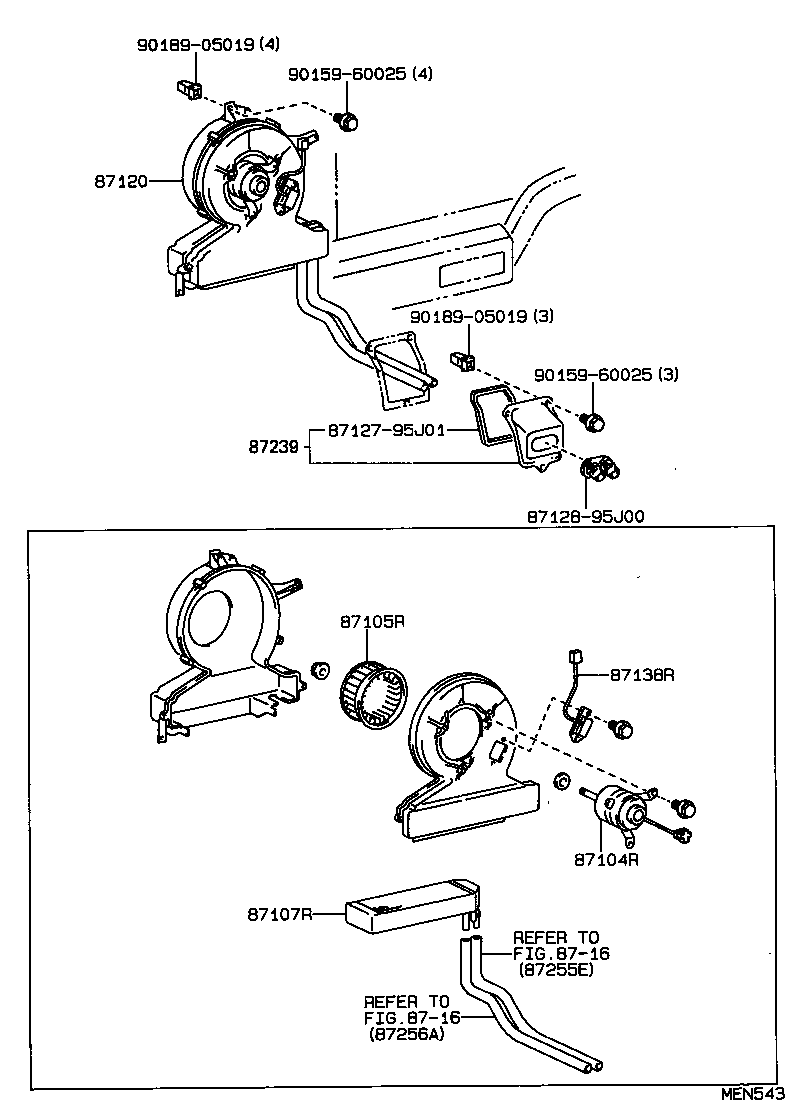

Figure MEN539 MEN539 1989-08 → — Figure MEN551 MEN551 1989-08 → — Figure MEQ380D MEQ380D 1989-08 → — Figure MEN543 MEN543 1989-08 → — Figure MEN545C MEN545C 1989-08 → 1992-05

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87120 Heater Assy, Rear
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87174A Guide, Air Heater
87187A Wire, Blower Motor Lead
87211E Duct, Air
87239 Cover, Heater Inlet Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
