Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 18 illustrations

Illustrations

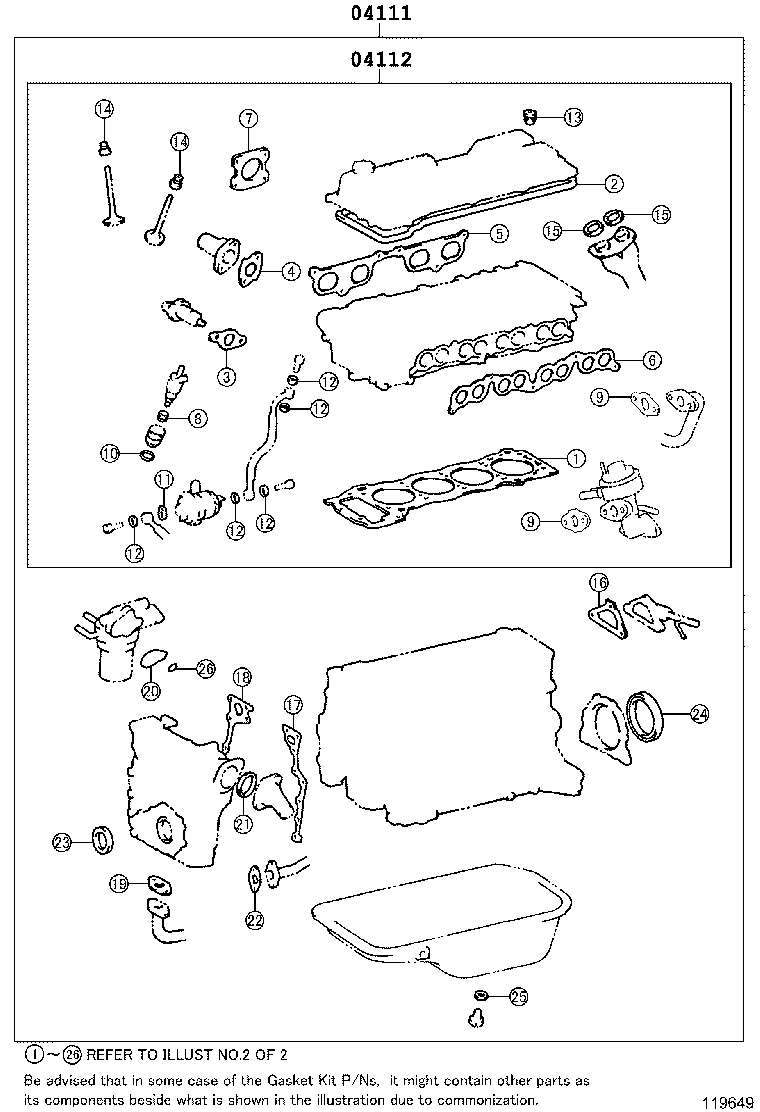

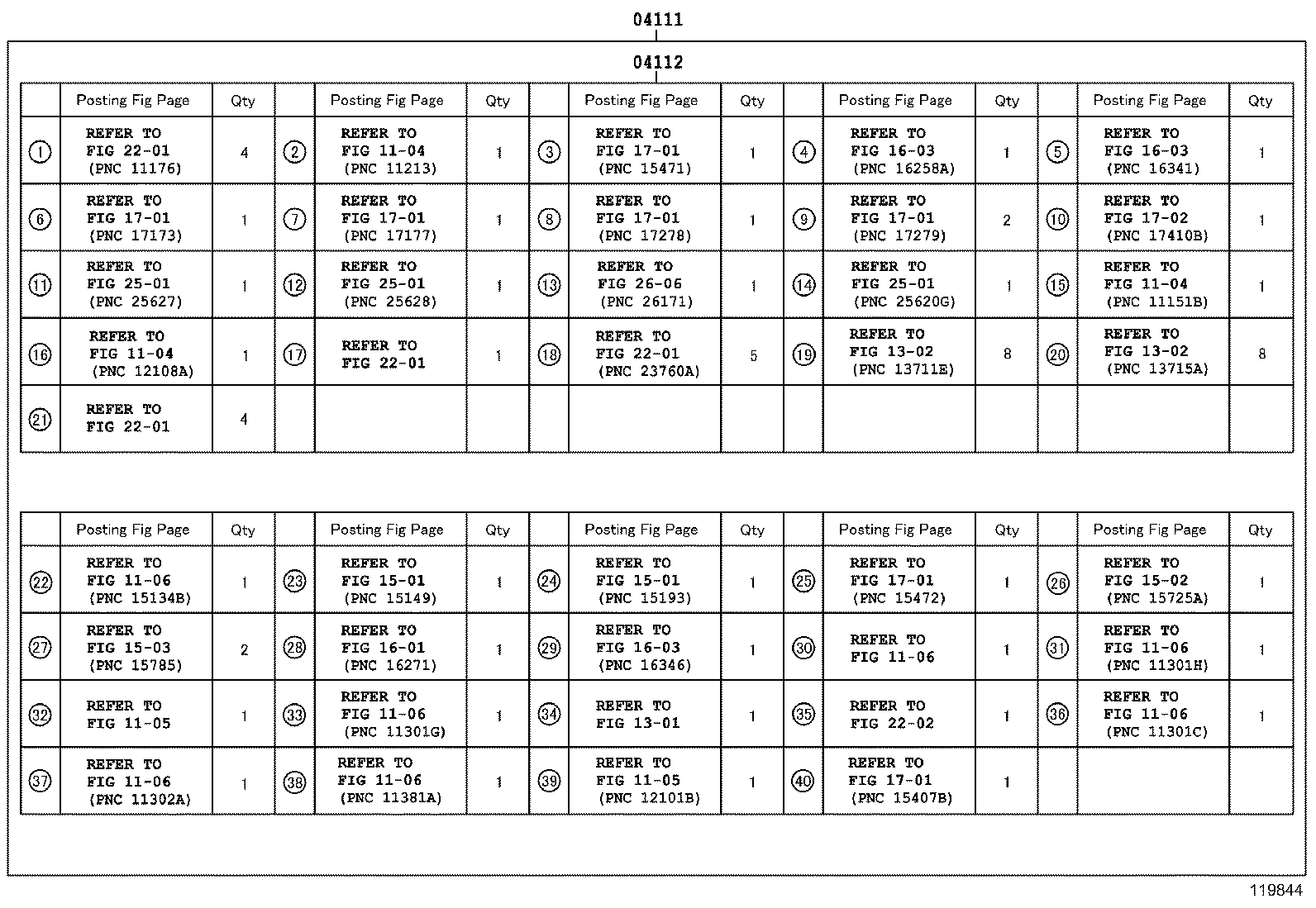

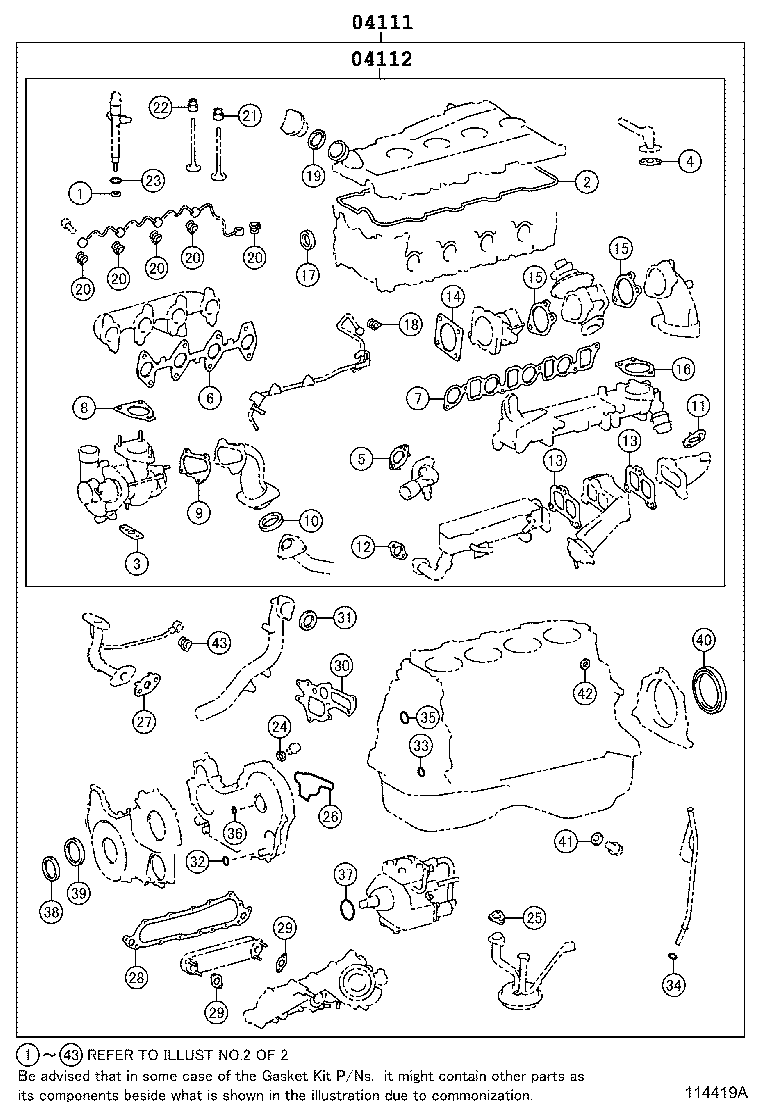

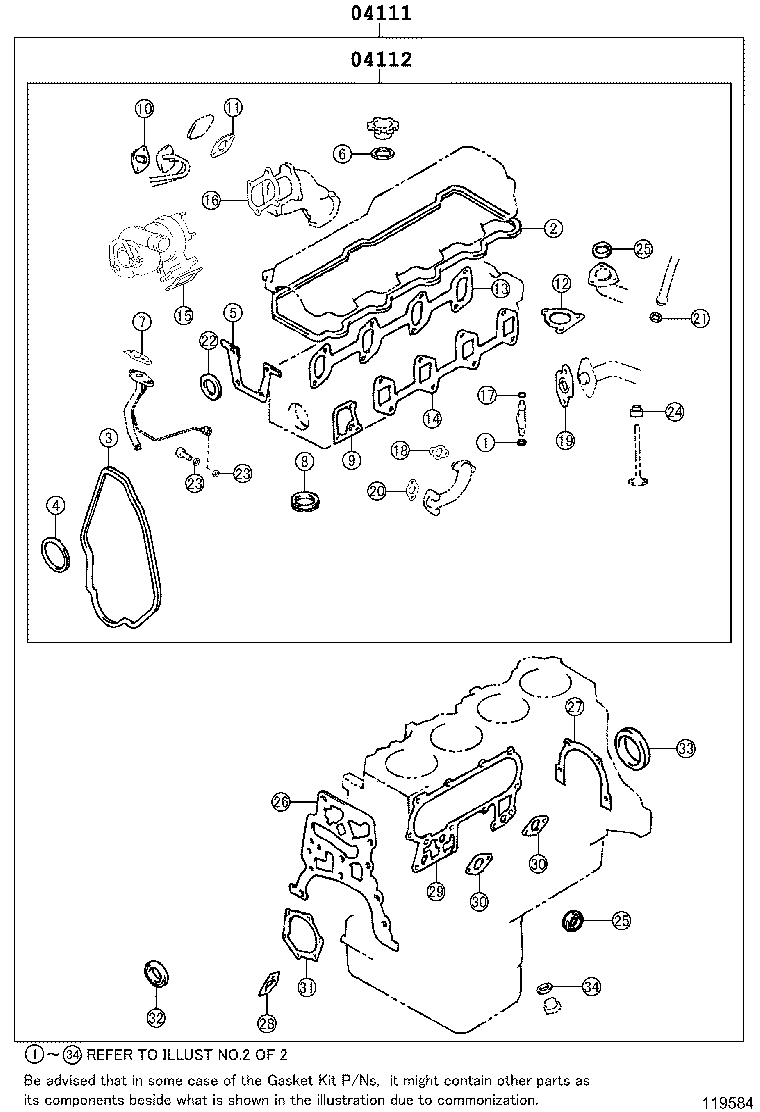

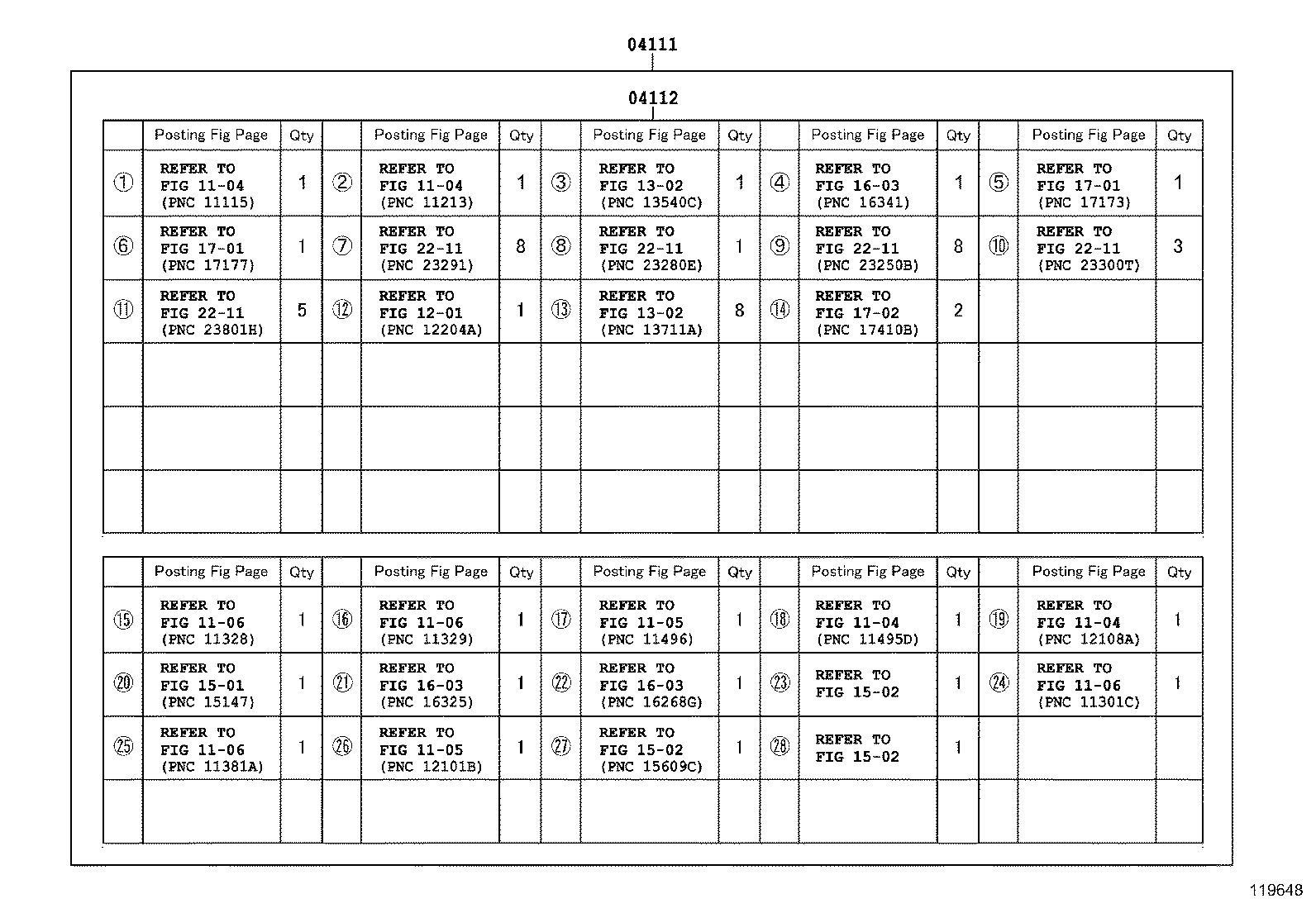

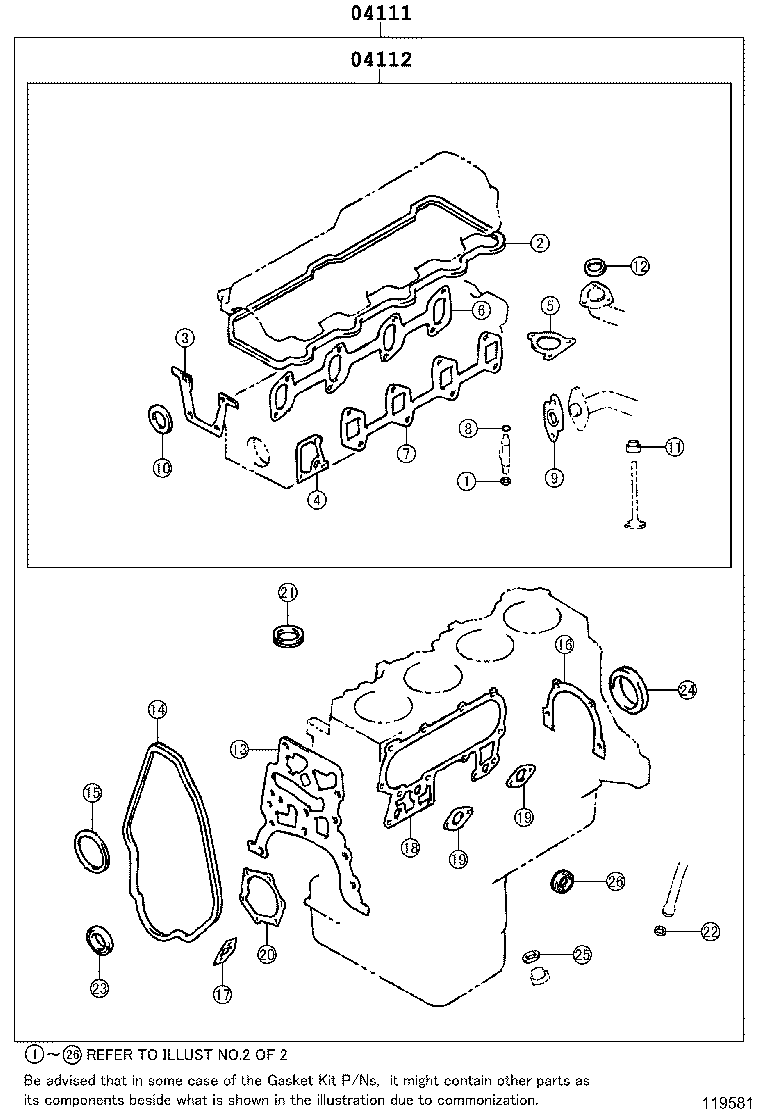

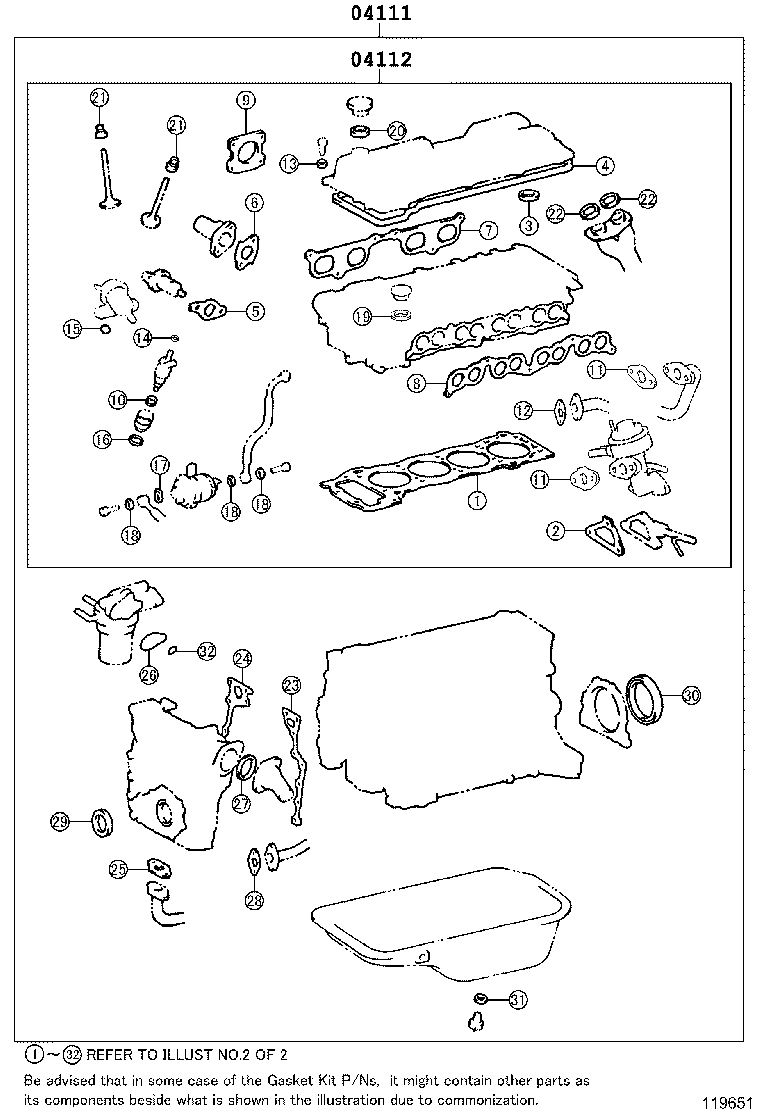

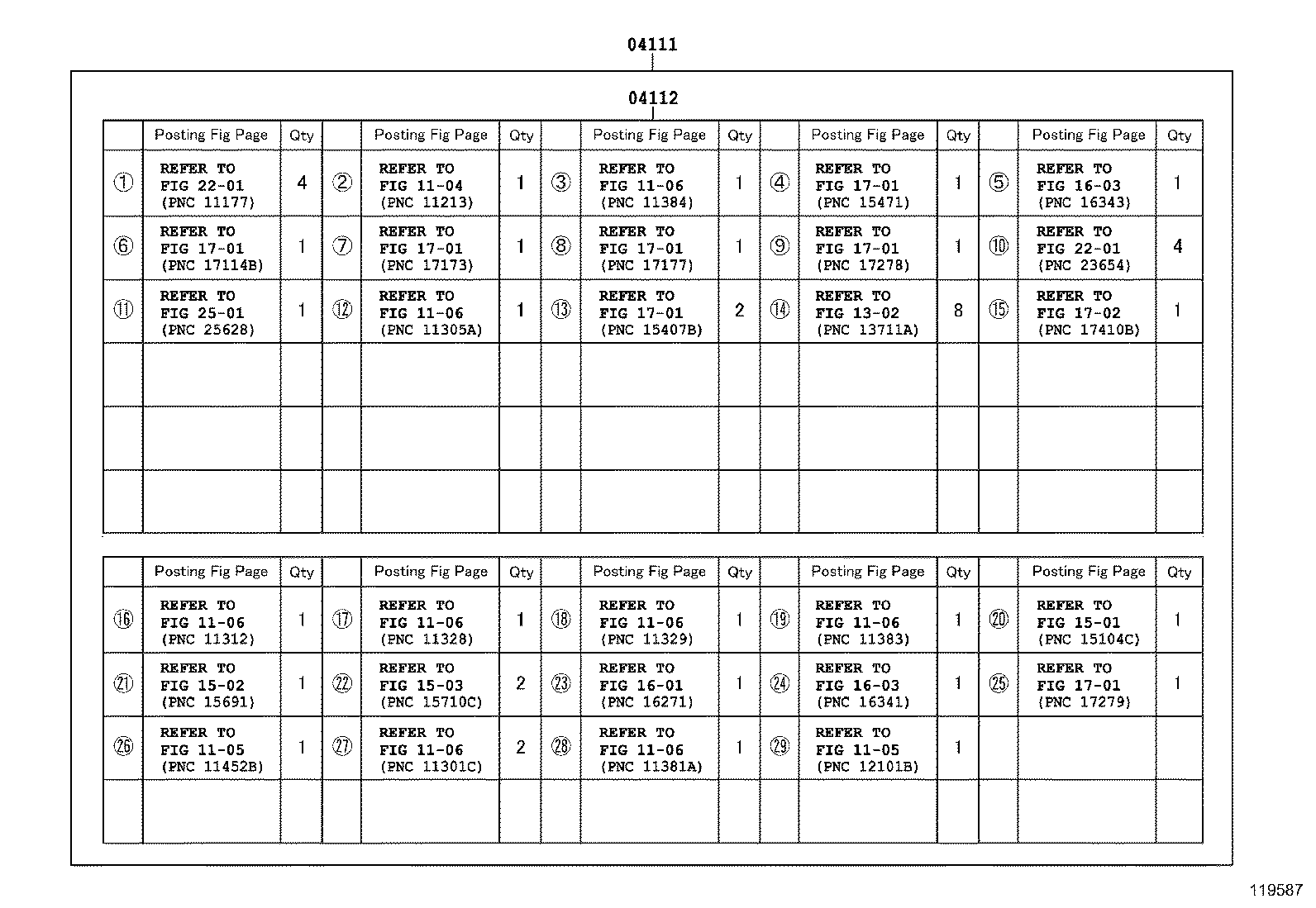

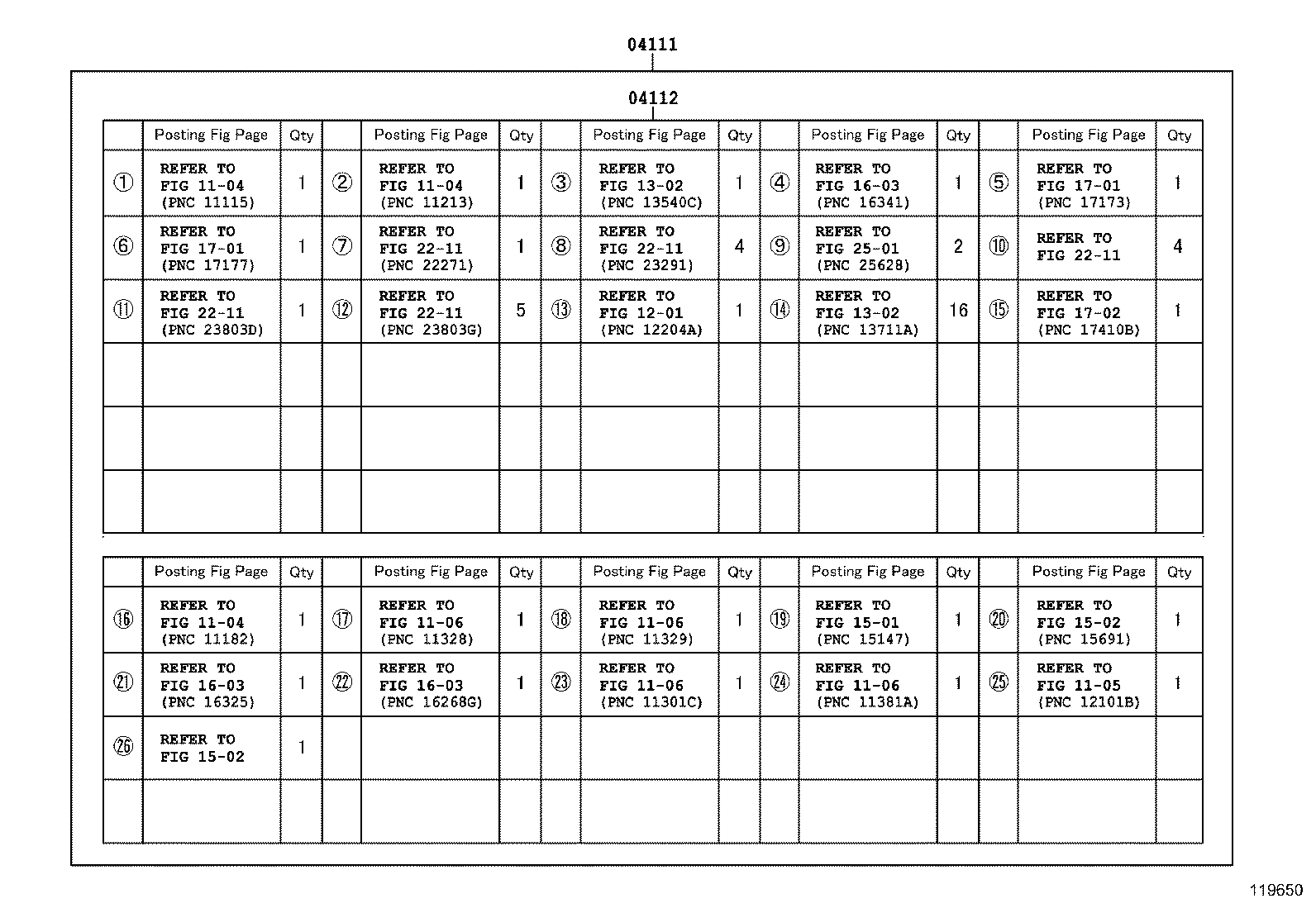

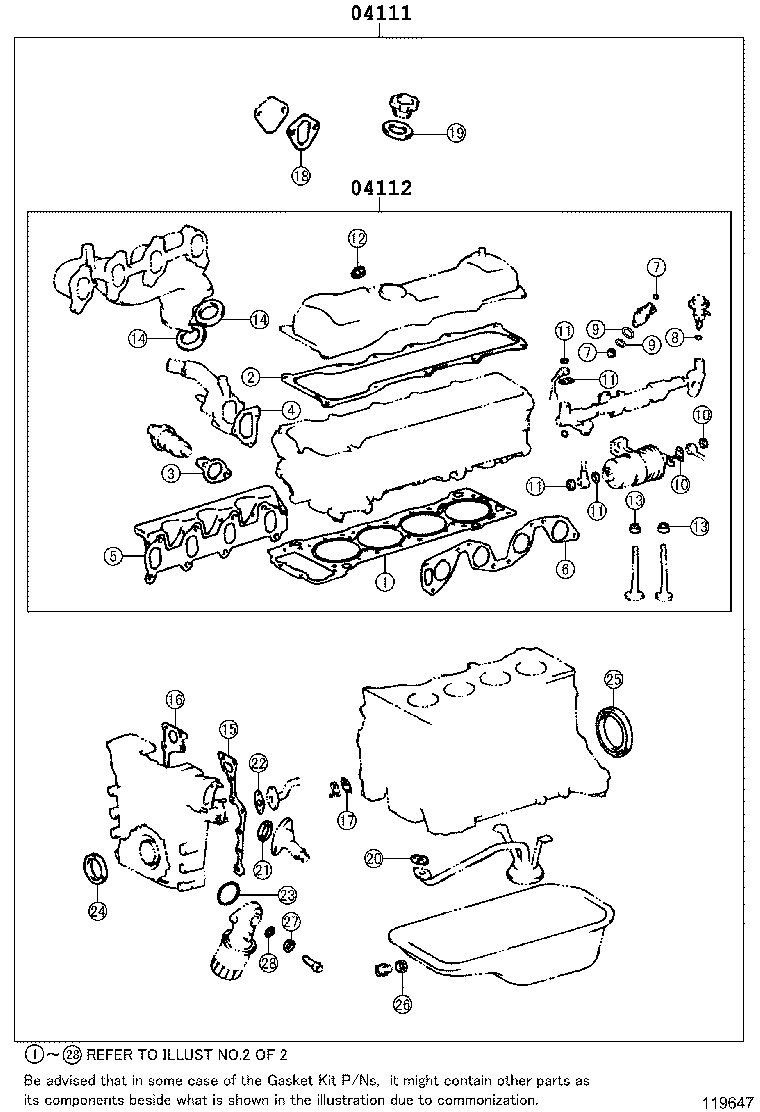

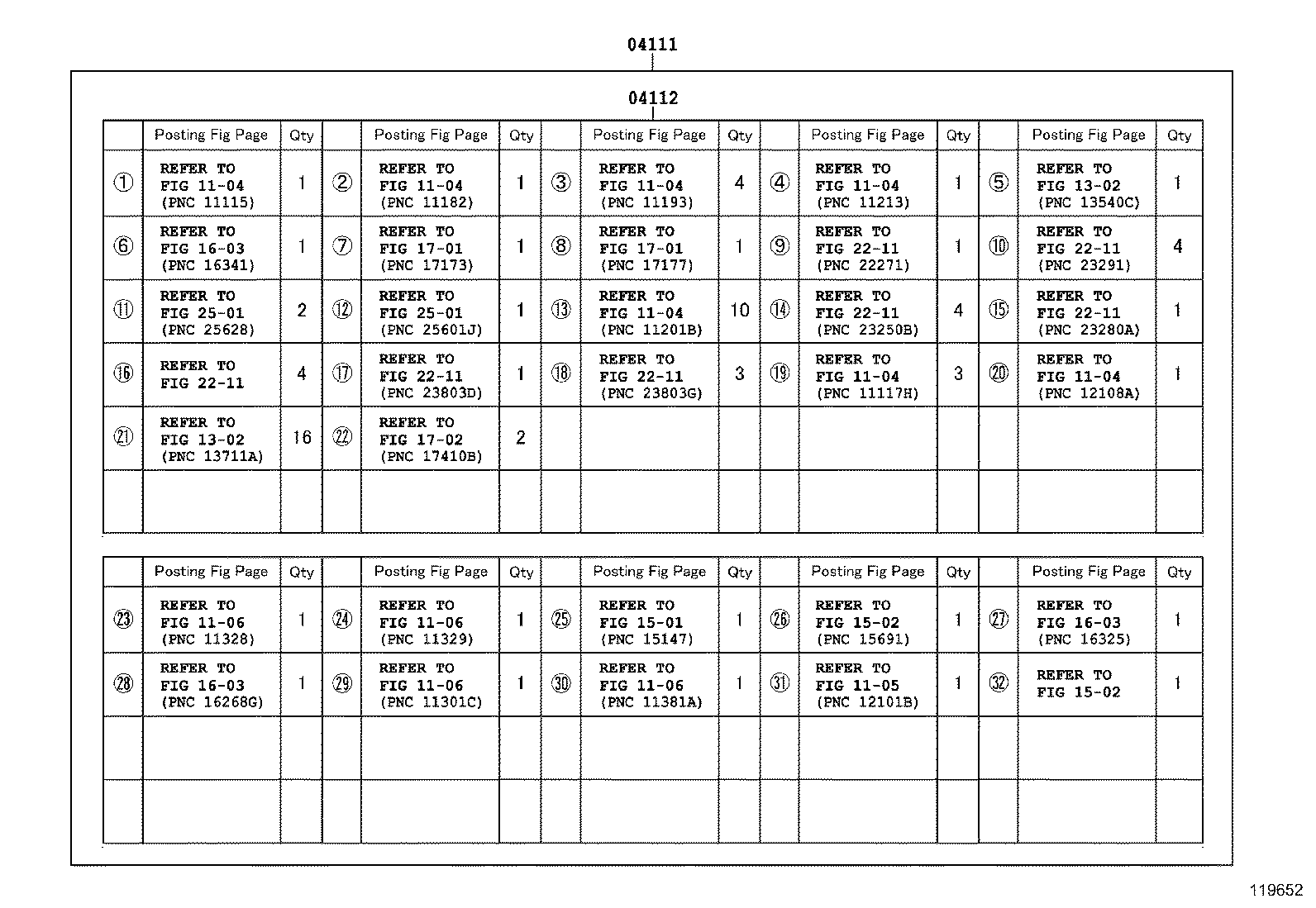

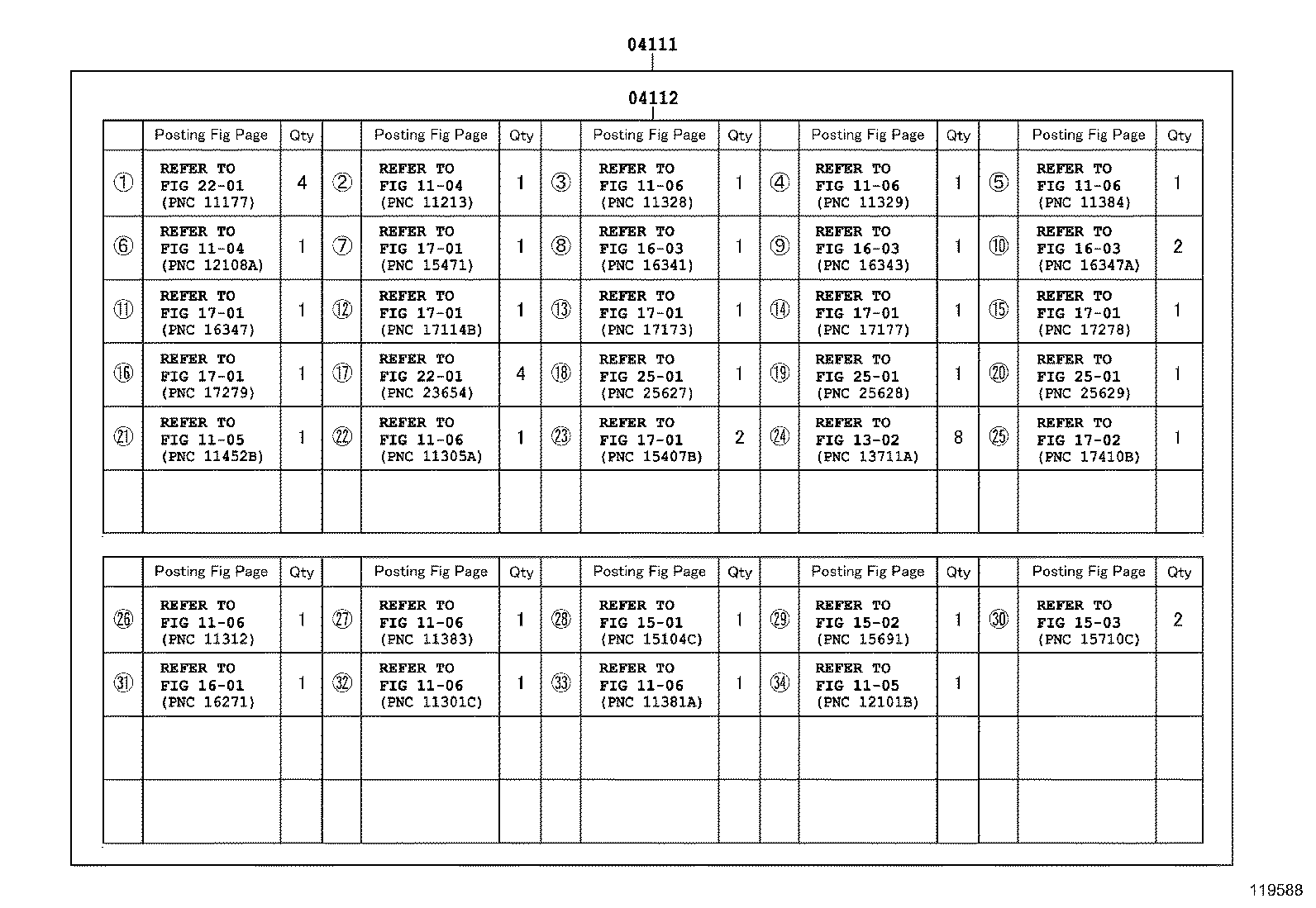

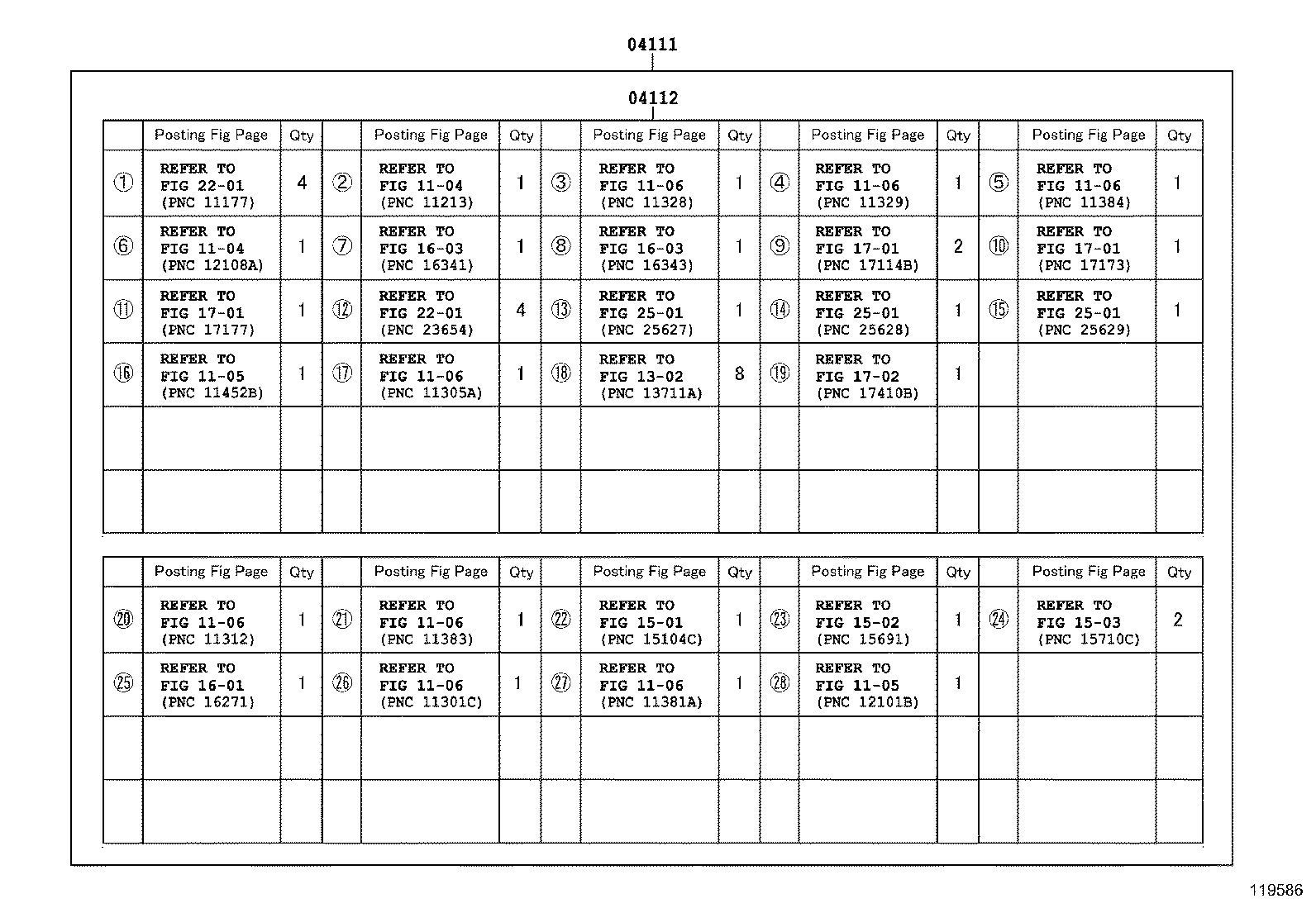

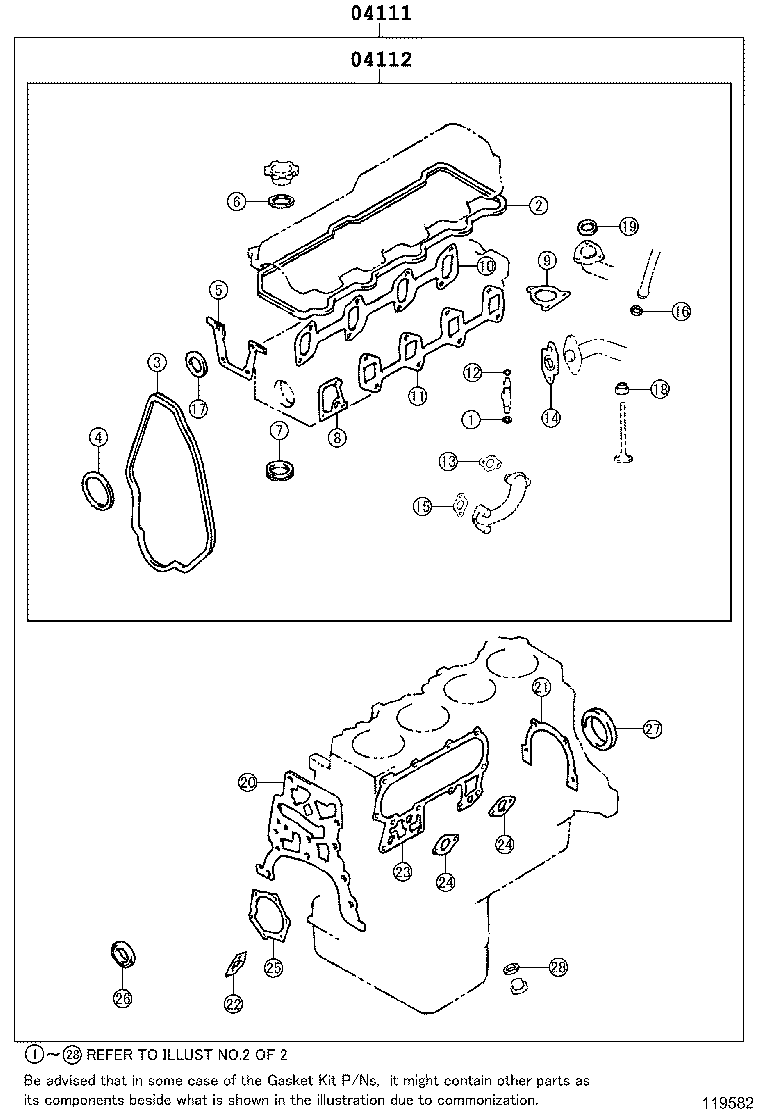

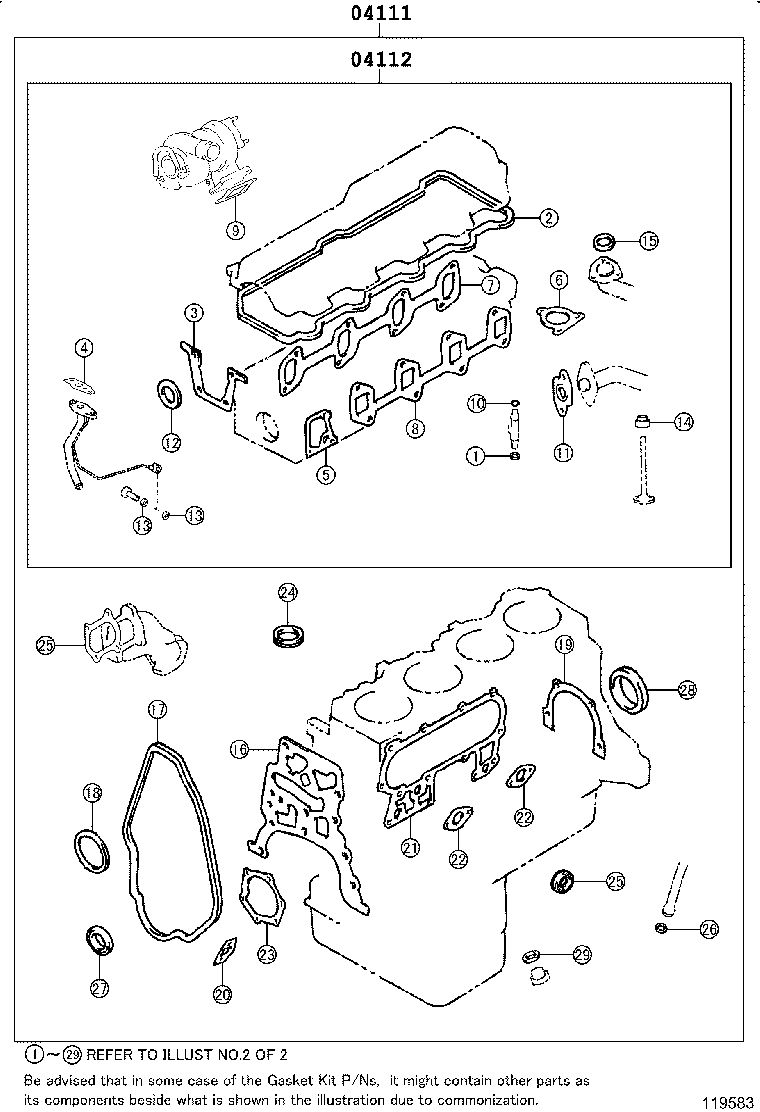

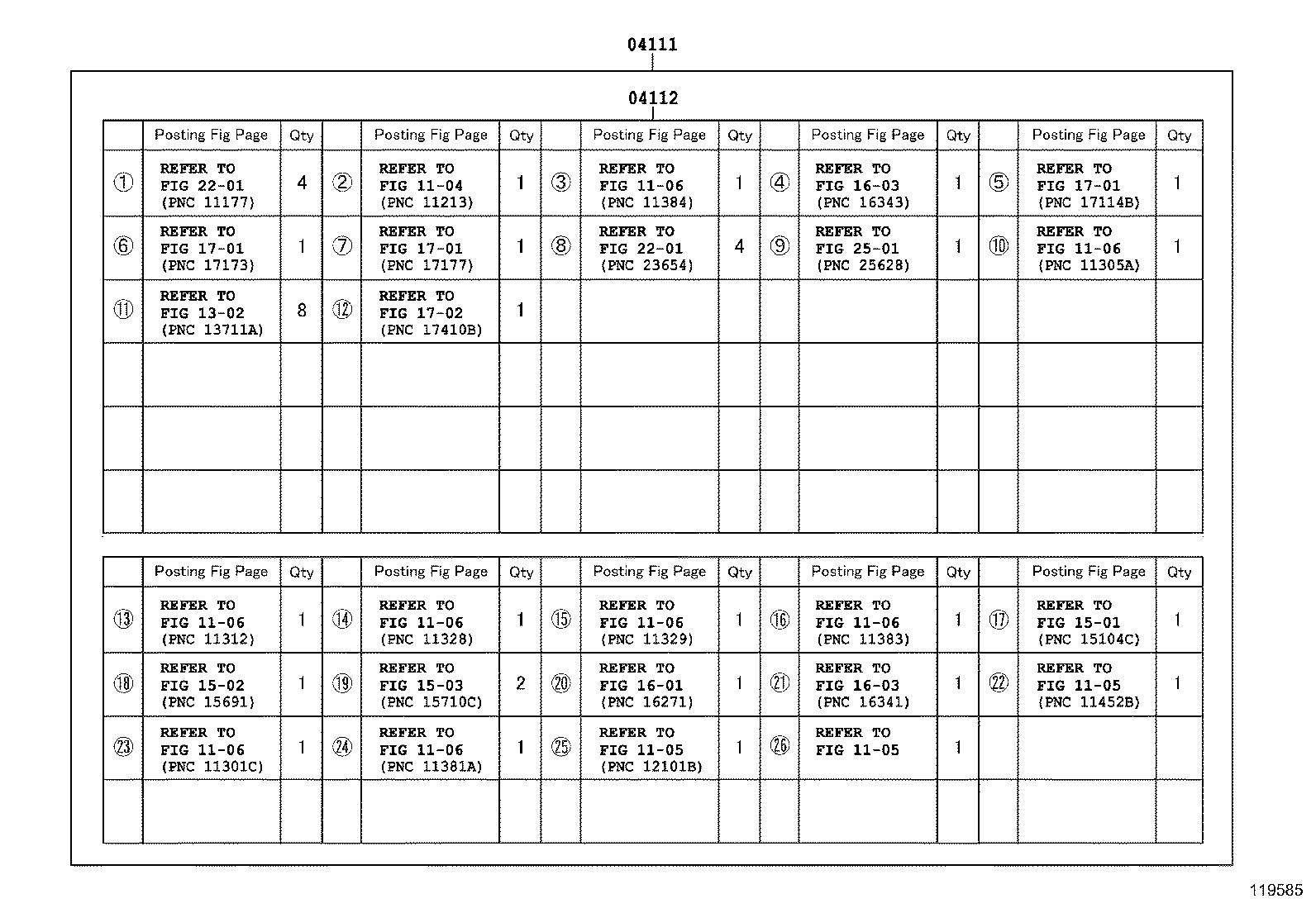

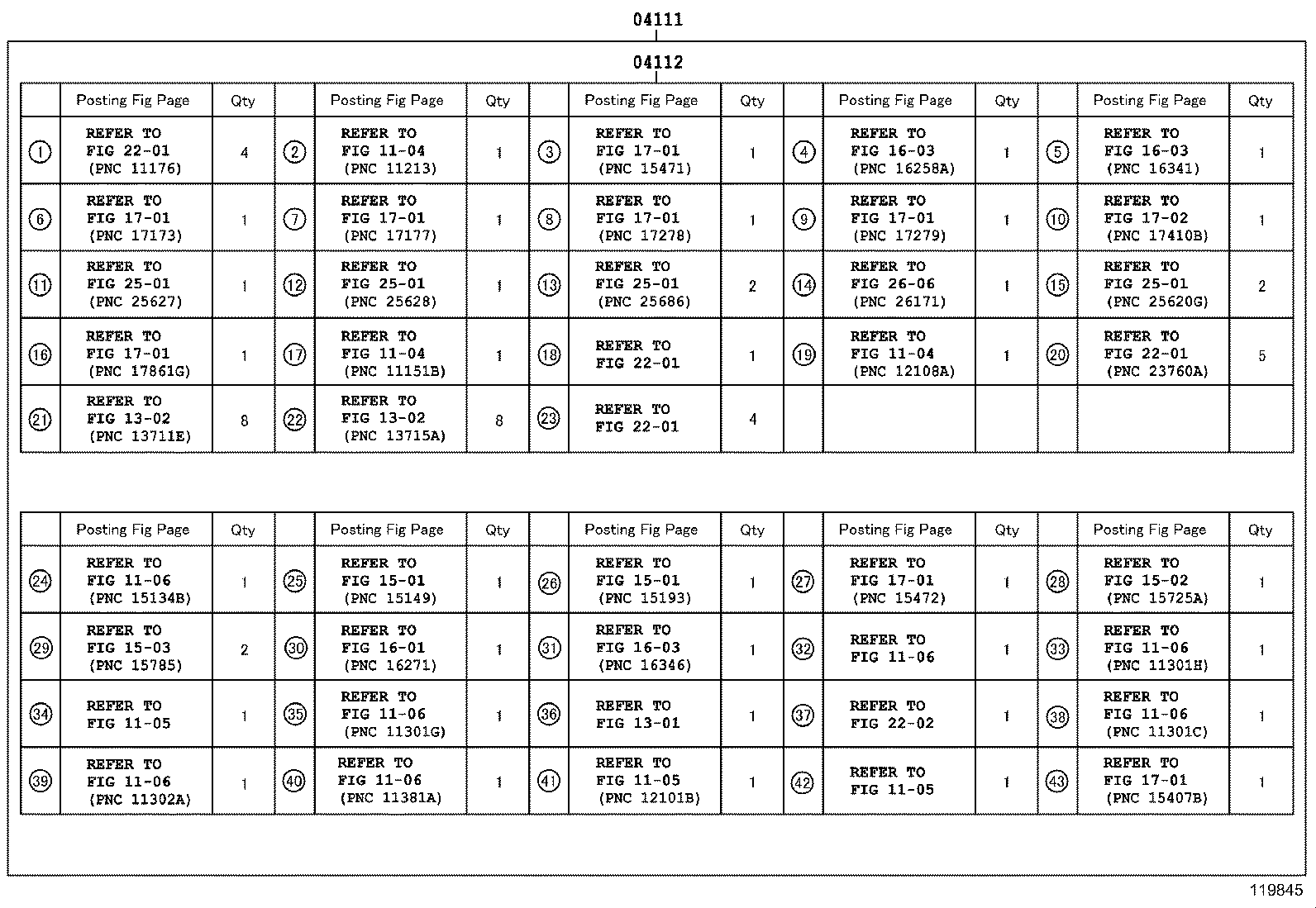

Figure 119843 119843 2001-08 → 2006-08 Figure 119844 119844 2001-08 → 2006-08 Figure 114419A 114419A 2006-08 → — Figure 119845 119845 2006-08 → — Figure 119581 119581 1995-08 → 1998-04 Figure 119582 119582 1998-04 → 2001-08 Figure 119583 119583 1995-08 → 1998-04 Figure 119584 119584 1998-04 → 2001-08 Figure 119585 119585 1995-08 → 1998-04 Figure 119586 119586 1998-04 → 2001-08 Figure 119587 119587 1995-08 → 1998-04 Figure 119588 119588 1998-04 → 2001-08 Figure 119647 119647 1995-08 → — Figure 119648 119648 1995-08 → — Figure 119649 119649 1998-04 → 2004-01 Figure 119650 119650 1998-04 → 2004-01 Figure 119651 119651 2004-01 → — Figure 119652 119652 2004-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
