Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 5 illustrations

Illustrations

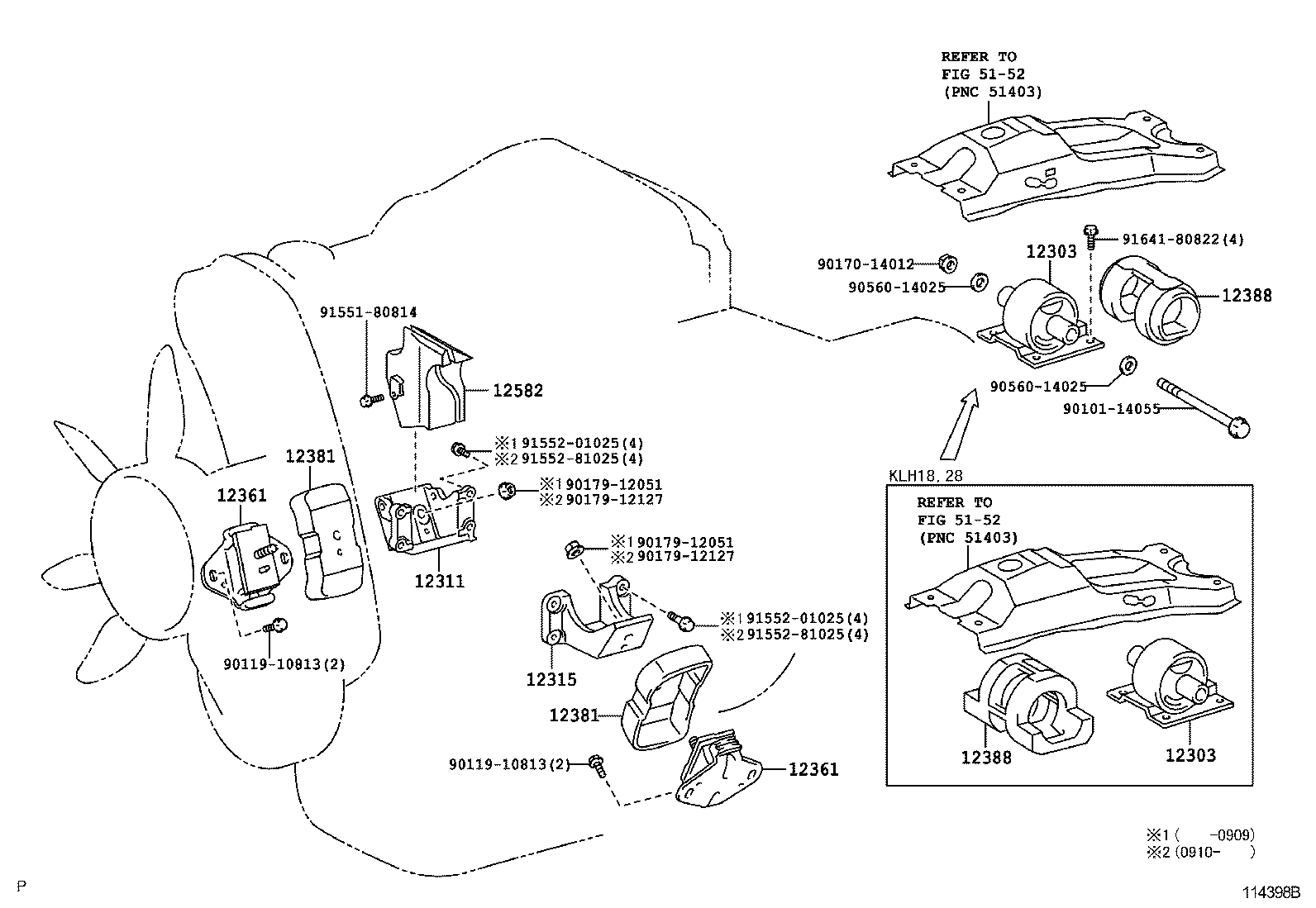

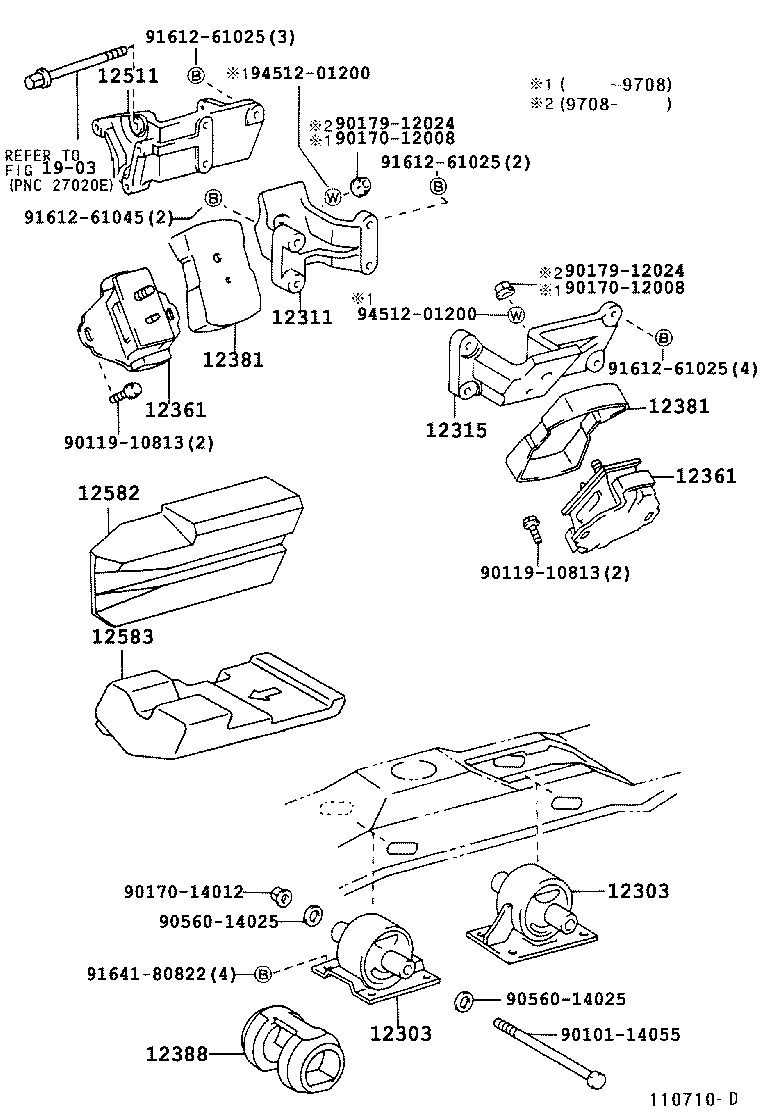

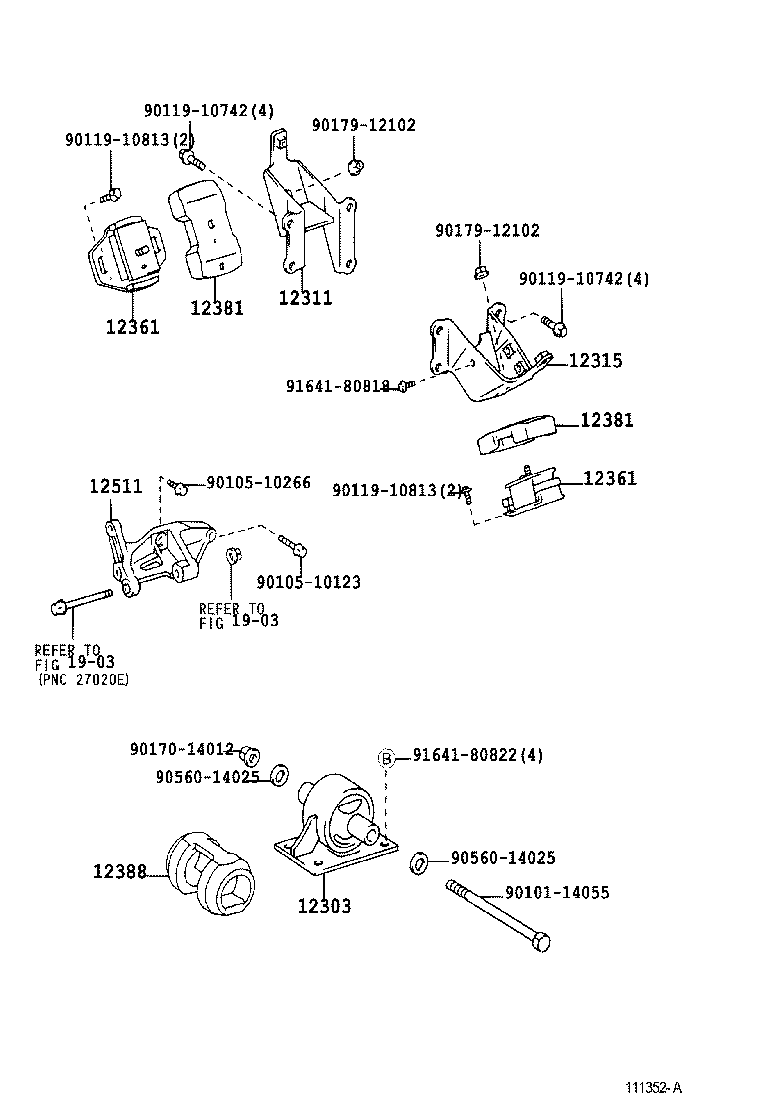

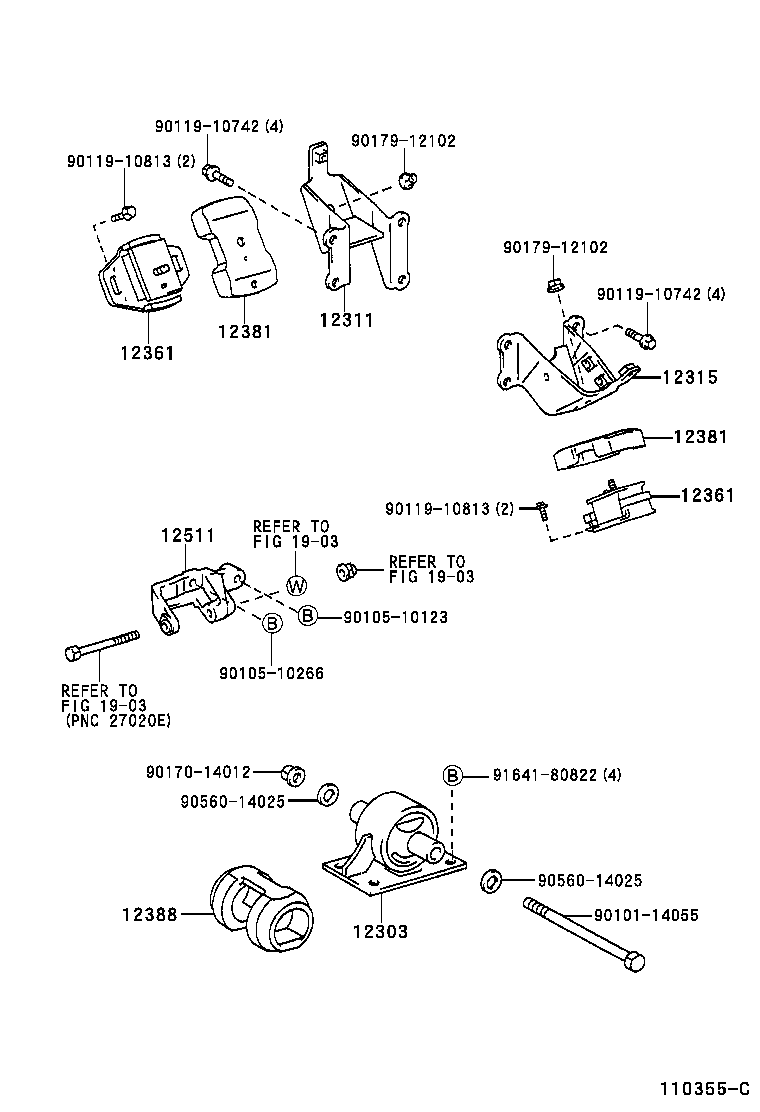

Figure 114397 114397 2001-08 → 2006-08 Figure 114398B 114398B 2006-08 → — Figure 110710D 110710D 1995-08 → 2001-08 Figure 110355C 110355C 1995-08 → — Figure 111352A 111352A 1998-04 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12381 Stabilizer, Engine Mounting
12388 Stopper, Engine Mounting Bracket, Rear
12511 Bracket, Alternator, NO.1
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
