Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

74 part groups · 18 illustrations

Illustrations

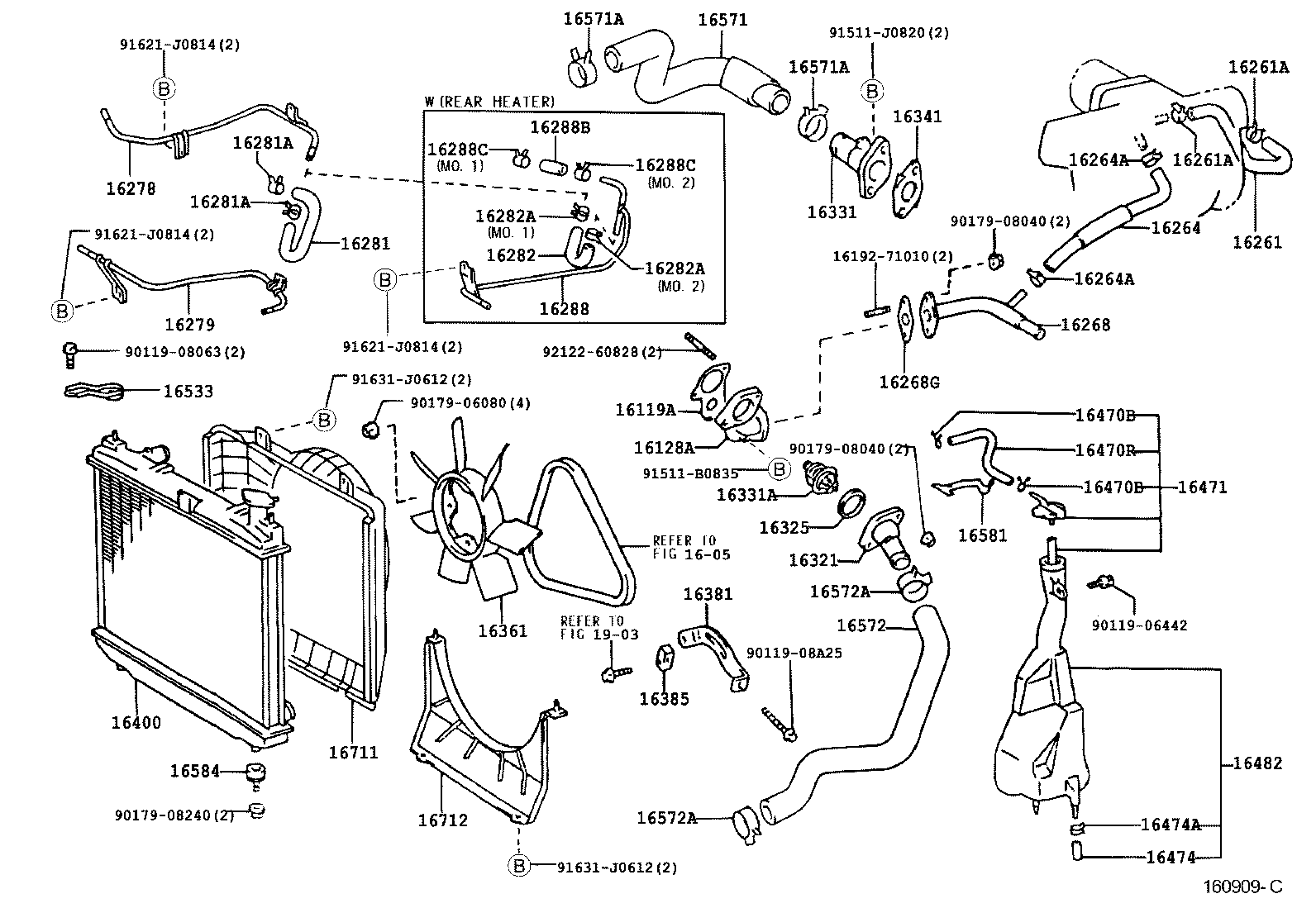

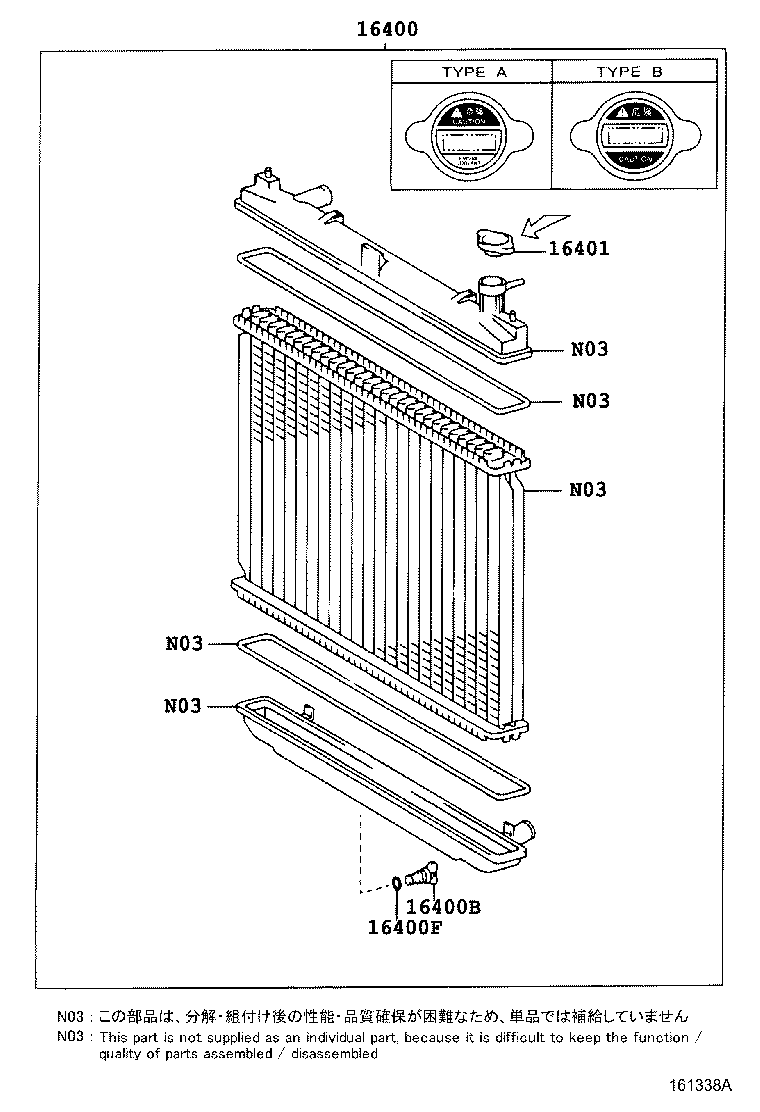

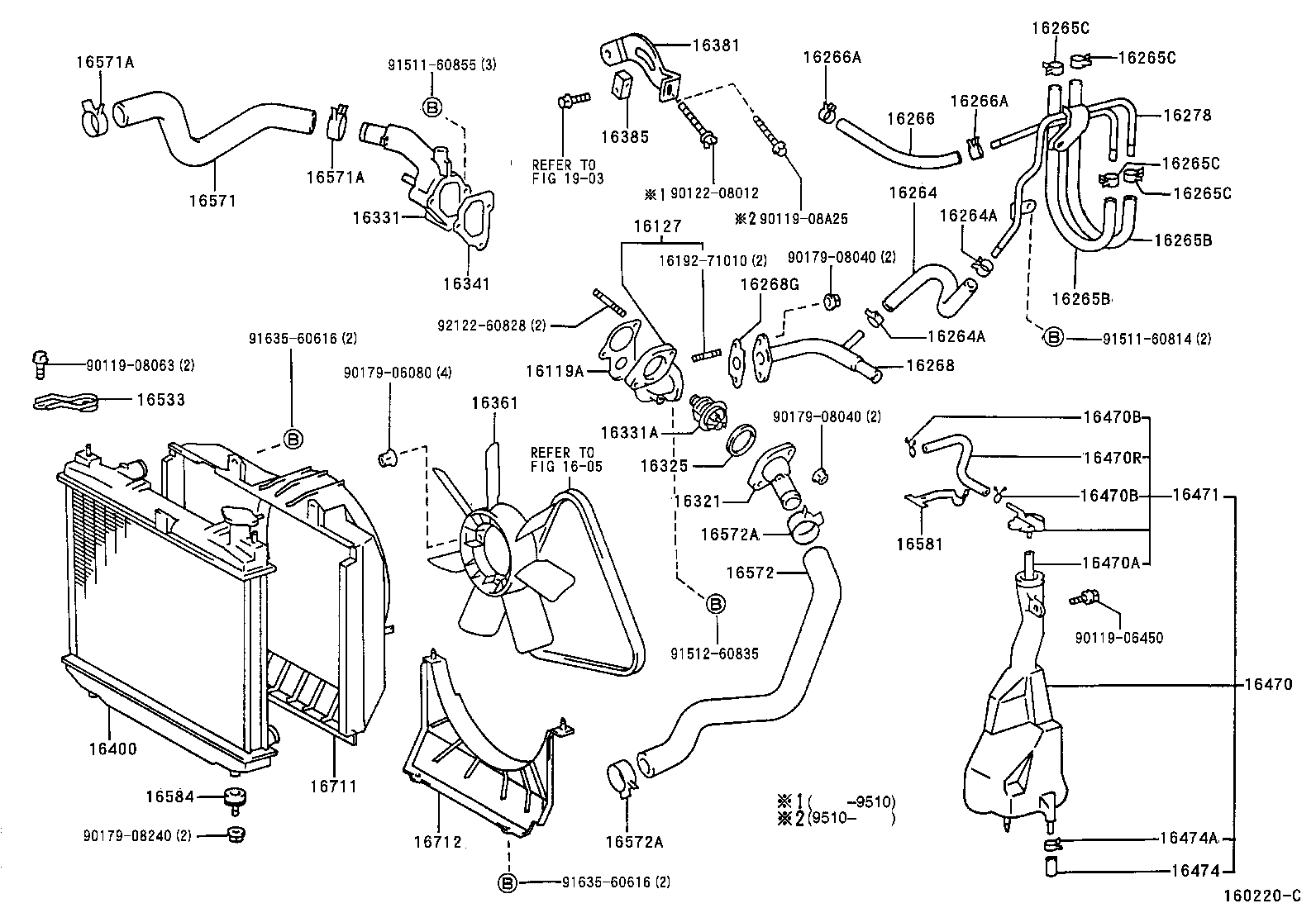

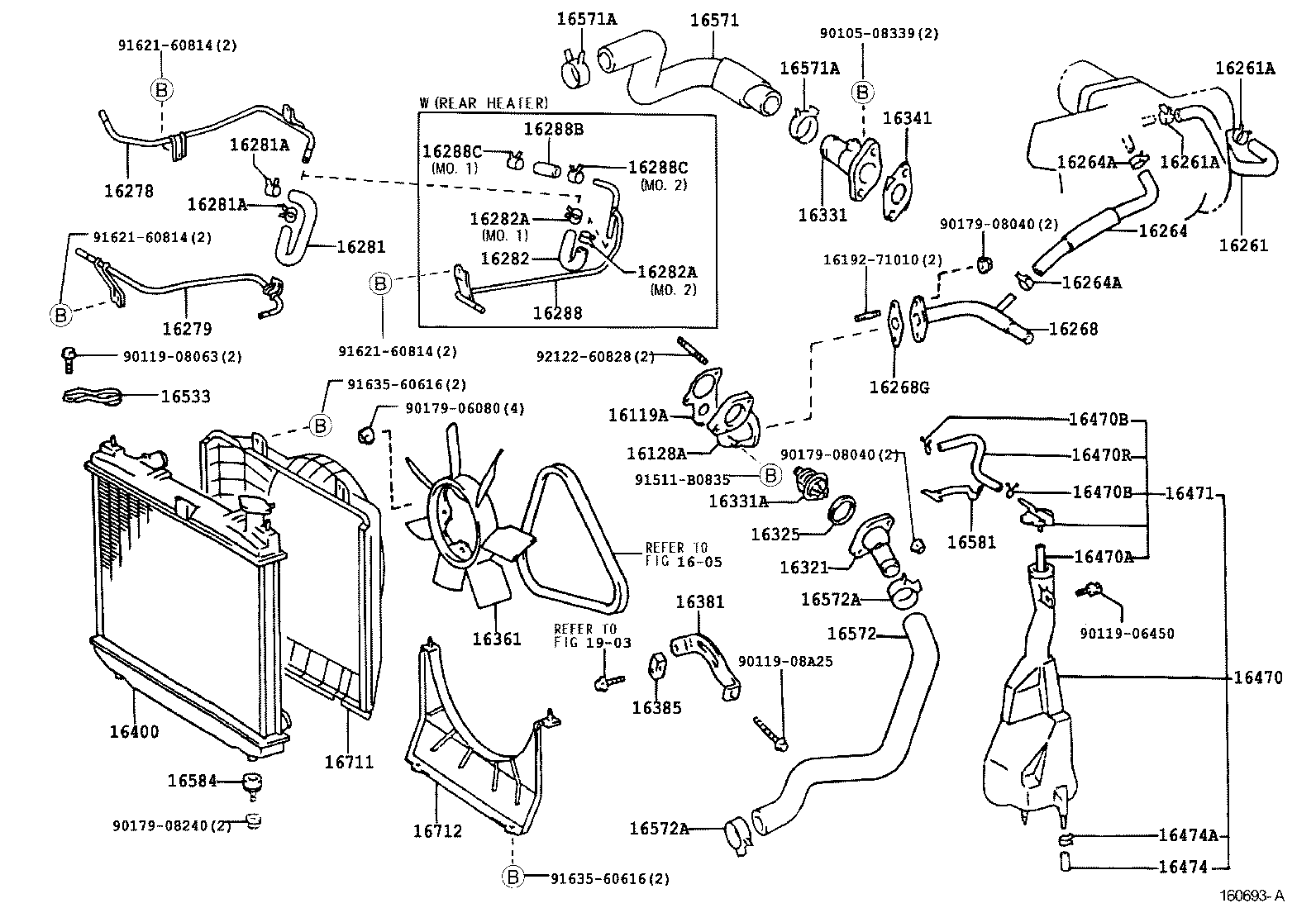

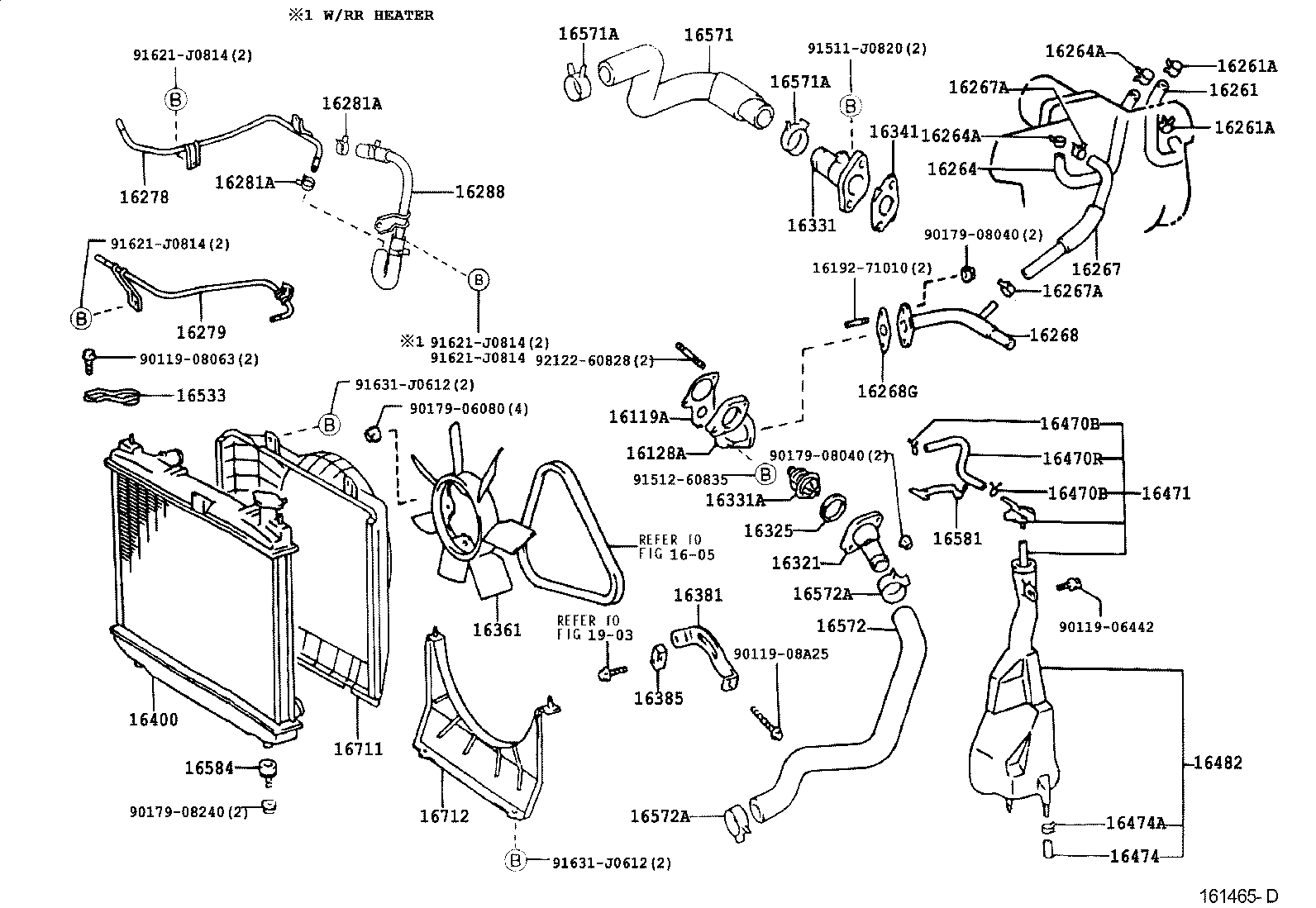

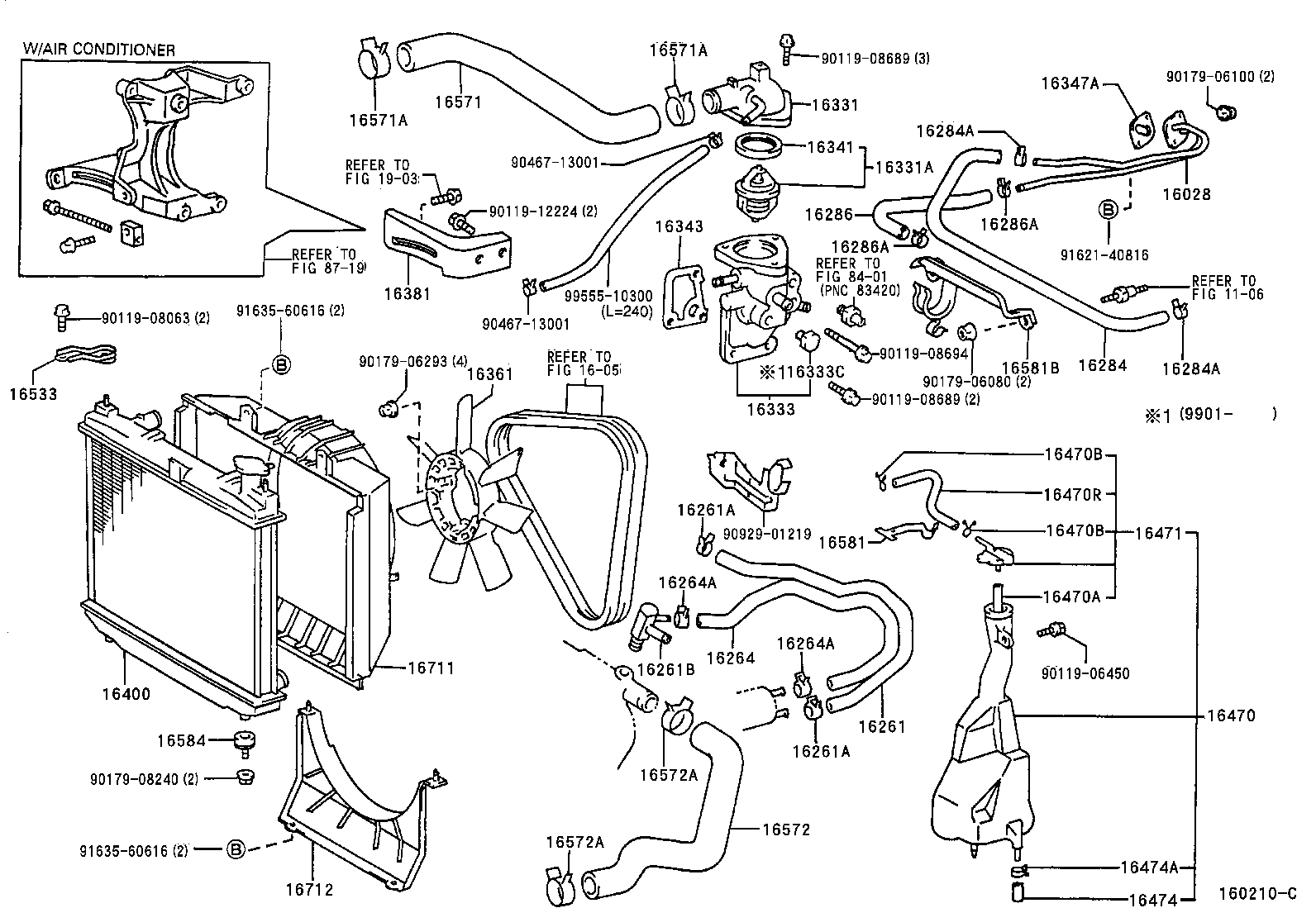

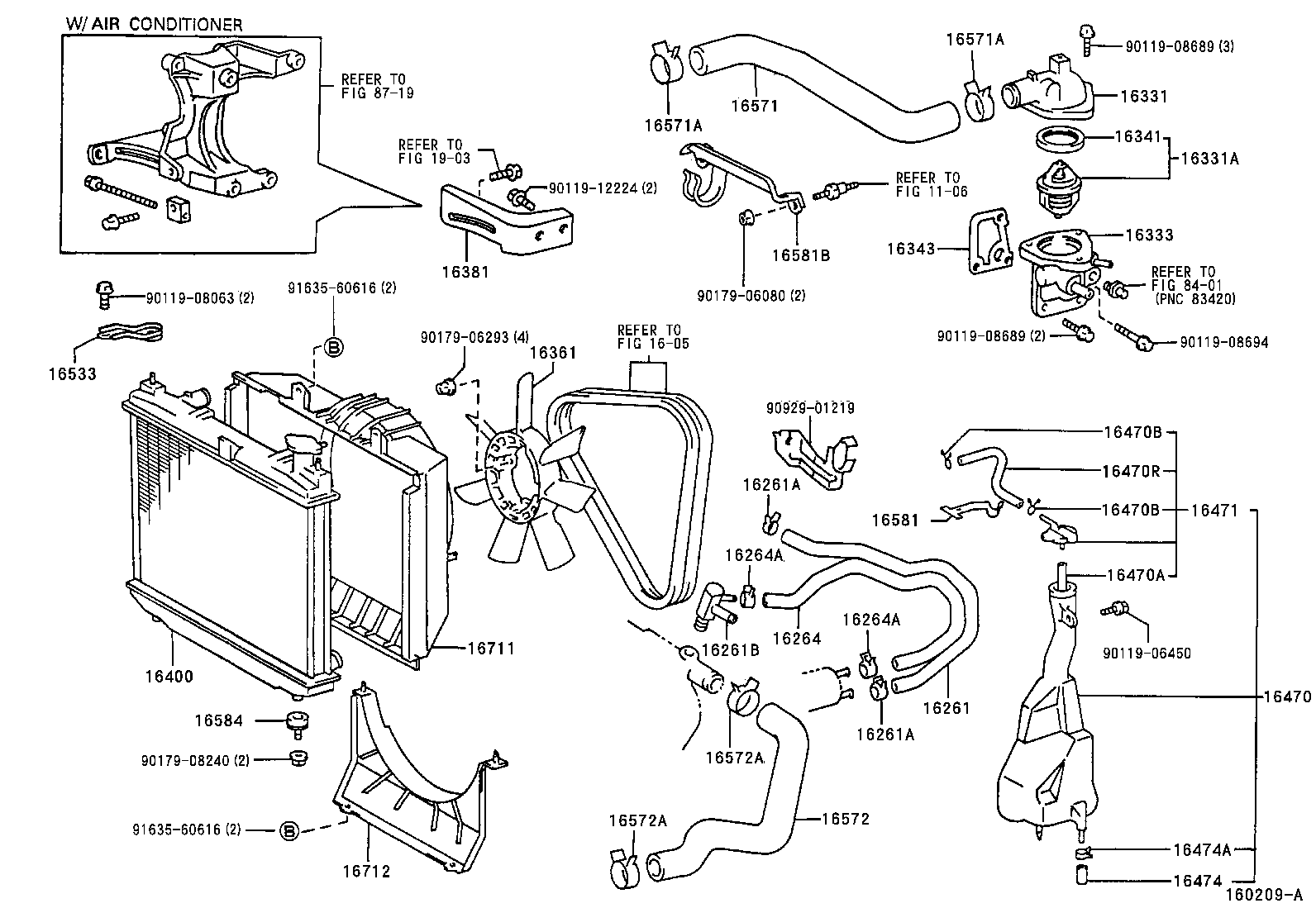

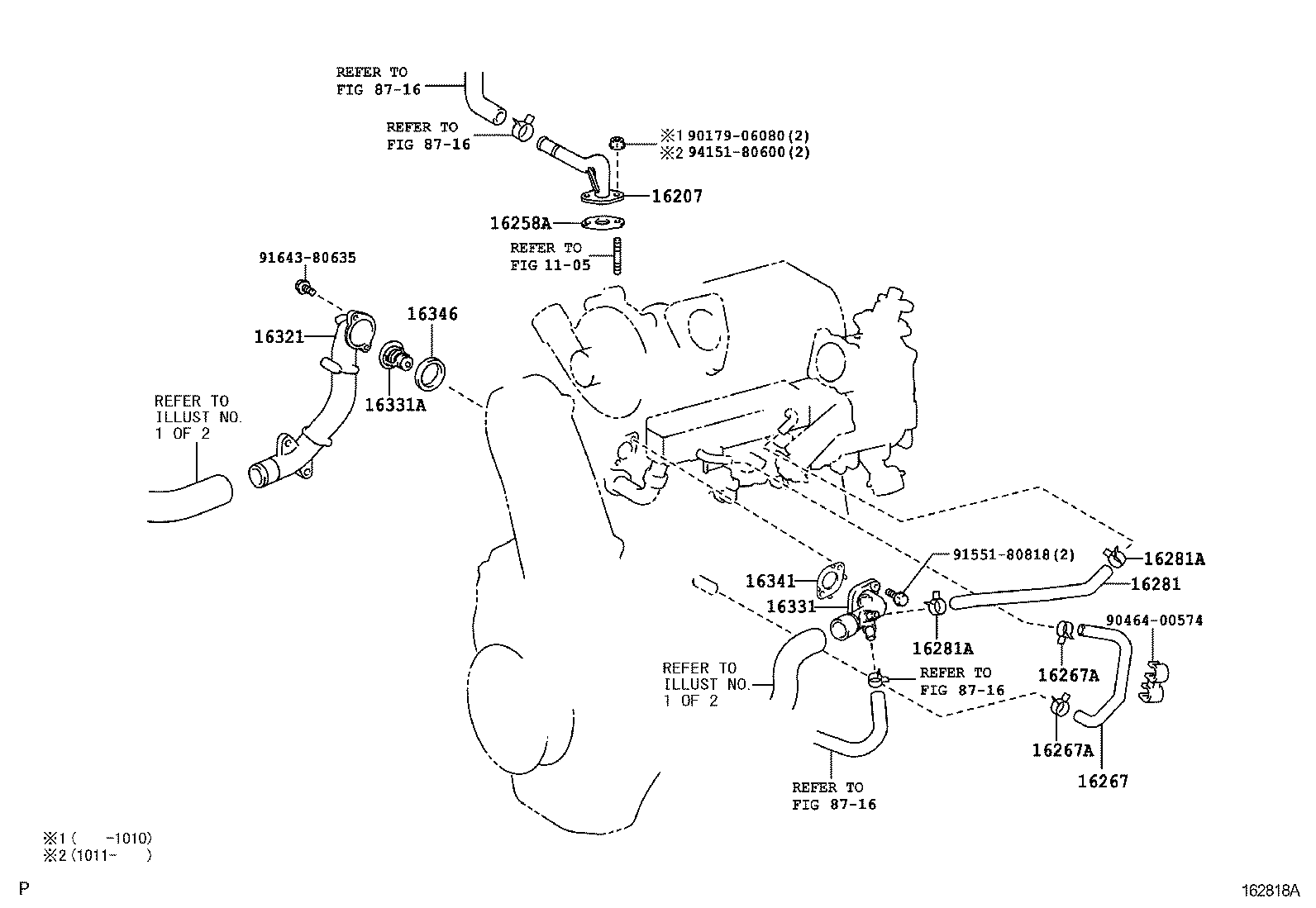

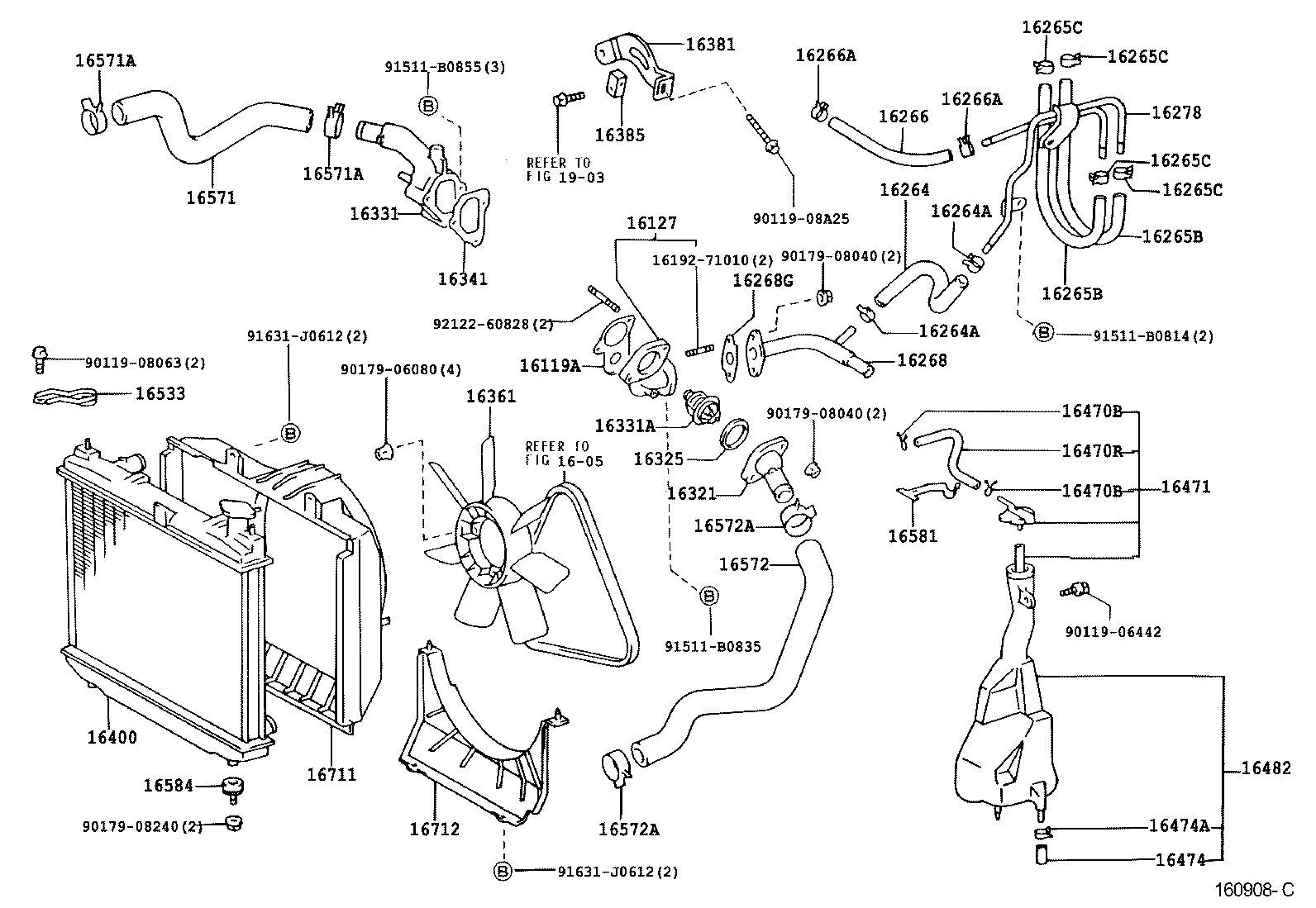

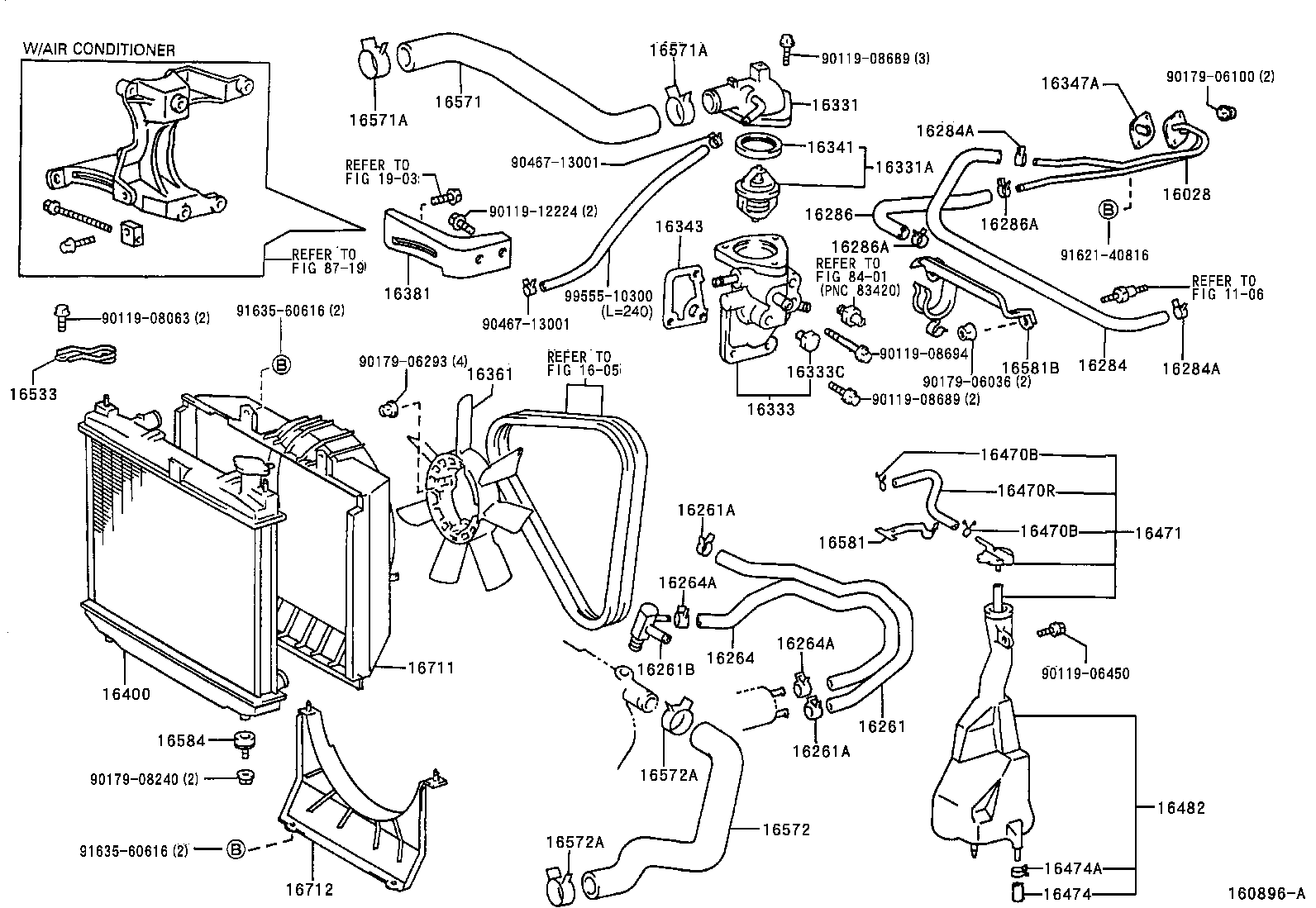

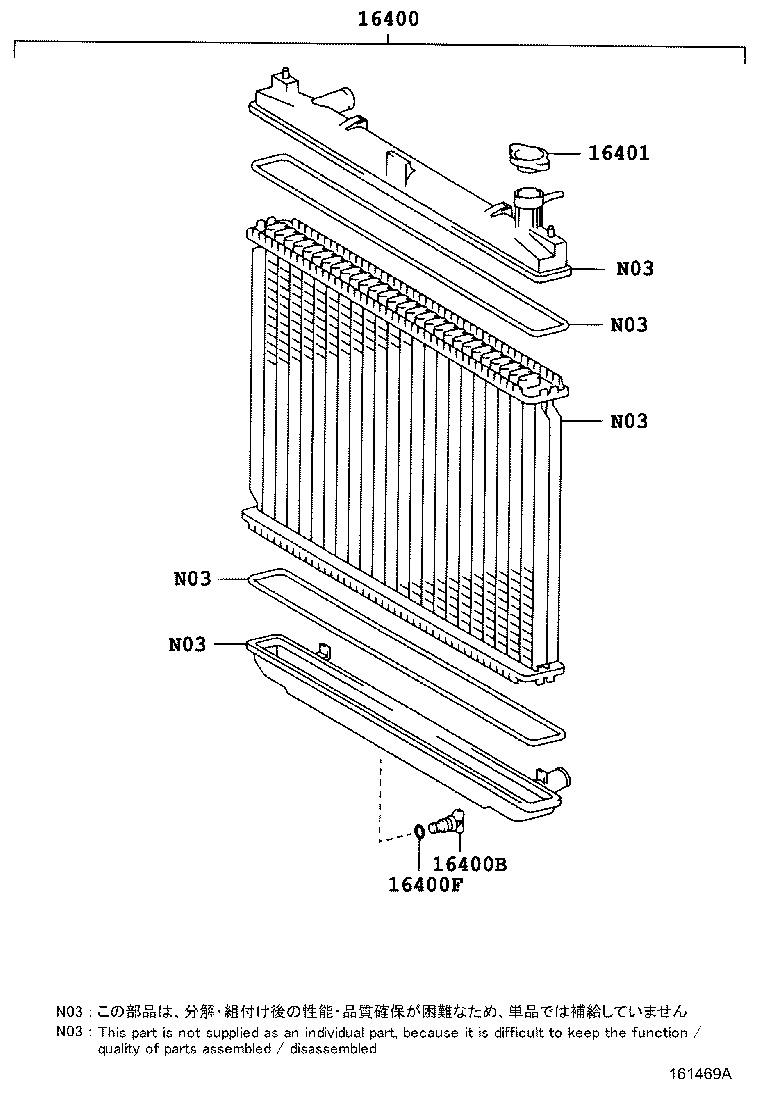

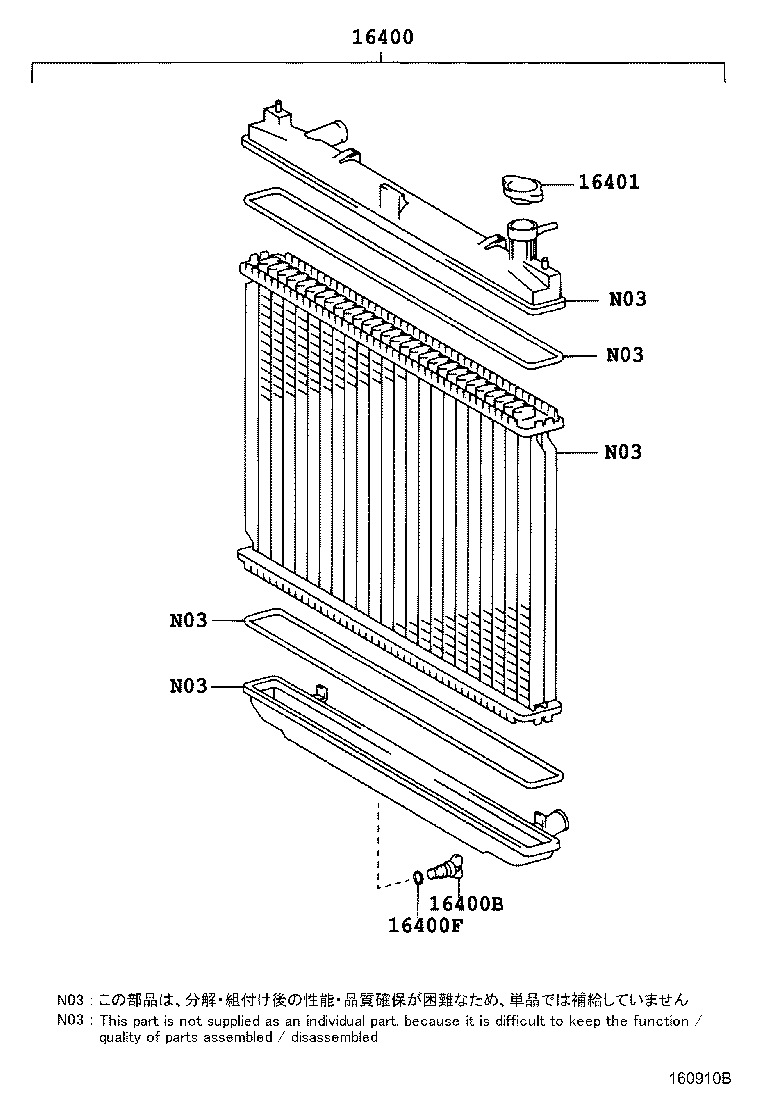

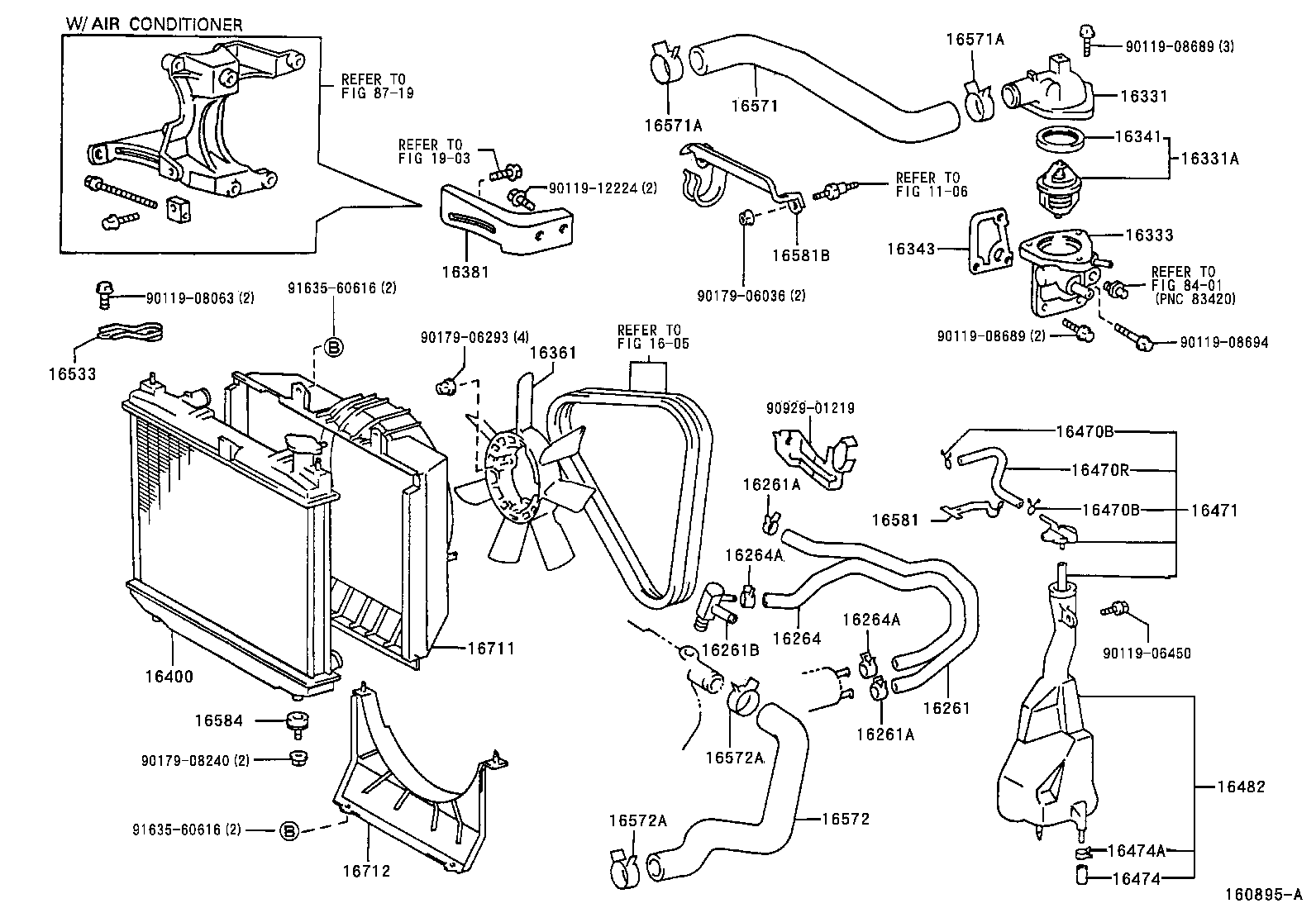

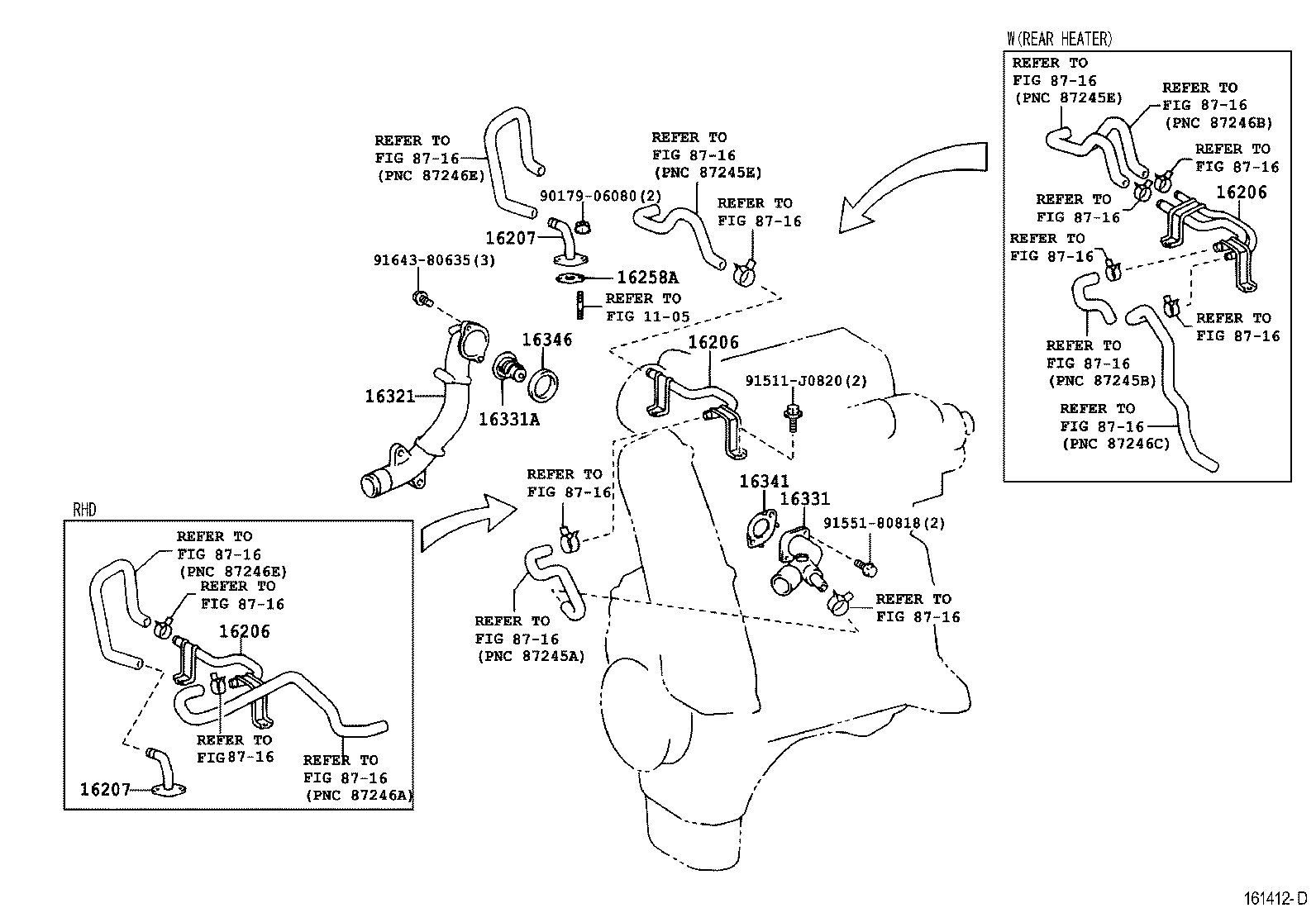

Figure 161411F 161411F 2001-08 → — Figure 161412D 161412D 2001-08 → 2006-08 Figure 162818A 162818A 2006-08 → — Figure 160209A 160209A 1995-08 → 1999-07 Figure 160895A 160895A 1999-07 → — Figure 160210C 160210C 1995-08 → 1999-07 Figure 160896A 160896A 1999-07 → — Figure 161338A 161338A 1995-08 → 1999-07 Figure 160897B 160897B 1999-07 → — Figure 160220C 160220C 1995-08 → 1999-07 Figure 160908C 160908C 1999-07 → — Figure 160693A 160693A 1998-04 → 1999-07 Figure 160693A 160693A 1999-07 → 1999-10 Figure 160909C 160909C 1999-07 → 1999-10 Figure 160909C 160909C 1999-10 → 2001-08 Figure 161465D 161465D 2001-08 → — Figure 160910B 160910B 1995-08 → 1999-07 Figure 161469A 161469A 1999-07 → —

Part groups

PNCDescription
16028 Pipe Sub-assy, Turbo Water, NO.2
16119A Gasket, Thermostat Guide
16127 Plate, Water Pump Thermostat Guide
16128A Plate, Water Pump Thermostat Guide
16206 Pipe Sub-assy, Water By-pass
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16265B Hose, Intake Manifold Water, NO.1
16265C Clamp OR Clip(FOR INTAKE MANIFOLD WATER HOSE NO.1)
16266 Hose, Intake Manifold Water, NO.2
16266A Clamp OR Clip(FOR INTAKE MANIFOLD WATER HOSE, NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16288 Pipe, Water By-pass, NO.4
16288B Hose, Water(FOR WATER BY-PASS PIPE NO.4)
16288C Clip(FOR WATER BY-PASS PIPE NO.4)
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16333 Housing, Water Outlet
16333C Plug, W/Head Taper Screw
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16474 Cap(FOR RADIATOR RESERVE TANK DRAIN)
16474A Clamp OR Clip(FOR RADIATOR RESERVE TANK DRAIN CAP)
16482 Tank Sub-assy, Radiator Reserve
16533 Support, Radiator, Upper
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16584 Insulator, Radiator Mounting
16701 Shroud Sub-assy, Fan
16702 Shroud Sub-assy, Fan, NO.2
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
