Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

63 part groups · 9 illustrations

Illustrations

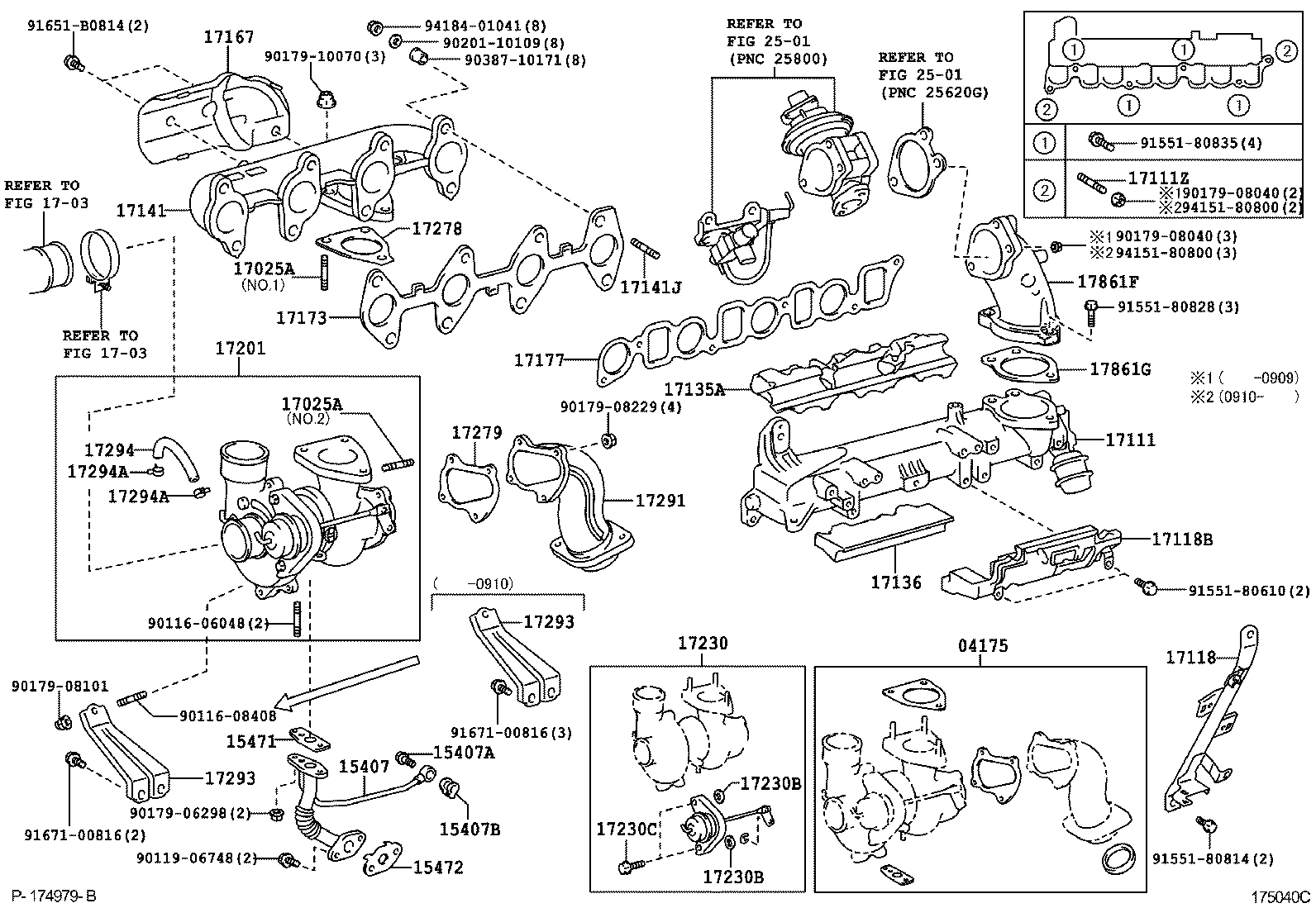

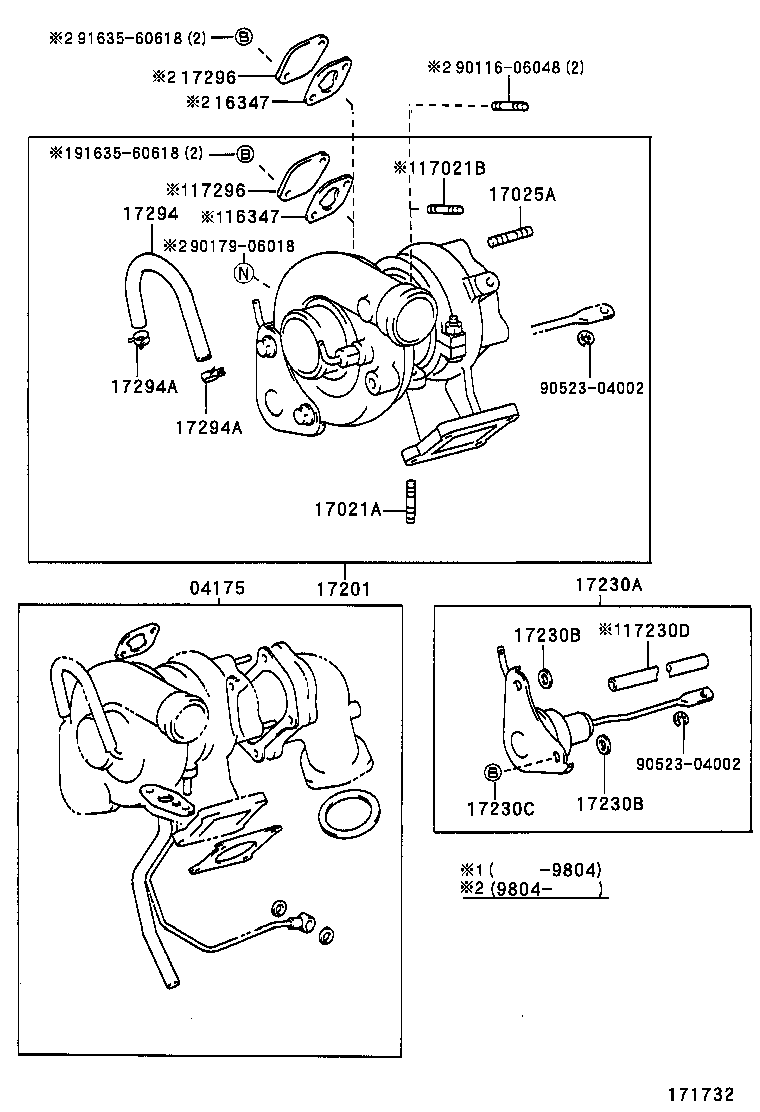

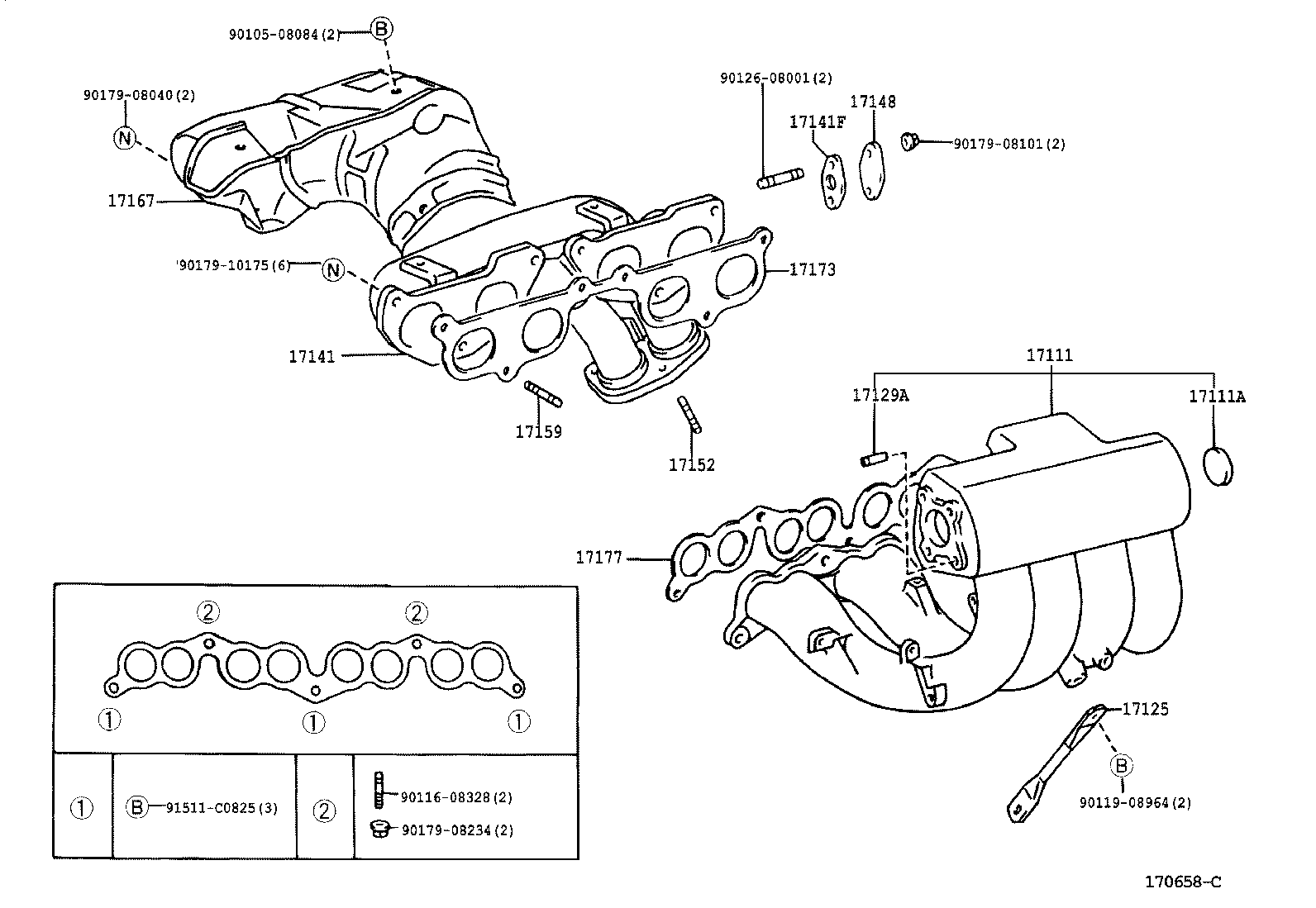

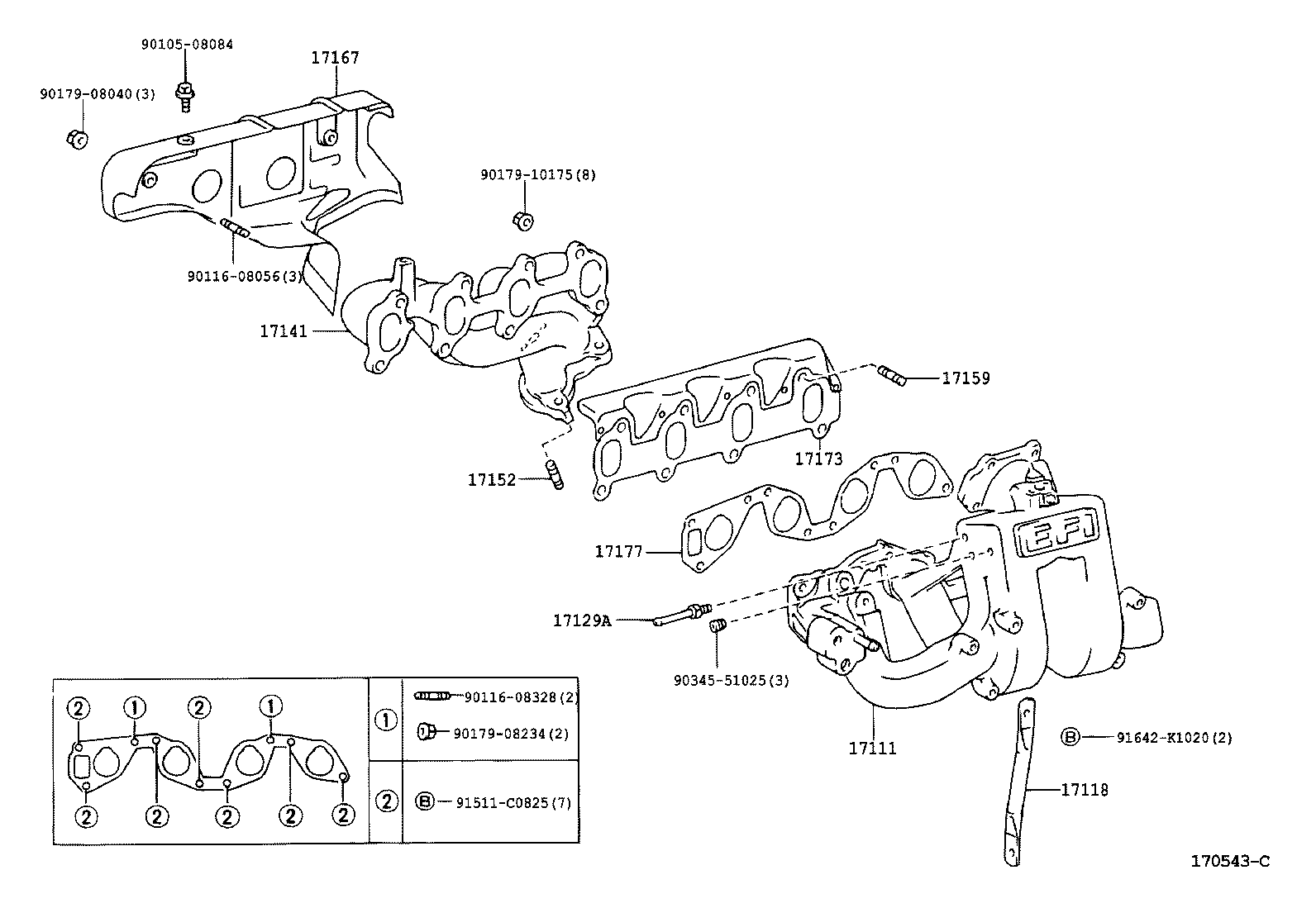

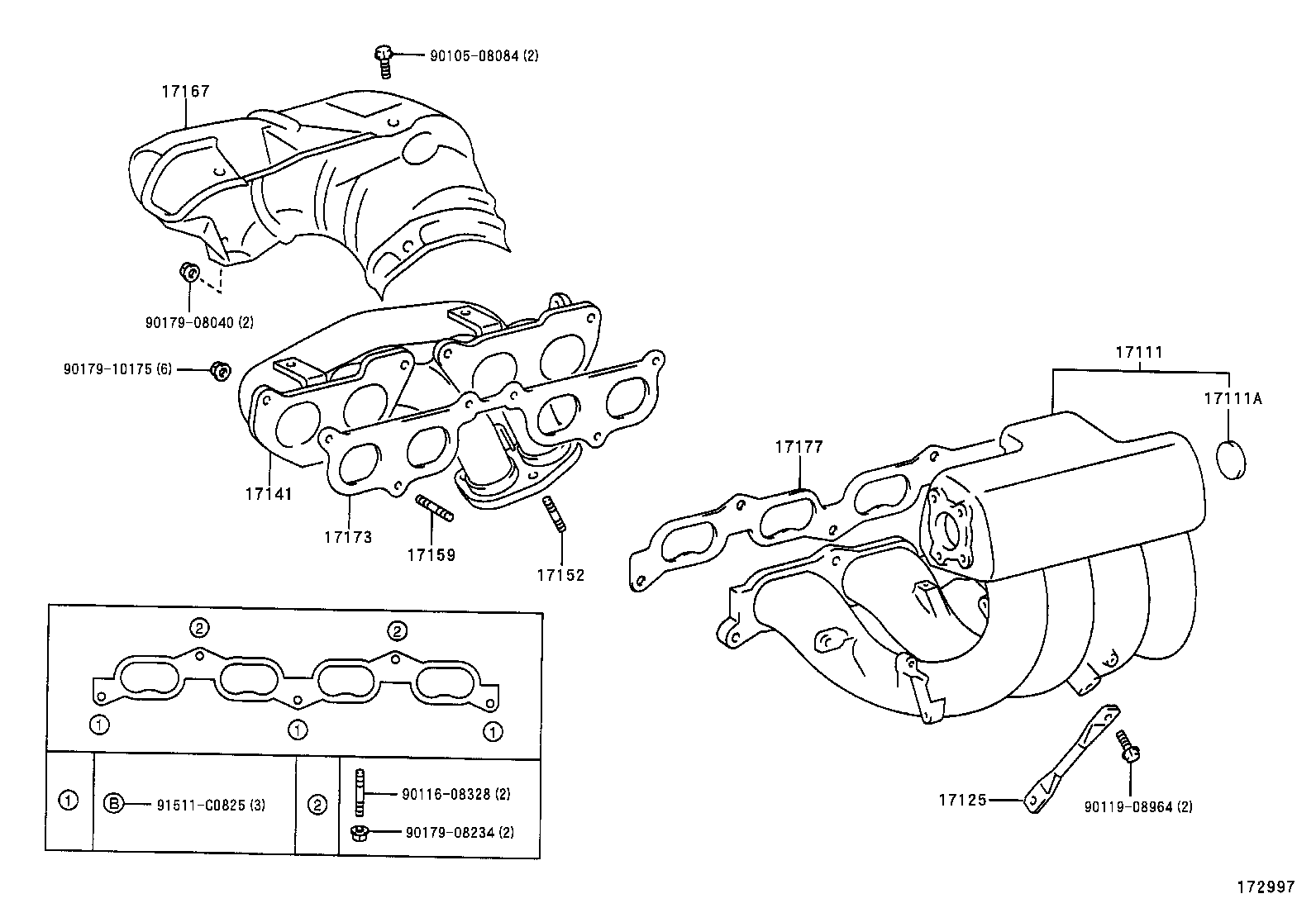

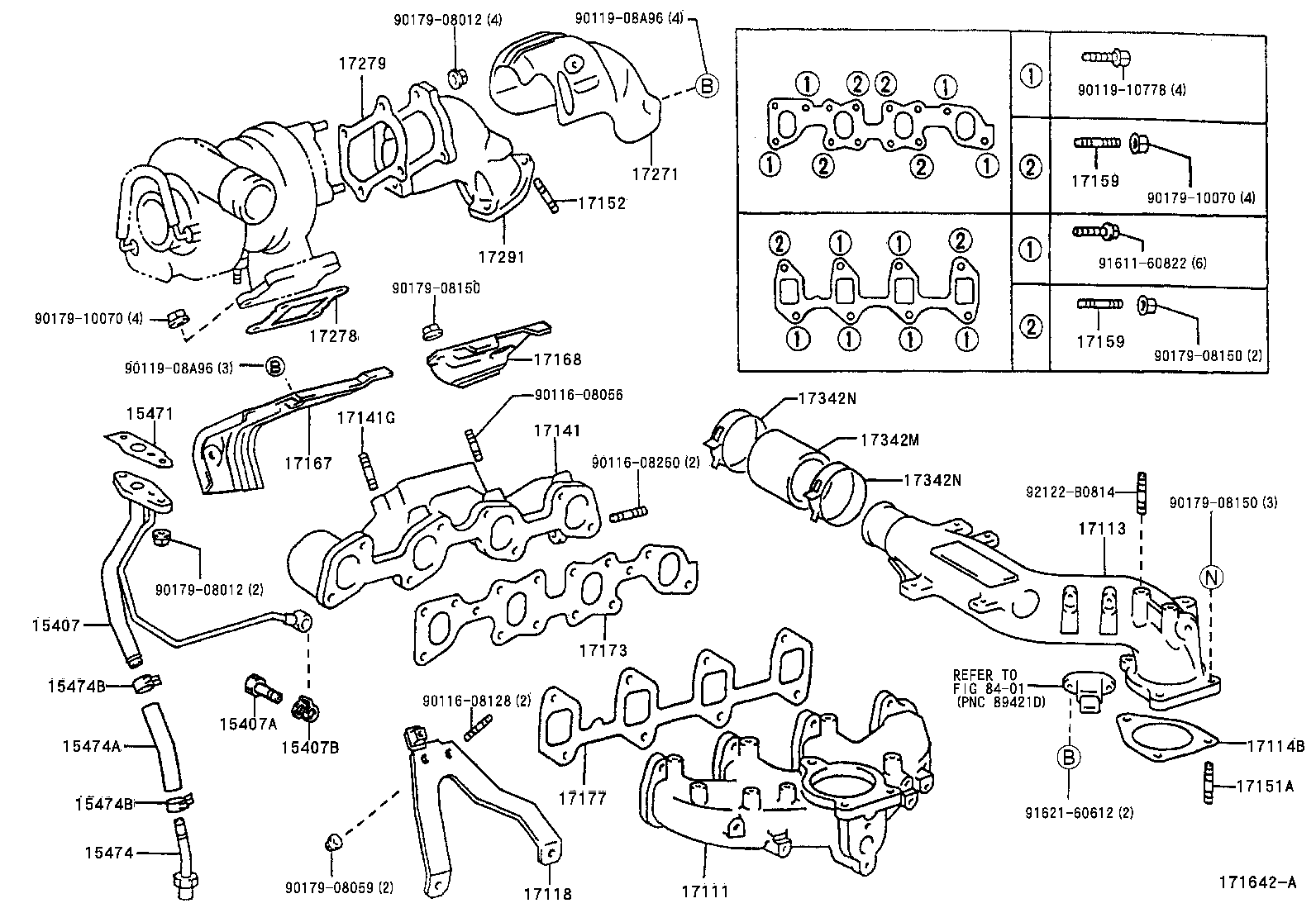

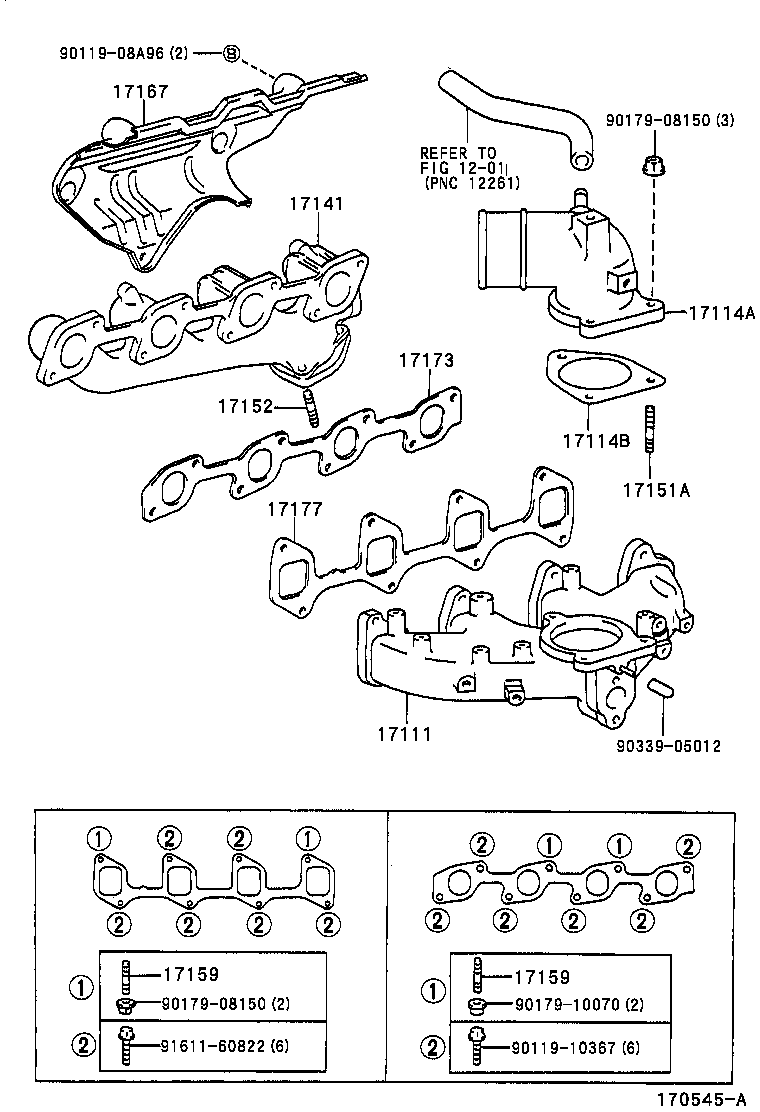

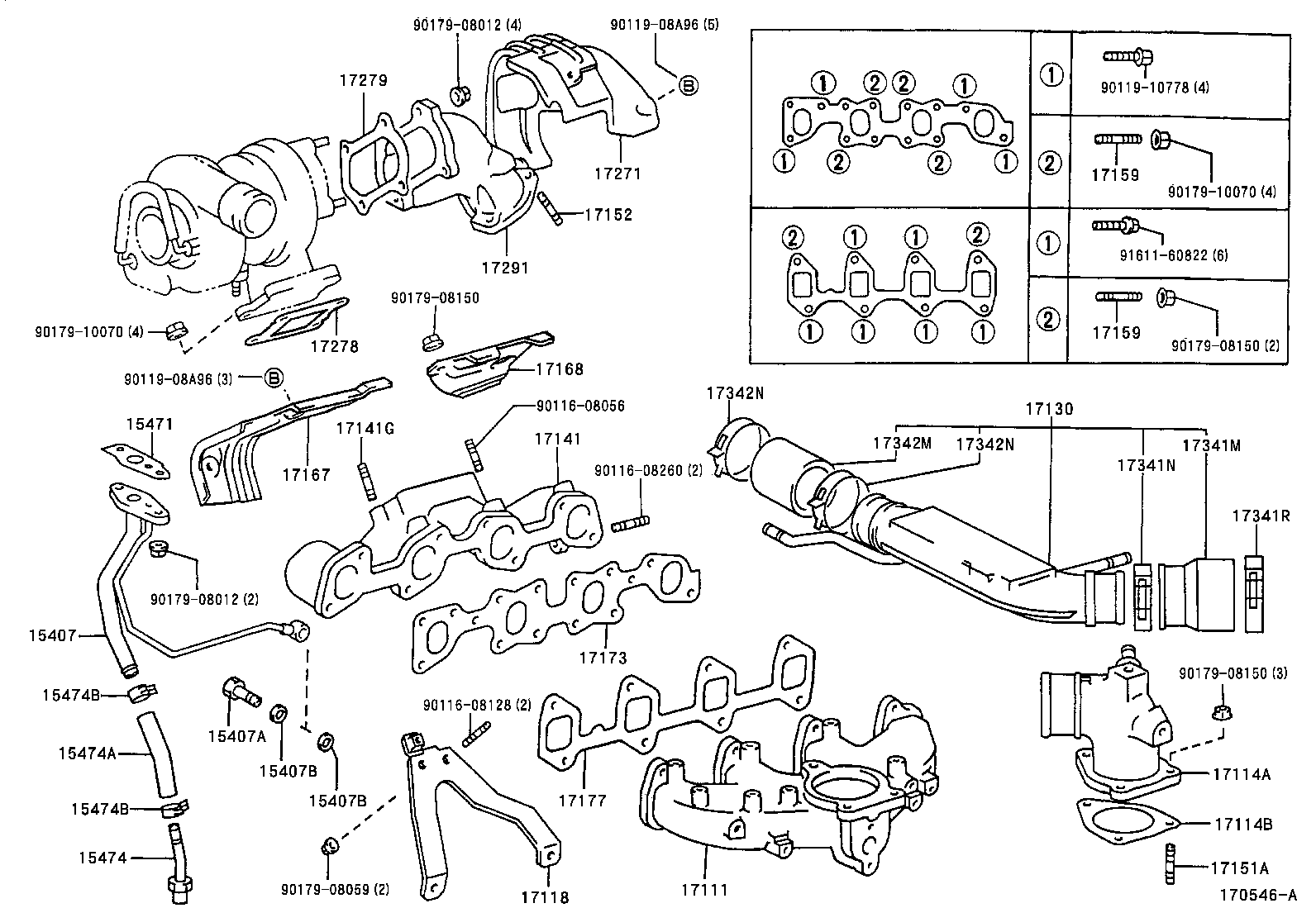

Figure 173066E 173066E 2001-08 → 2006-08 Figure 175040C 175040C 2006-08 → — Figure 170545A 170545A 1995-08 → 2001-08 Figure 170546A 170546A 1995-08 → 1998-04 Figure 171642A 171642A 1998-04 → 2001-08 Figure 171732 171732 1995-08 → 2001-08 Figure 170543C 170543C 1995-08 → — Figure 170658C 170658C 1998-04 → 2001-08 Figure 172997 172997 2001-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16347 Gasket, Water By-pass
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111A Plug, NO.1
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17113 Pipe, Intake
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17129A Union, NO.1
17130 Pipe, Intake
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17141 Manifold, Exhaust
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17141G Bolt, Stud(FOR TURBOCHARGER)
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17230 Actuator Assy, W/Bracket
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17230D Hose(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17280 Valve Assy, Exhaust Gas Control
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17296 Plate, Bearing Housing, Side
17299 Stay, Turbine Outlet Elbow
17341M Hose, Air, NO.1
17341N Clamp OR Clip(FOR AIR HOSE, NO.1)
17341R Clamp OR Clip(FOR INTAKE AIR HOSE NO.1)
17342M Hose, Air, NO.2
17342N Clamp OR Clip(FOR AIR HOSE, NO.2)
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
25051 Converter Sub-assy, Exhaust Manifold
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
