Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

33 part groups · 10 illustrations

Illustrations

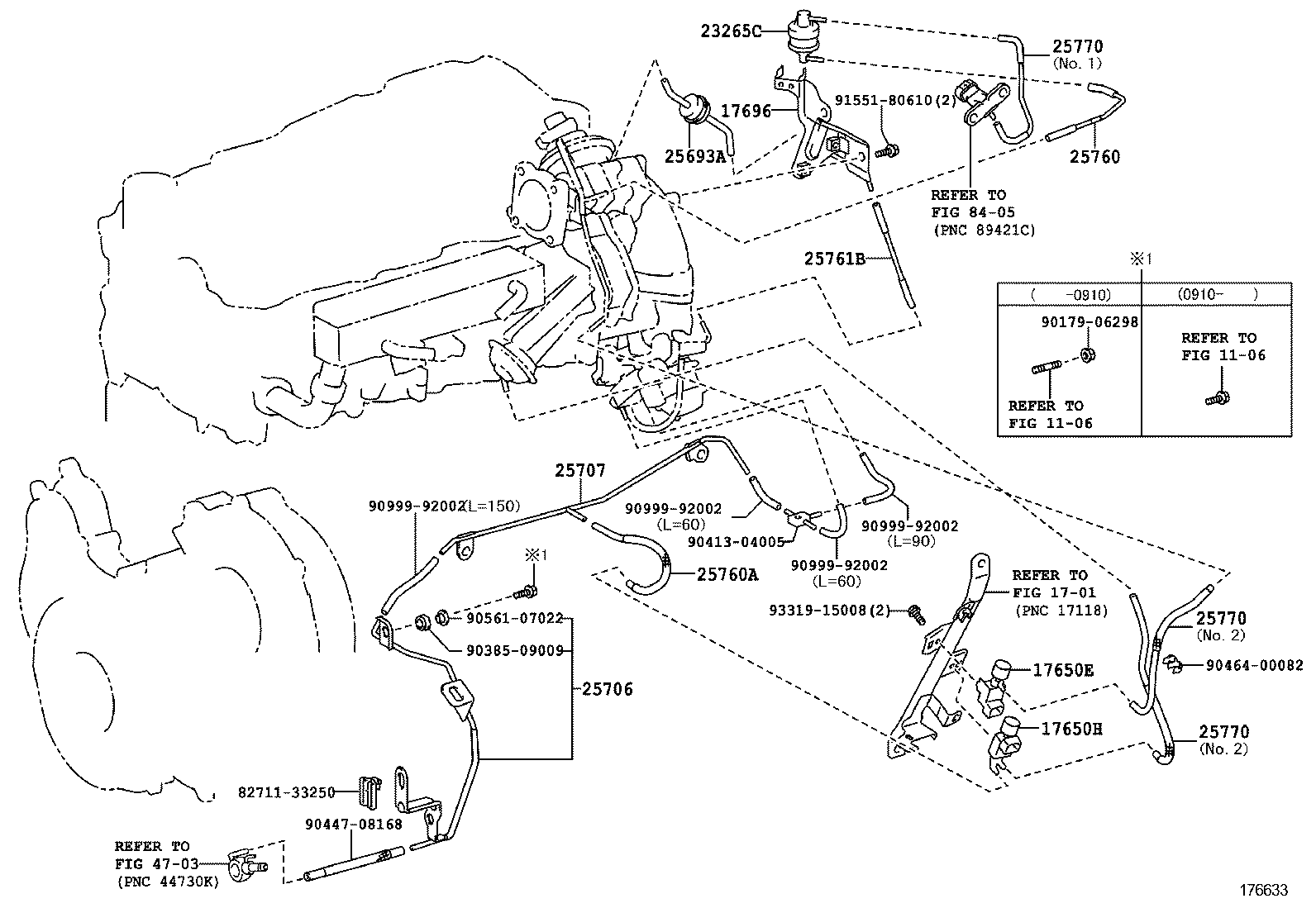

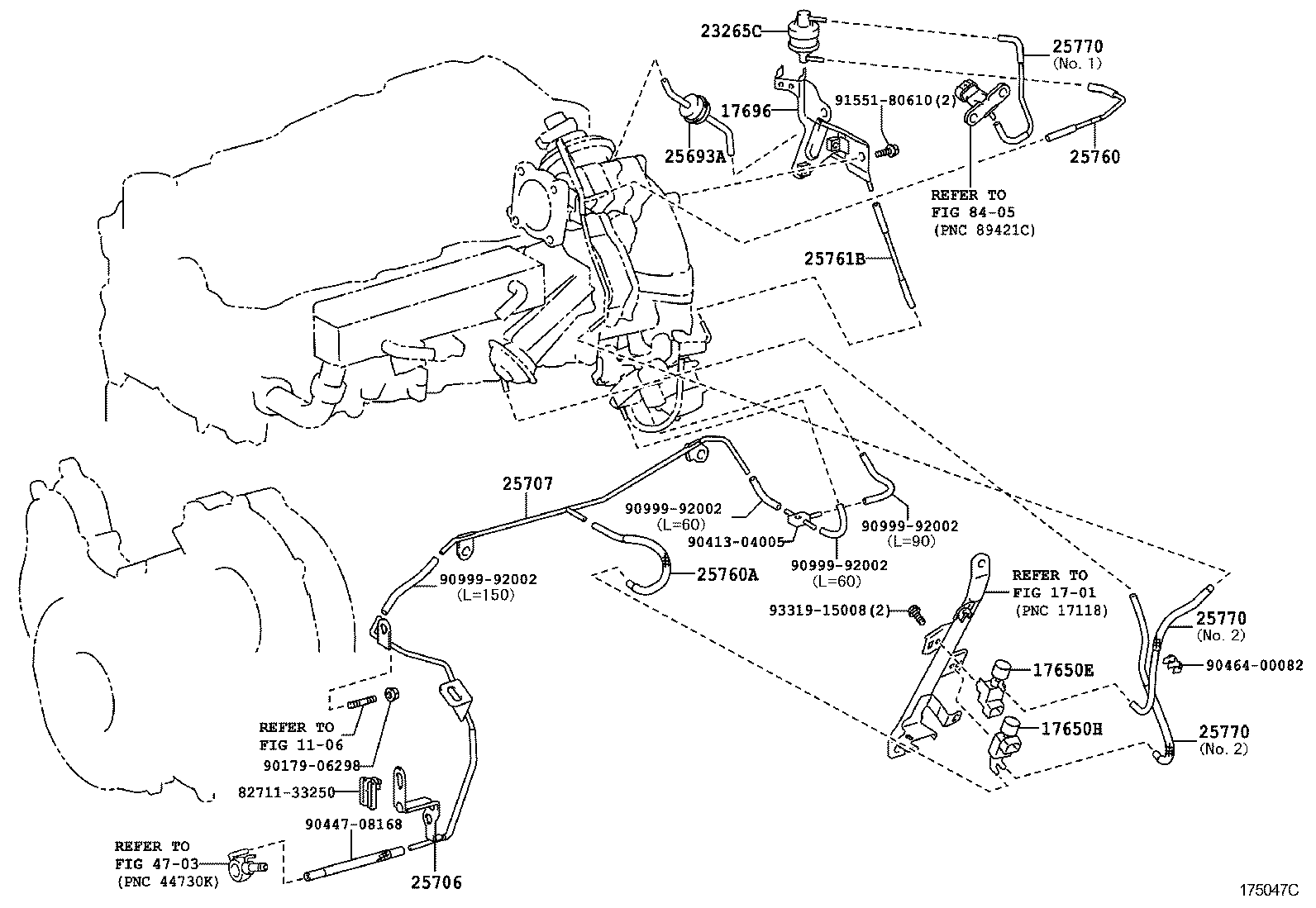

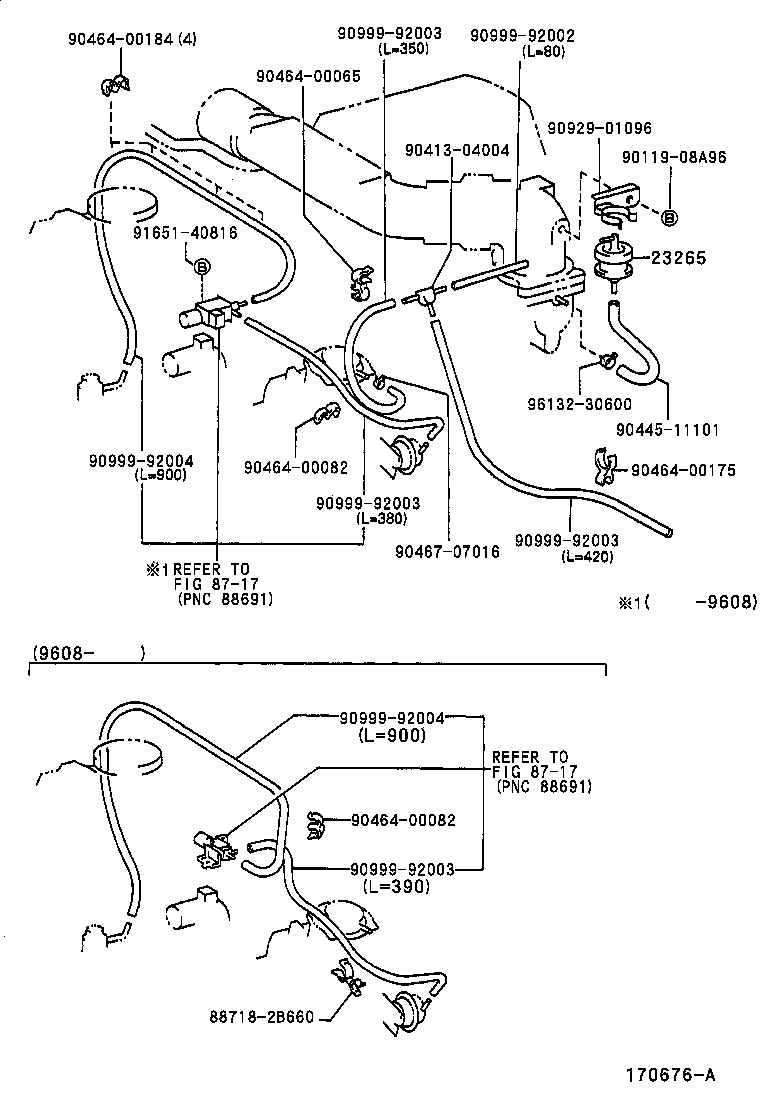

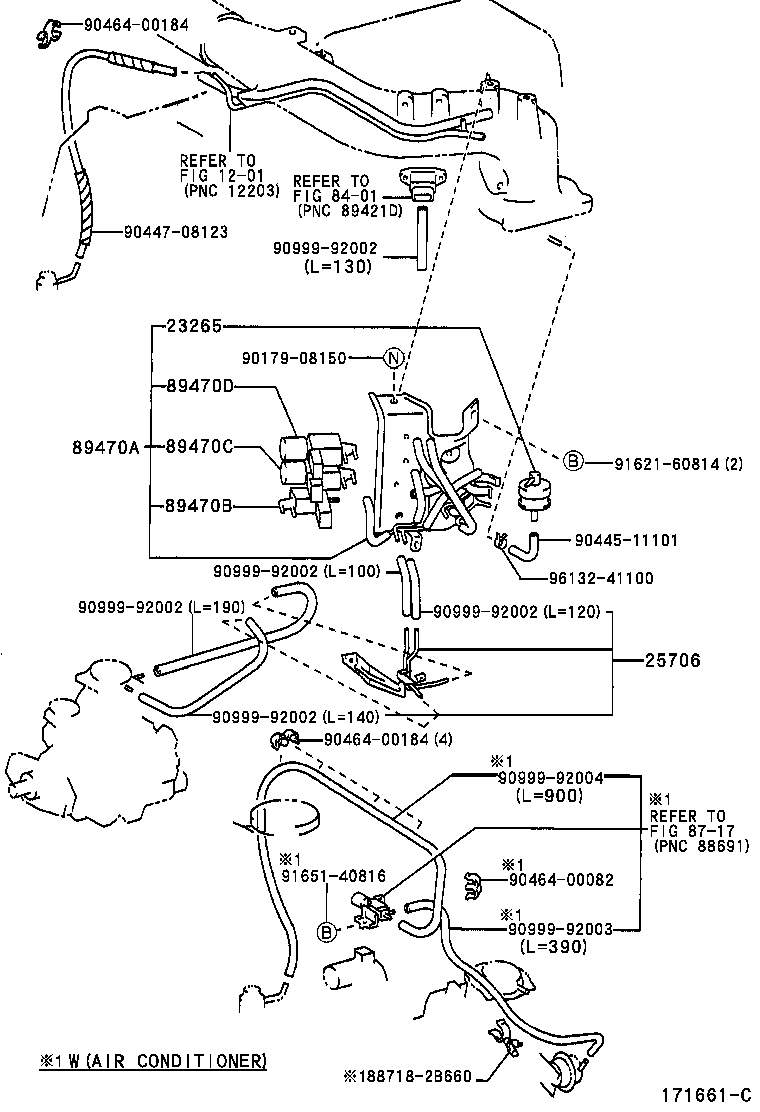

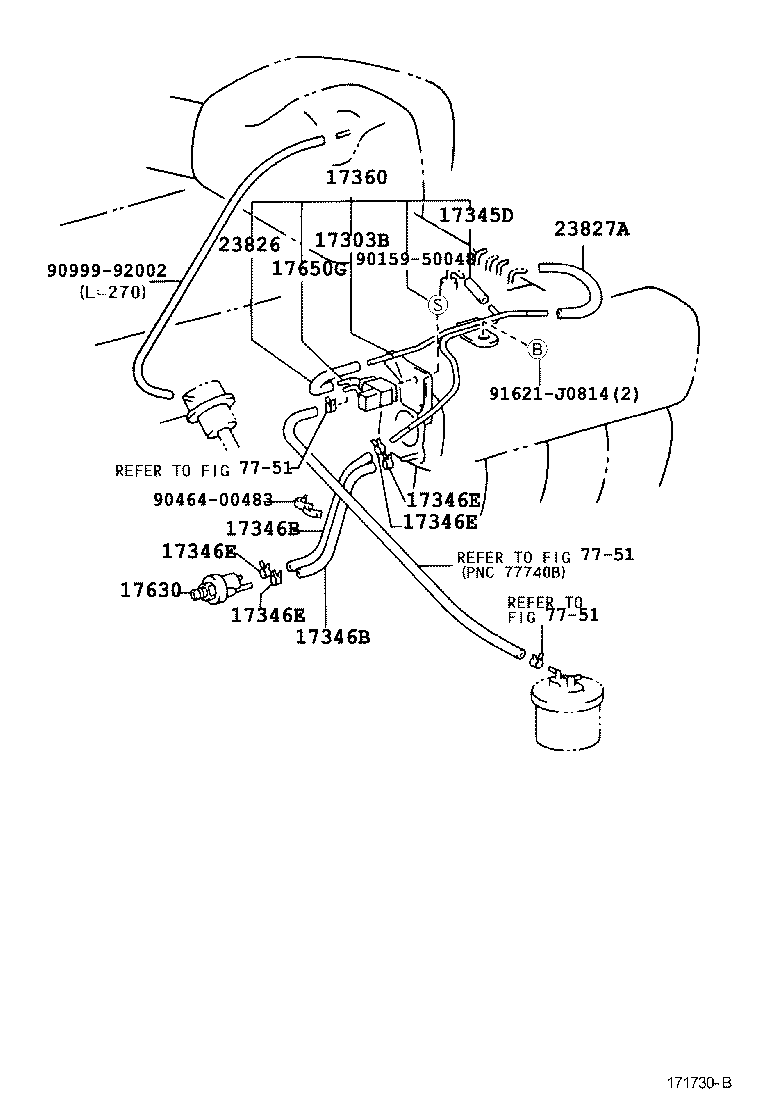

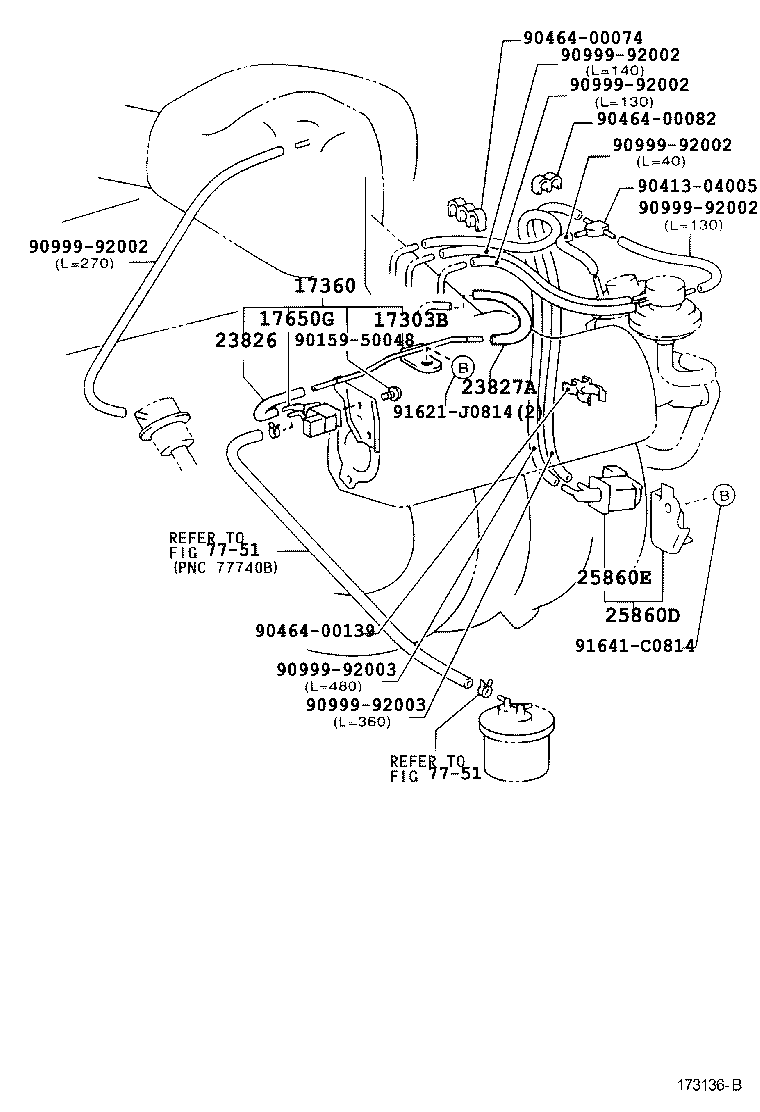

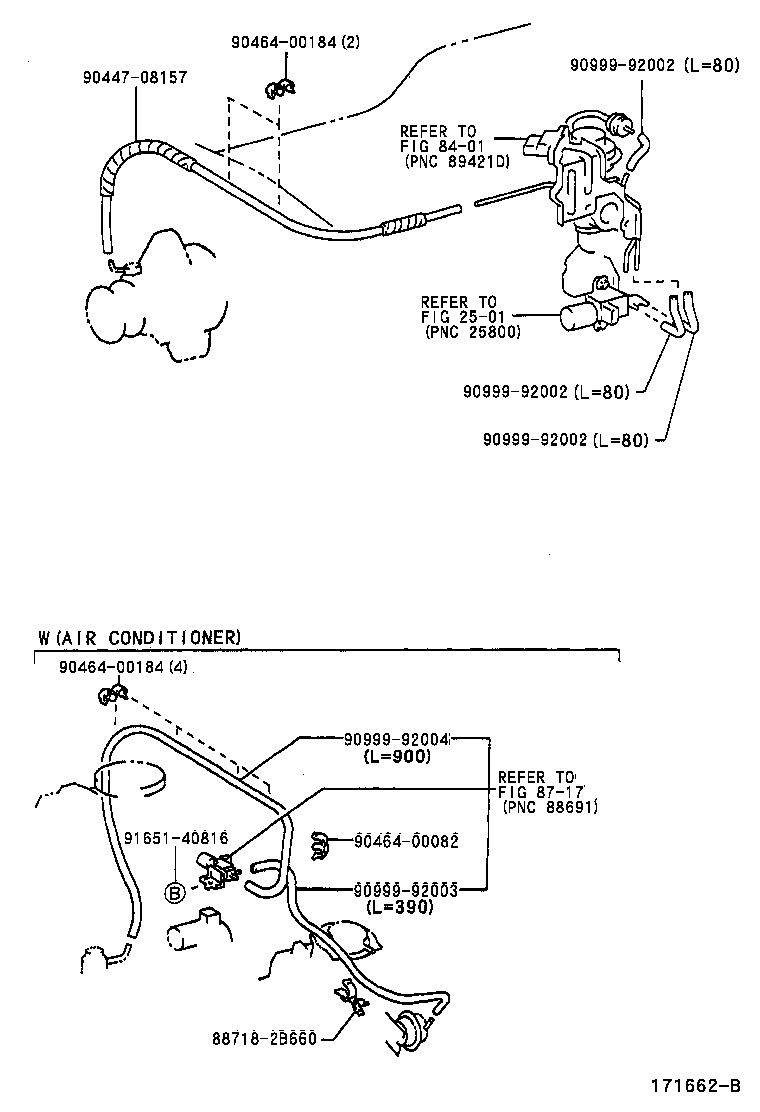

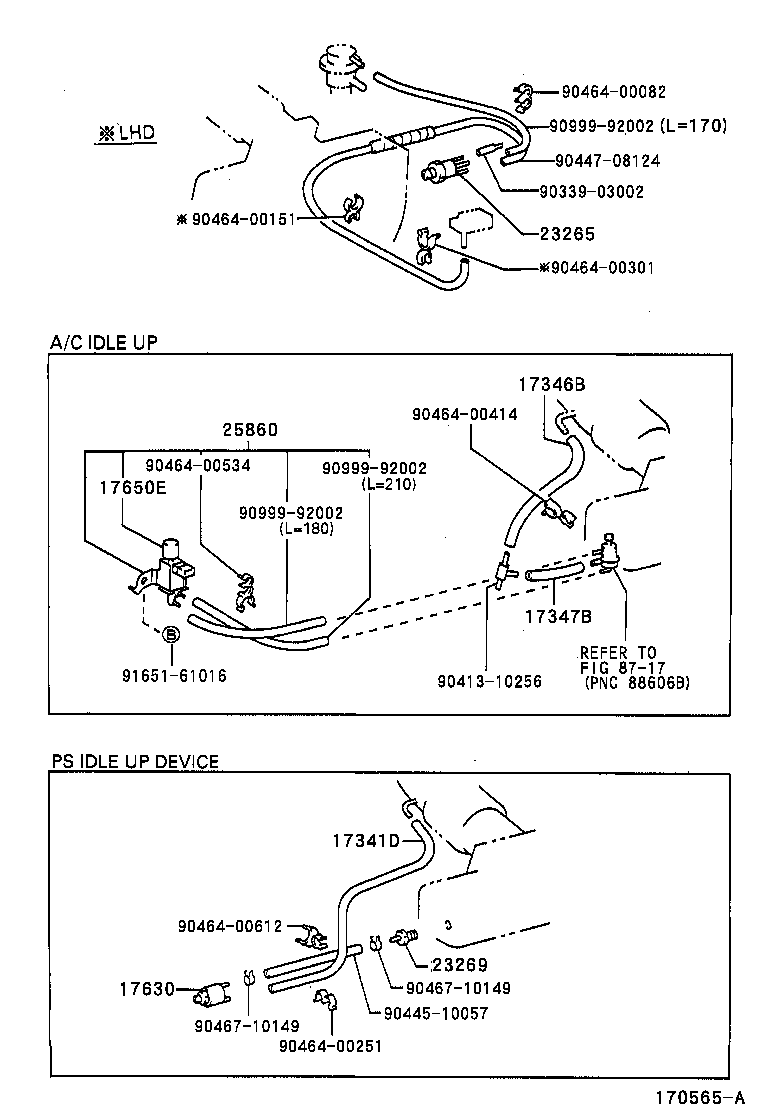

Figure 173068A 173068A 2001-08 → 2006-08 Figure 175047C 175047C 2006-08 → 2009-08 Figure 176633 176633 2009-08 → — Figure 170021 170021 1995-08 → — Figure 170676A 170676A 1995-08 → 1998-04 Figure 171662B 171662B 1998-04 → 2001-08 Figure 171661C 171661C 1998-04 → 2001-08 Figure 170565A 170565A 1995-08 → — Figure 171730B 171730B 1998-04 → 2001-08 Figure 173136B 173136B 2001-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17360 Tube Assy, Air
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17650H Valve, Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23265C Filter, Gas
23269 Union(FOR GAS FILTER)
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
25693A Damper, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
89470A Valve Assy, Vacuum Switching W/Bracket
89470B Valve, Vacuum Switching
89470C Valve, Vacuum Switching, NO.2
89470D Valve, Vacuum Switching, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
