Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

23 part groups · 4 illustrations

Illustrations

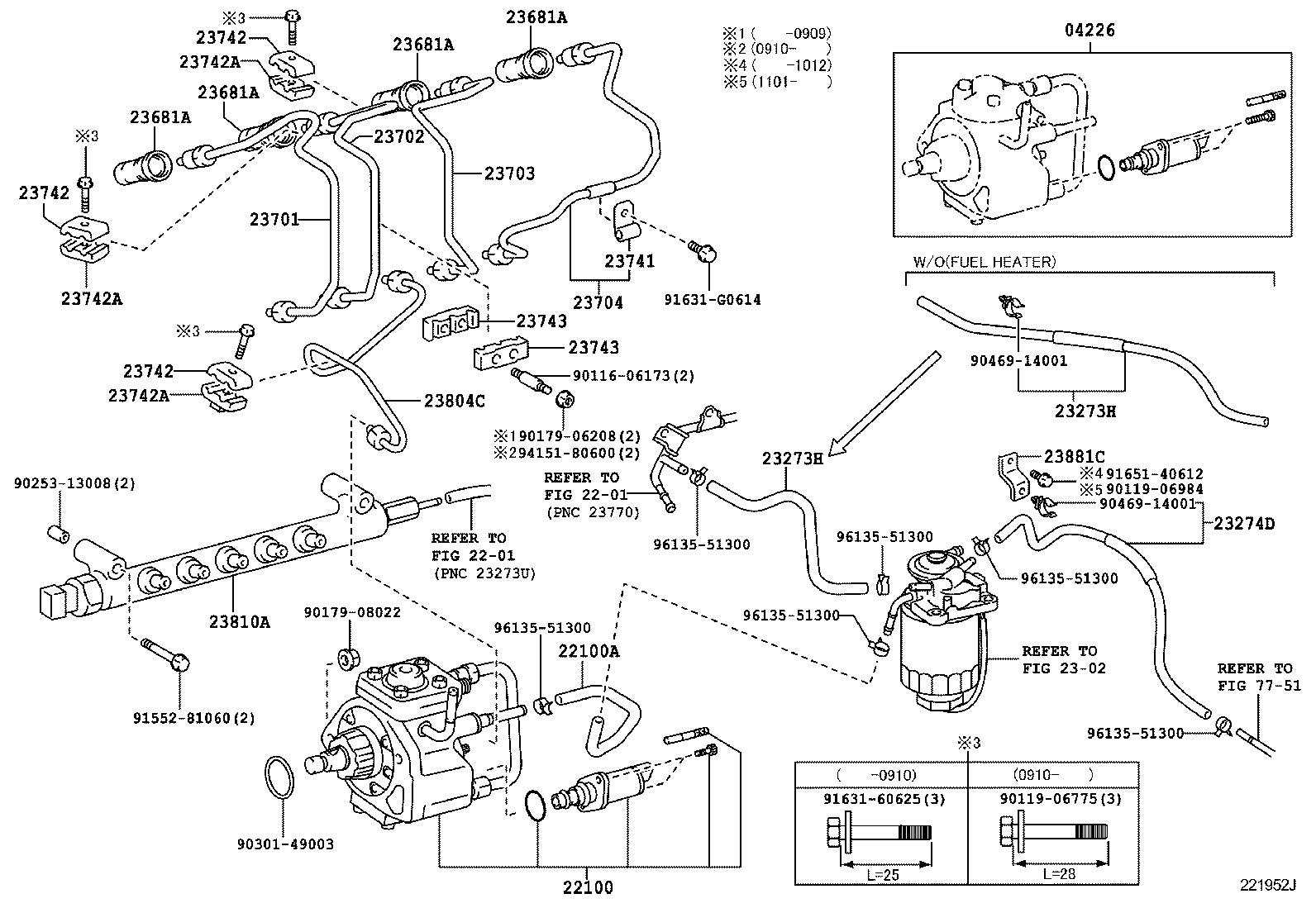

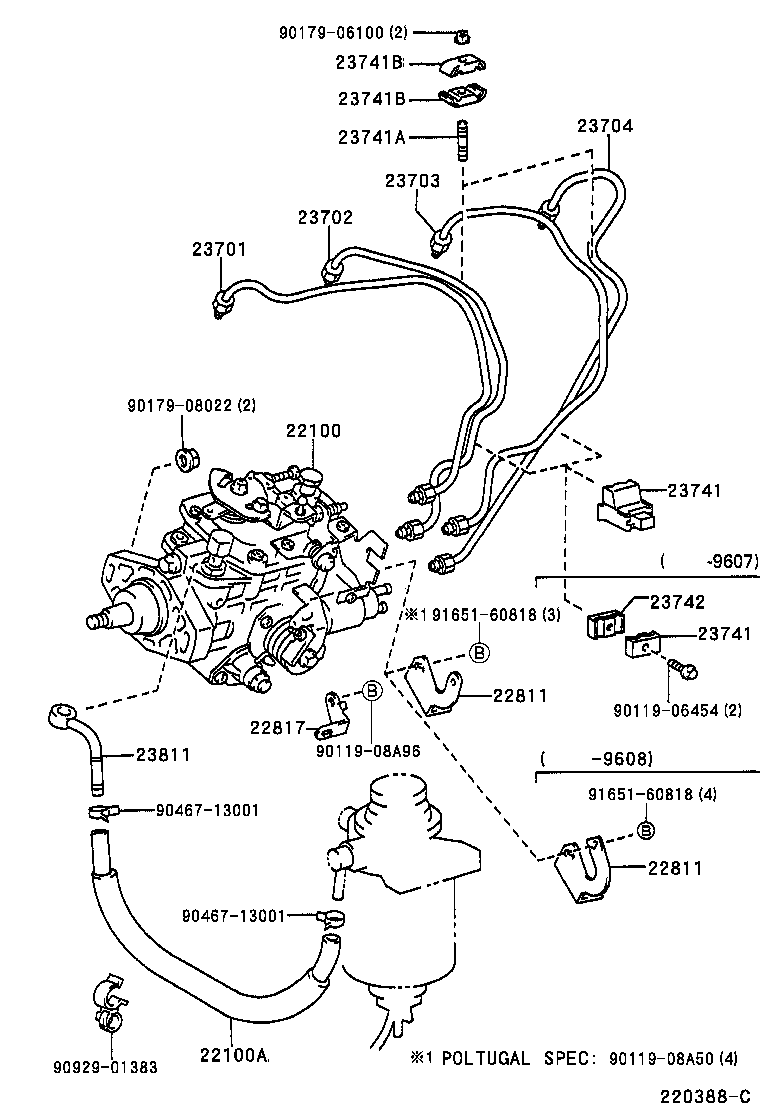

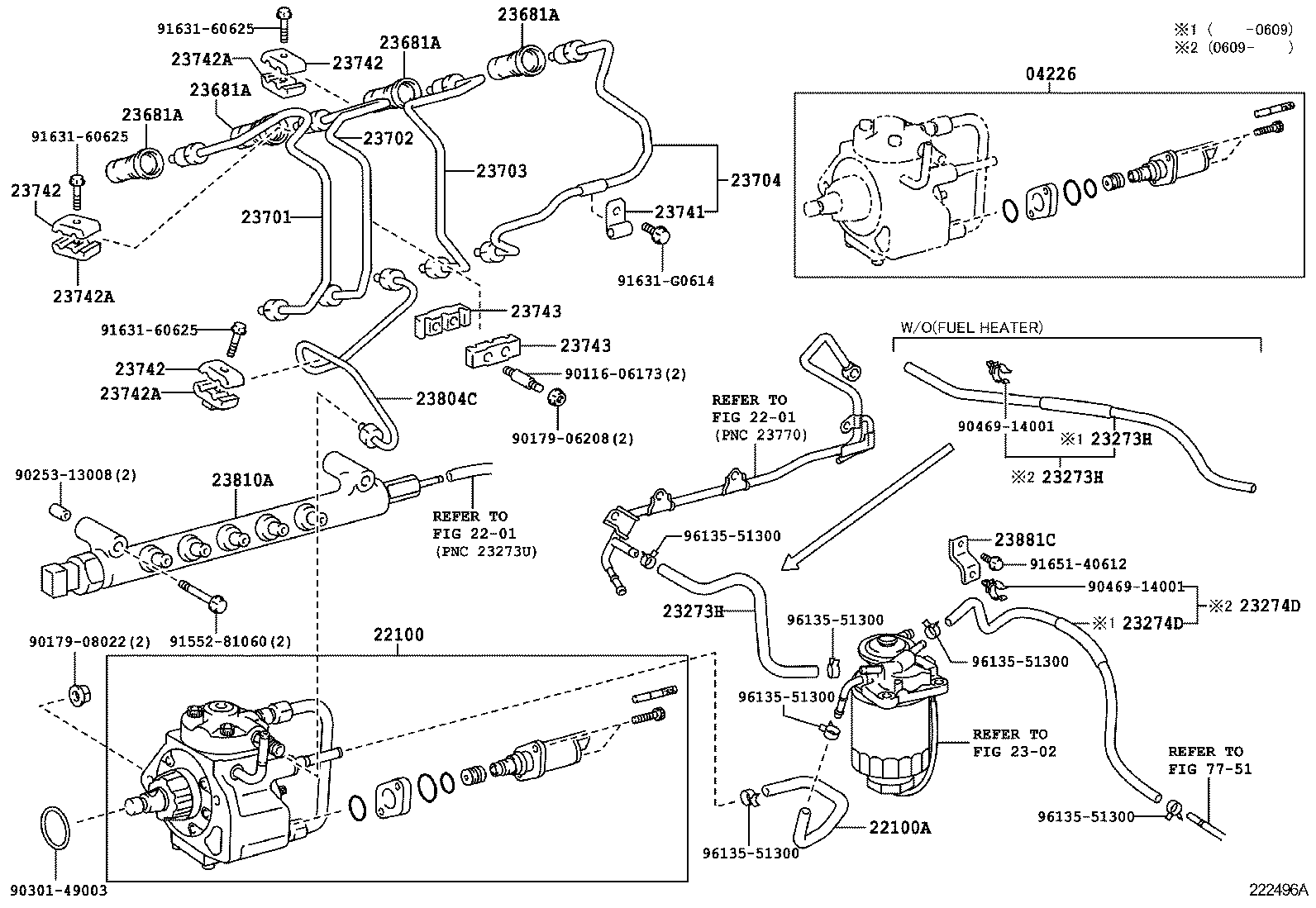

Figure 222493B 222493B 2001-08 → 2006-08 Figure 222496A 222496A 2006-08 → 2007-06 Figure 221952J 221952J 2007-06 → — Figure 220388C 220388C 1995-08 → 2001-08

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22811 Stay, Injection Pump, NO.1
22817 Bracket, Pump Stay
23273H Hose, Fuel, NO.2
23274D Hose, Fuel, NO.3
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741A Bolt, Stud(FOR INJECTION PIPE CLAMP)
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23744 Clamp, Injection Pipe, NO.4
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23881C Bracket, Fuel Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
