Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

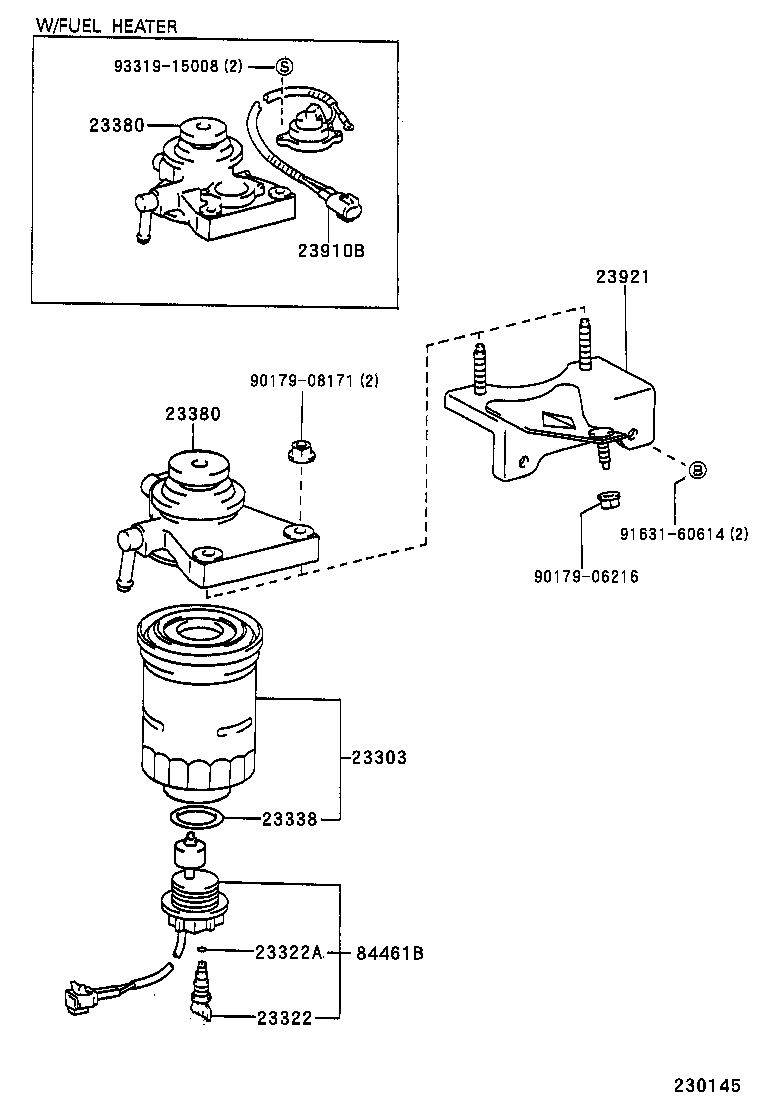

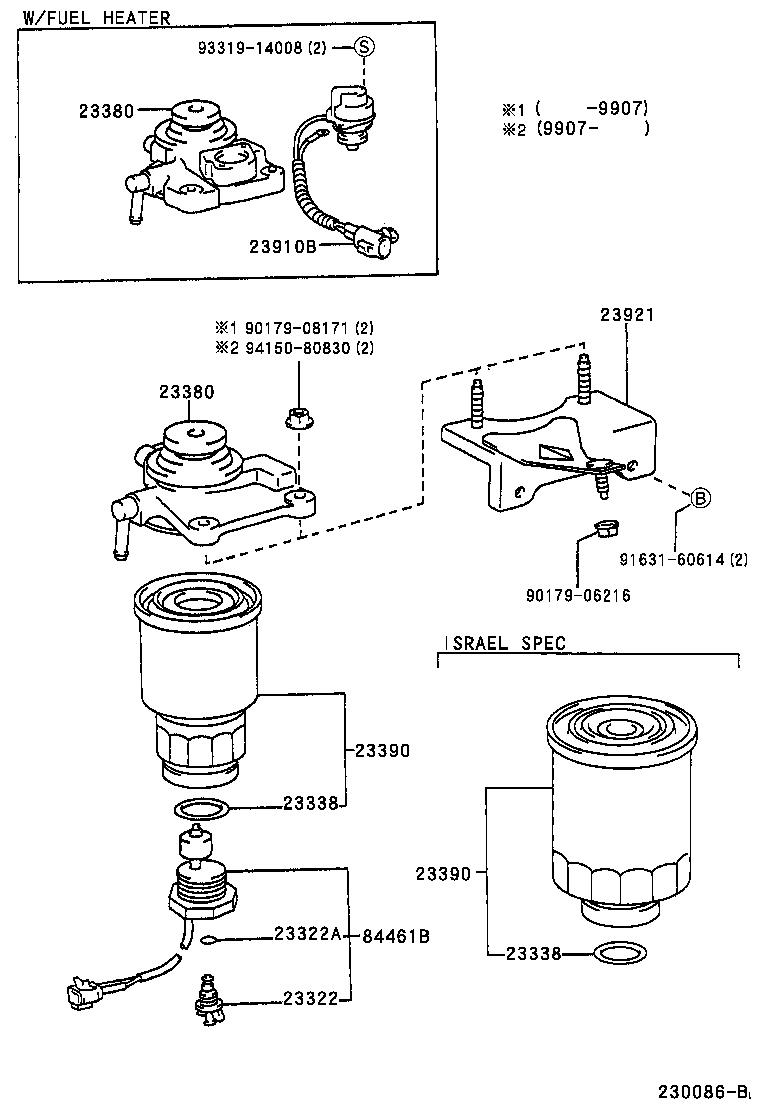

Fuel Filter
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23303 | Element Sub-assy, Fuel Filter |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23380 | Cap Assy, Fuel Filter |
| 23390 | Element Assy, Fuel Filter |
| 23910B | Heater Assy, Fuel |
| 23921 | Support, Fuel Filter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
