Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

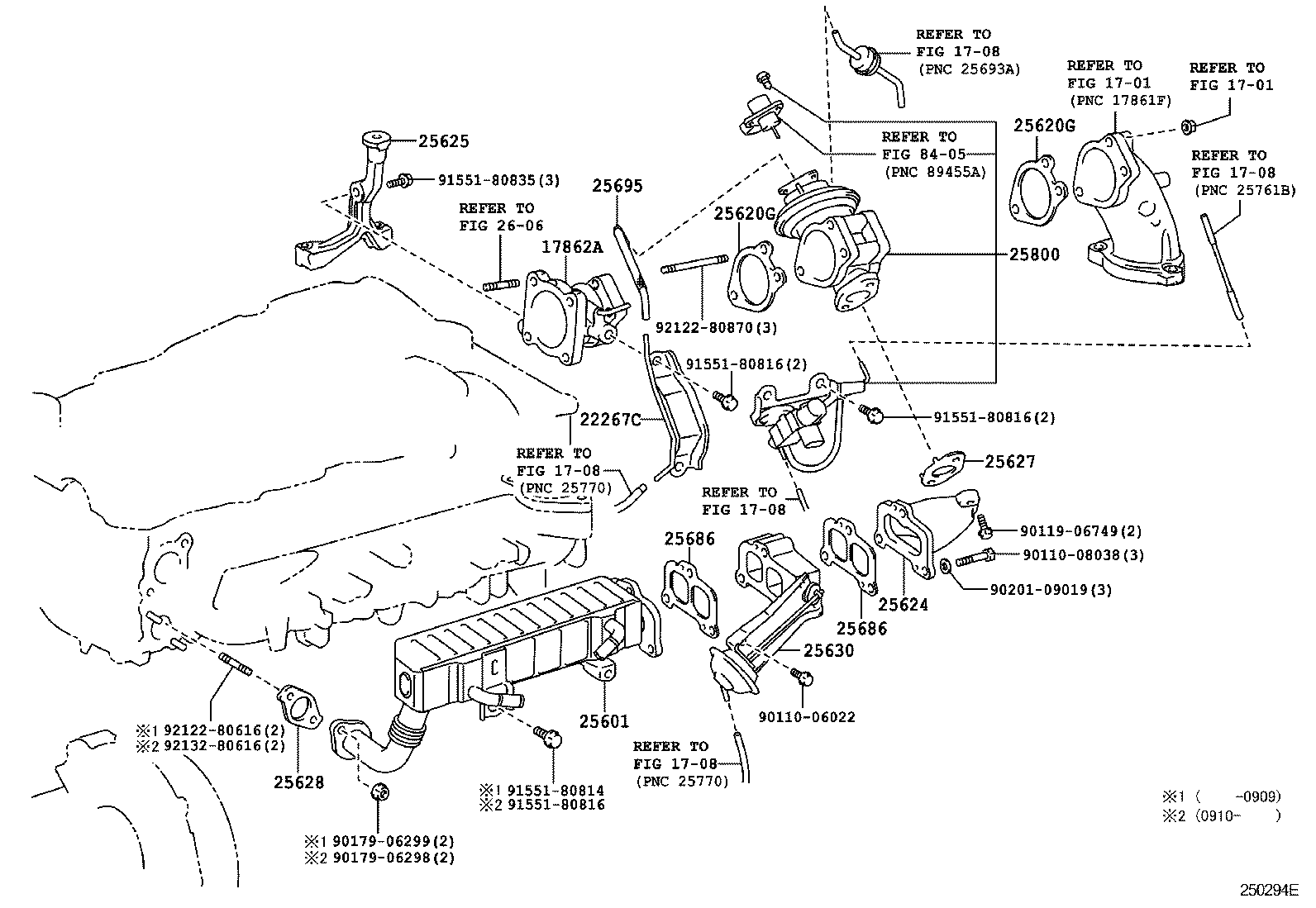

Exhaust Gas Recirculation System
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17862A | Connector, Intake Air, NO.2 |
| 22267C | Bracket, Throttle Body |
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601J | Gasket(FOR EGR PIPE, NO.1) |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25620G | Gasket, Diesel Throttle |
| 25624 | Adapter, Egr Valve |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25629 | Gasket, Egr Valve Adapter |
| 25630 | Valve Assy, Egr, NO.2 |
| 25686 | Gasket, Egr Cooler, NO.2 |
| 25691 | Bracket, Egr Vacuum Modulator |
| 25695 | Hose, Egr Vacuum Modulator |
| 25800 | Valve Assy, Electric Egr Control |
| 25870 | Valve Assy, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
