Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 7 illustrations

Illustrations

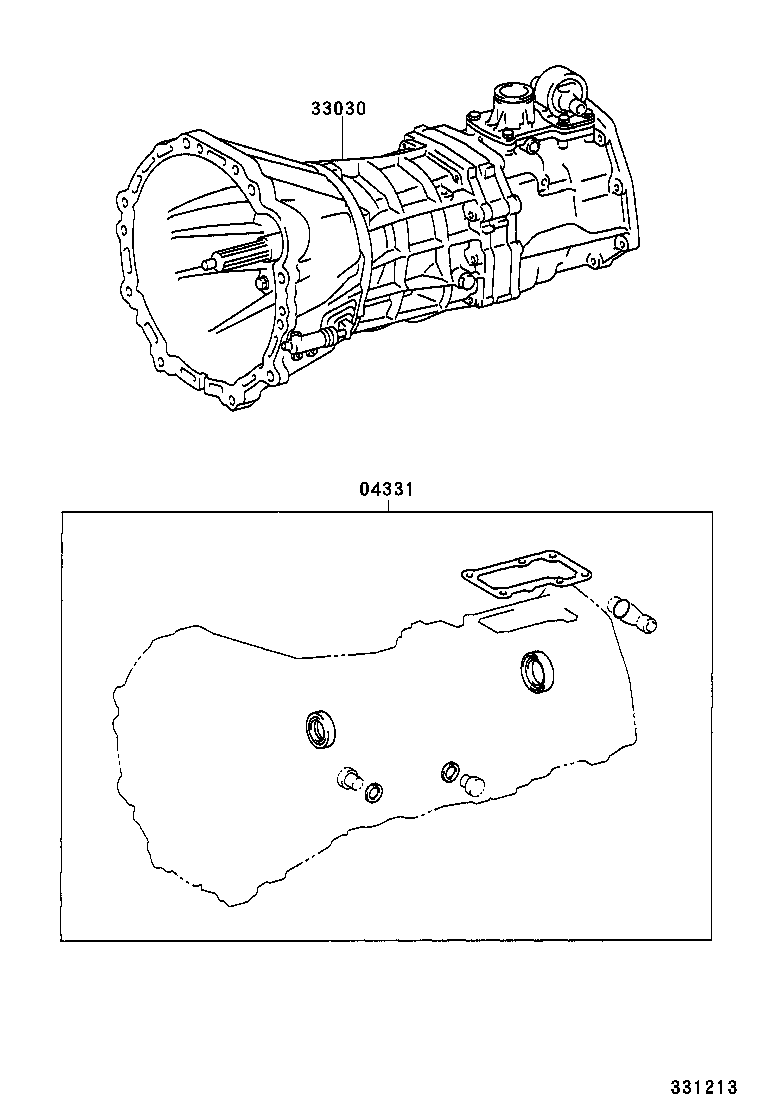

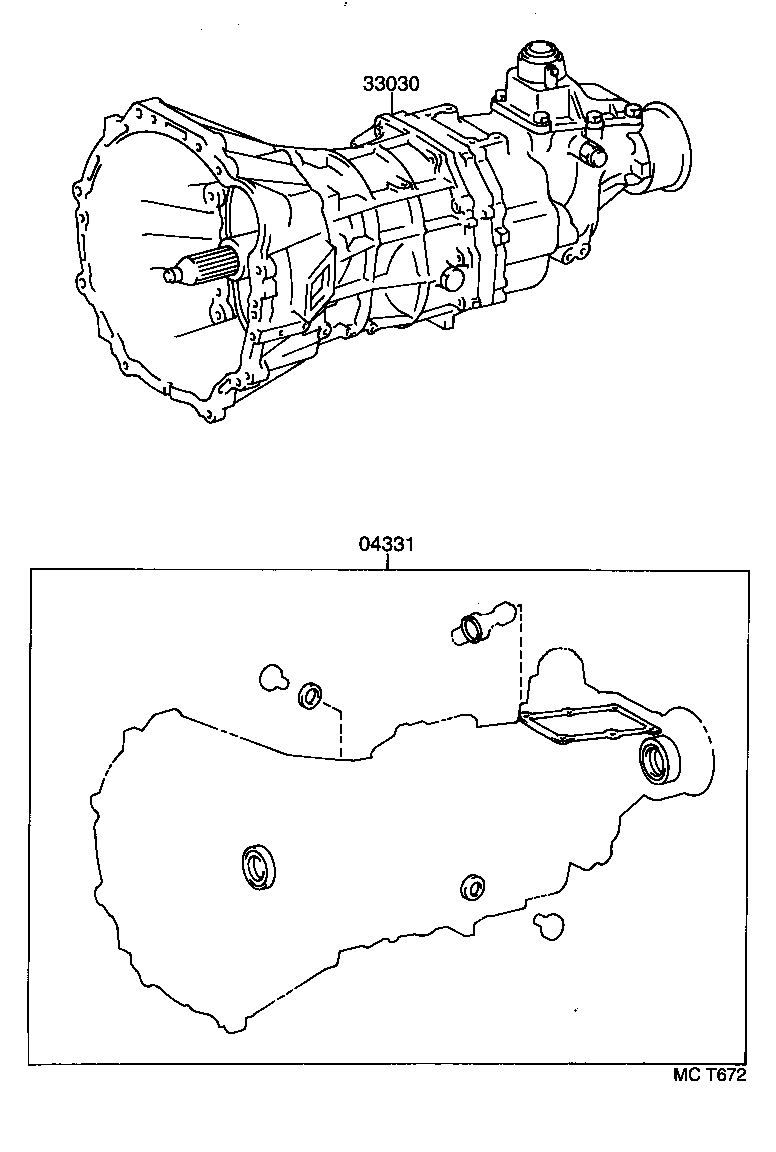

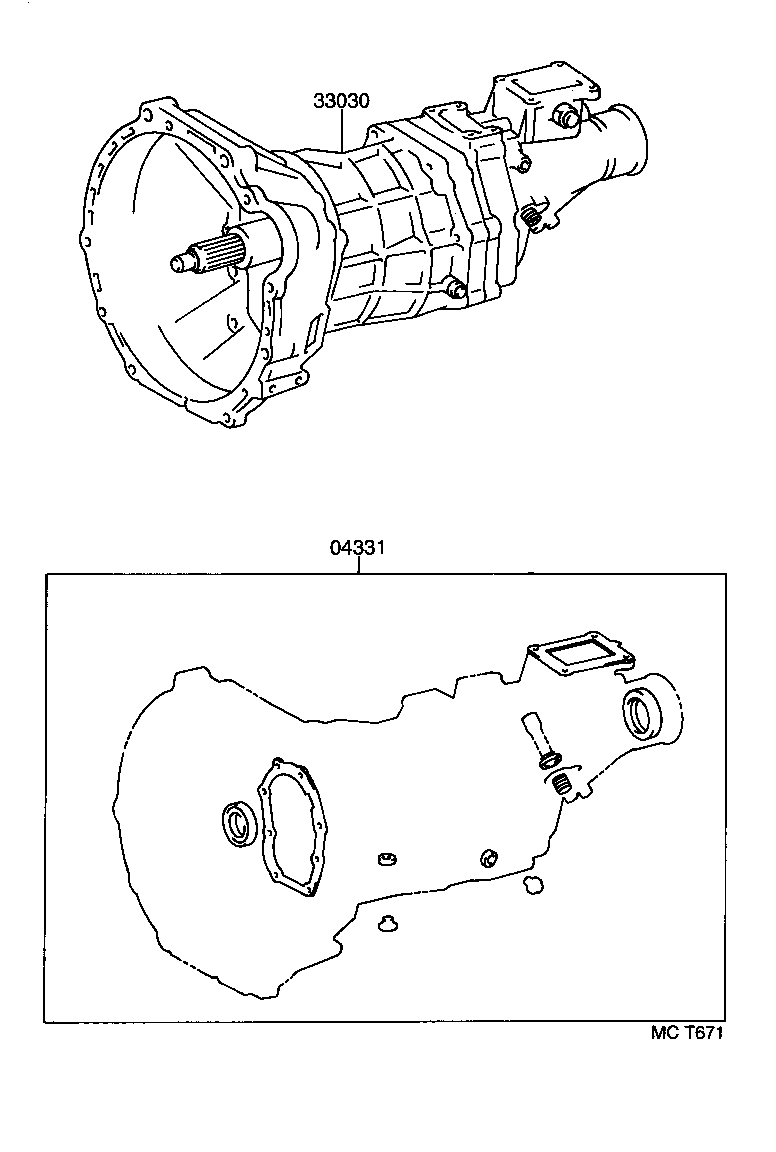

Figure 330889A 330889A 1998-04 → 2006-05 Figure MCT671 MCT671 1995-08 → 2006-08 Figure MCT672 MCT672 1995-08 → 2001-08 Figure MCT672 MCT672 2001-08 → 2006-08 Figure MCT672 MCT672 2006-08 → — Figure 331213 331213 1996-08 → 2006-08 Figure 331213 331213 2006-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
