Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

17 part groups · 12 illustrations

Illustrations

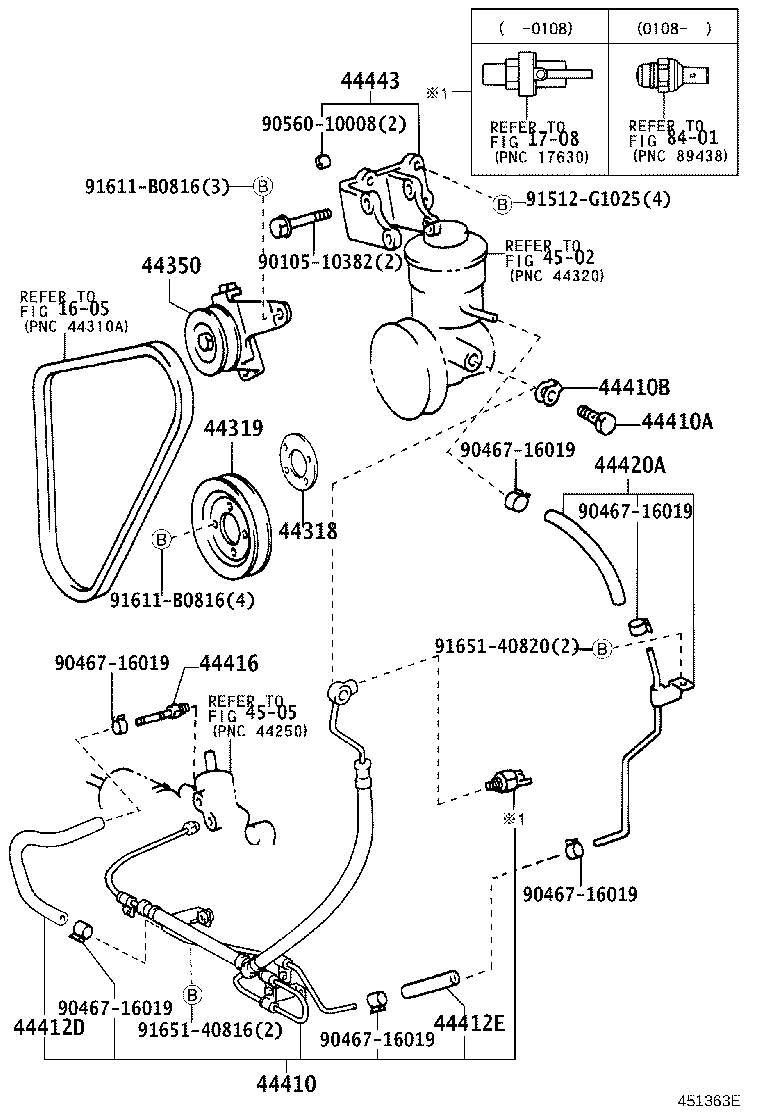

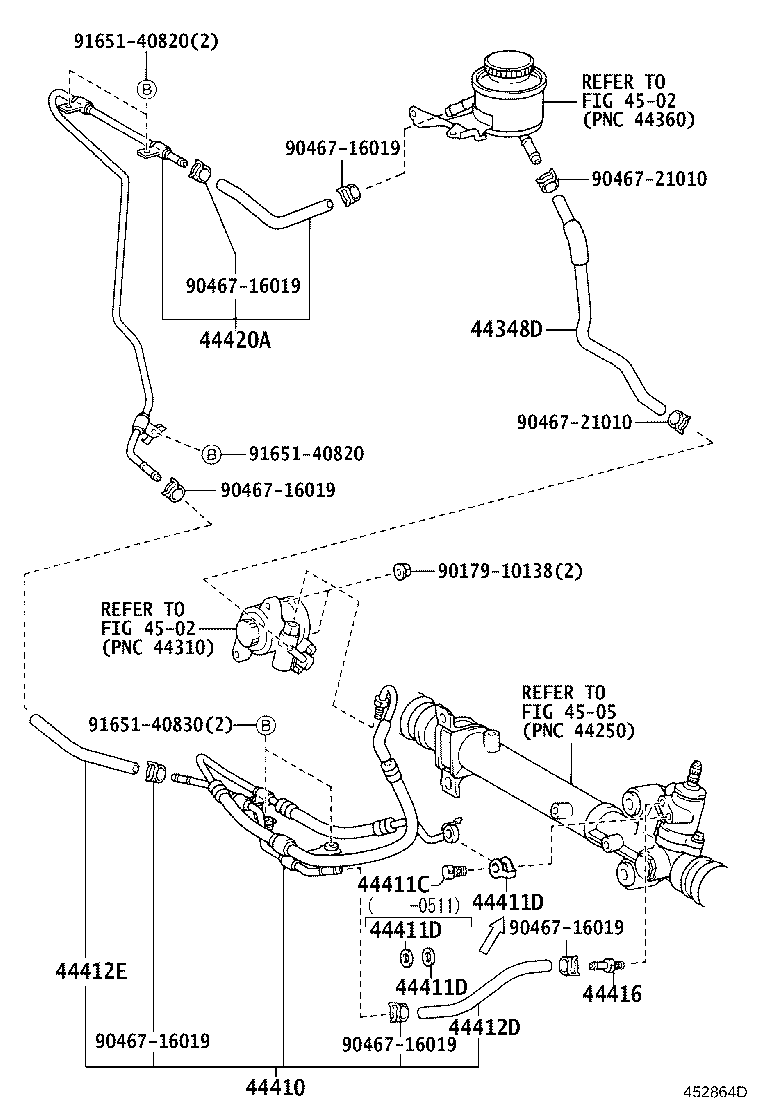

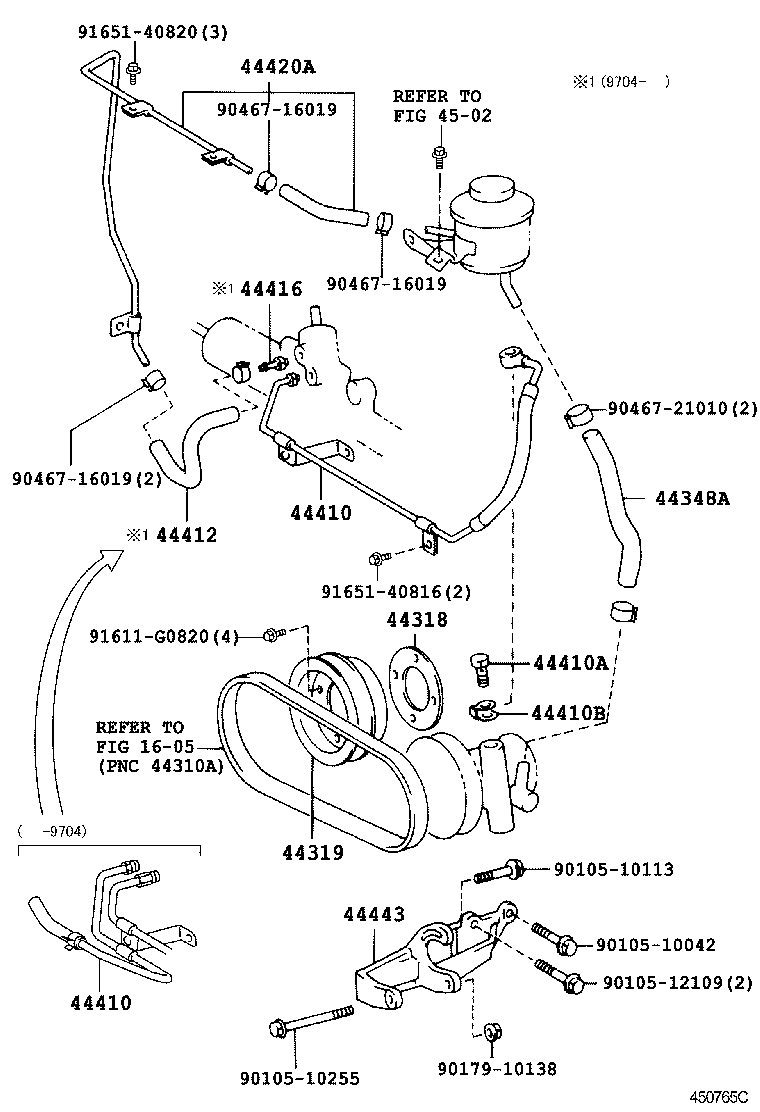

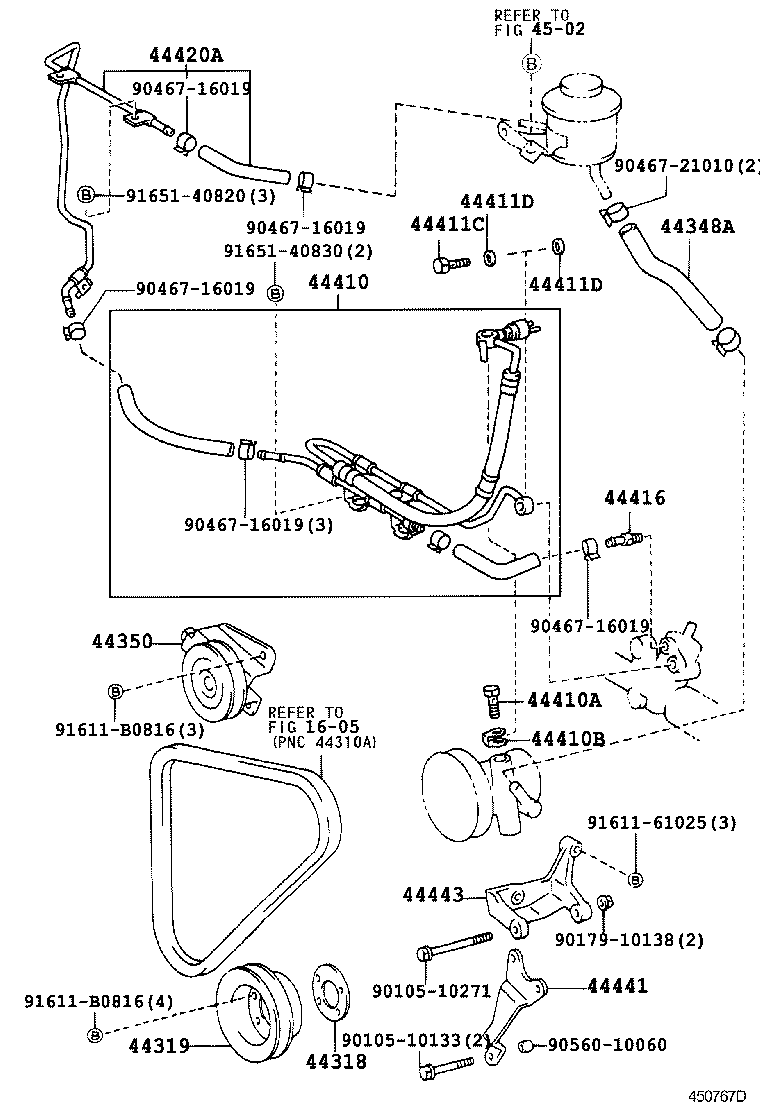

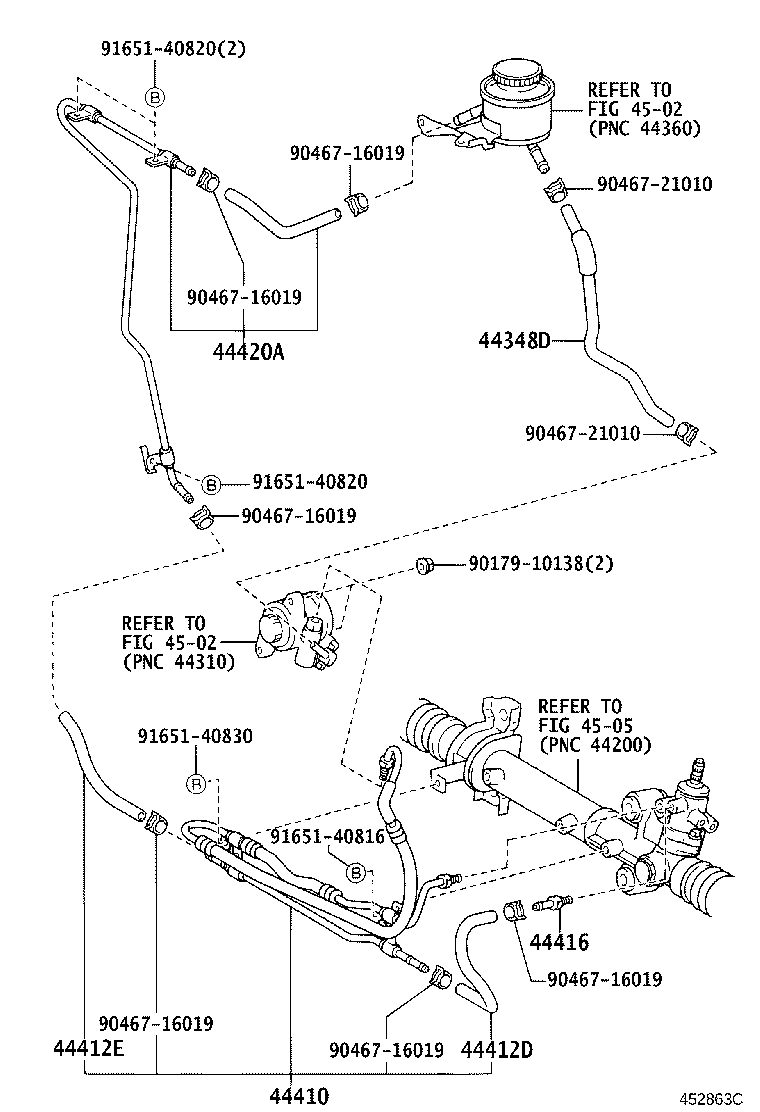

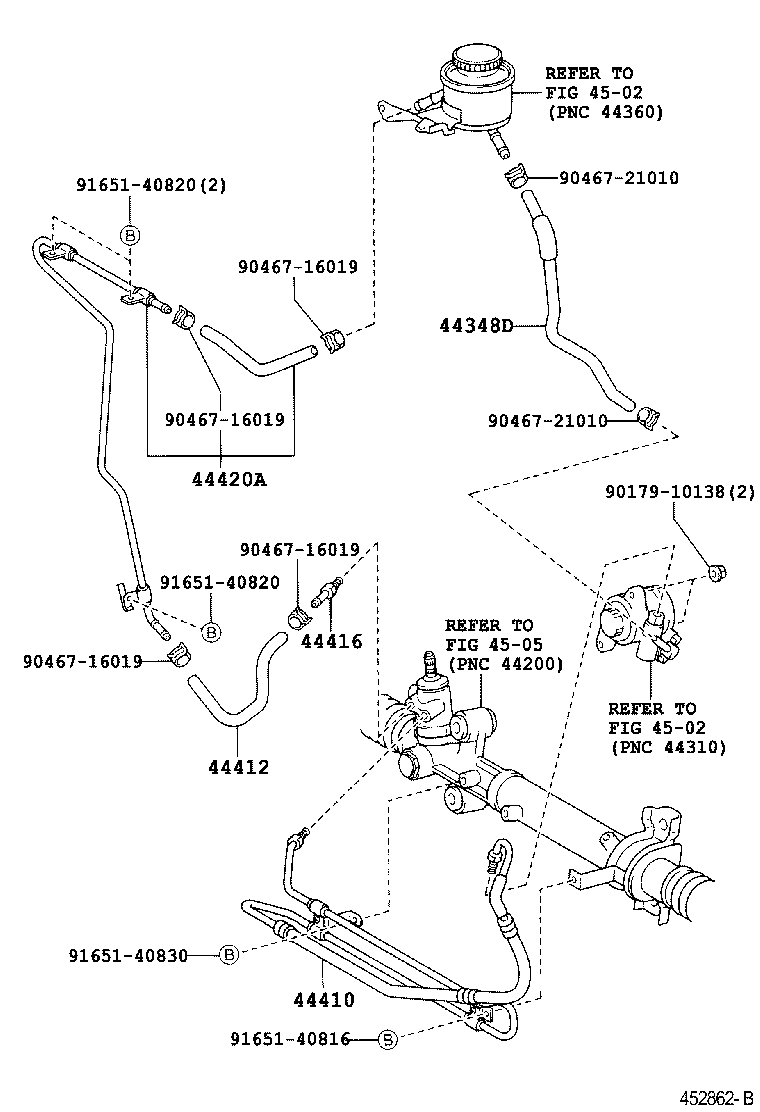

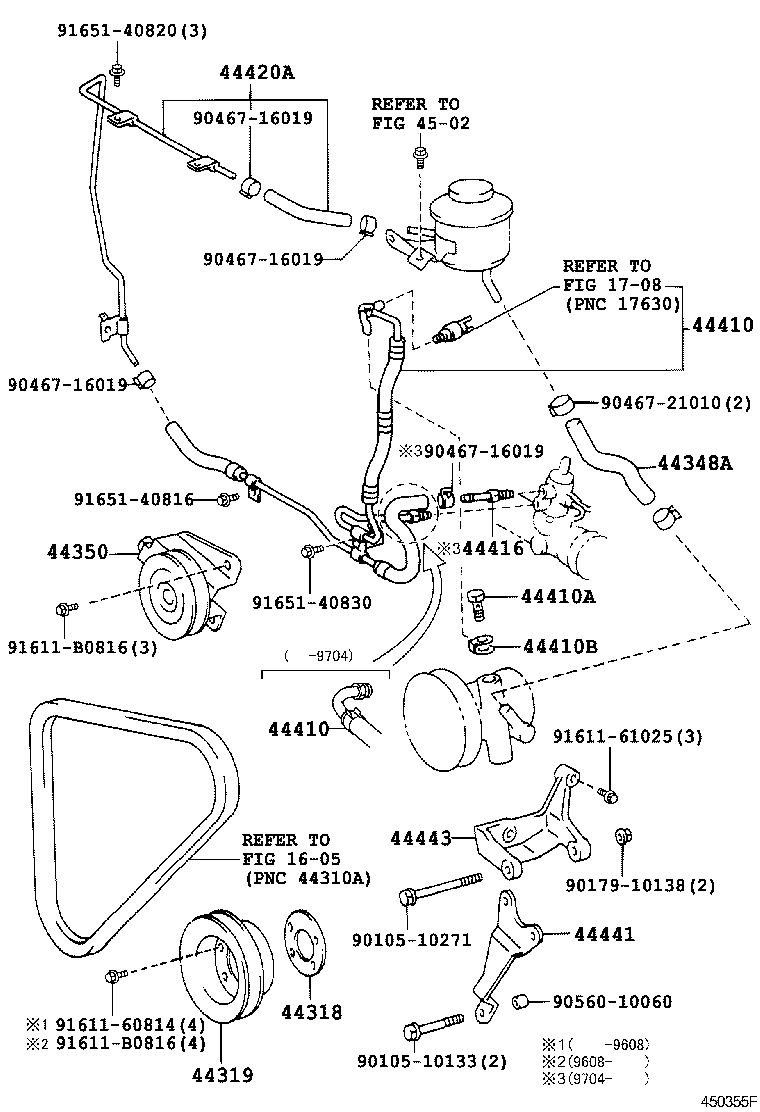

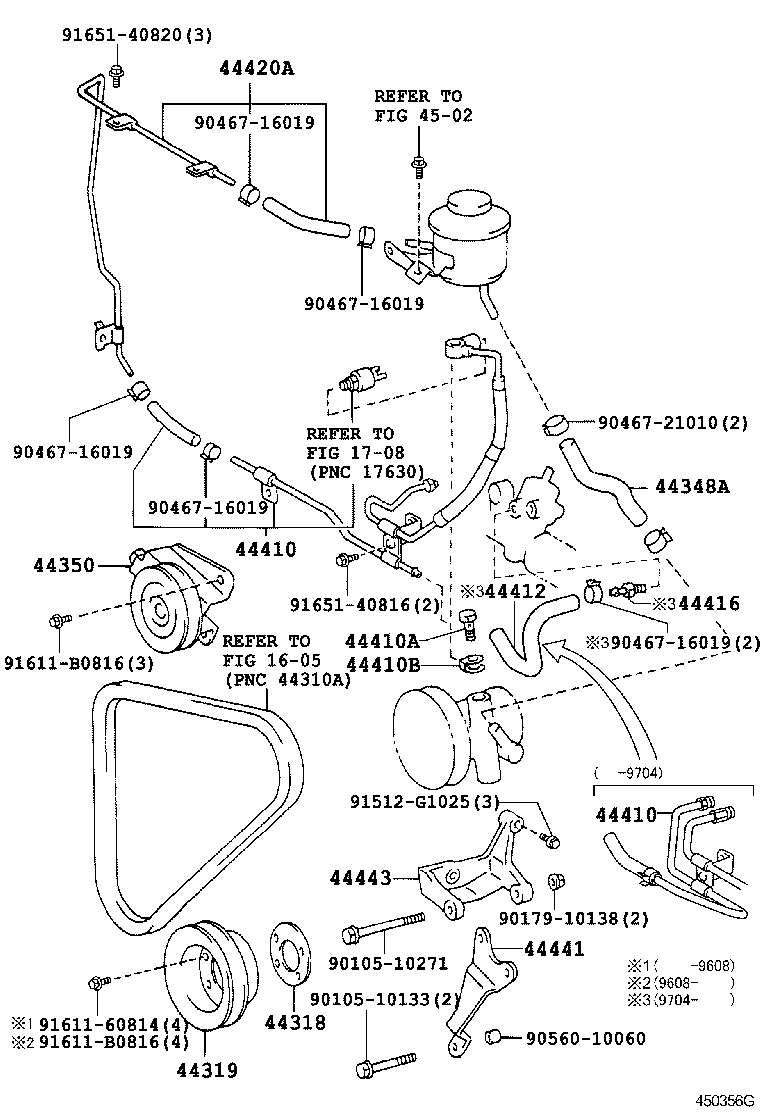

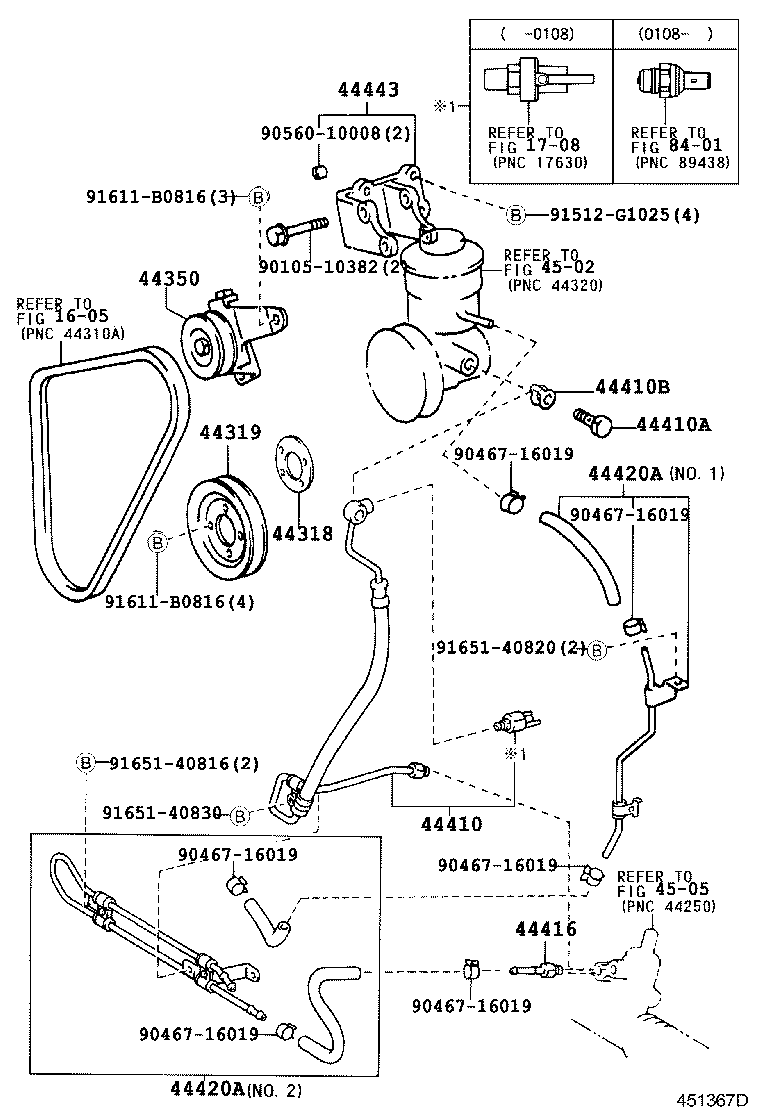

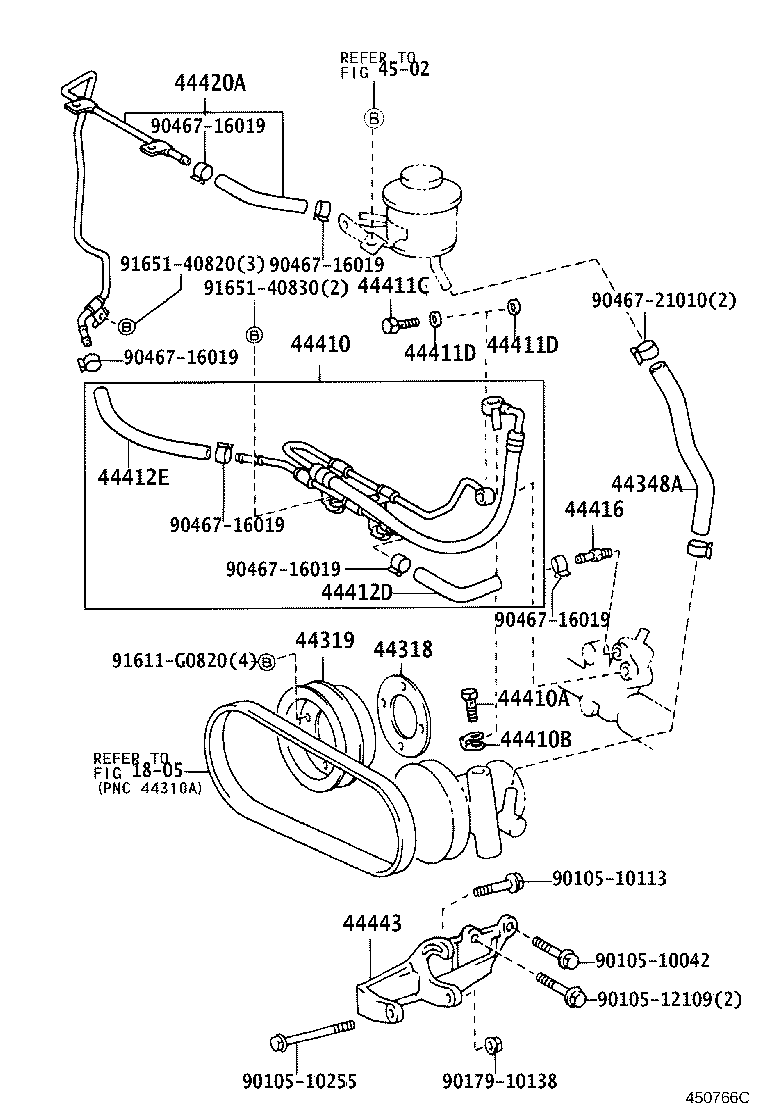

Figure 450370F 450370F 1995-08 → 2001-08 Figure 450765C 450765C 1995-08 → 2001-08 Figure 450766C 450766C 1996-08 → 2001-08 Figure 450355F 450355F 1995-08 → 1998-04 Figure 450356G 450356G 1995-08 → 2003-11 Figure 450767D 450767D 1996-08 → 1998-04 Figure 451363E 451363E 1998-04 → 2006-05 Figure 451367D 451367D 1998-04 → 2006-05 Figure 451368E 451368E 1998-04 → 2006-05 Figure 452862B 452862B 2001-08 → — Figure 452863C 452863C 2001-08 → — Figure 452864D 452864D 2001-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44441 Bracket, Pump, Front
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
