Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

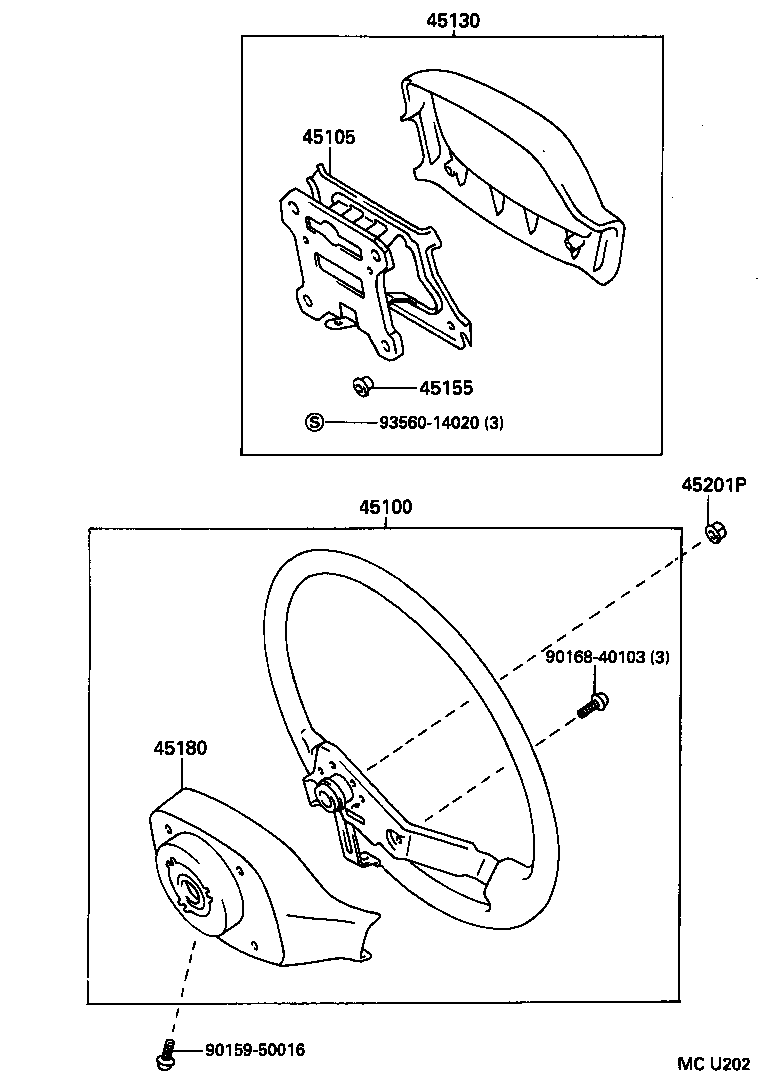

Steering Wheel
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45105 | Plate Sub-assy, Horn Button Contact, NO.1 |
| 45107 | Wire Sub-assy, Horn Button |
| 45130 | Button Assy, Horn |
| 45155 | Spacer, Horn Button Contact Plate |
| 45180 | Cover Sub-assy, Steering Wheel |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45188 | Screw, Steering Wheel Pad Attaching |
| 45201P | Nut, Steering Wheel Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
