Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

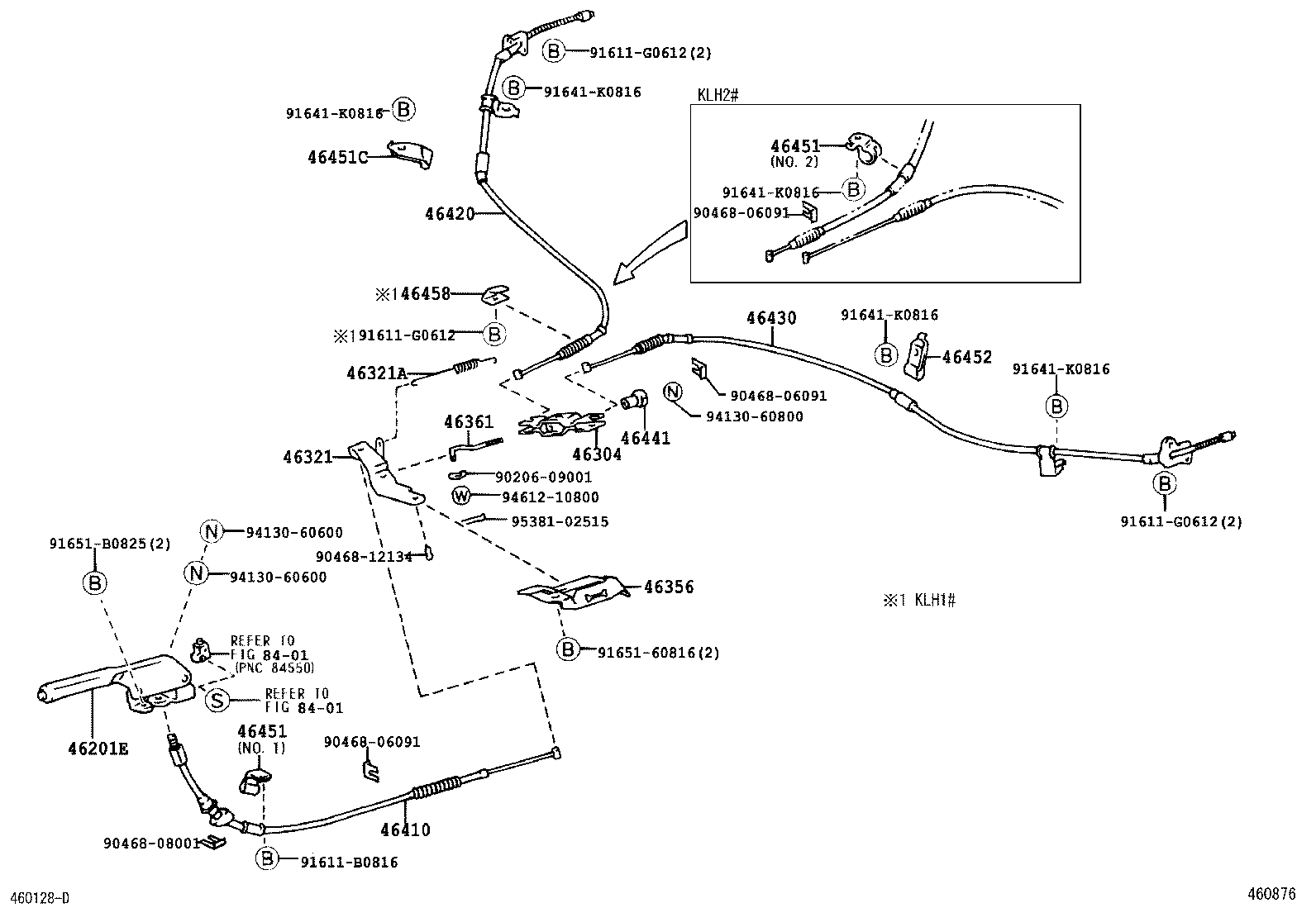

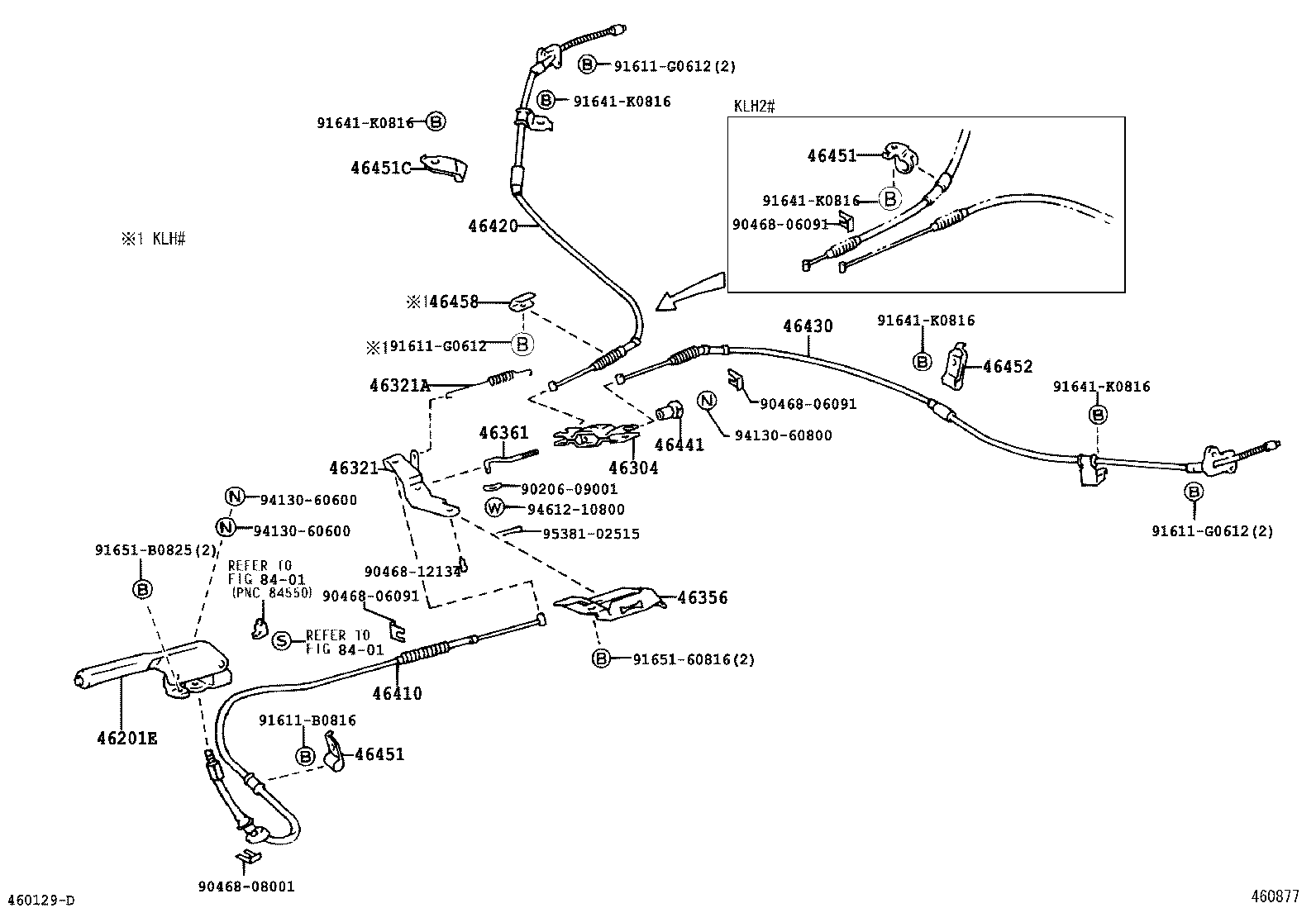

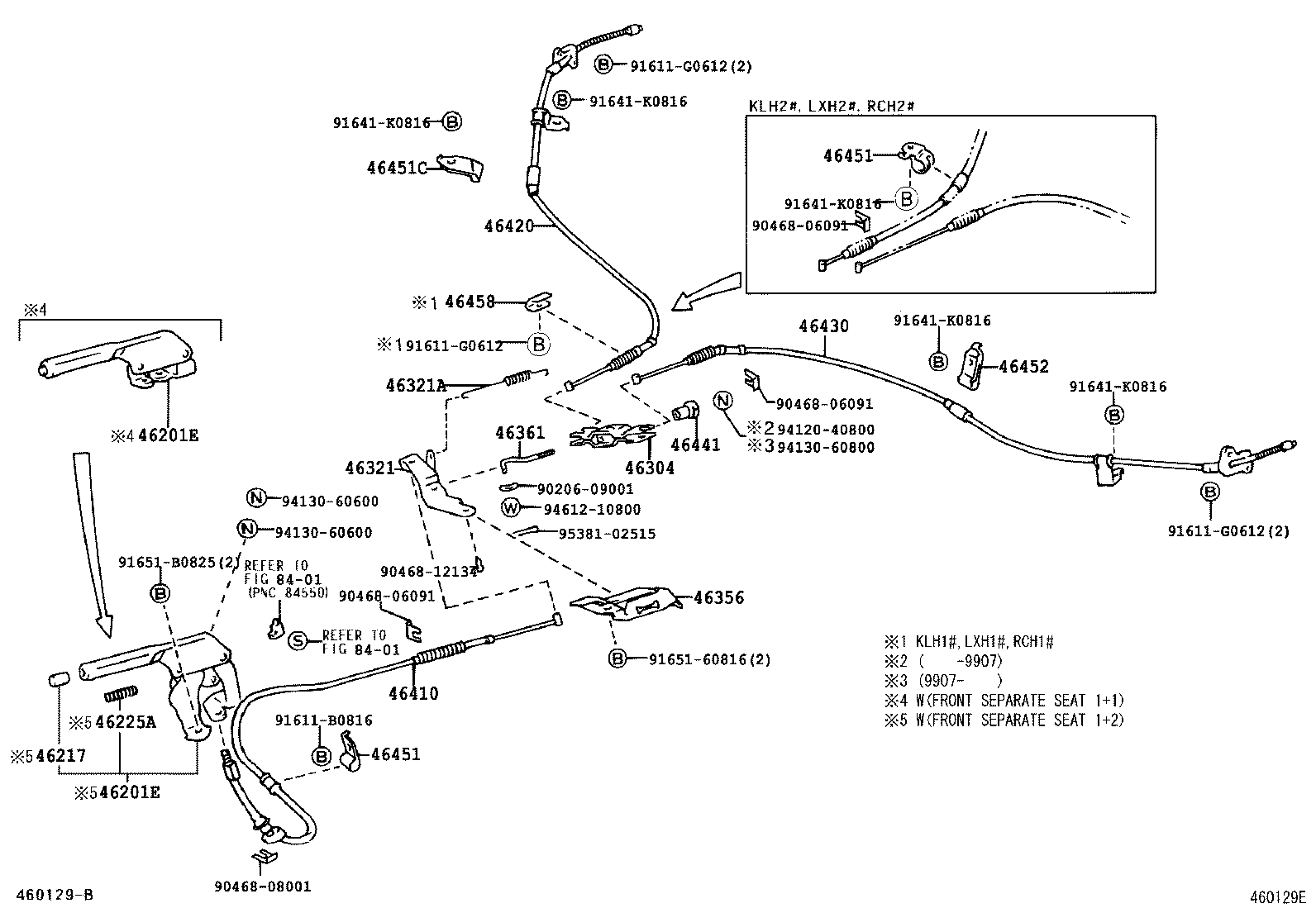

Parking Brake & Cable
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 46201E | Lever Sub-assy, Parking Brake |
| 46217 | Knob, Parking Brake Release Rod |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46321 | Lever, Parking Brake Intermediate |
| 46321A | Spring, Tensiion(FOR PARKING BRAKE INTERMEDIATE LEVER) |
| 46356 | Bracket, Equalizer Support |
| 46361 | Rod, Parking Brake Pull |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46451 | Bracket, Cable Support |
| 46451C | Bracket, Parking Brake Cable Support, NO.1 |
| 46452 | Bracket, Parking Brake Cable Support, NO.2 |
| 46458 | Retainer, Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
