Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

15 part groups · 10 illustrations

Illustrations

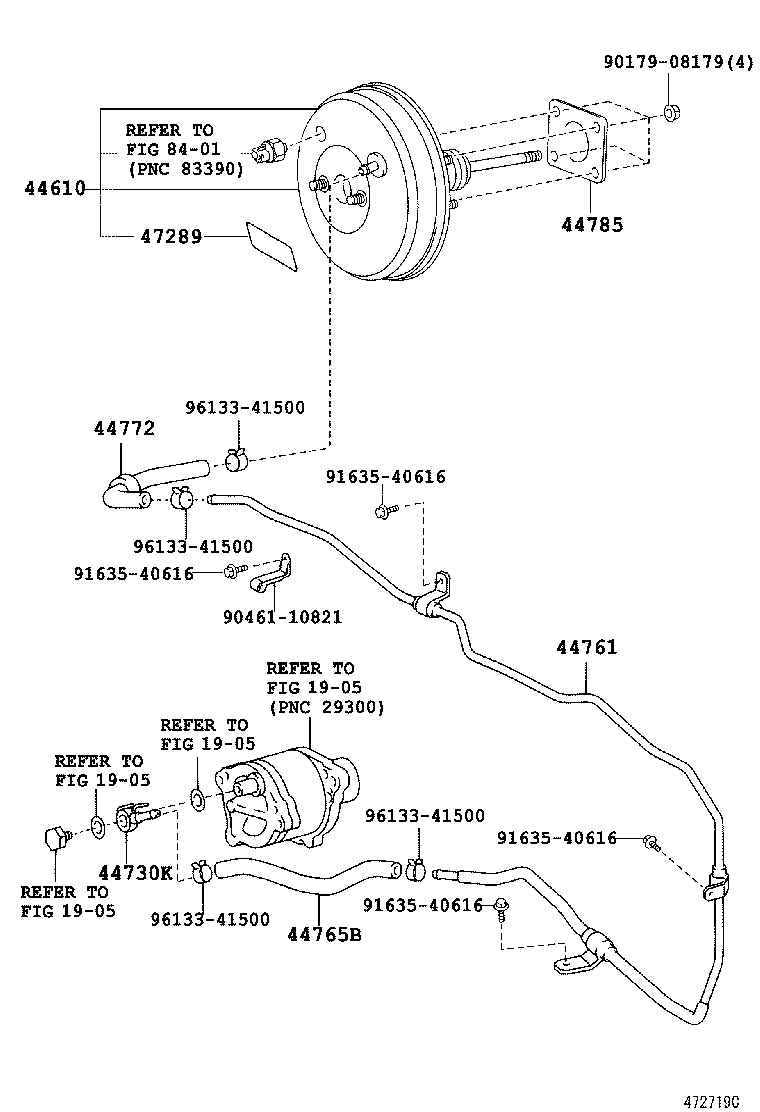

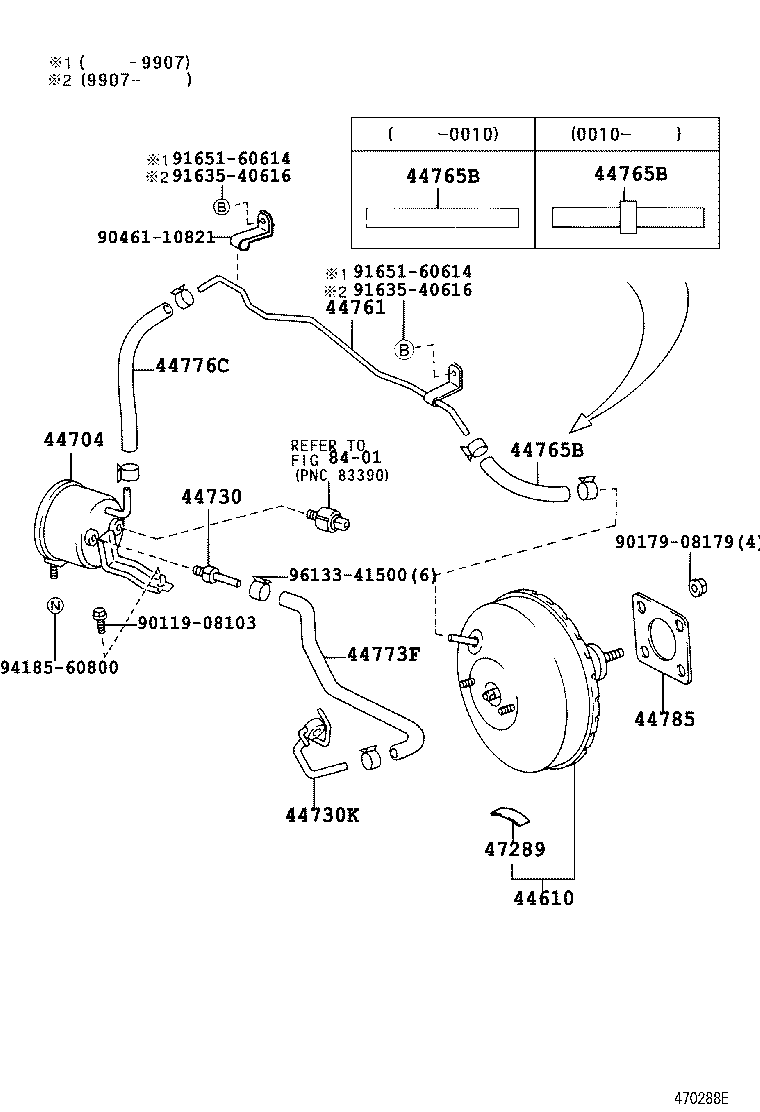

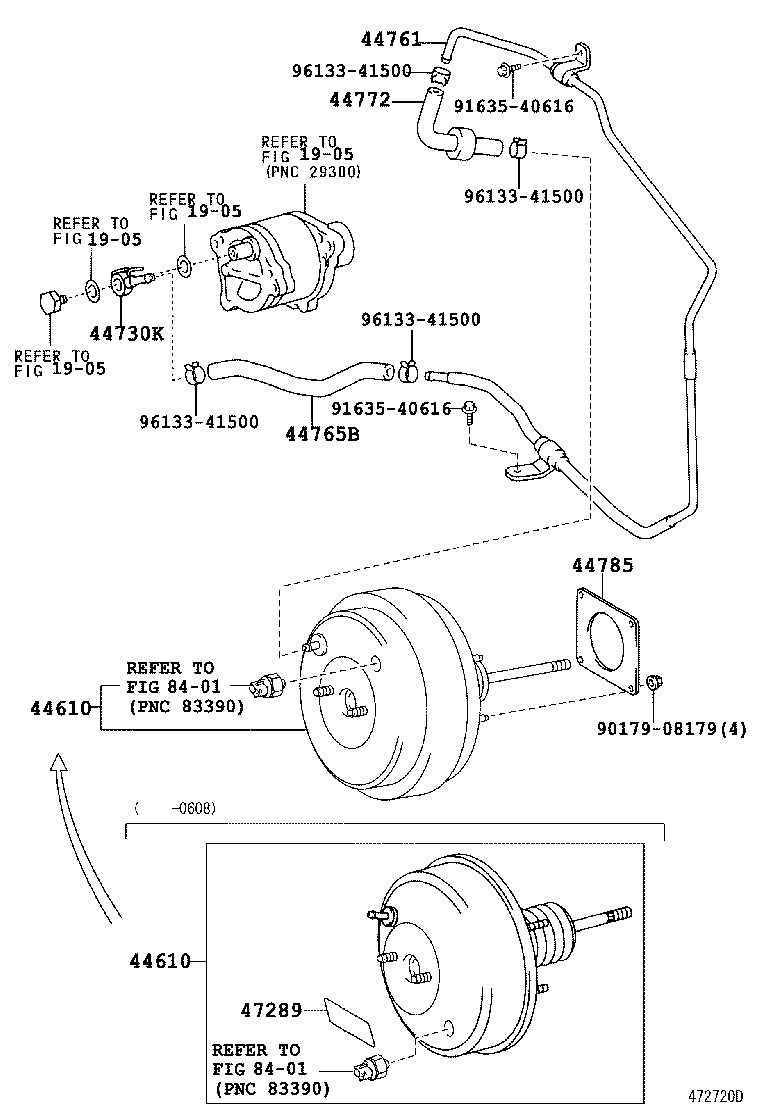

Figure 470289B 470289B 1995-08 → 2001-08 Figure 470288E 470288E 1995-08 → 2001-08 Figure 471781C 471781C 1995-08 → 1998-04 Figure 471781C 471781C 1998-04 → — Figure 471781C 471781C 1999-10 → — Figure 474479A 474479A 1995-08 → 1998-04 Figure 474479A 474479A 1998-04 → — Figure 472057B 472057B 1998-04 → 1999-10 Figure 472719C 472719C 2001-08 → — Figure 472720D 472720D 2001-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730K Union, Vacuum Hose(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44765B Hose, Connector TO Brake Booster
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776A Hose, Vacuum Reservoir TO Brake Booster
44776C Hose, Vacuum Reservoir TO Connector
44785 Gasket, Brake Booster
47289 Label, Brake Master Cylinder Adjust Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
