Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

46 part groups · 34 illustrations

Illustrations

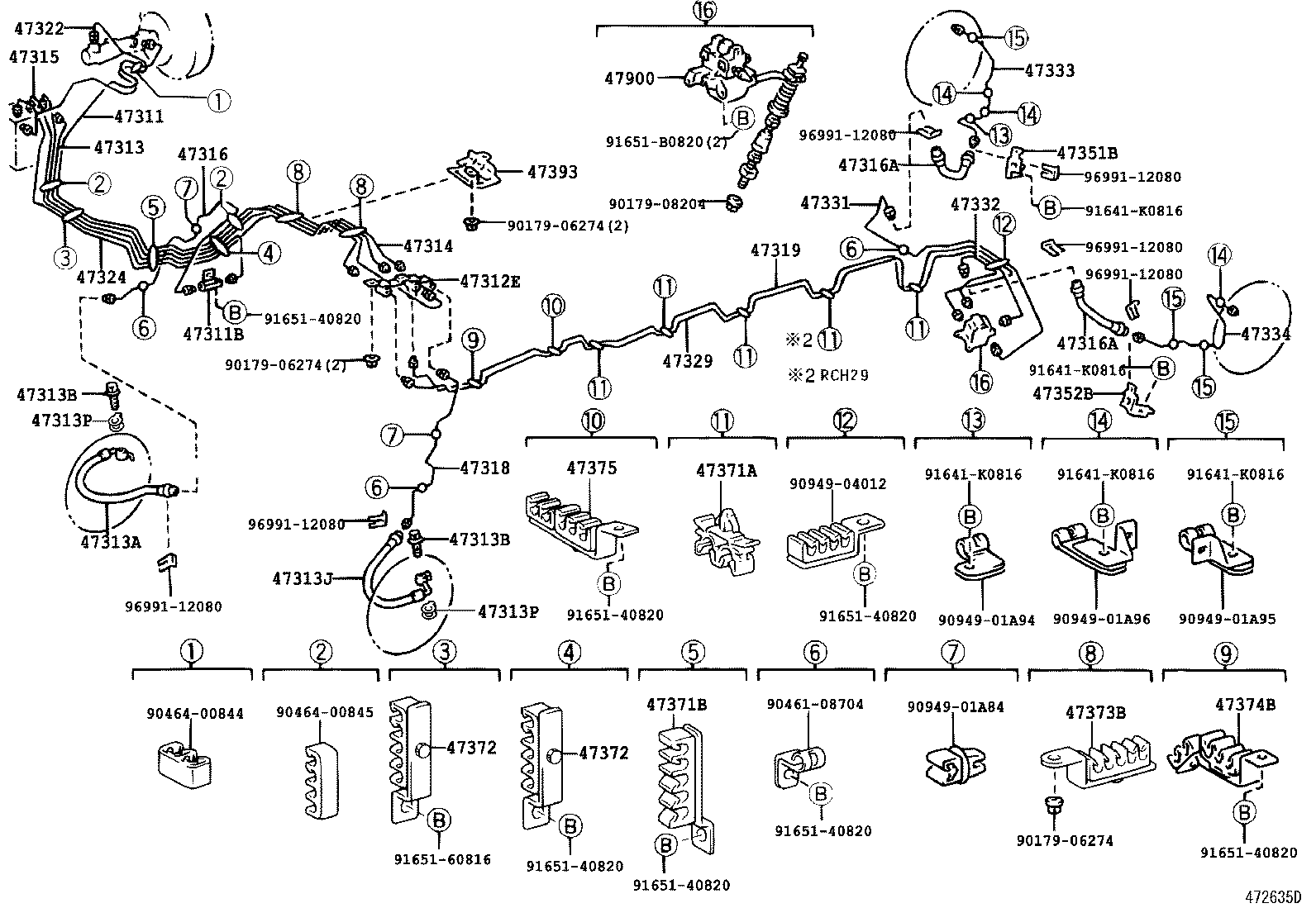

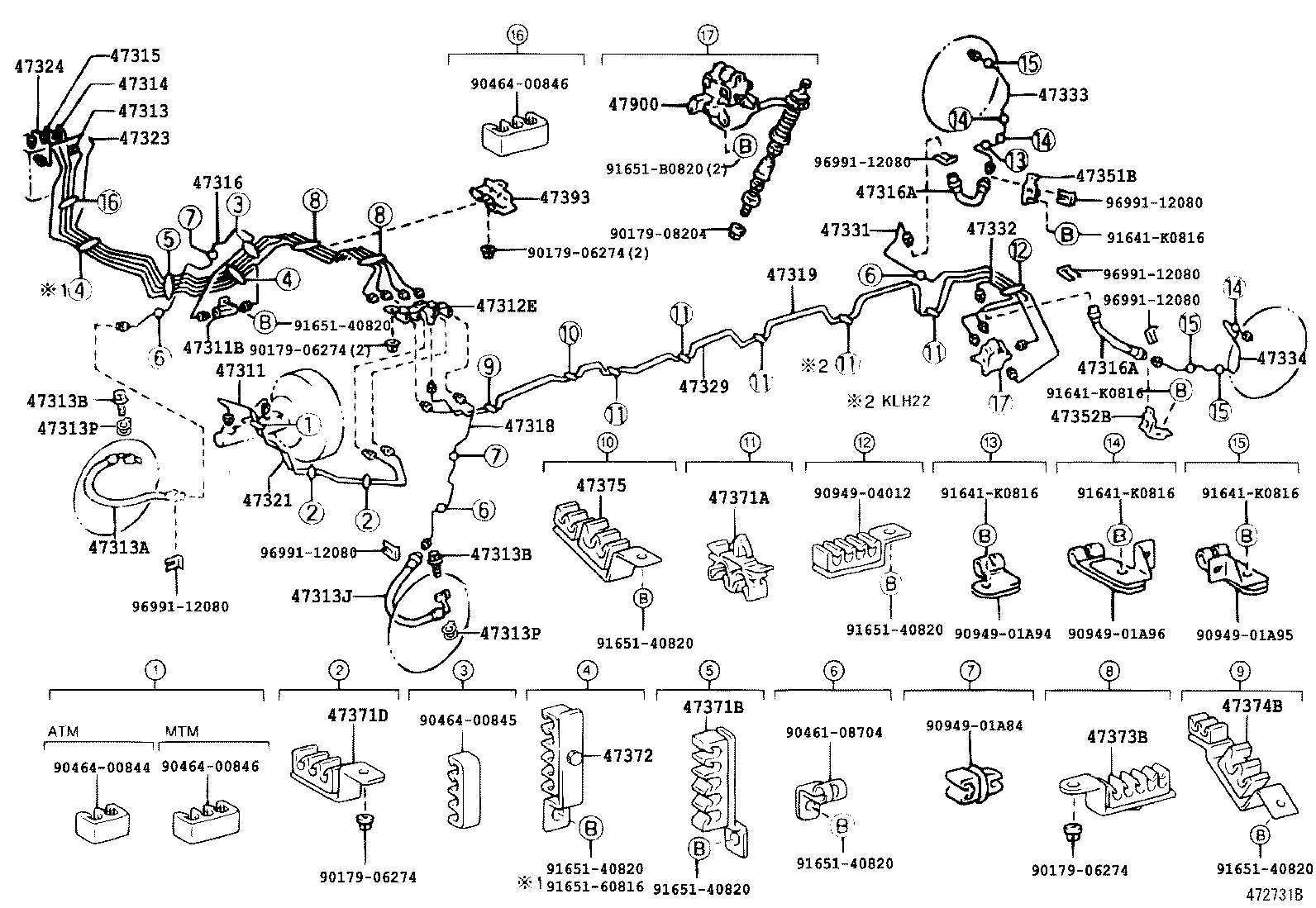

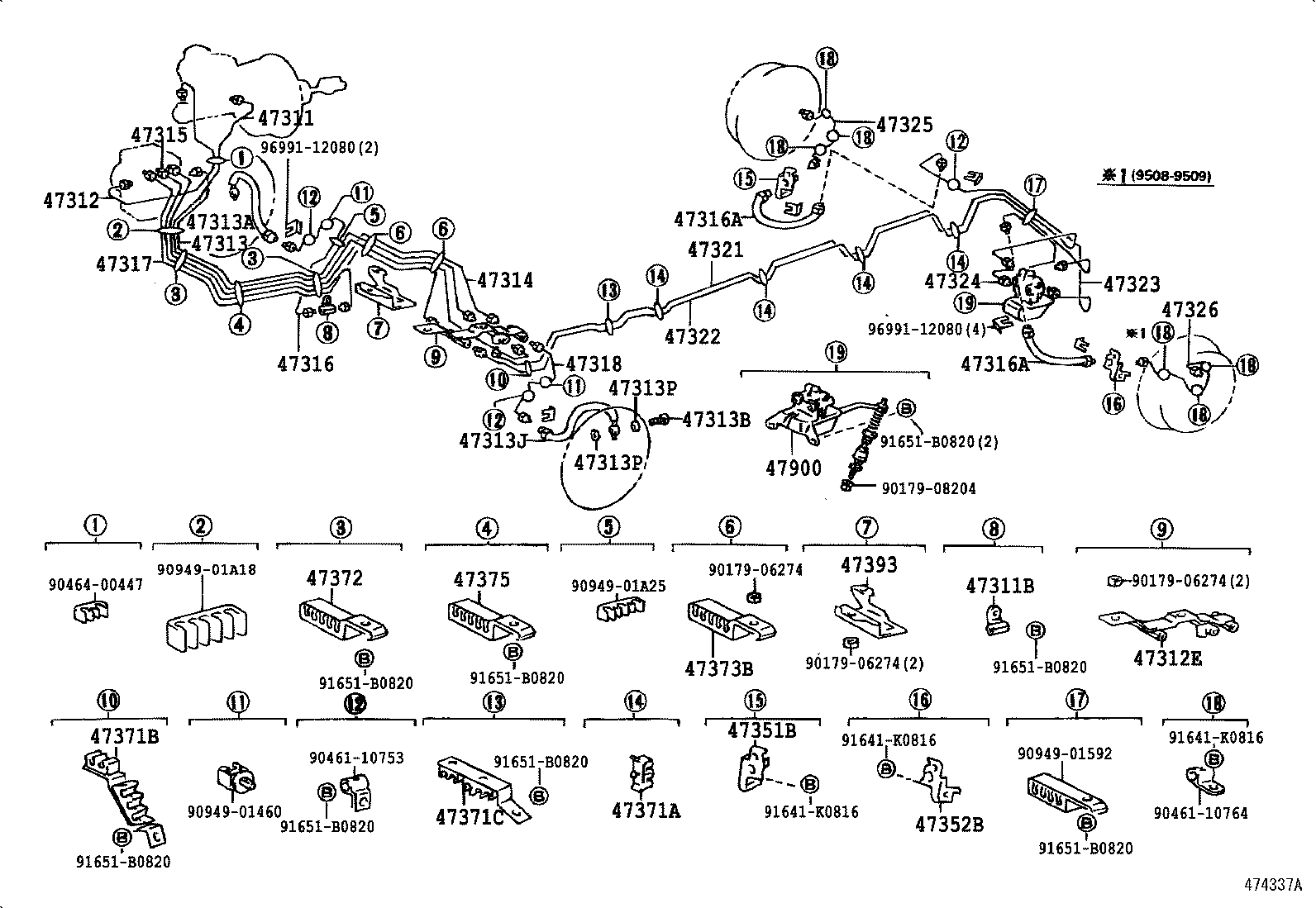

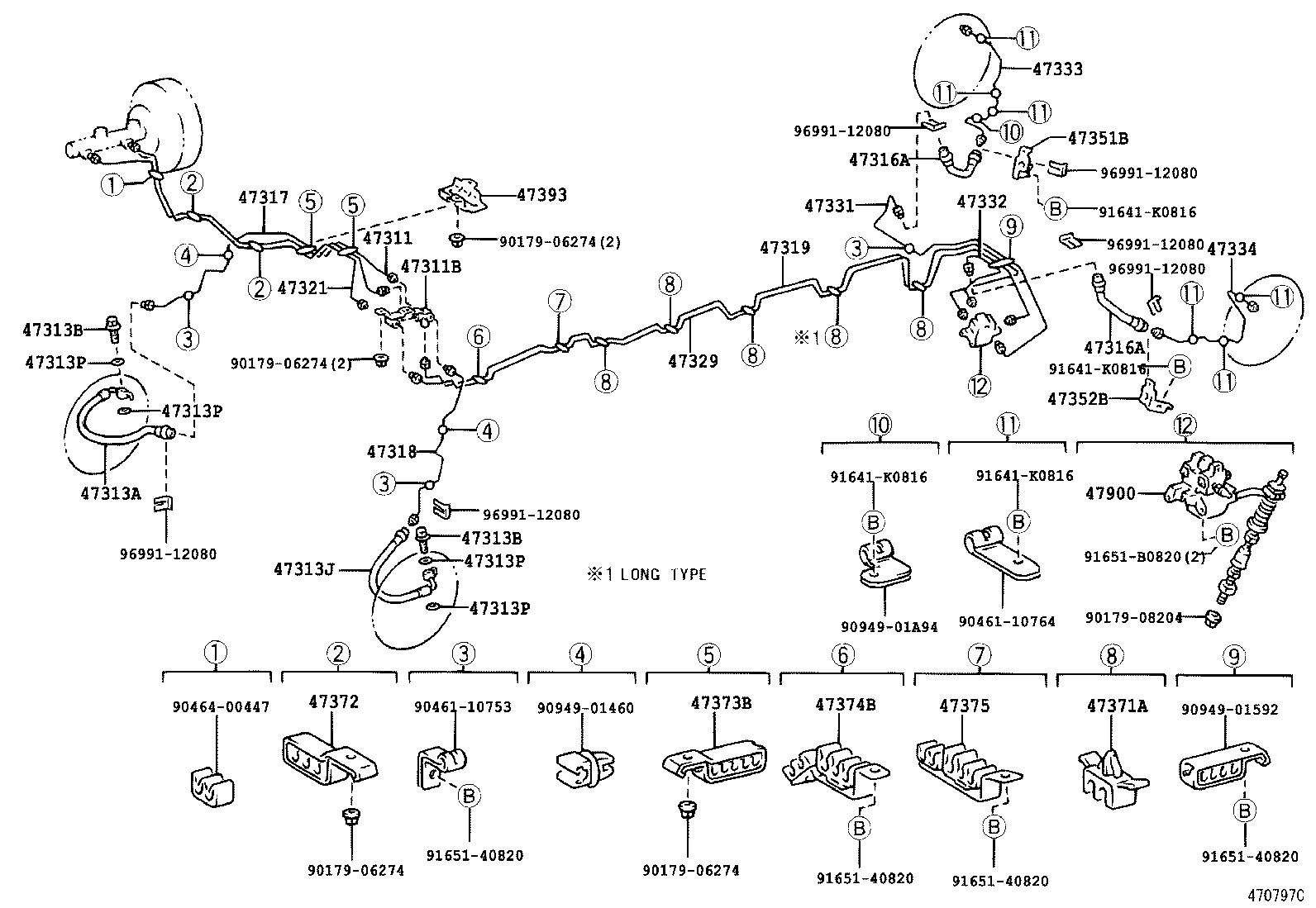

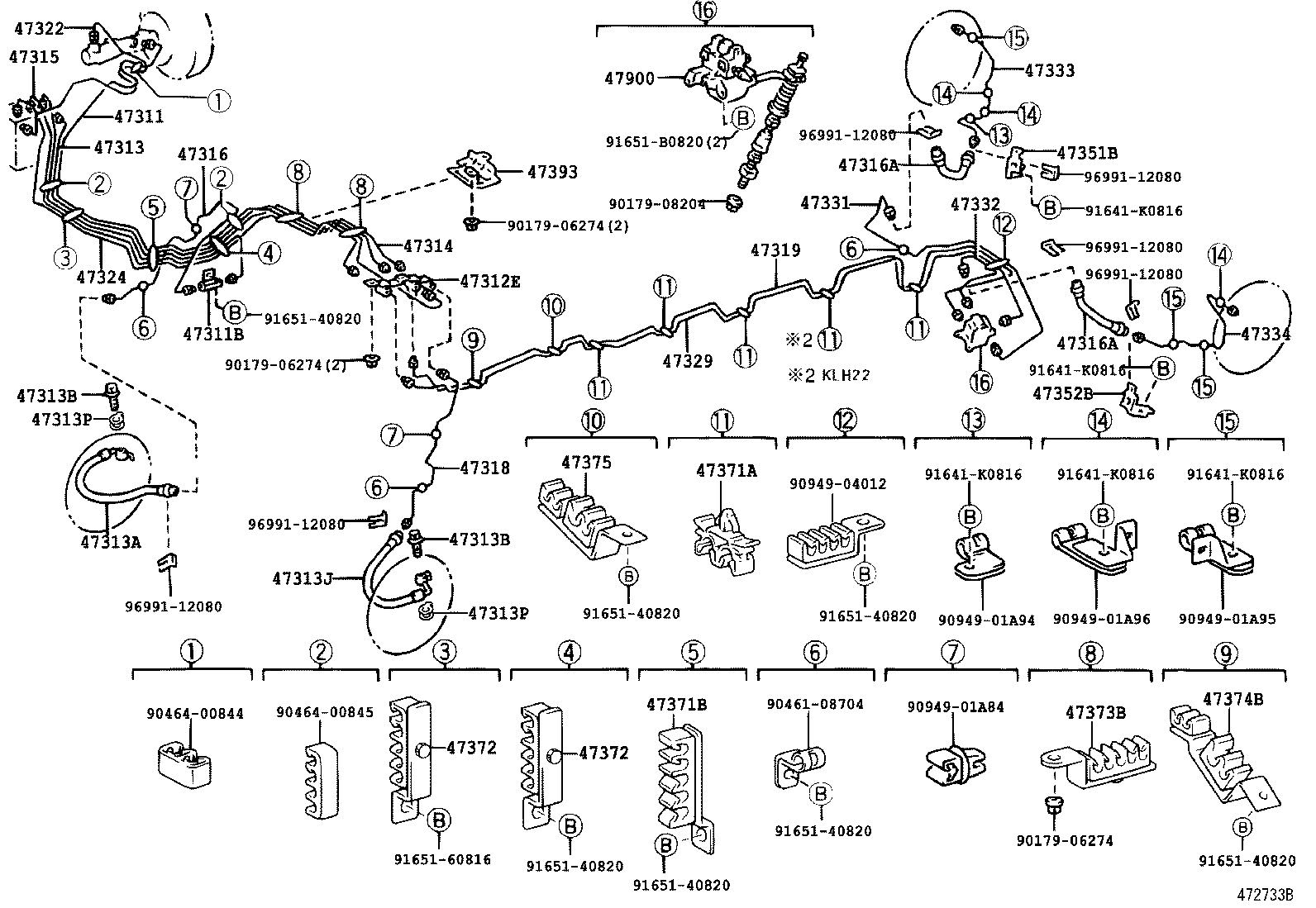

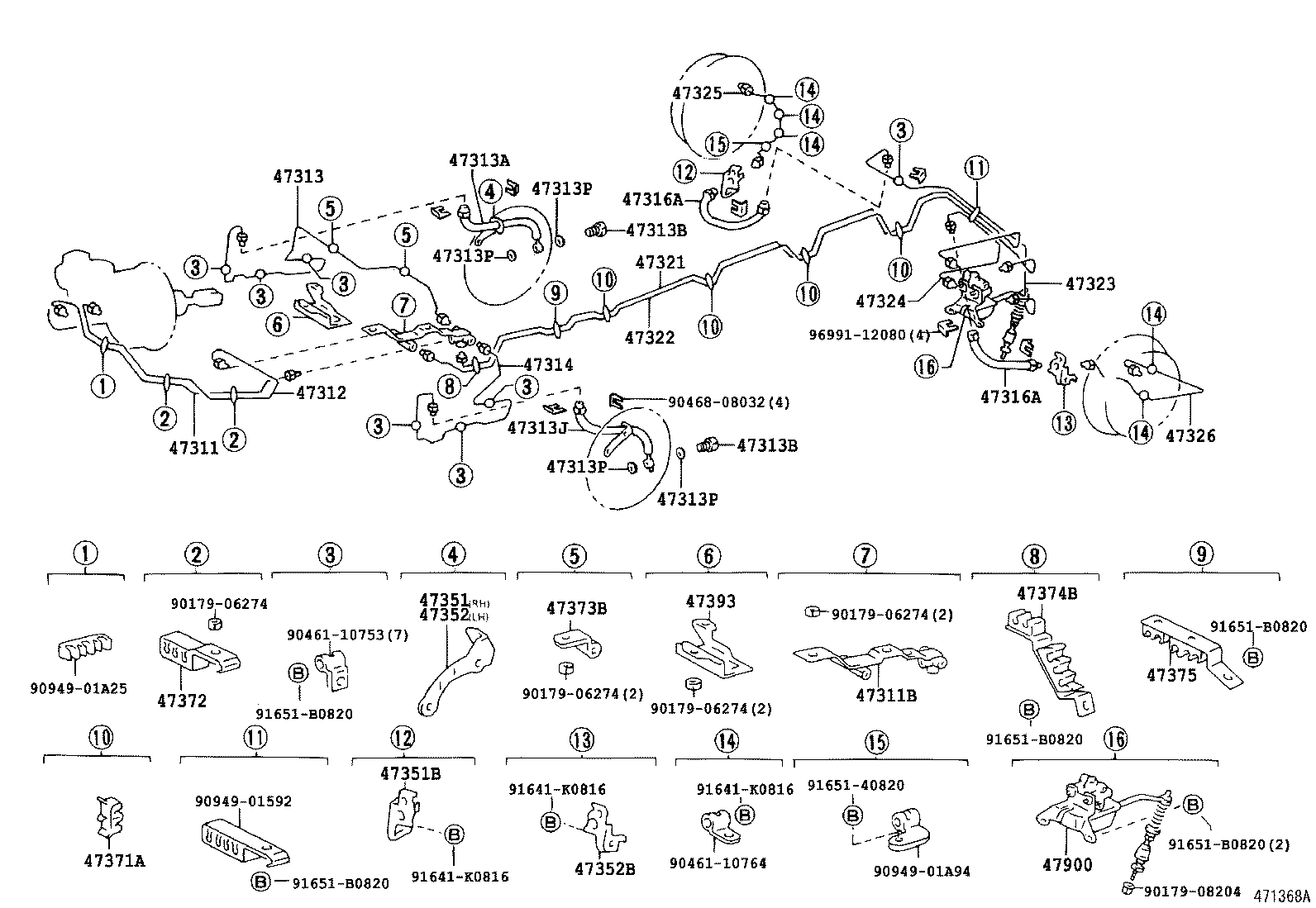

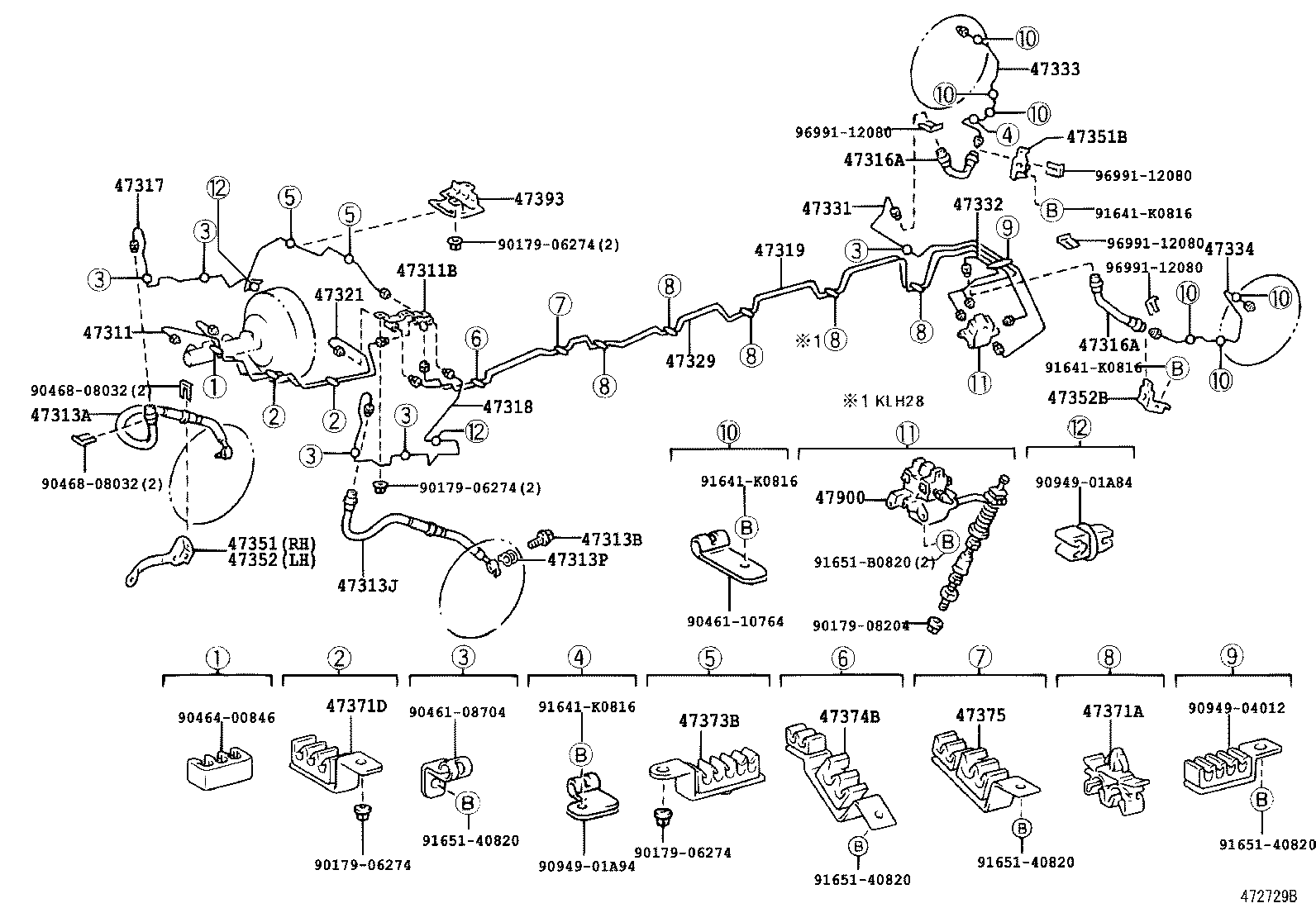

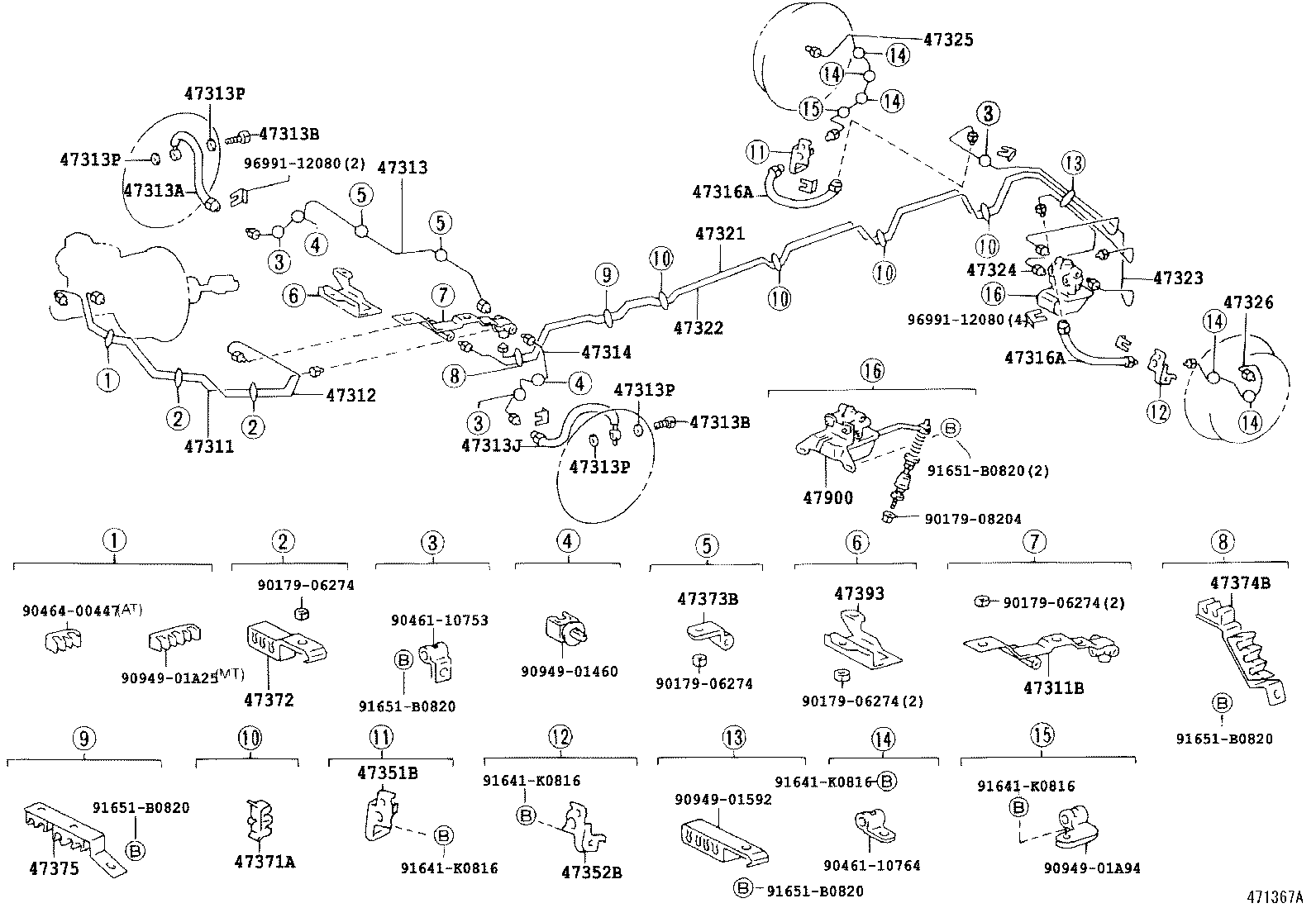

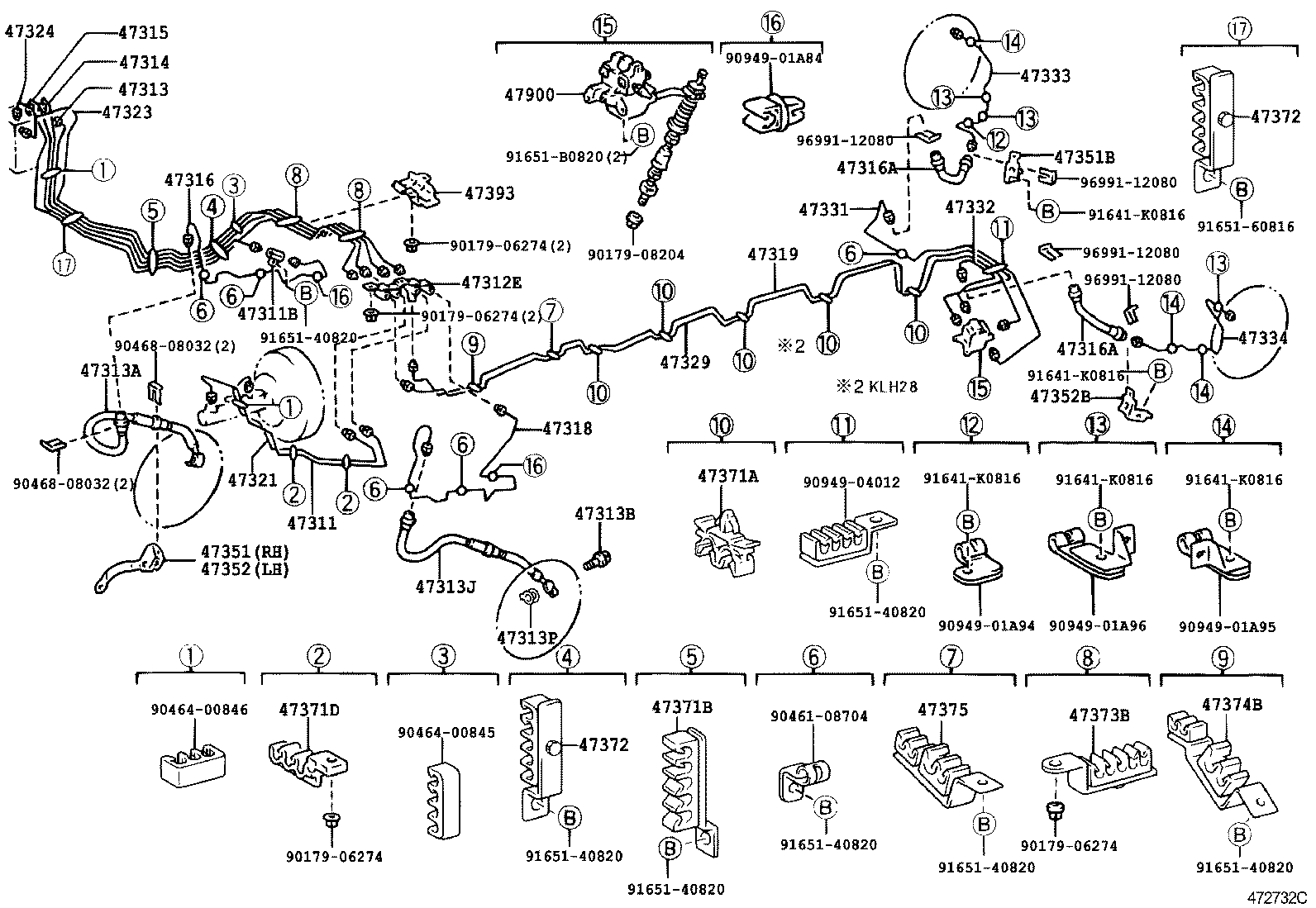

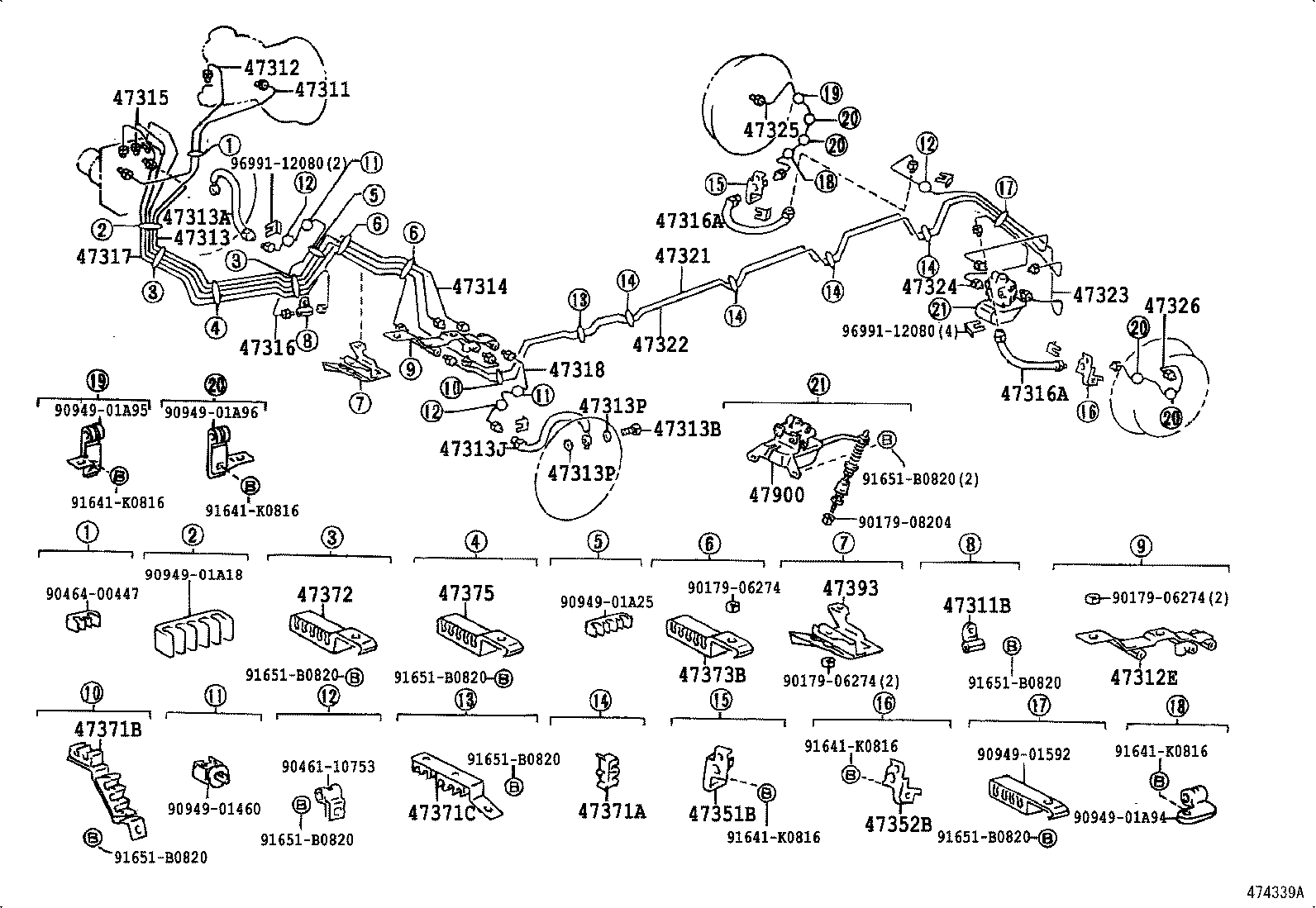

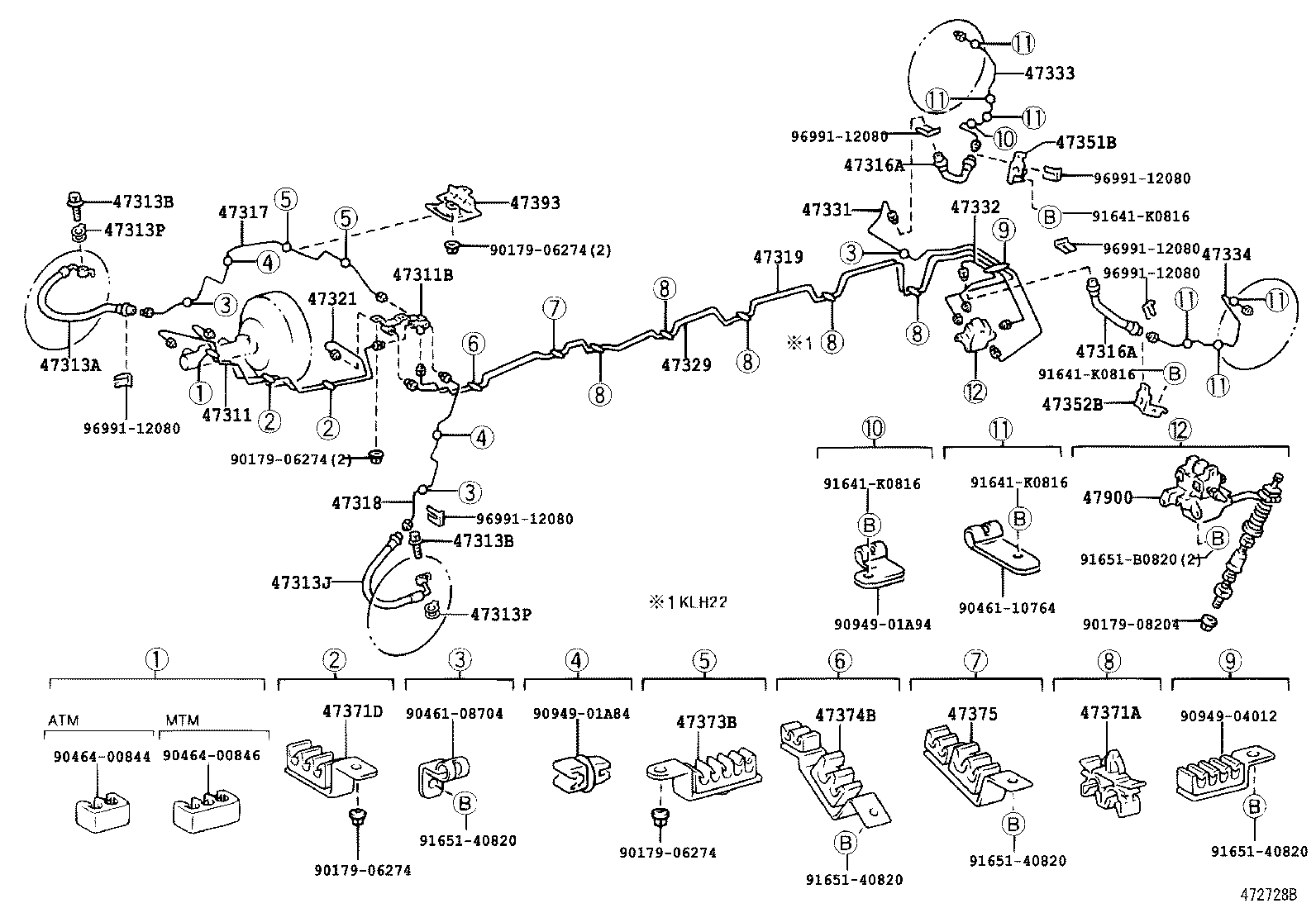

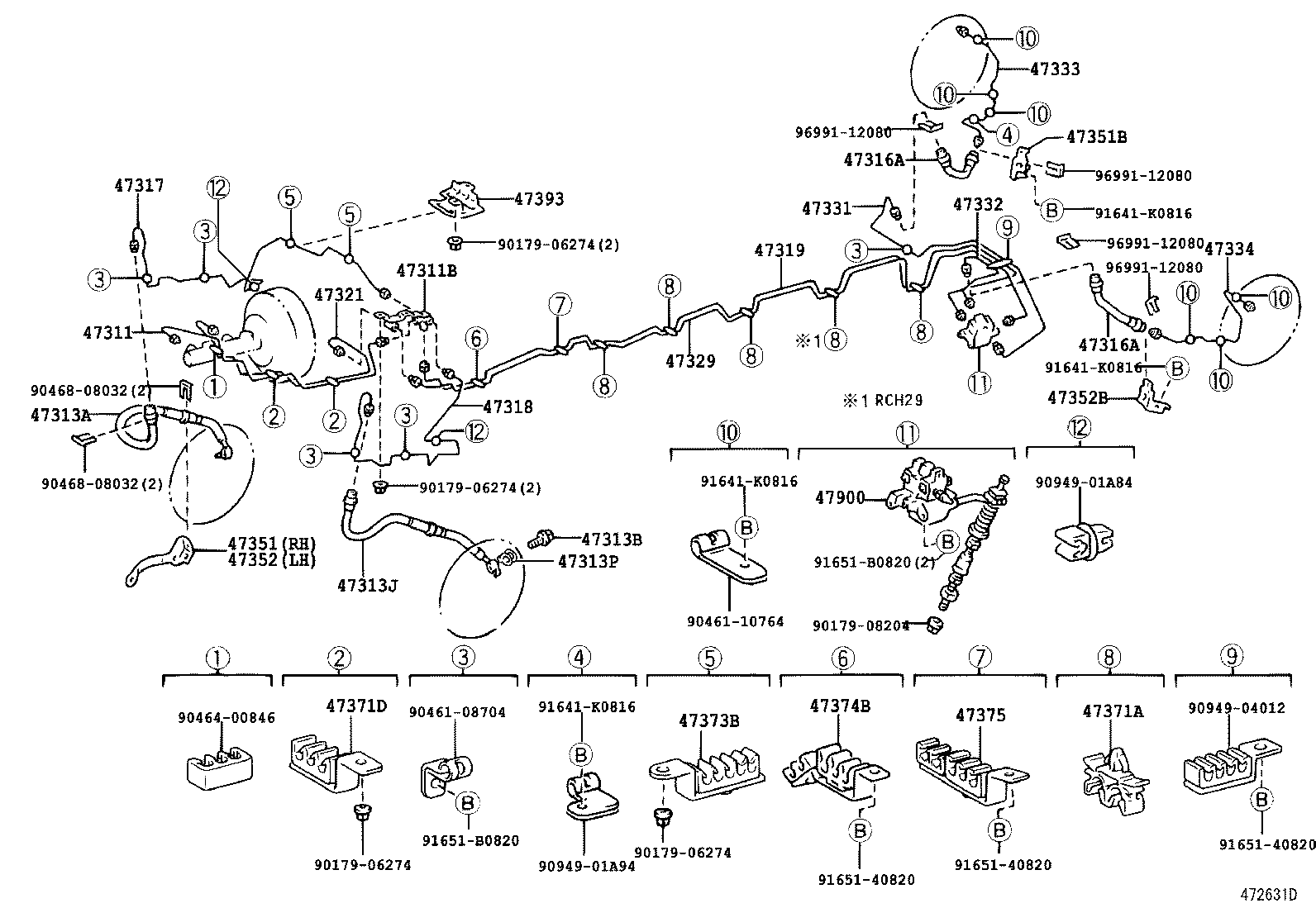

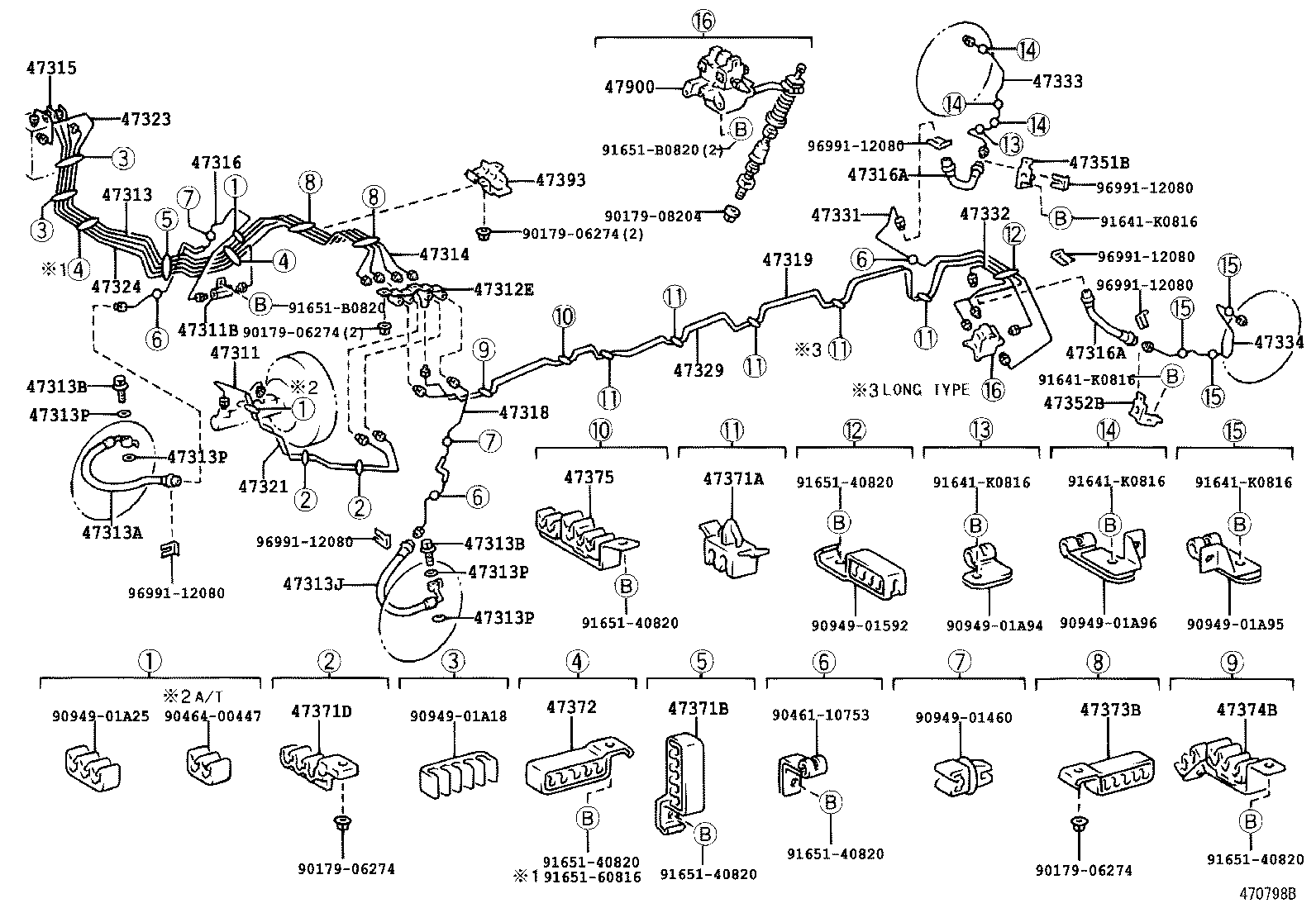

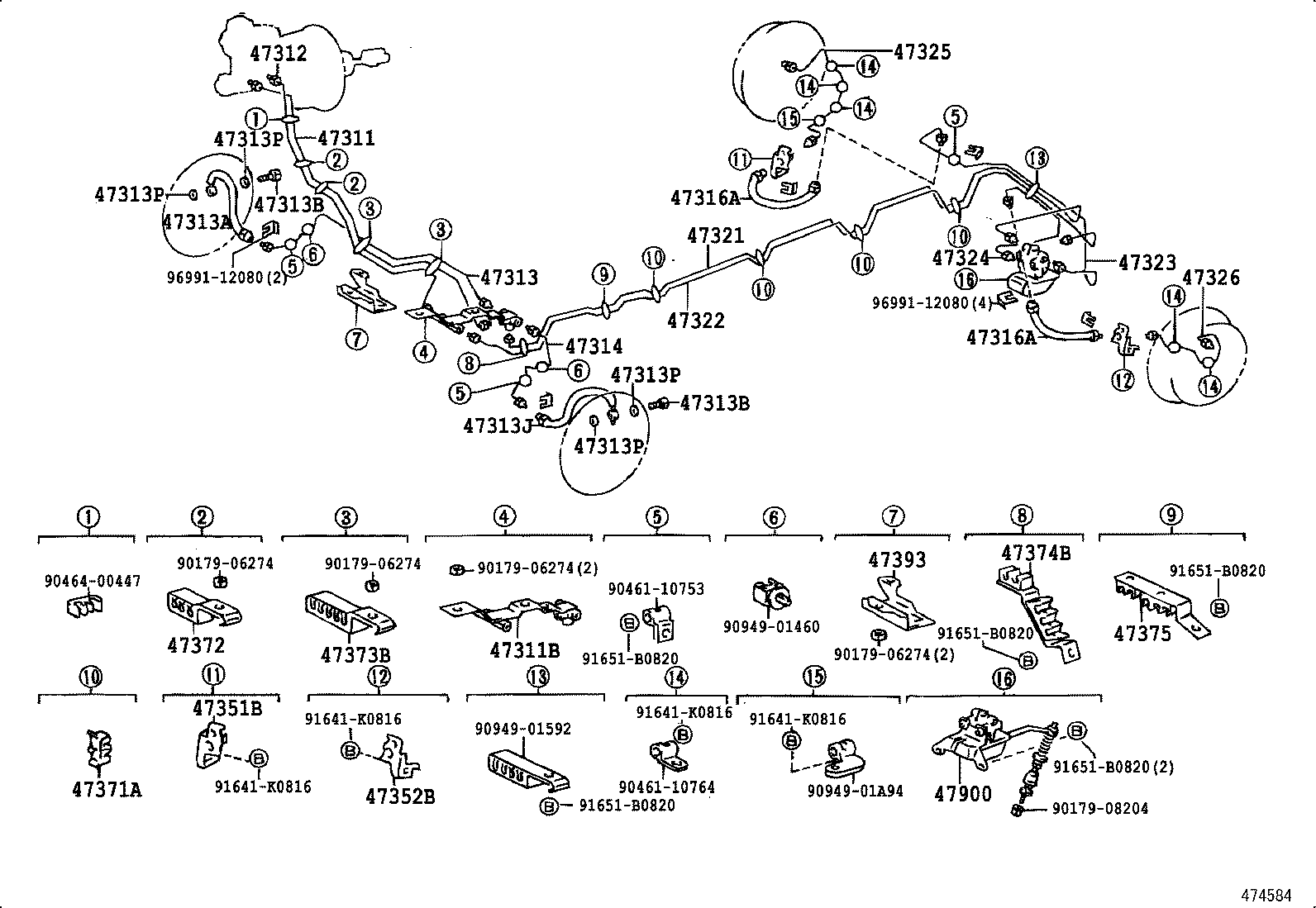

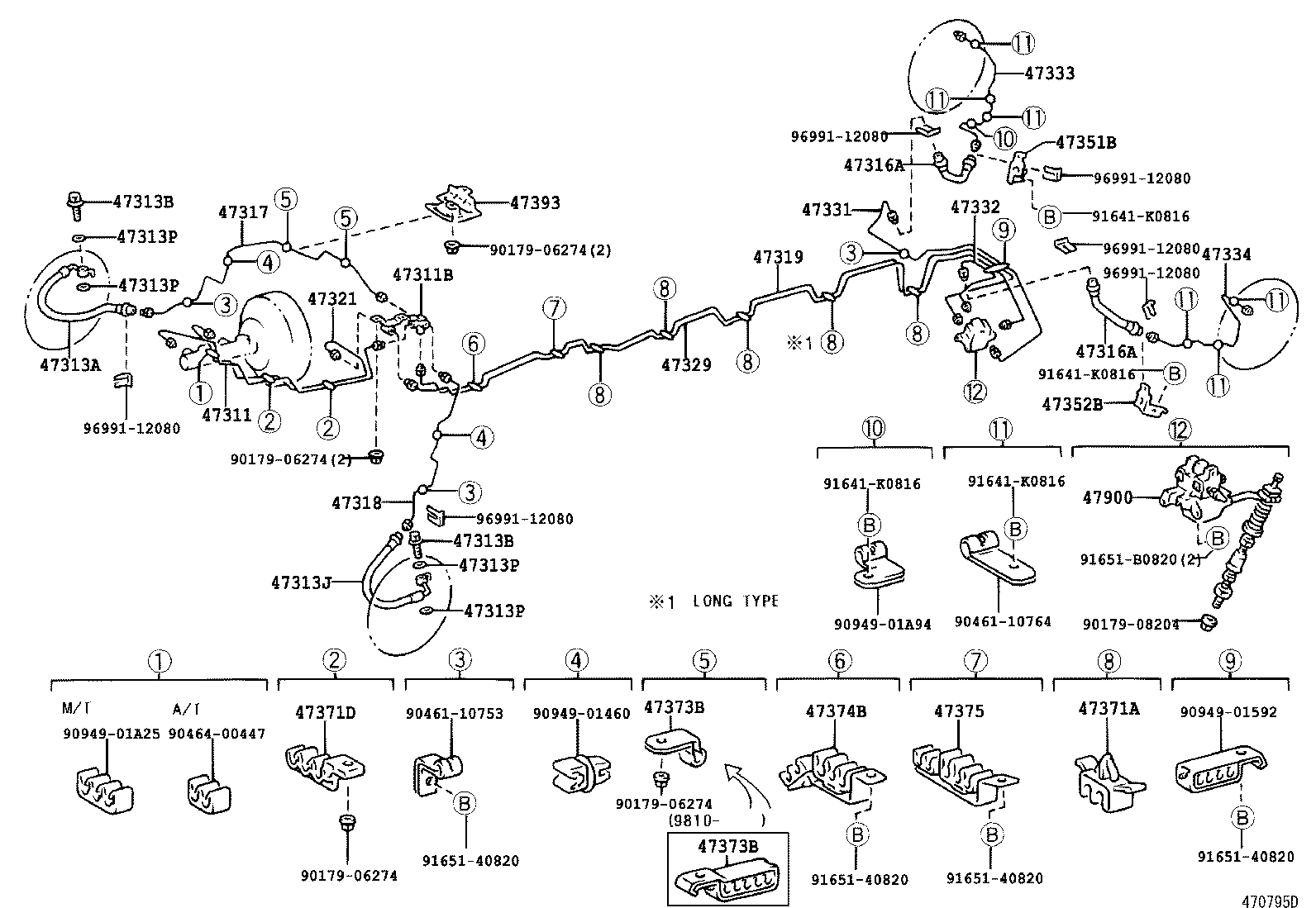

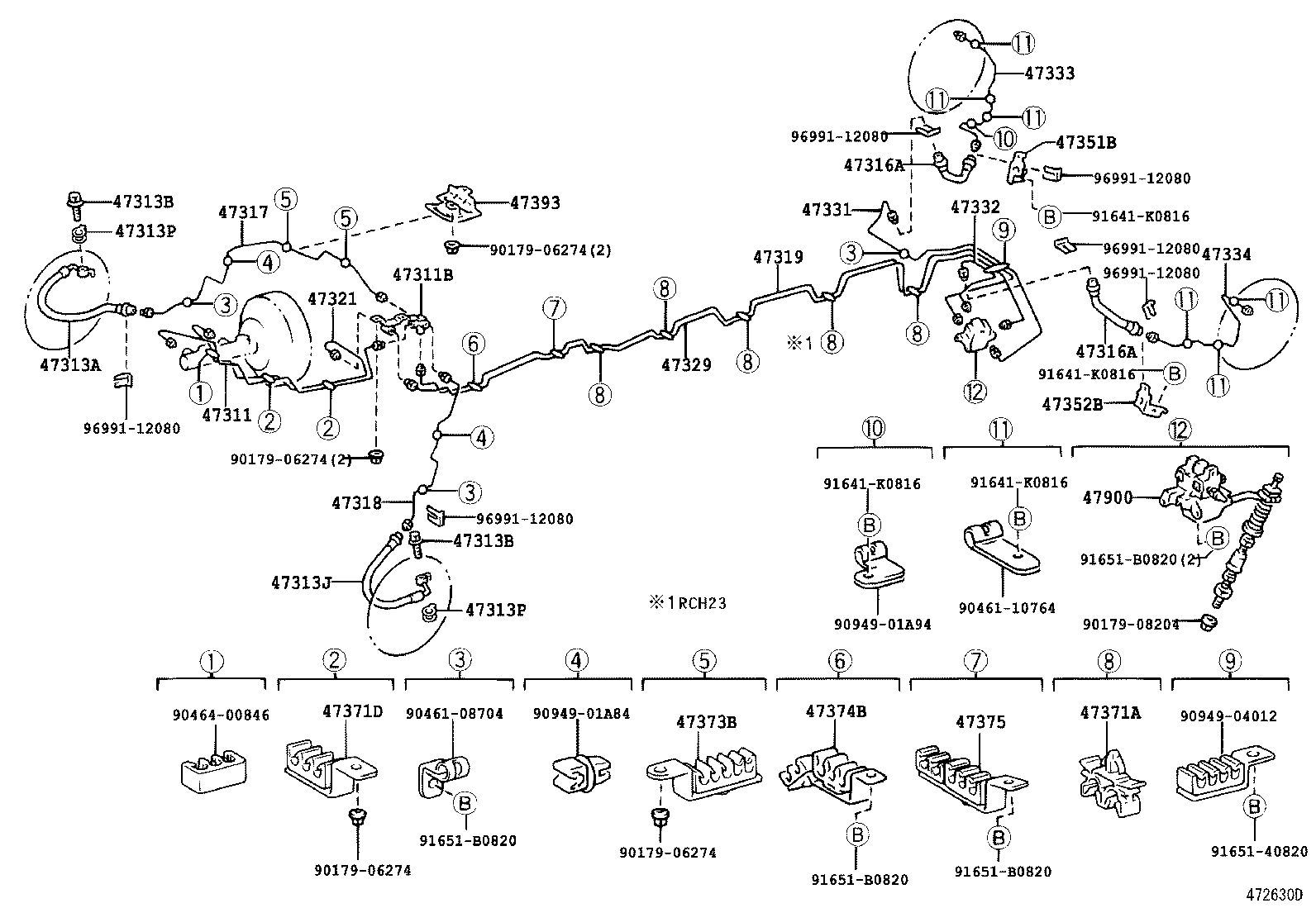

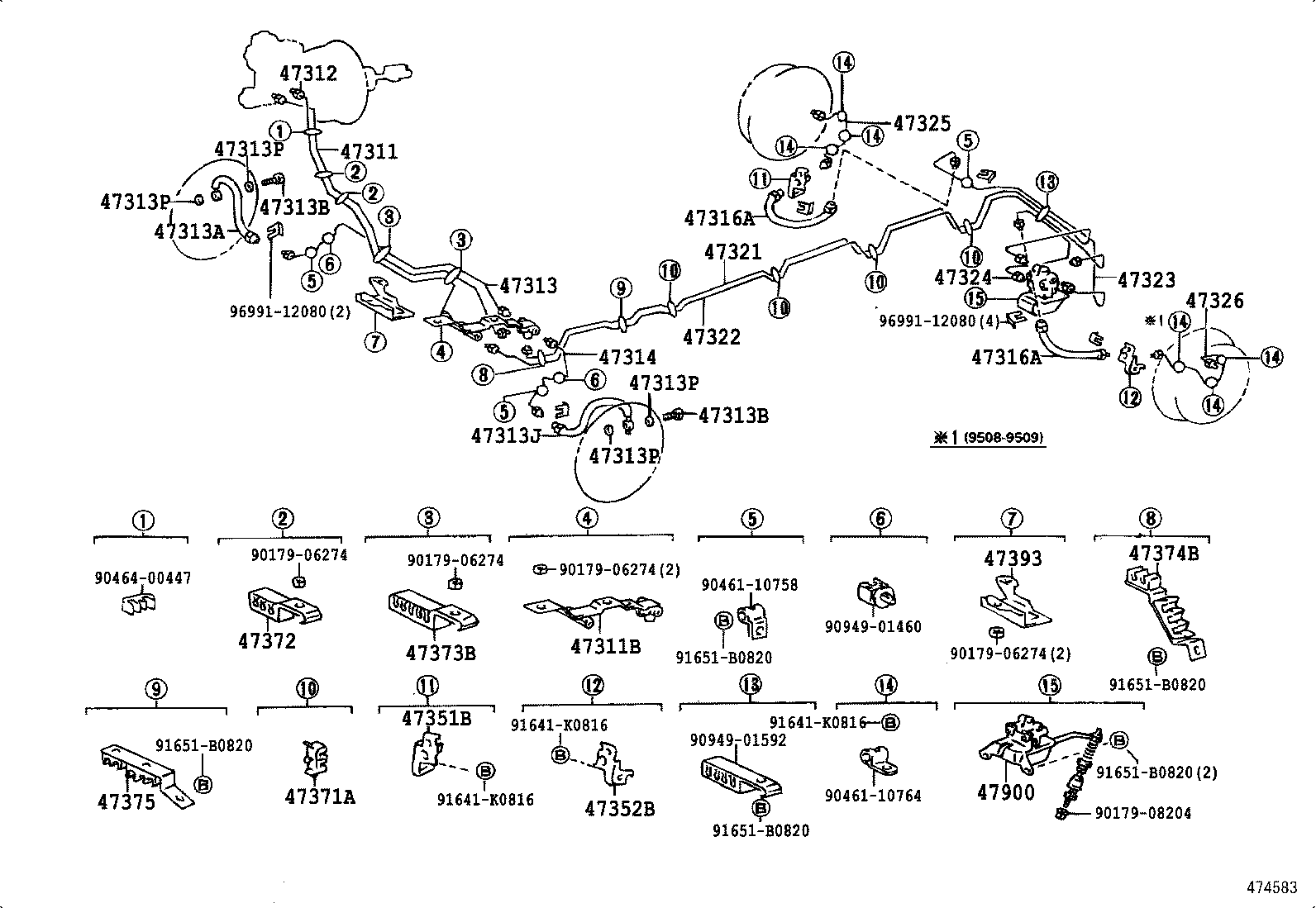

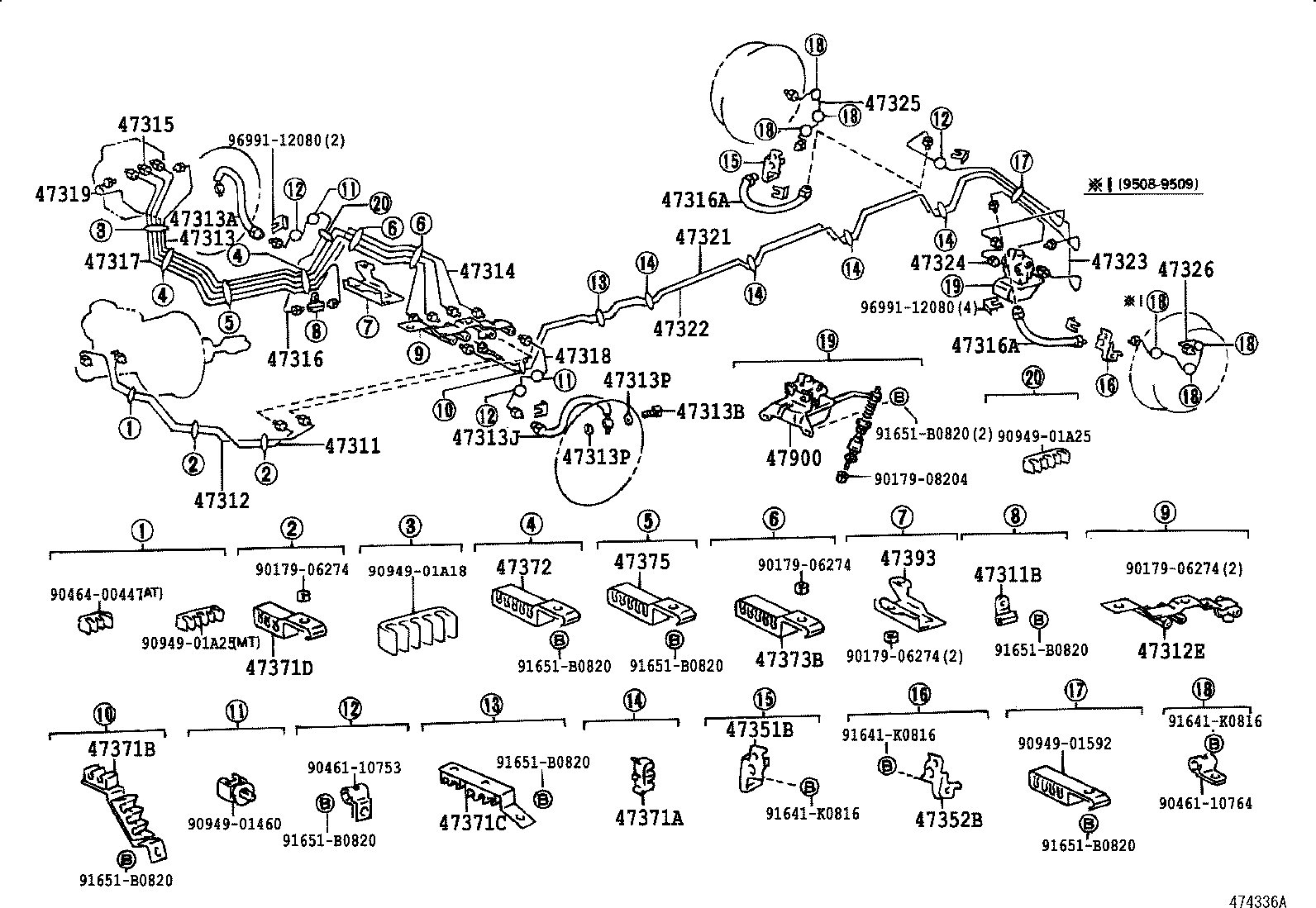

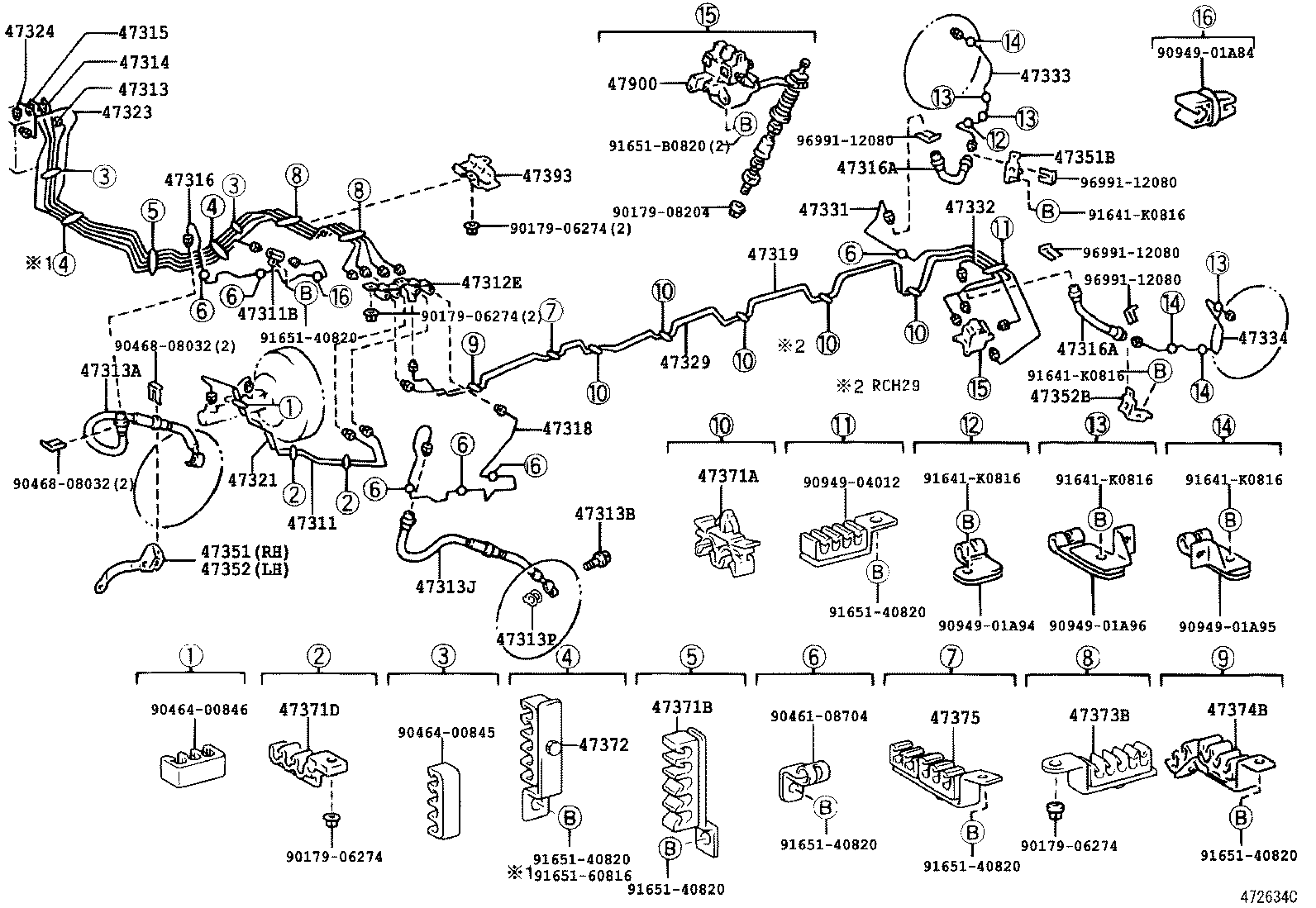

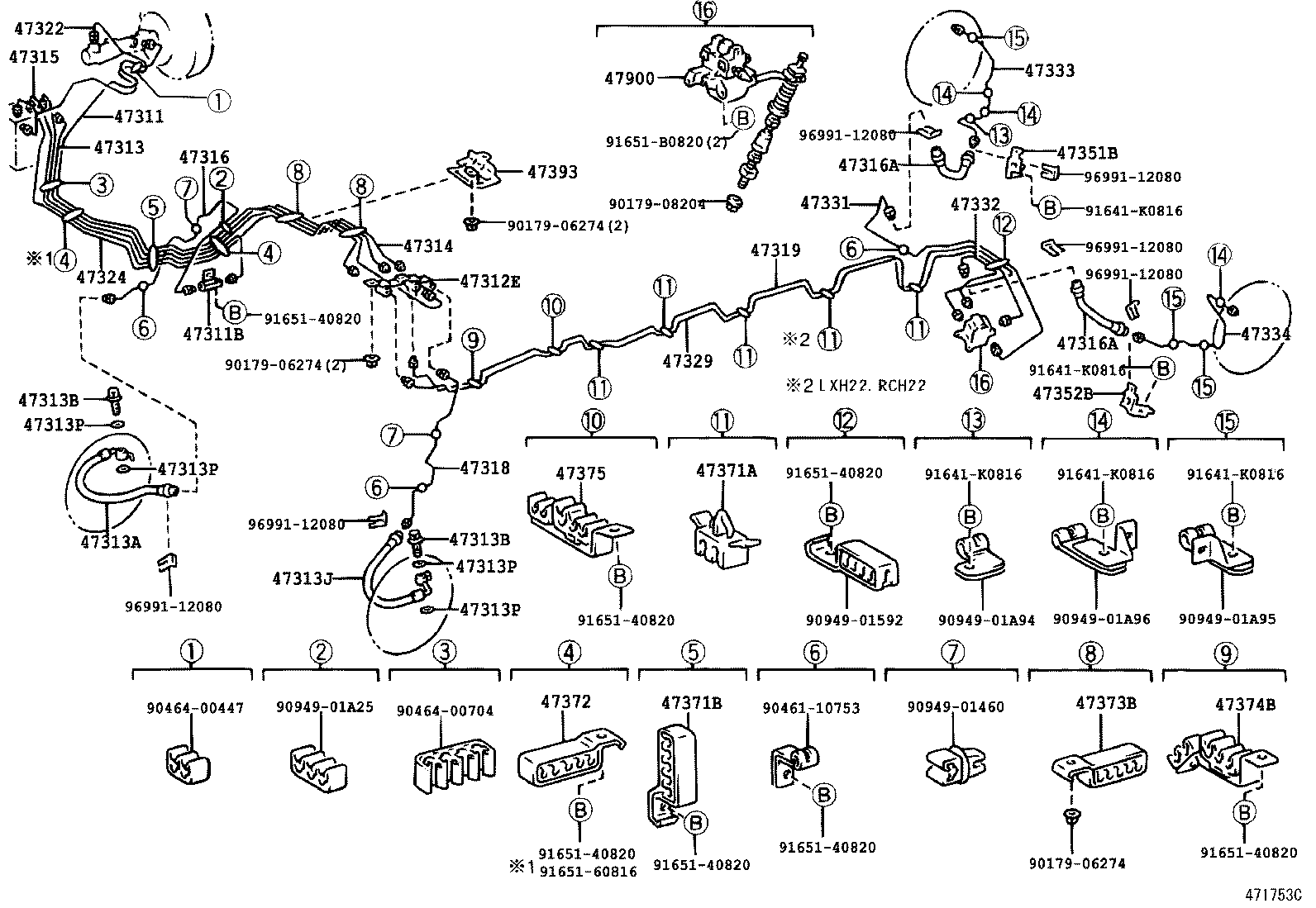

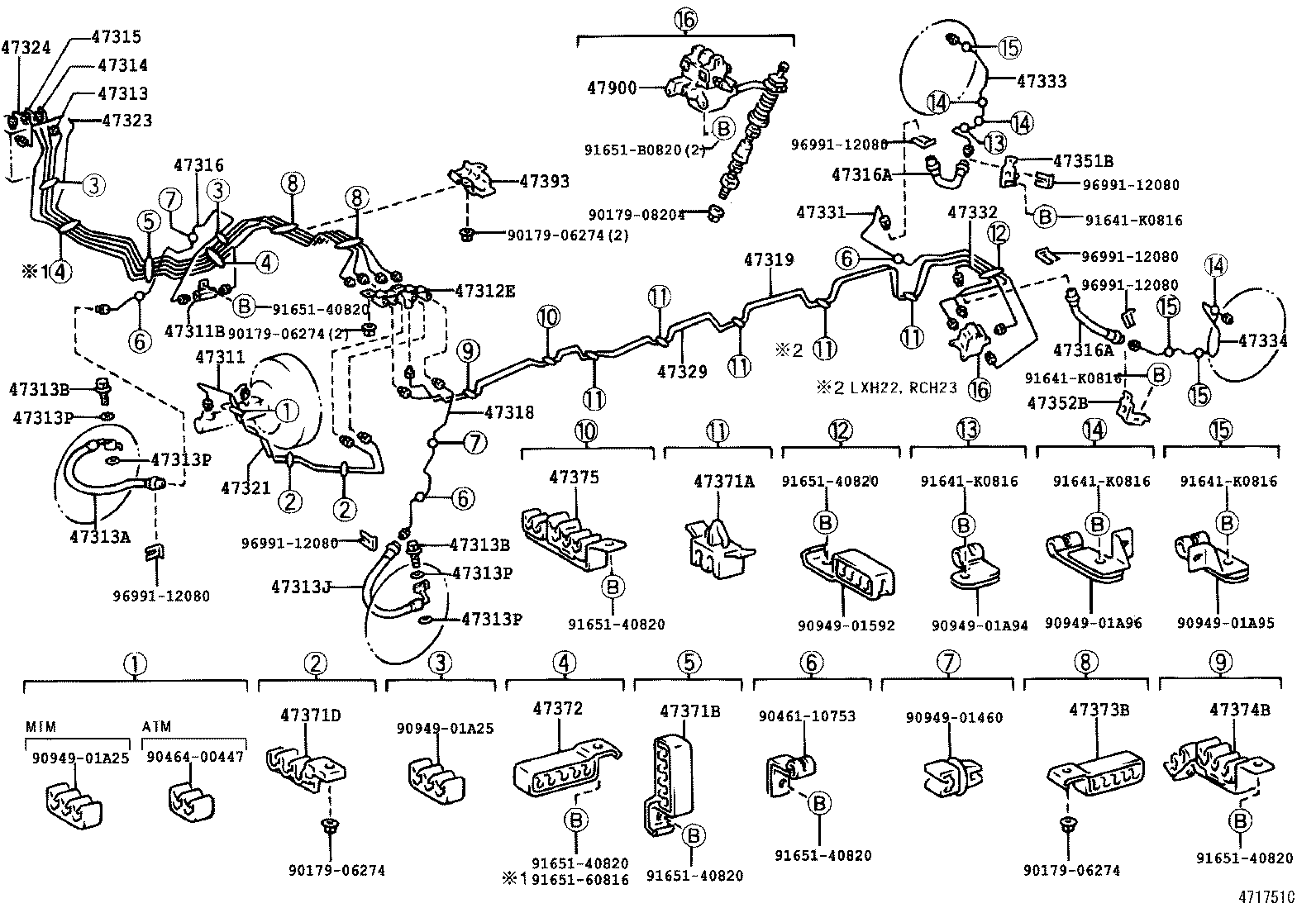

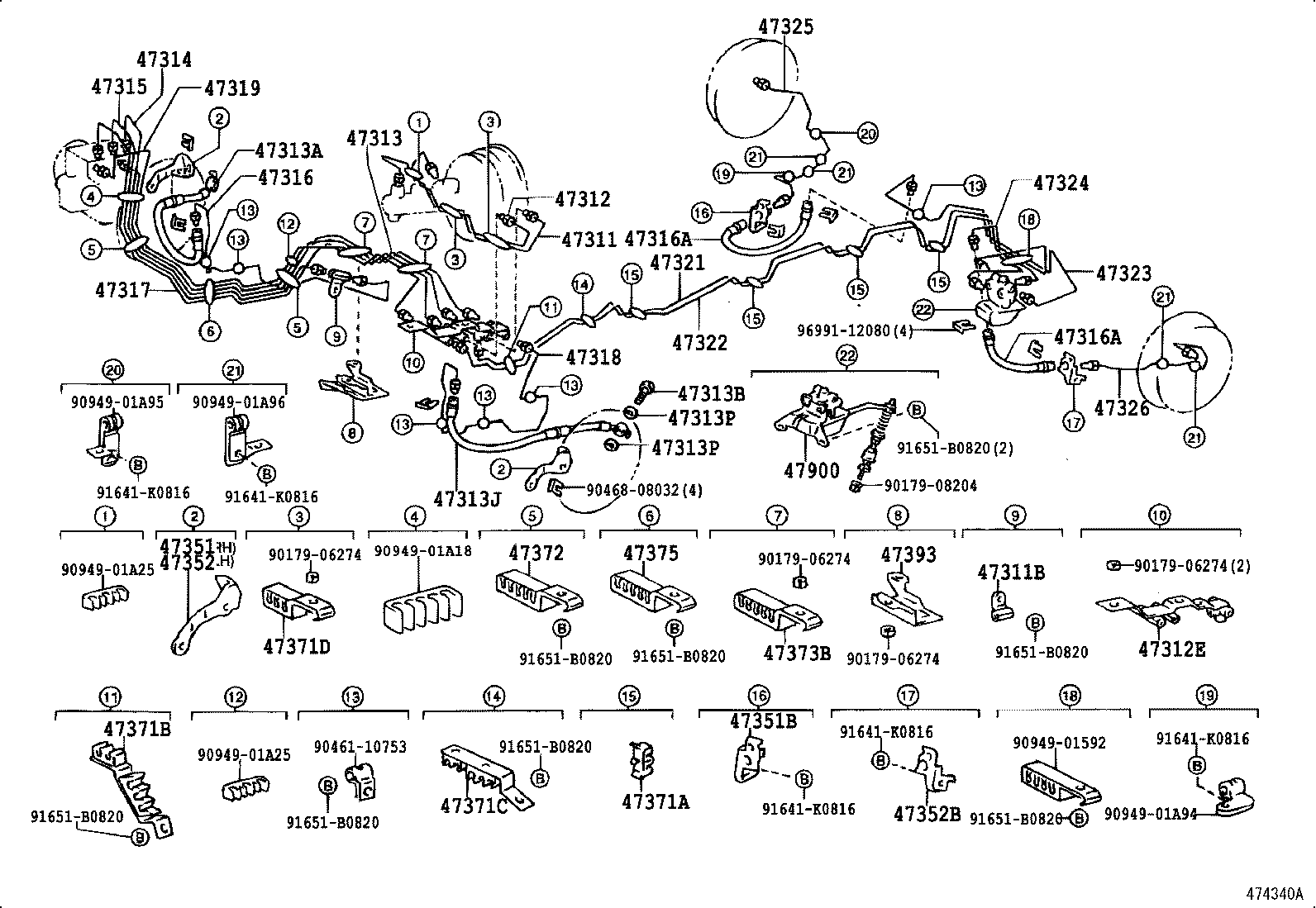

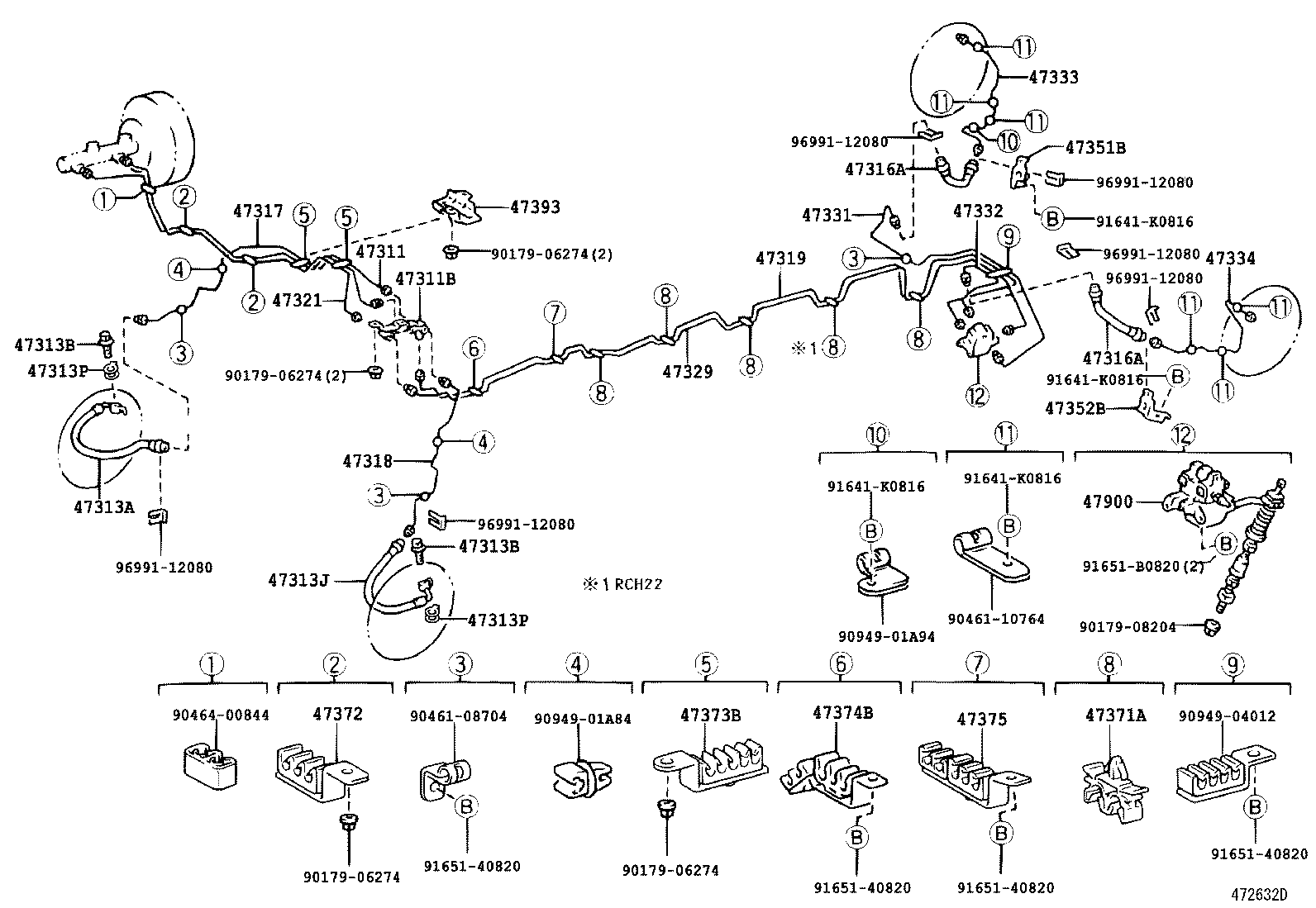

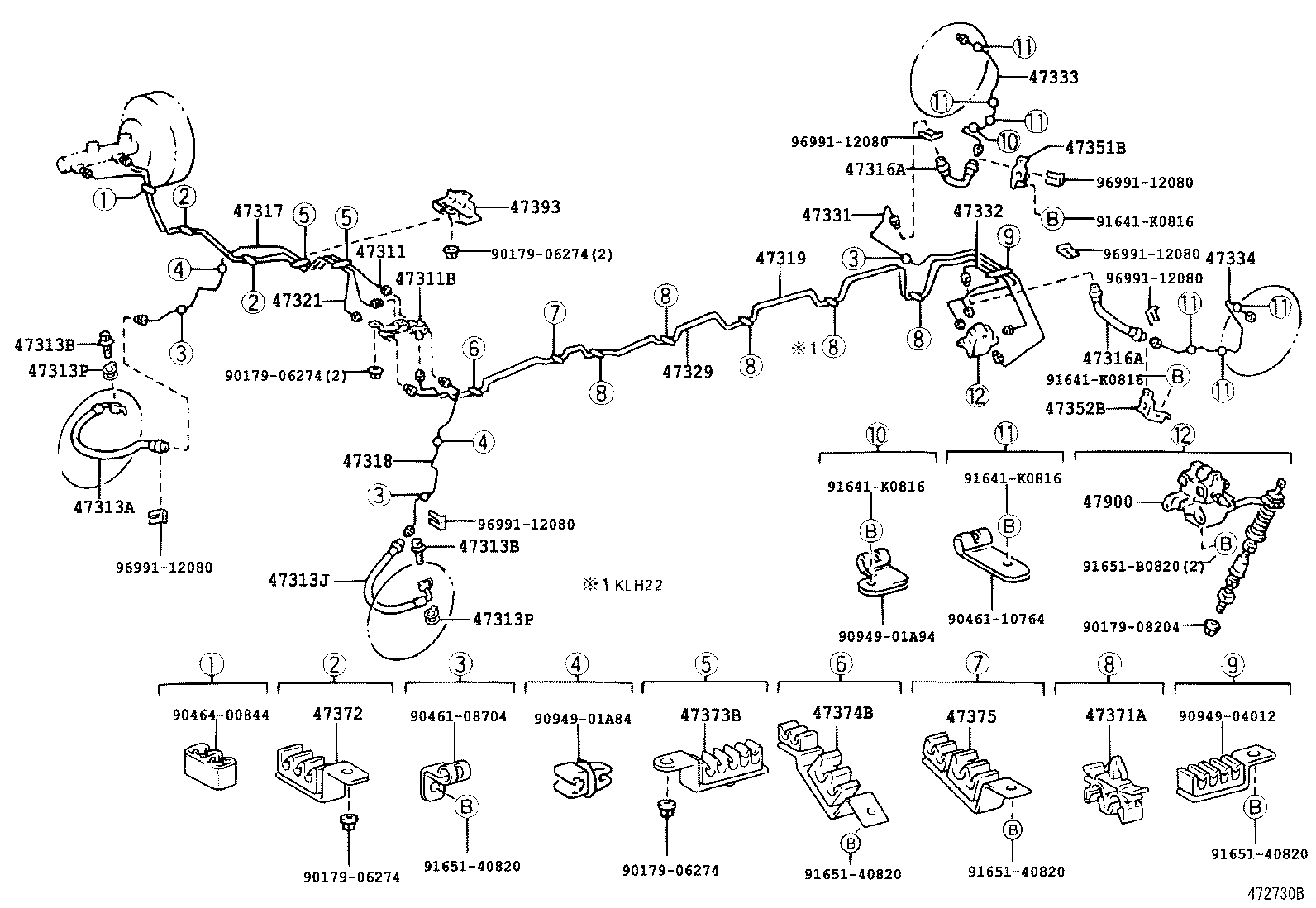

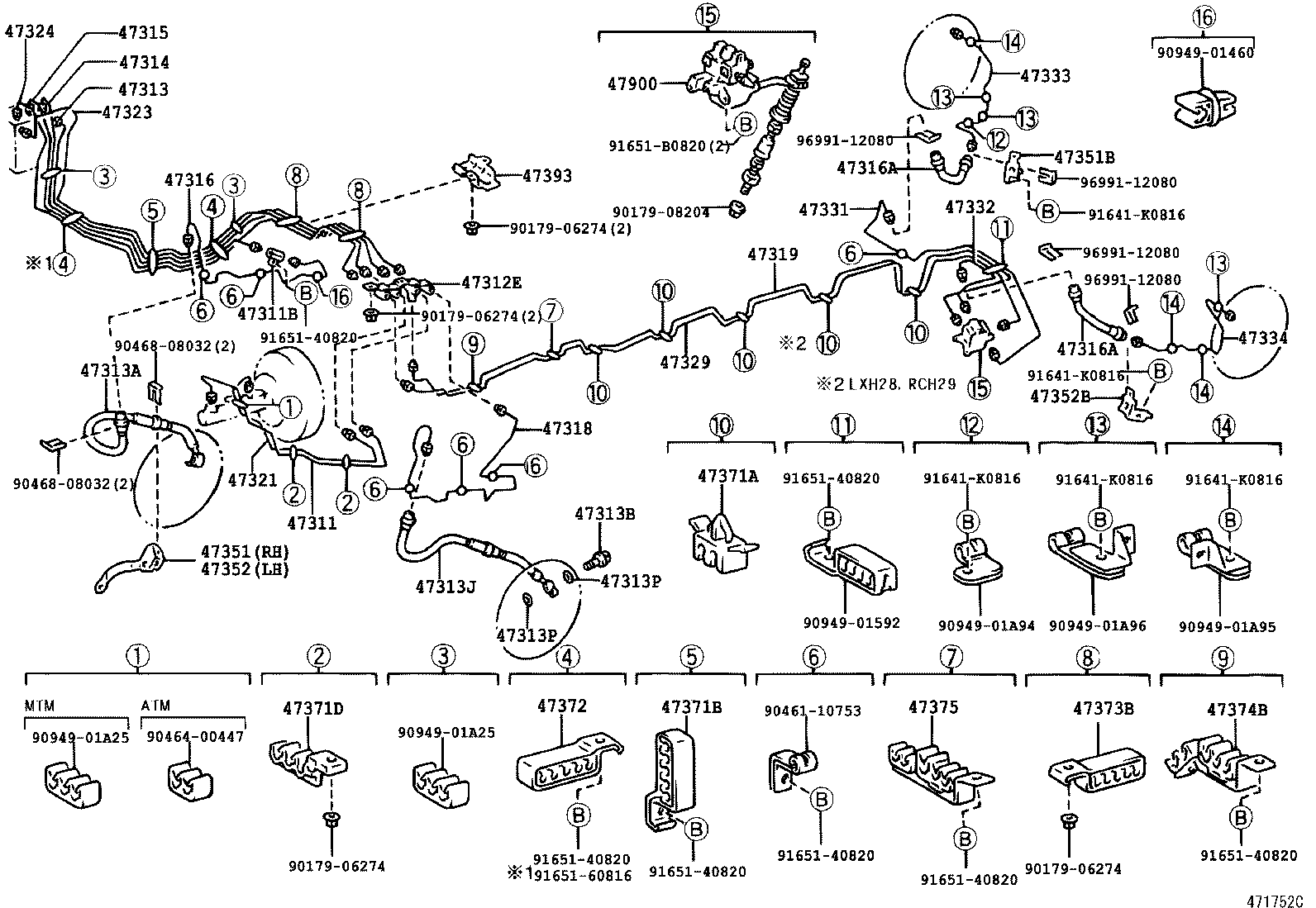

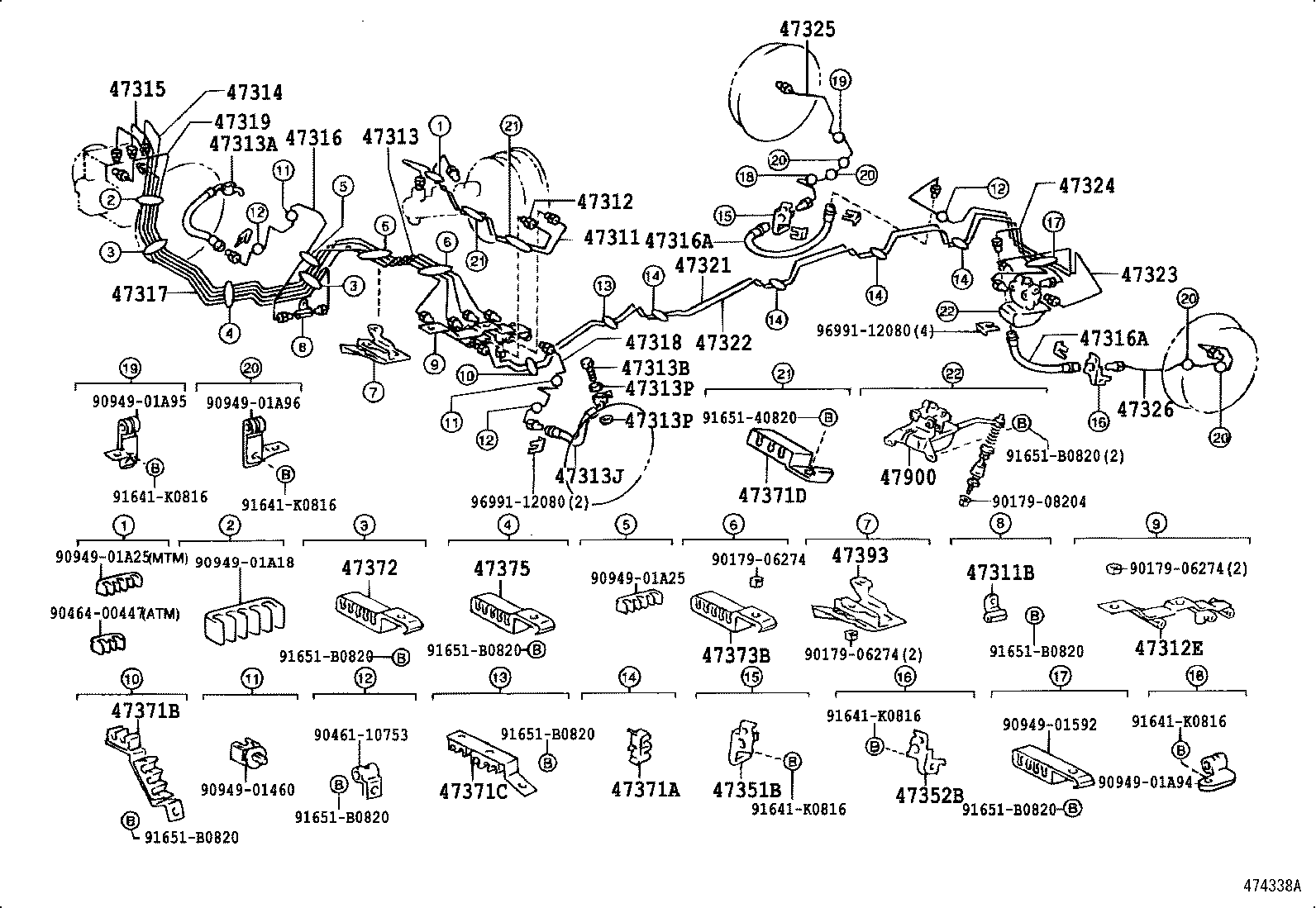

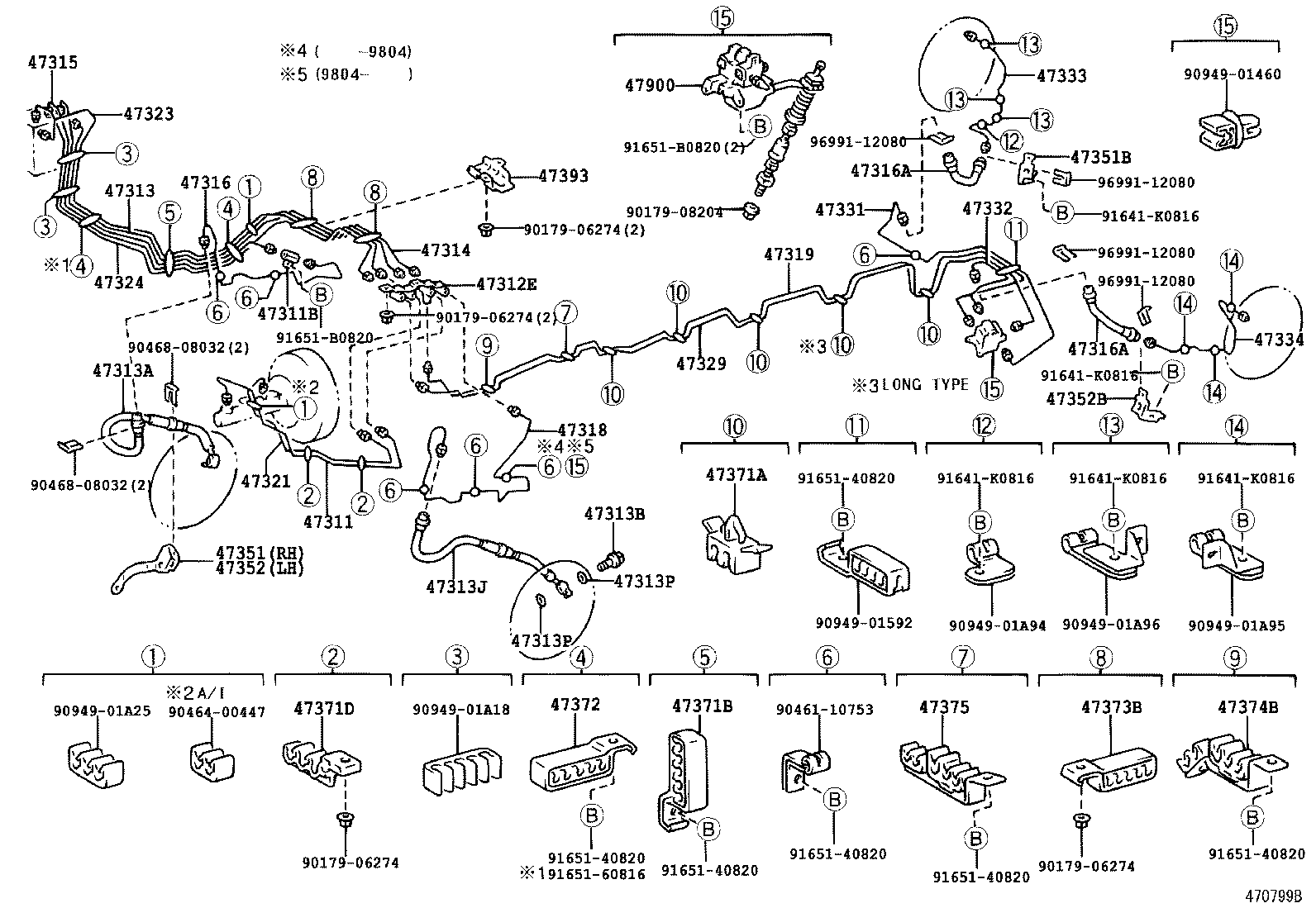

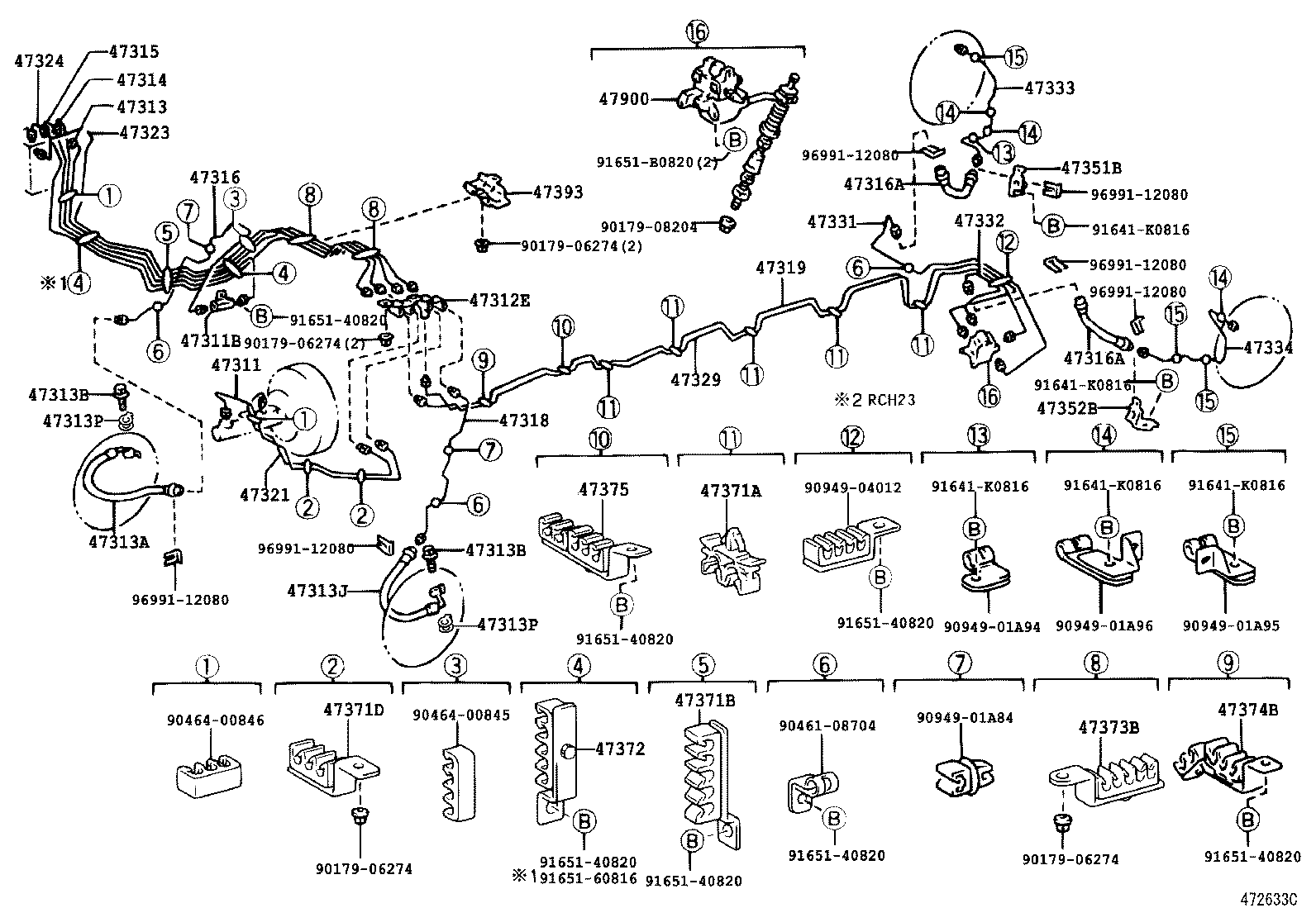

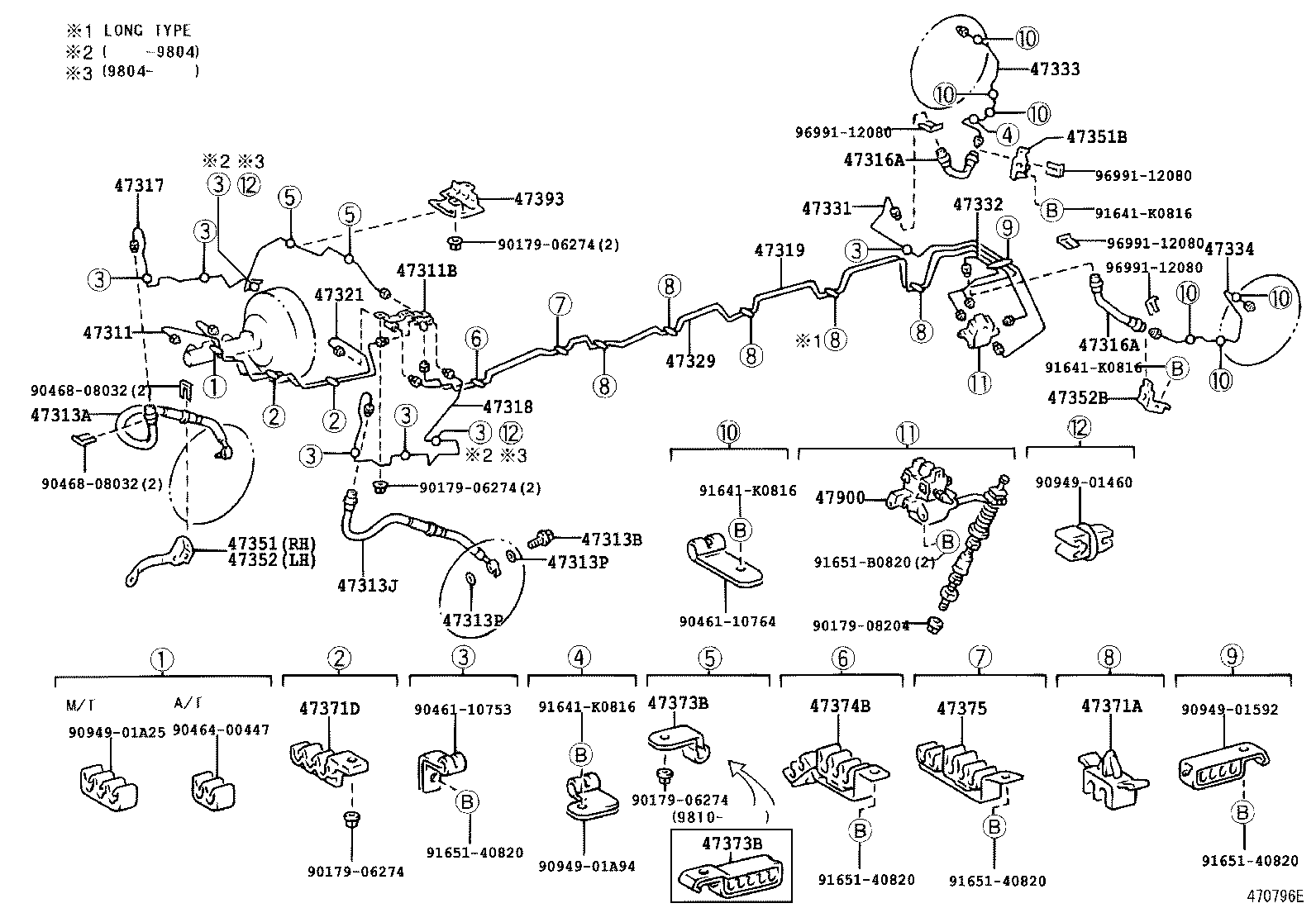

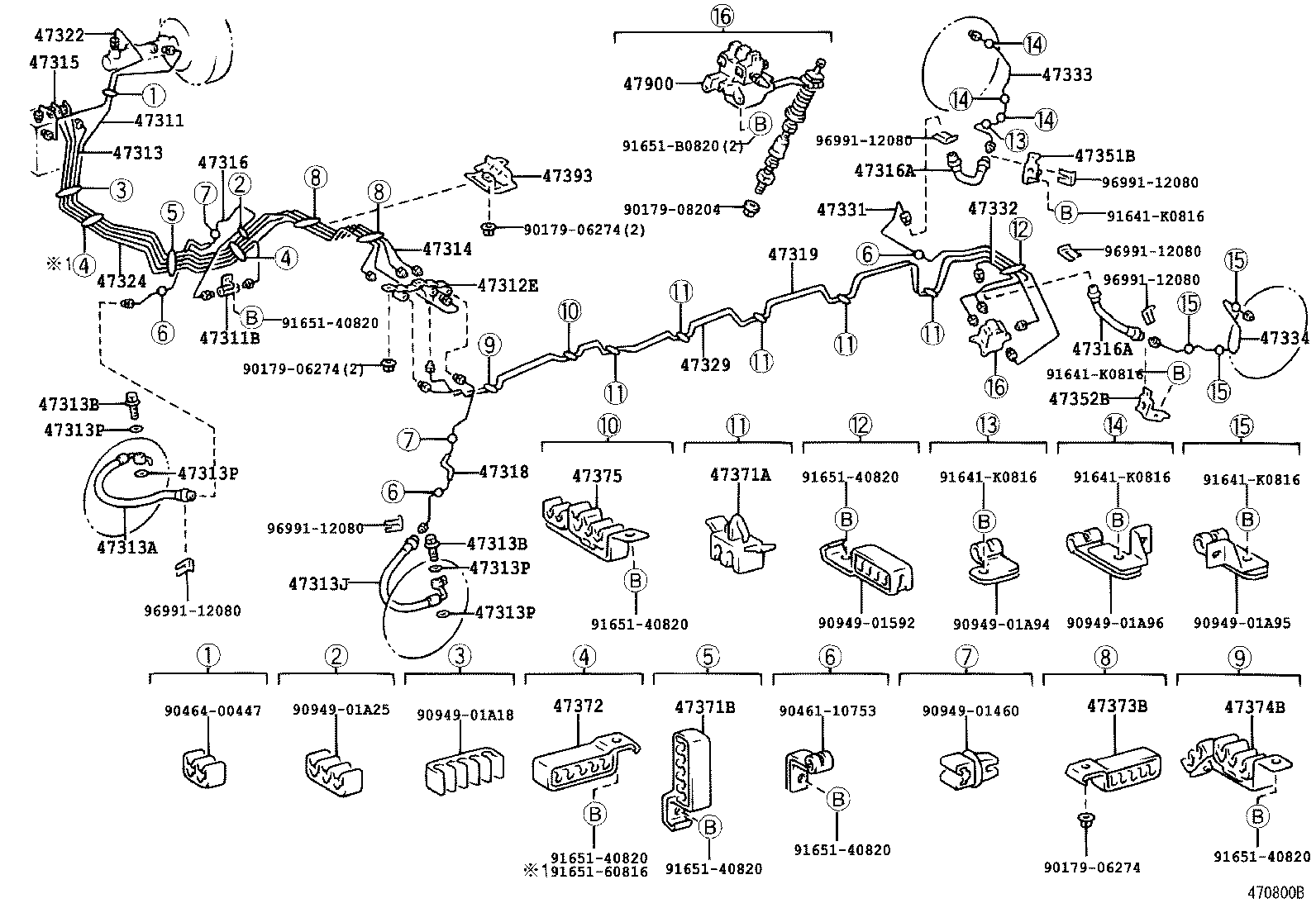

Figure 471366A 471366A 1995-09 → 1996-08 Figure 474583 474583 1995-08 → 1996-08 Figure 471367A 471367A 1996-08 → 1997-08 Figure 474584 474584 1996-08 → 1997-08 Figure 471368A 471368A 1996-08 → 1997-08 Figure 470795D 470795D 1997-08 → 2001-08 Figure 470796E 470796E 1997-08 → 2001-08 Figure 470797C 470797C 1997-08 → 2001-08 Figure 472630D 472630D 2001-08 → — Figure 472631D 472631D 2001-08 → — Figure 472632D 472632D 2001-08 → — Figure 472728B 472728B 2001-08 → — Figure 472729B 472729B 2001-08 → — Figure 472730B 472730B 2001-08 → — Figure 474336A 474336A 1995-08 → 1996-08 Figure 474337A 474337A 1995-08 → 1996-08 Figure 474338A 474338A 1996-08 → 1997-08 Figure 474339A 474339A 1996-08 → 1997-08 Figure 474340A 474340A 1996-08 → 1997-08 Figure 470798B 470798B 1997-08 → 1999-07 Figure 470799B 470799B 1997-08 → 1999-07 Figure 470800B 470800B 1997-08 → 1999-07 Figure 471751C 471751C 1999-07 → 2001-08 Figure 471752C 471752C 1999-07 → 2001-08 Figure 471753C 471753C 1999-07 → 2001-08 Figure 472633C 472633C 2001-08 → — Figure 472634C 472634C 2001-08 → — Figure 472635D 472635D 2001-08 → — Figure 472731B 472731B 2001-08 → — Figure 472732C 472732C 2001-08 → — Figure 472733B 472733B 2001-08 → — Figure 471928 471928 1995-08 → 1996-08 Figure MCV660 MCV660 1996-08 → 1997-08 Figure 470781 470781 1997-08 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
44597 Clamp, Brake Actuator Connector, NO.1
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47351 Bracket, Flexible Hose(FOR FRONT RH)
47351B Bracket, Flexible Hose, NO.1
47352 Bracket, Flexible Hose(FOR FRONT LH)
47352B Bracket, Flexible Hose, NO.2
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47393 Insulator, Brake Tube Heat
47900 Valve Assy, Load Sensing W/Spring
