Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

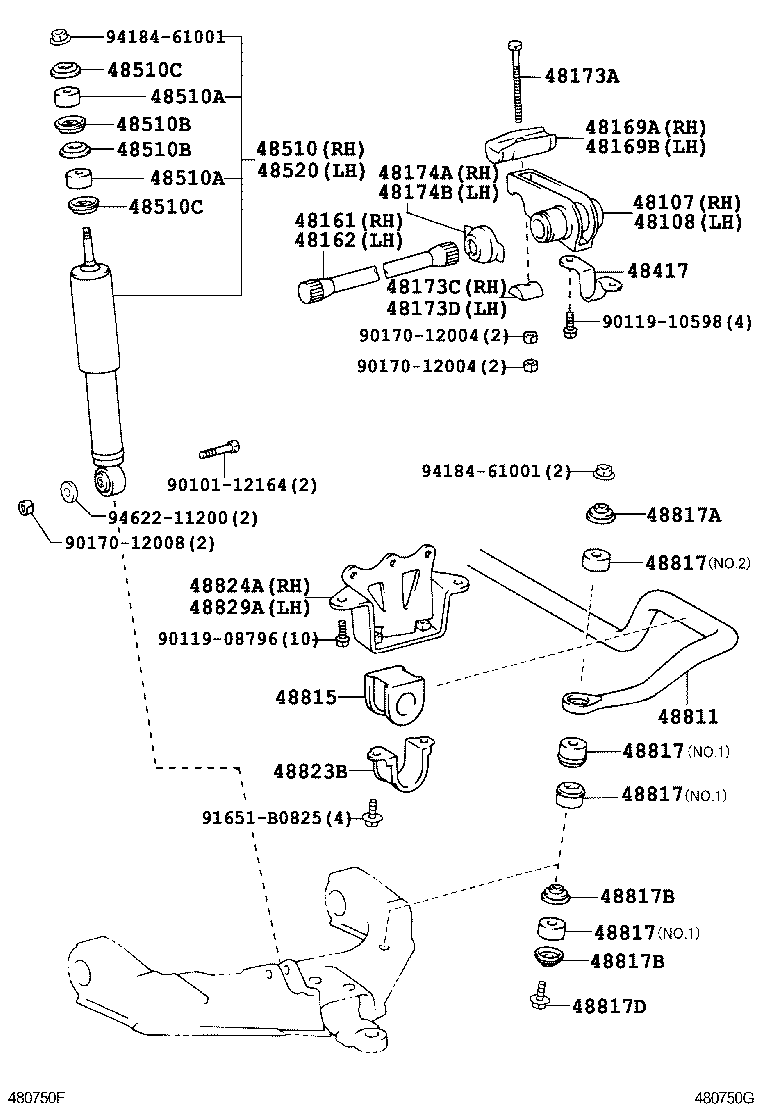

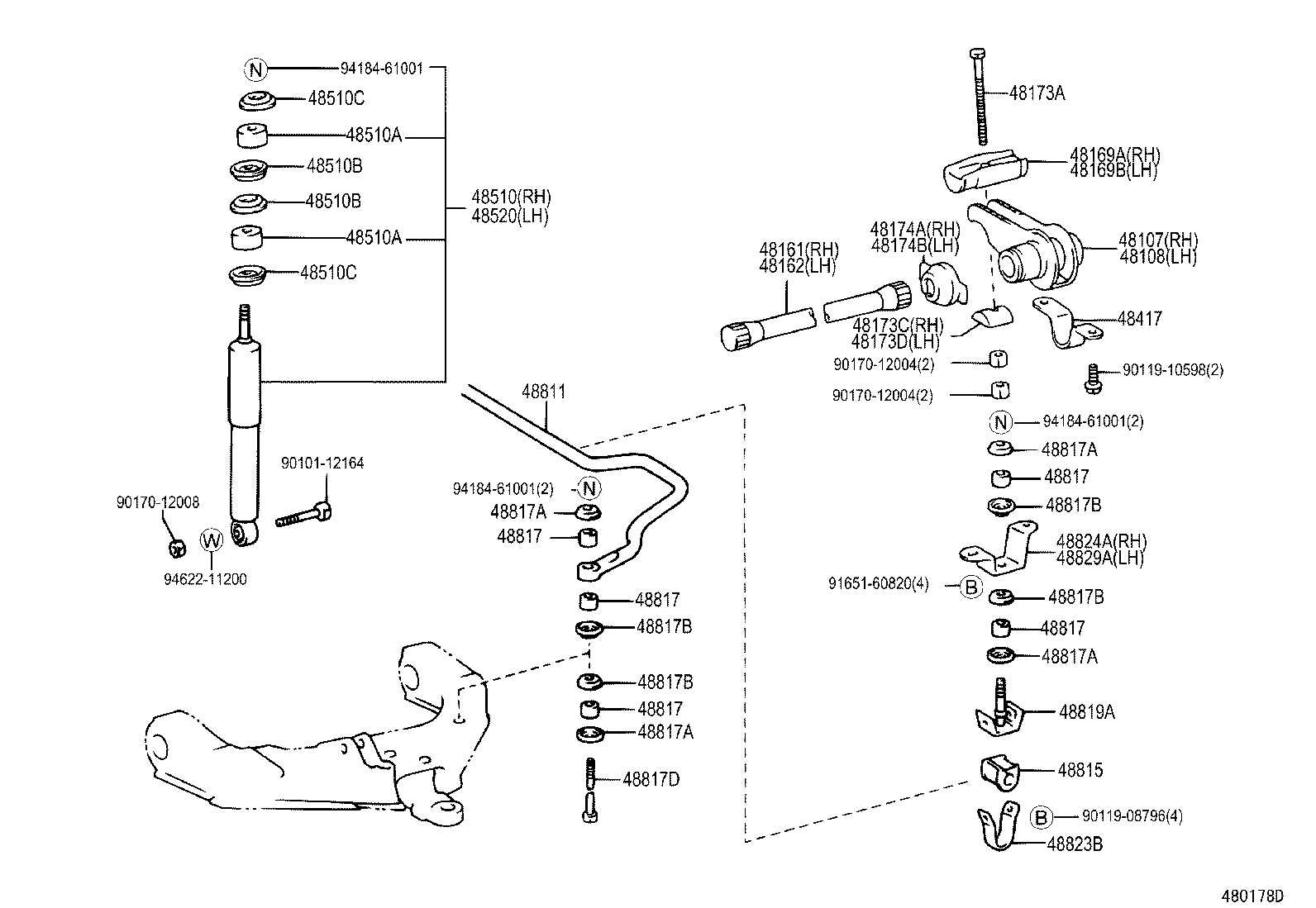

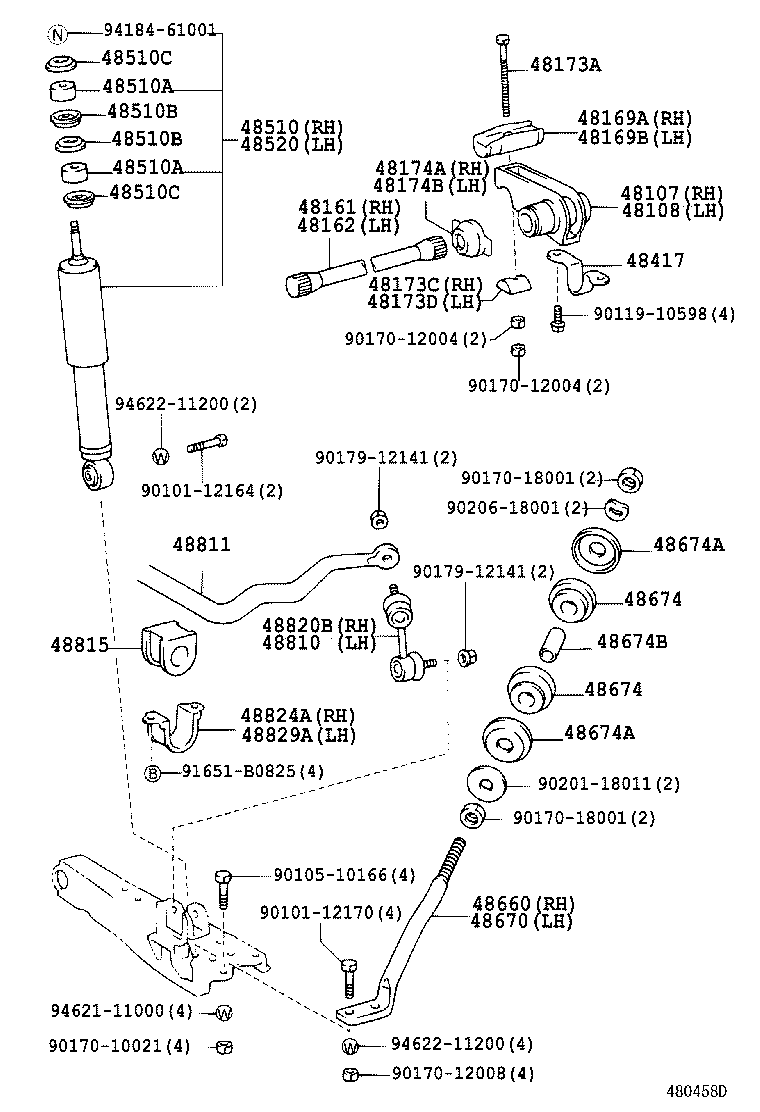

Front Spring & Shock Absorber
34 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 48107 | Arm Sub-assy, Anchor, RH |
| 48108 | Arm Sub-assy, Anchor, LH |
| 48161 | Spring, Torsion Bar, RH |
| 48162 | Spring, Torsion Bar, LH |
| 48169A | Swivel, Anchor Arm, RH |
| 48169B | Swivel, Anchor Arm, LH |
| 48173A | Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING) |
| 48173C | Seat, Anchor Arm Adjuster, RH |
| 48173D | Seat, Anchor Arm Adjuster, LH |
| 48174A | Cover, Torsion Bar Dust, RH |
| 48174B | Cover, Torsion Bar Dust, LH |
| 48417 | Bracket, Spring |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510A | Cushion, Front Shock Absorber |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510C | Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER) |
| 48520 | Absorber Assy, Shock, Front LH |
| 48660 | Bar Assy, Strut, RH |
| 48670 | Bar Assy, Strut, LH |
| 48674 | Cushion, Strut Bar |
| 48674A | Retainer, Cushion(FOR STRUT BAR CUSHION) |
| 48674B | Collar(FOR STRUT BAR CUSHION) |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817B | Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR) |
| 48817D | Bolt(FOR FRONT STABILIZER) |
| 48819A | Bolt, Front Stabilizer |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48823B | Cover, Front Stabilizer Bracket |
| 48824A | Bracket, Front Stabilizer, NO.1 RH |
| 48829A | Bracket, Front Stabilizer, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
