Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

13 part groups · 2 illustrations

Illustrations

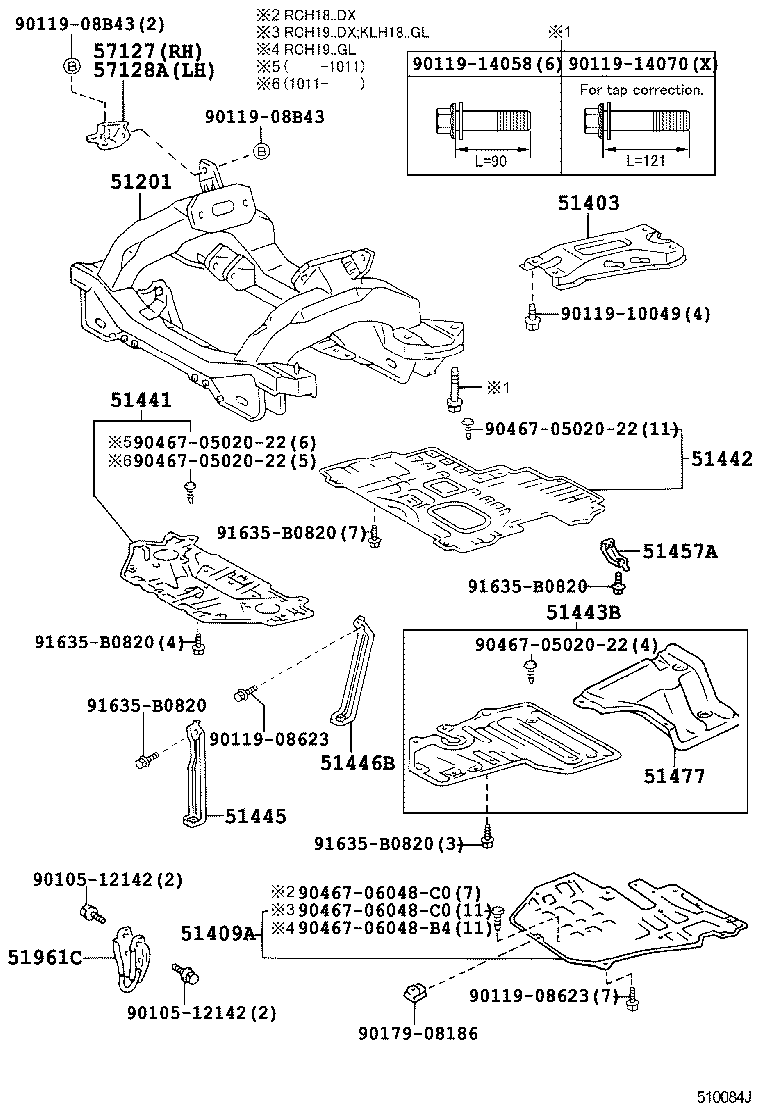

Figure 510312G 510312G 1995-08 → — Figure 510084J 510084J 1996-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51403 Bracket Sub-assy, Engine Rear Mounting
51409A Cover Sub-assy, Engine Under, NO.4
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51445 Bracket, Engine Under Cover
51446B Bracket, Engine Under Cover, NO.2
51457A Bracket, Engine Under Cover, NO.3
51477 Plate, Engine Side Under Cover, Upper RH
51961C Hook, Front
57127 Plate, Front Suspension Member Mounting, RH
57128A Plate, Front Suspension Member Mounting, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
