Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

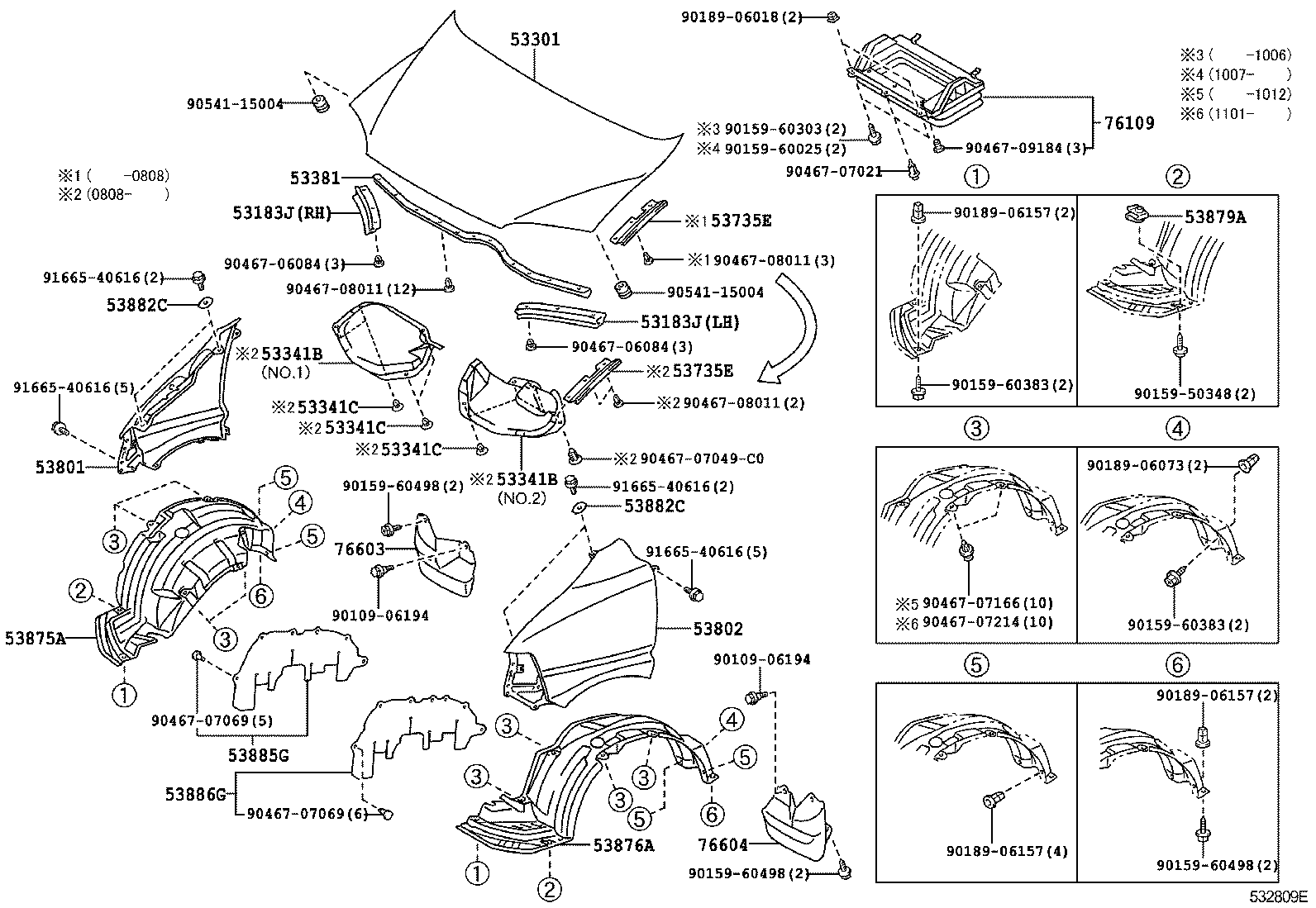

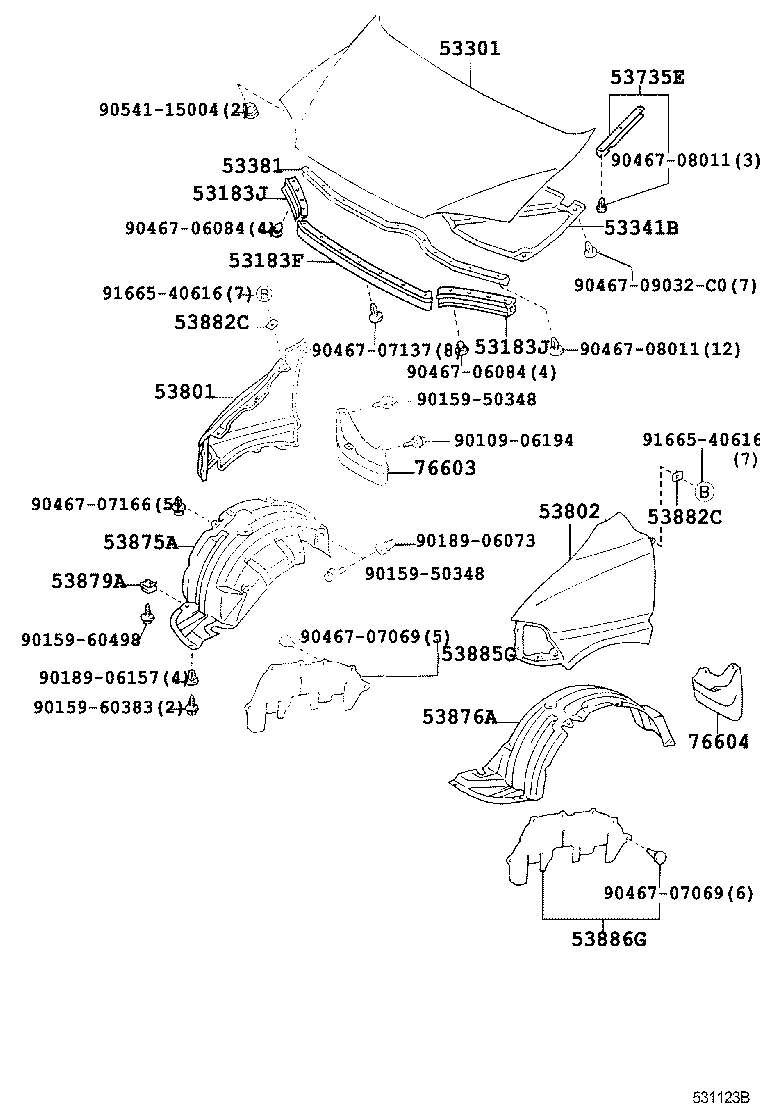

Hood & Front Fender
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183F | Seal, Headlamp Cover TO Hood |
| 53183J | Seal, Headlamp Cover TO Hood |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53735E | Seal, Front Fender Apron, Upper |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882C | Seal, Front Fender Main |
| 53885G | Seal Sub-assy, Fender Apron Mudguard, RH |
| 53886G | Seal, Fender Apron Mudguard, LH |
| 76109 | Guide Sub-assy, Hood Air Intake |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
