Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

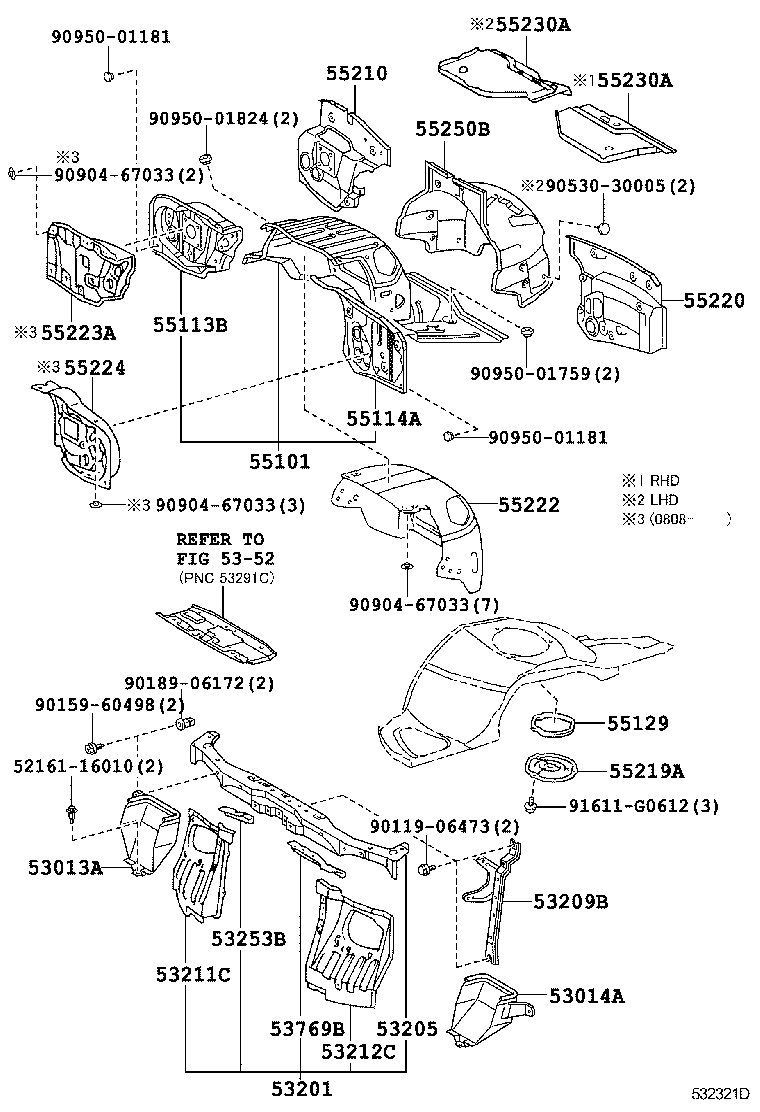

Front Fender Apron & Dash Panel
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53013A | Guide Sub-assy, Front Side Air, RH |
| 53014A | Guide Sub-assy, Front Side Air, LH |
| 53201 | Support Sub-assy, Radiator |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53209B | Brace Sub-assy, Hood Lock Support |
| 53211C | Support, Radiator, RH |
| 53212C | Support, Radiator, LH |
| 53253B | Bracket, Radiator Mounting, Upper |
| 53769B | Bracket, Power Steering Reservoir Tank Mounting |
| 55101 | Panel Sub-assy, Dash |
| 55113B | Panel Sub-assy, Dash Side, RH |
| 55114A | Panel Sub-assy, Dash Side, LH |
| 55129 | Cover, Dash Panel Hole |
| 55210 | Insulator Assy, Dash Panel |
| 55219A | Packing, Dash Panel Hole Cover |
| 55220 | Insulator Assy, Dash Panel, NO.2 |
| 55222 | Insulator, Dash Panel, Outer Center |
| 55223A | Insulator, Dash Panel, Outer |
| 55224 | Insulator, Dash Panel, Outer LH |
| 55230A | Insulator Assy, Dash Panel, NO.4 |
| 55250B | Insulator Assy, Dush Panel, NO.3 |
| 58561E | Silencer, Front Floor, NO.1 |
| 58562C | Silencer, Front Floor, NO.2 |
| 58563Q | Silencer, Front Floor, NO.3 |
| 78183H | Clamp, Accelerator Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
