Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

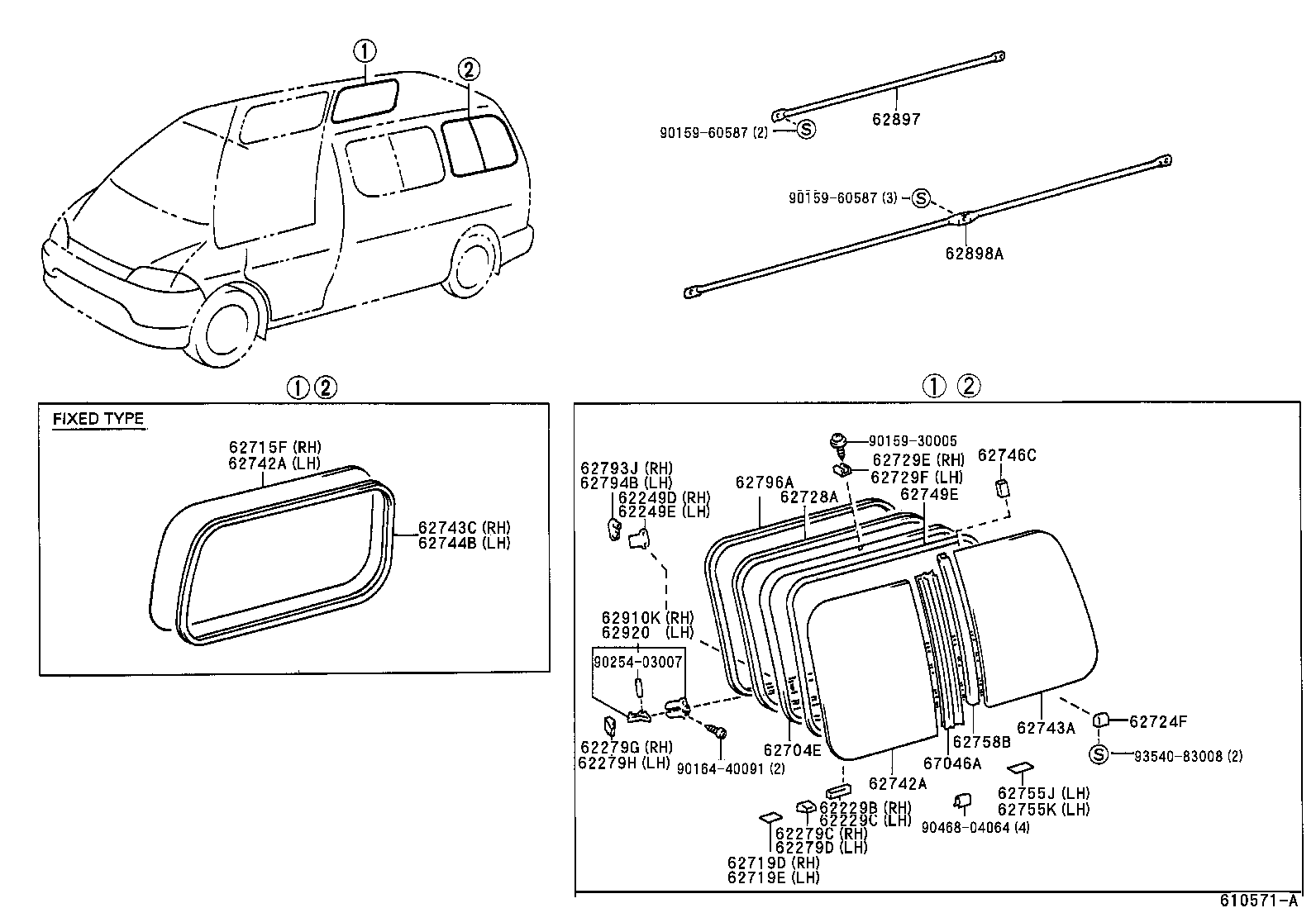

Side Window
76 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62229 | Packing, Side Window |
| 62229A | Packing, Side Window, NO.2 |
| 62229B | Packing, Side Window, NO.3 |
| 62229C | Packing, Side Window |
| 62249 | Plate, Side Window, RH |
| 62249A | Plate, Side Window, LH |
| 62249D | Plate, Side Window |
| 62249E | Plate, Side Window |
| 62279A | Spacer, Side Window Frame |
| 62279B | Spacer, Side Window Frame, LH |
| 62279C | Spacer, Side Window Frame, RH |
| 62279D | Spacer, Side Window Frame, LH |
| 62279E | Spacer, Side Window Frame |
| 62279F | Spacer, Side Window Frame |
| 62279G | Spacer, Side Window Frame |
| 62279H | Spacer, Side Window Frame |
| 62391A | Stopper, Side Window, NO.1 Front RH |
| 62391B | Stopper, Side Window, NO.1 Front LH |
| 62704E | Frame Sub-assy, Side Rear Window, LH |
| 62707A | Frame Sub-assy, Side Front Window, RH |
| 62708F | Frame Sub-assy, Side Front Window, LH |
| 62712E | Glass, Side Front Window, LH |
| 62712K | Glass, Side Window, Front RH |
| 62713K | Glass, Side Window, Rear RH |
| 62715F | Glass, Side Rear Window, RH |
| 62719A | Packing, Side Front Window, Upper |
| 62719C | Packing, Side Front Window |
| 62719D | Packing, Side Front Window |
| 62719E | Packing, Side Front Window |
| 62724C | Stop, Side Front Window Glass, RH |
| 62724D | Stop, Side Front Window Glass, LH |
| 62724F | Stop, Side Rear Window Glass, LH |
| 62725C | Run, Side Front Window Glass |
| 62725D | Run, Side Front Window Glass |
| 62728A | Run, Side Rear Window Glass, LH |
| 62729C | Pad, Rear Window Center Sash, RH |
| 62729D | Pad, Rear Window Center Sash, LH |
| 62729E | Pad, Rear Window Center Sash, RH |
| 62729F | Pad, Rear Window Center Sash, LH |
| 62736 | Glass, Slide Door Window, Rear LH |
| 62741 | Weatherstrip, Quarter Window, RH |
| 62742A | Glass, Side Rear Window, Front LH |
| 62742D | Weatherstrip, Side Front Window, LH |
| 62743A | Glass, Side Rear Window, Rear LH |
| 62743C | Weatherstrip, Side Rear Window |
| 62744B | Weatherstrip, Side Rear Window, LH |
| 62746B | Packing, Quarter Window, RH |
| 62746C | Weatherstrip, Side Window Glass, LH |
| 62746D | Packing, Quarter Window, LH |
| 62749B | Seal, Side Window Frame |
| 62749D | Seal, Side Window Flame |
| 62749E | Seal, Side Window Frame |
| 62755E | Packing, Side Front Window, Lower |
| 62755H | Packing, Side Front Window, Lower |
| 62755J | Packing, Side Front Window, Lower |
| 62755K | Packing, Side Front Window, Lower |
| 62757B | Protector, Side Window Glass, NO.2 |
| 62757C | Protector, Side Window Glass, RH |
| 62758B | Protector, Side Window Glass, LH |
| 62762K | Glass, Side Door Window, Front LH |
| 62793B | Retainer, Side Window Lock, RH |
| 62793C | Retainer, Side Window Lock, LH |
| 62793J | Retainer, Side Window Lock |
| 62794B | Retainer, Side Window Lock |
| 62796A | Moulding, Side Rear Window |
| 62798B | Moulding, Side Window, Front NO.1 RH |
| 62798C | Moulding, Side Window, Front NO.3 LH |
| 62897 | Tube, Side Window Guard |
| 62898A | Tube, Side Window Guard, LH |
| 62910 | Lock Assy, Quarter OR Side Window, RH |
| 62910K | Lock Assy, Quarter Window, RH |
| 62920 | Lock Assy, Quarter Window, LH |
| 62920A | Lock Assy, Side Front Window, LH |
| 67045A | Frame Sub-assy, Side Front Window, Center RH |
| 67046 | Frame Sub-assy, Side Front Window, Center LH |
| 67046A | Frame Sub-assy, Side Front Window, Center LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
