Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01
Inside Trim Board
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 61751A | Retainer, Quarter Trim, RH |

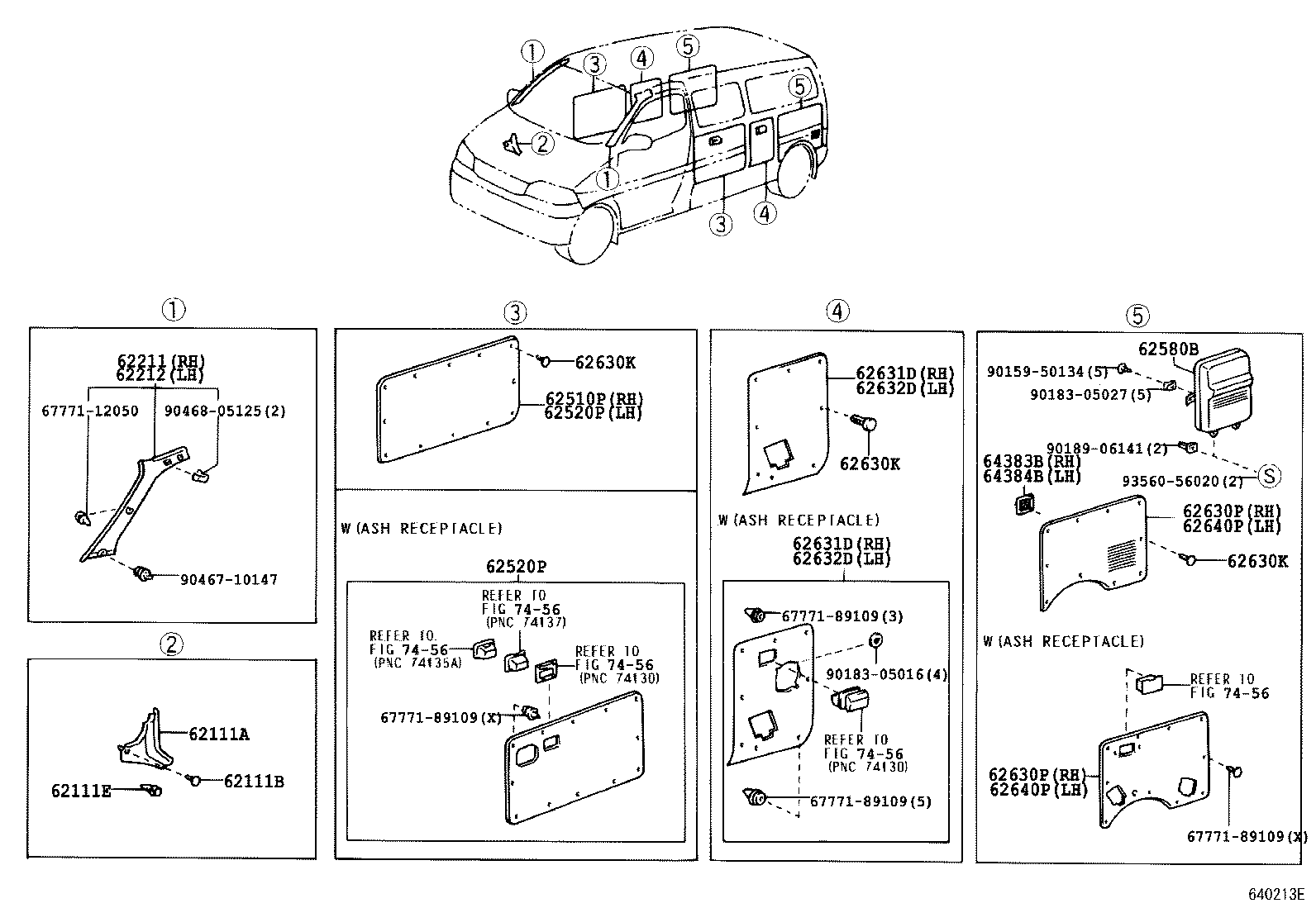

| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111E | Retainer, Cowl Side Trim |

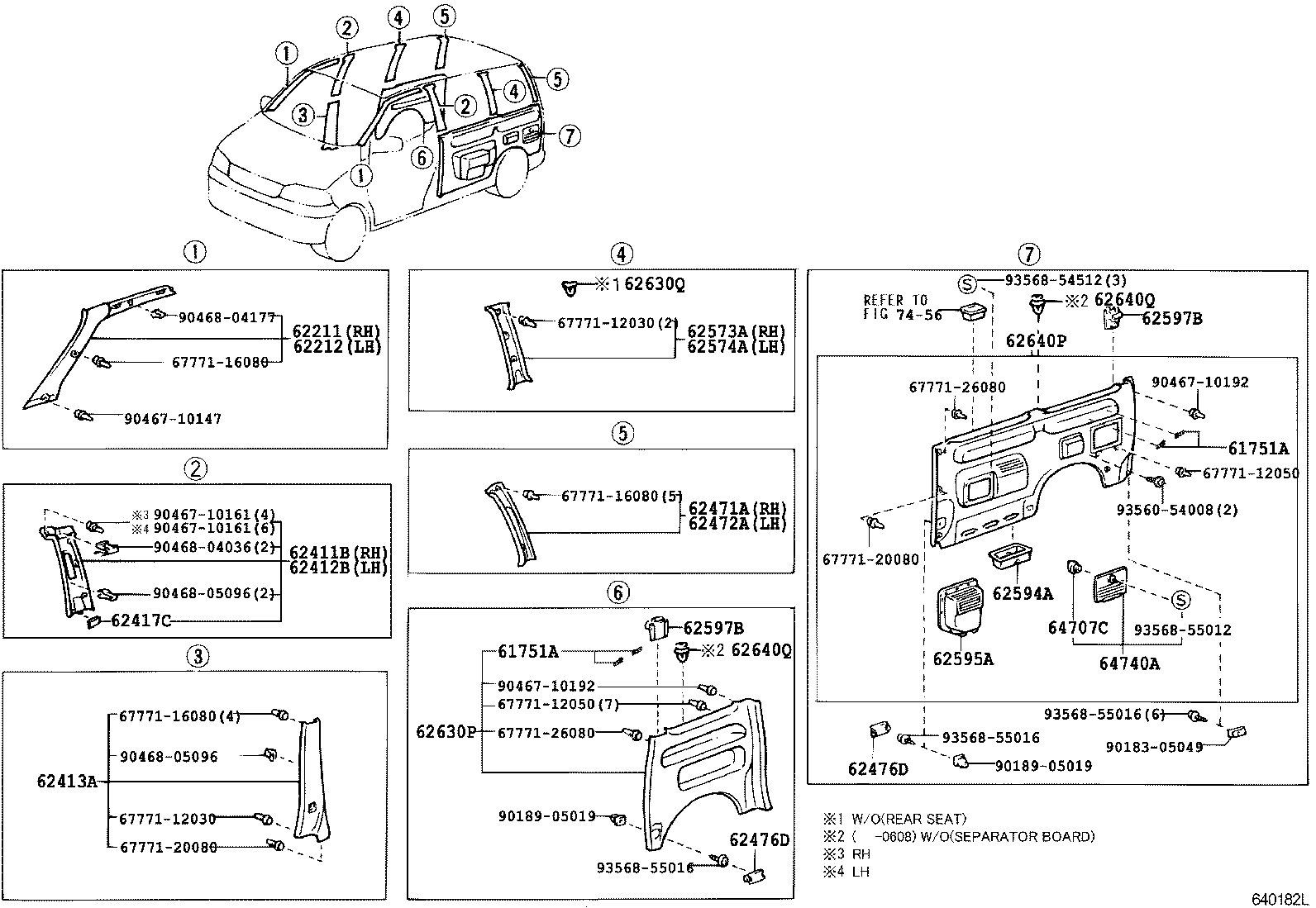

| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62417C | Pad, Center Pillar, RH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471M | Clip |
| 62472A | Garnish, Roof Side, Inner LH |
| 62476D | Cap, Quarter Trim Board |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62573A | Garnish, Quarter Lock Pillar, RH |
| 62574A | Garnish, Quarter Lock Pillar, LH |
| 62580B | Board Assy, Side Heater Cover, RH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62595A | Pocket, Quarter Trim, NO.2 |
| 62597B | Clamp, Quarter Trim |
| 62630K | Clip(FOR QUARTER TRIM REAR PANEL) |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62631D | Board, Quarter Trim, Rear RH |
| 62632D | Board, Quarter Trim, Rear LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62640Q | Clip (FOR QUARTER TRIM REAR PANEL) |

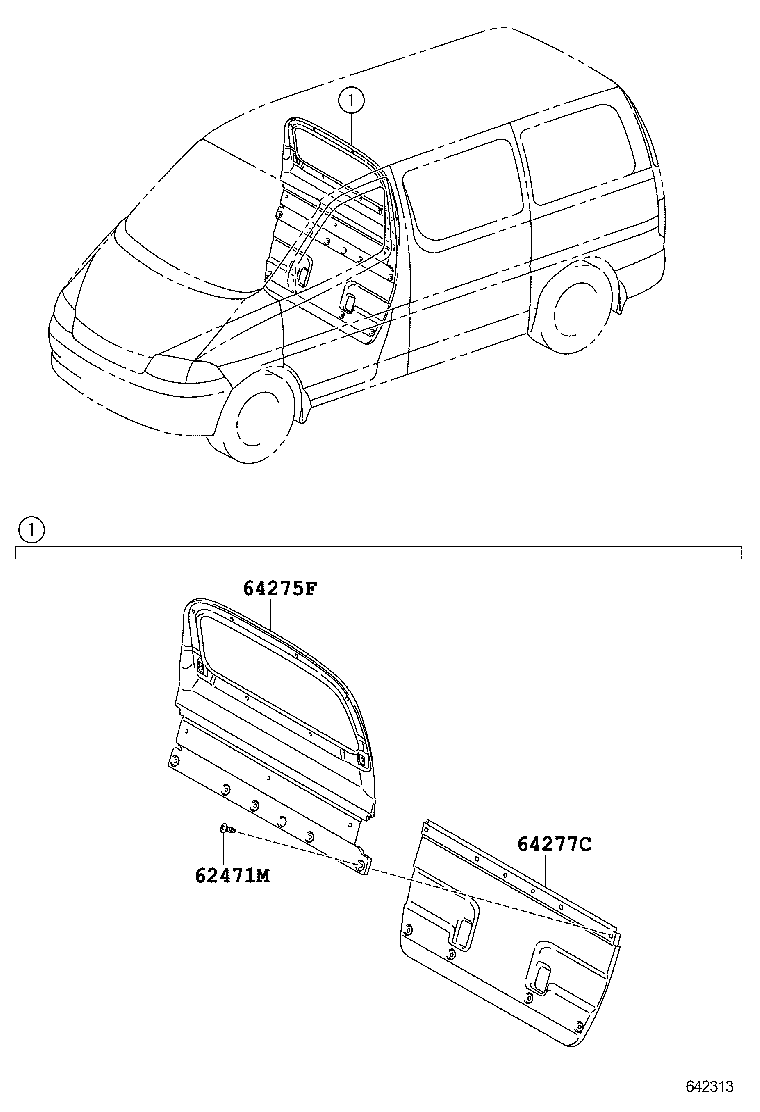

| 64275F | Cover, Back Panel Trim |
| 64277C | Cover, Room Partition, NO.2 |
| 64383B | Grille, Rear Speaker, RH |
| 64384B | Grille, Rear Speaker, LH |
| 64707C | Knob, Jack Cover |
| 64740A | Panel Assy, Deck Trim Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
